SUNDOWN AUDIO

SAEv4-900.5

SAEv4-900.5

5-Channel Car Amplifier, 980W RMS Total, Class A/B+D, Variable Filters, 17.36" Chassis

Free Shipping

$459.99
$459.99 $459.99
Shipping calculated at checkout.
Features
    • 980W RMS total across five channels from one chassis
    • 120W x 4 plus 325W x 1, and 500W x 1 at 1 ohm on channel 5
    • Variable 12dB low and high pass filters from 40 Hz to 5 kHz
    • Variable 12dB subsonic filter from 10 Hz to 40 Hz on channel 5
    • New chassis and heatsink with 33 percent more aluminum
30-Day Money-Back Guarantee
Fast & Free Shipping
Buy Now, Pay Later
    • SAEv4-900.5 5-Channel Car Amplifier

SKU: SAEv.4-900.5

View full details

Product Description

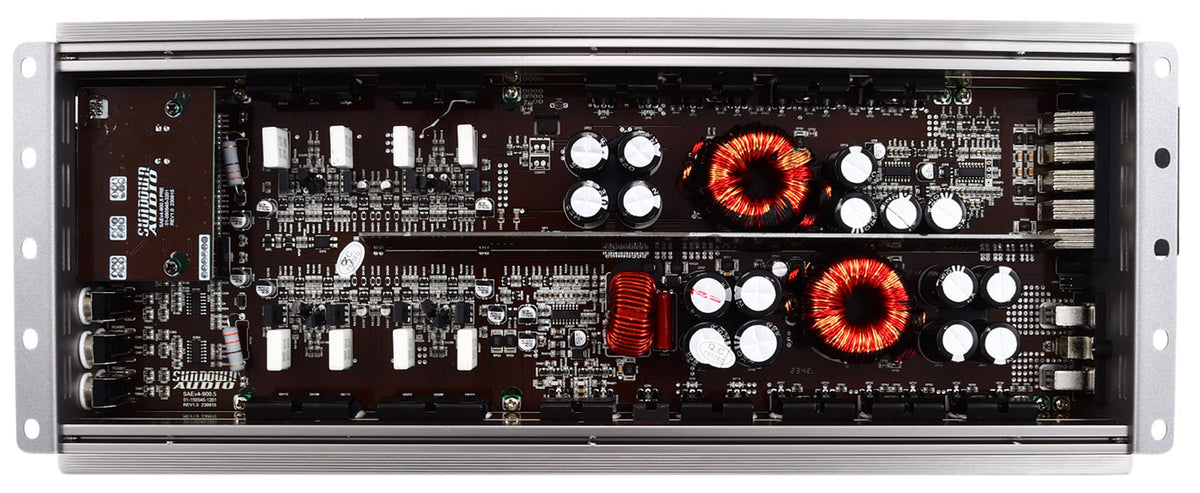

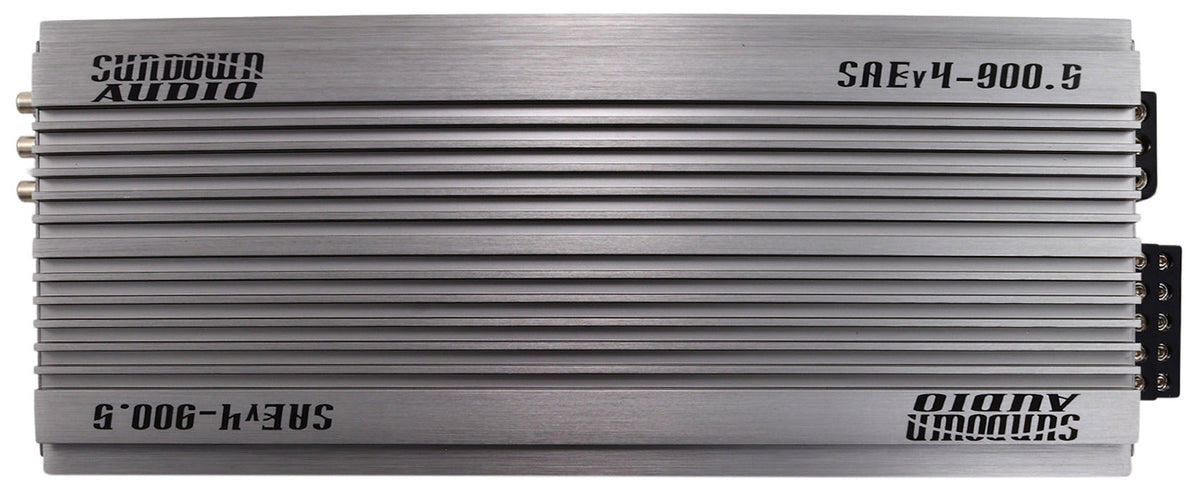

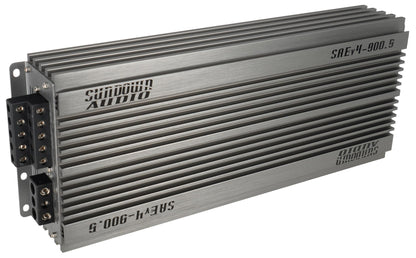

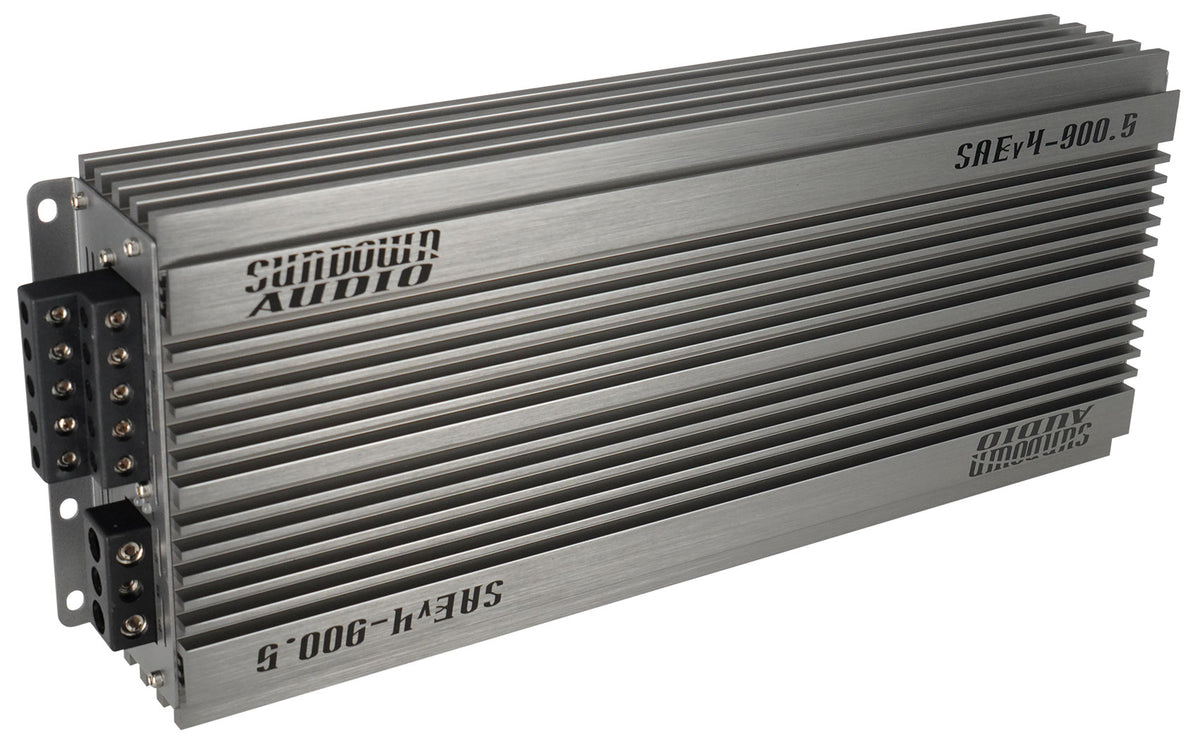

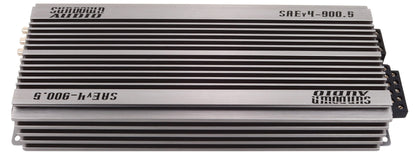

The SAEv4-900.5 runs a complete system from one chassis: four channels for your speakers and a fifth channel for the subwoofer. Total RMS output is 980W, delivered through a high-fidelity Class A/B+D architecture that uses linear amplification on the full-range channels and Class D on the bass channel, using the latest half-bridge design to keep the footprint manageable.

Output is 120W x 4 plus 325W x 1, or 80W x 4 plus 225W x 1 at 2 ohms, with 500W x 1 at 1 ohm on channel 5. That covers a front and rear pair of component or coaxial speakers plus a single subwoofer, which is what most full-system upgrades actually need.

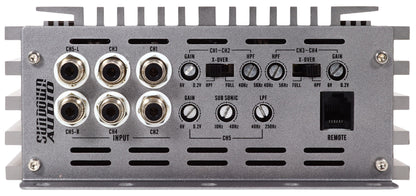

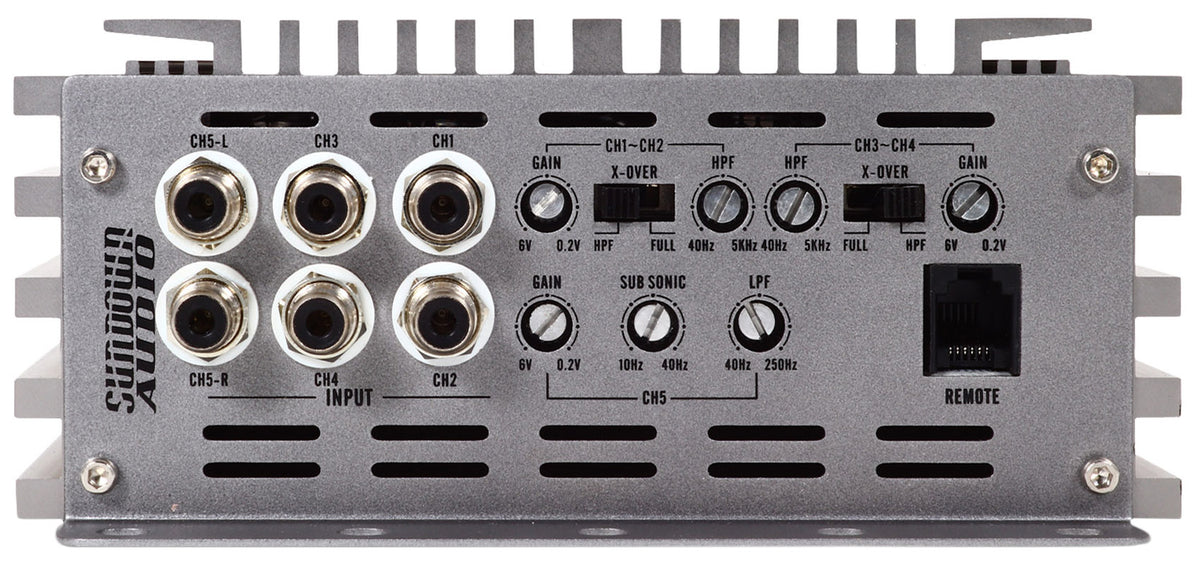

Channels 1 through 4 have variable 12dB low and high pass filters from 40 Hz to 5 kHz, so you can run components up high and let the sub cover the bottom. Channel 5 has a variable 12dB low pass from 40 Hz to 250 Hz and a variable 12dB subsonic filter from 10 Hz to 40 Hz. Input sensitivity reaches 6V max for low noise with a strong source.

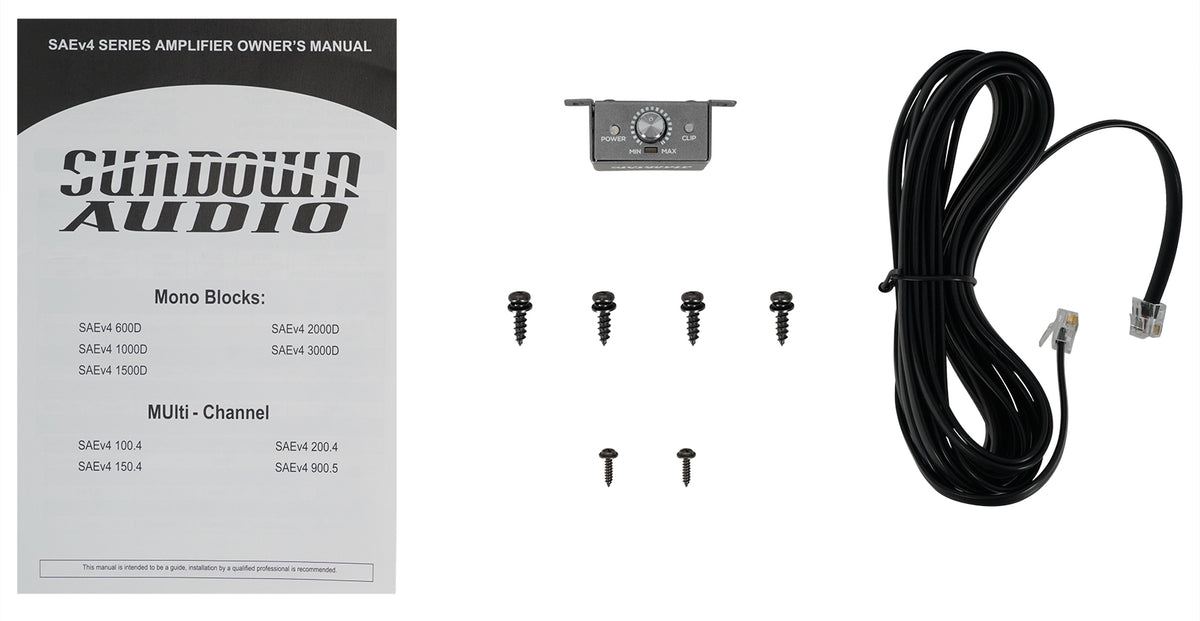

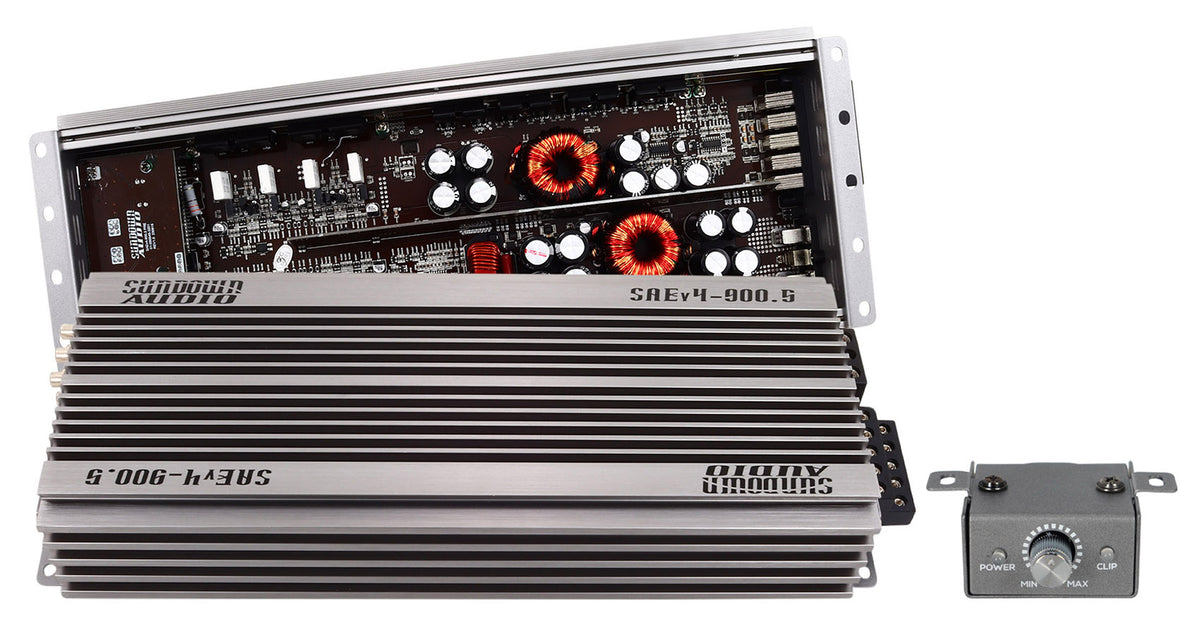

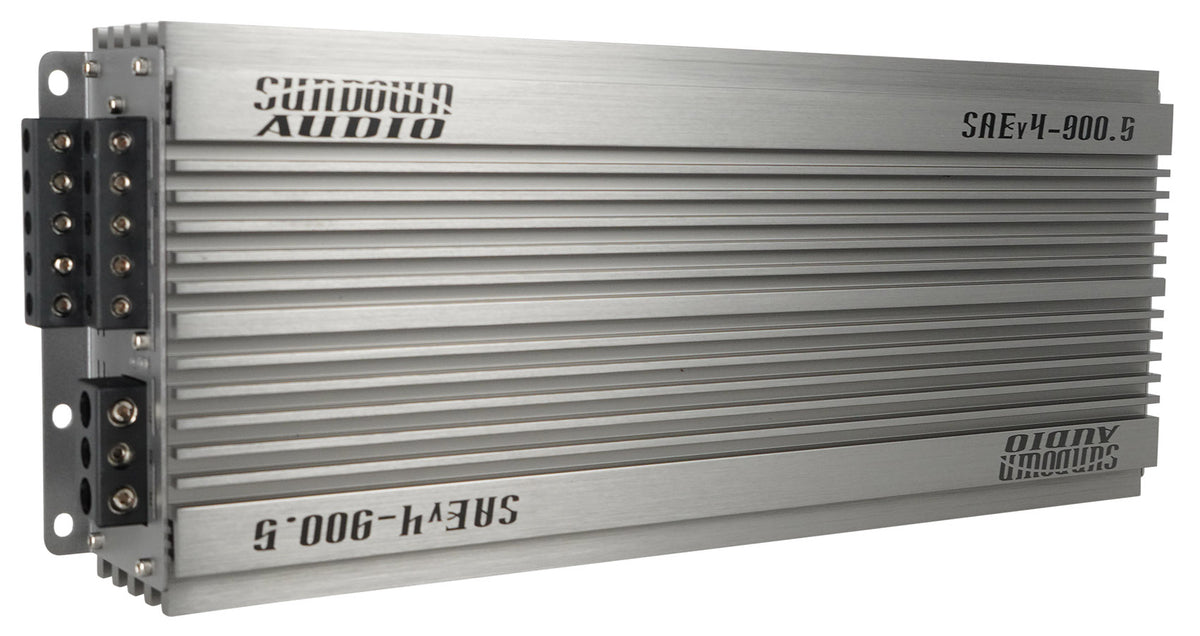

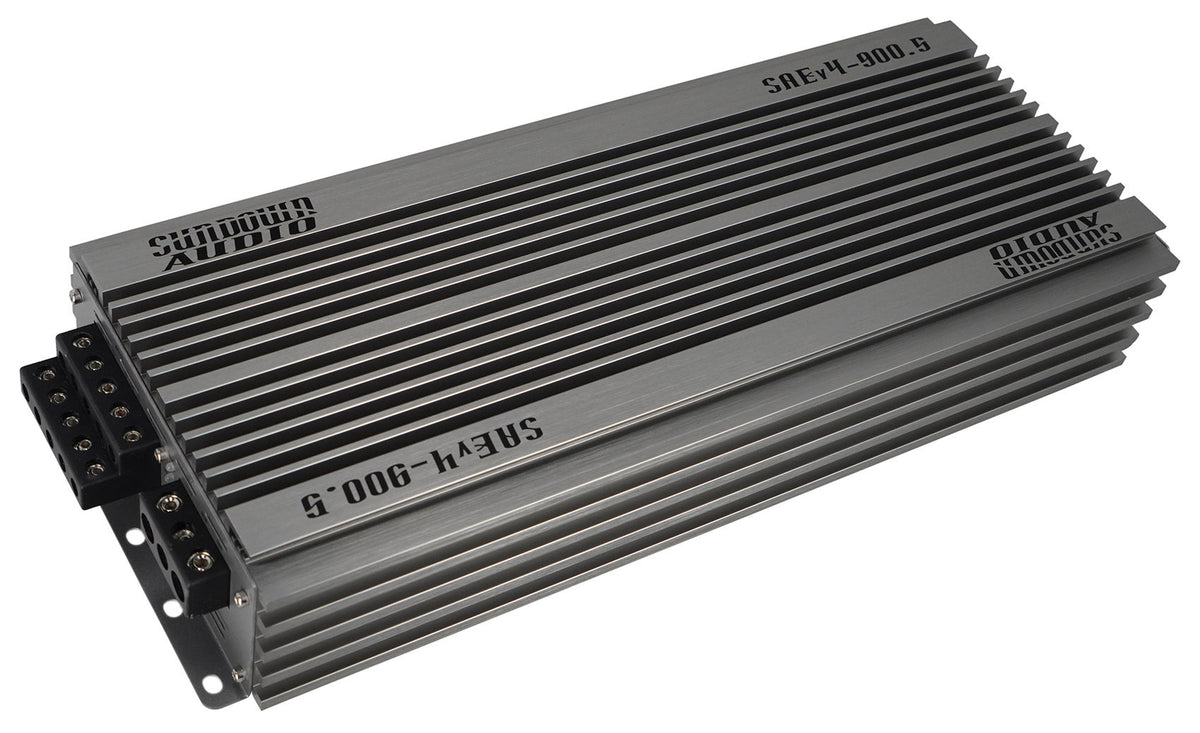

An all-new chassis and heatsink design uses 33 percent more aluminum than the previous version, which keeps temperatures down when the system runs at volume. A four-way protection circuit covers thermal, voltage, speaker short, and DC-offset faults. An optional wired remote with clipping indicator is available for bass level control.

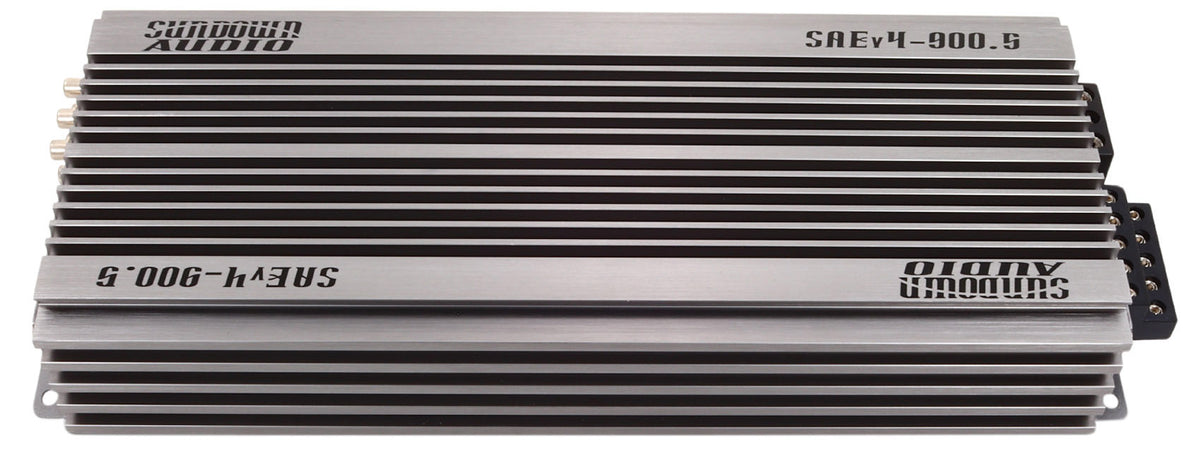

Dimensions are 17.36 by 6.3 by 2.75 inches.

Features

    • One Amp For The Whole System

      Four full-range channels plus a dedicated bass channel mean a single chassis powers your front stage, rear fill, and subwoofer with no second amp.

    • Class A/B For The Speakers

      A high-fidelity Class A/B+D architecture keeps linear amplification on the full-range channels while Class D handles the bass channel efficiently.

    • Crossovers On Every Channel

      Variable 12dB high and low pass filters from 40 Hz to 5 kHz on channels 1-4 let you set each pair of speakers to its own range.

    • Runs Cooler Under Load

      An all-new chassis and heatsink design with 33 percent more aluminum keeps temperatures down when the system plays hard for hours.

    • Four-Way Protection

      Thermal, voltage, speaker short, and DC-offset protection circuitry watches the amp and your speakers, with onboard status indicators.

Technical Specifications

  • Product Type 5-Channel Car Amplifier
  • Amplifier Type 5 Channel Class A/B+D
  • Total RMS Power 980W

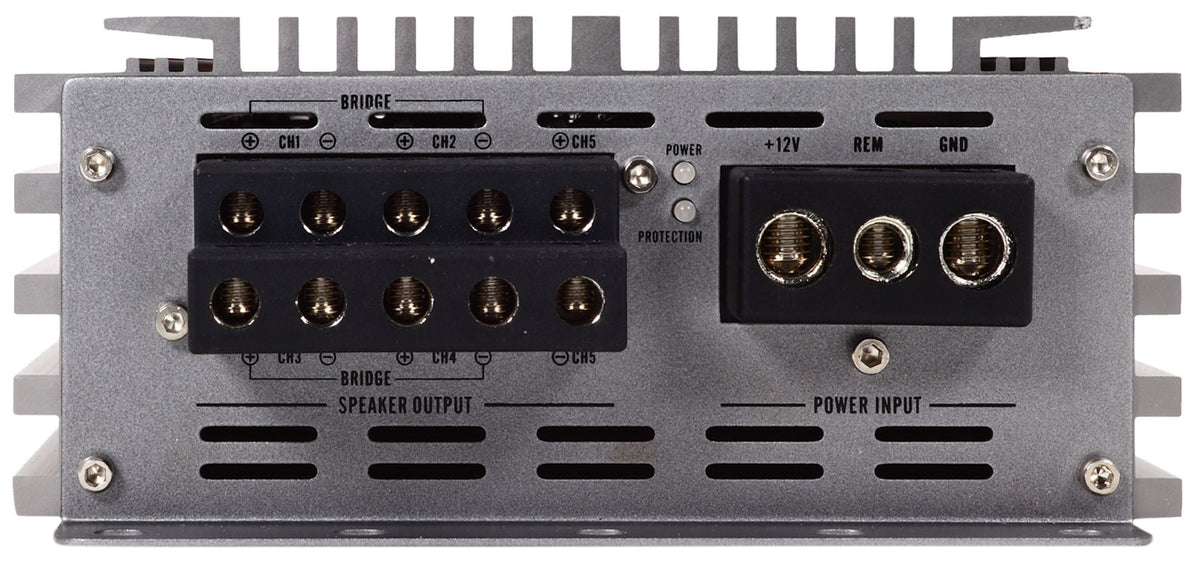

  • 2 Ohm RMS Power 120 x 4 (Ch. 1-4) + 325 x 1 (Ch. 5); 80 x 4 (Ch. 1-4) + 225 x 1 (Ch. 5)
  • 1 Ohm RMS Power 500 x 1 (Ch. 5)
  • Variable 12dB High Pass Filters 40 Hz - 5 kHz (Ch. 1-4)
  • Variable 12dB Low Pass Filters 40 Hz - 5 kHz (Ch. 1-4); 40 Hz - 250 Hz (Ch. 5)
