SUNDOWN AUDIO

SDX-100.6

SDX-100.6

6-Channel Weatherproof Amplifier, 100W RMS Per Channel, Sealed Control Cover, Cast Aluminum

Free Shipping

$299.99
$299.99 $249.95
Shipping calculated at checkout.
Features
    • 100W x 6 at 4 ohms, 150W x 6 at 2 ohms, 300W x 3 bridged
    • Six channels run front, rear, and pod or bar speakers from one amp
    • Water-resistant design with a removable sealed control cover
    • Variable 12dB high and low pass filters with x1/x20 multipliers
    • DC auto-sensing turn on removes the need for a remote wire
30-Day Money-Back Guarantee
Fast & Free Shipping
Buy Now, Pay Later
    • SDX-100.6 6-Channel Weatherproof Car Amplifier

SKU: SDX 100.6

View full details

Product Description

The SDX-100.6 is a water-resistant six-channel Class D amplifier for systems that need more than four speaker channels. Output is 100W x 6 at 4 ohms, 150W x 6 at 2 ohms, and 300W x 3 at 4 ohms bridged, in a 12.25 by 7 by 2.125-inch chassis.

Six channels change what you can build. Run front and rear speakers plus a pair of pods or a bar, or run three bridged pairs, all from one amplifier and one power feed. That is a straightforward answer to a side-by-side with a full speaker layout or a boat with multiple zones.

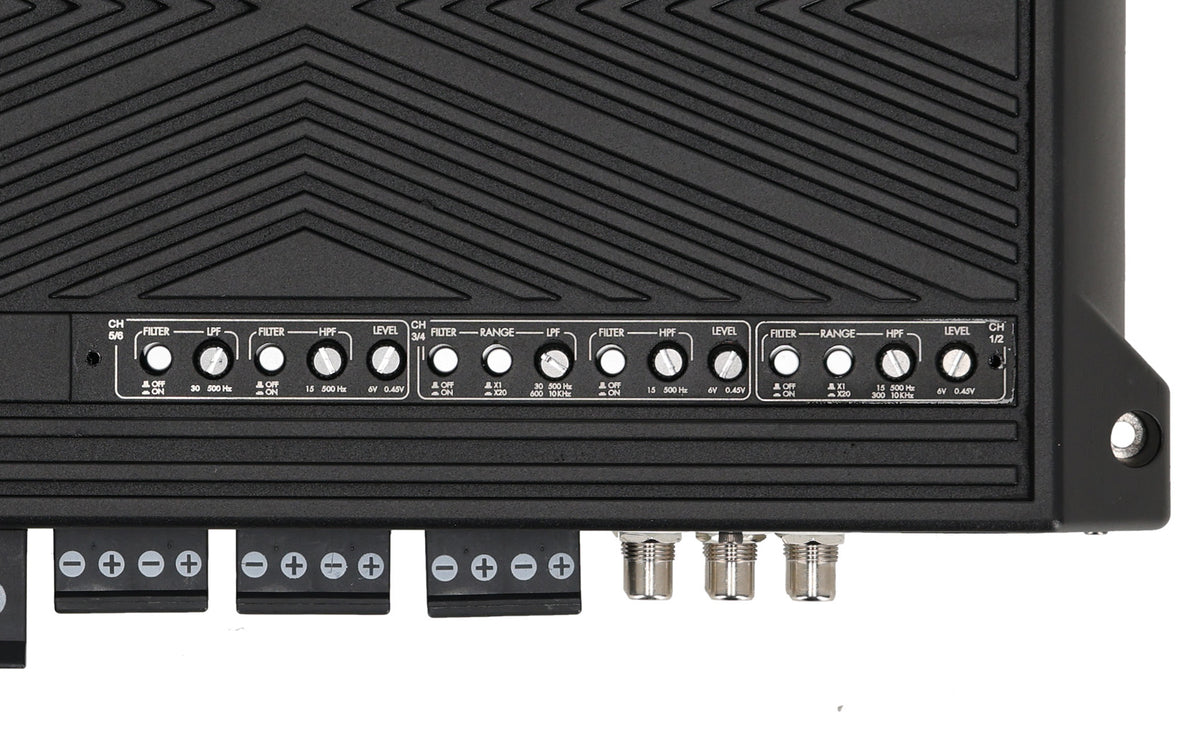

The weather protection is structural. A heavy cast aluminum casing sheds heat and shields the electronics, and the audio controls sit under a sealed, removable cover that keeps water, dust, and mud out of the pots. Unscrew the badge with an allen key when it is time to adjust.

Crossovers are extensive: variable 12dB high pass filters covering 15 Hz to 500 Hz or 300 Hz to 10 kHz on channels 1-2 and 15 Hz to 500 Hz on channels 3-4, plus variable 12dB low pass filters at 15 Hz to 500 Hz or 300 Hz to 10 kHz on channels 1-2, 30 Hz to 500 Hz or 600 Hz to 10 kHz on channels 3-4, and 30 Hz to 500 Hz on channels 5-6, with x1/x20 multipliers.

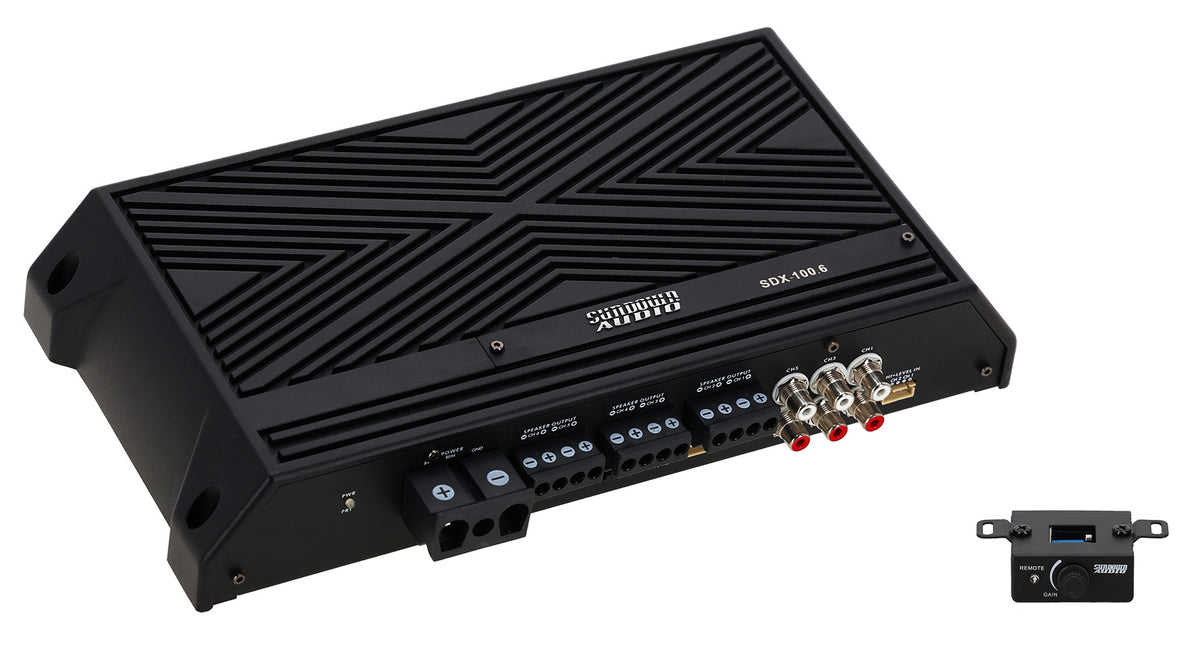

DC auto-sensing turn on skips the remote wire. Protection circuitry covers thermal, voltage, speaker short, and DC-offset faults. An 80A fuse is recommended, and an optional wired remote is available.

Features

    • Six Channels, One Chassis

      Run front and rear speakers plus a pair of pods or a sound bar from a single amplifier and a single power feed, saving space and wiring.

    • Built For Open-Air Vehicles

      Water-resistant construction and a sealed control cover keep rain, dust, and mud out of the adjustment pots on UTVs, boats, and open Jeeps.

    • Crossovers On Every Pair

      Variable high and low pass filters with x1/x20 multipliers let each channel pair cover its own range, from midbass up to 10 kHz.

    • Heat Handled By The Chassis

      A heavy cast aluminum heat sink pulls heat out of the amplifier, so long sessions in direct sun do not end in thermal shutdown.

    • Simpler Wiring

      DC auto-sensing turn on means no remote turn-on lead to run, one less wire to route through a powersports or marine install.

Technical Specifications

  • Product Type 6-Channel Weatherproof Car Amplifier
  • Amplifier Type 6 Channel Weatherproof Class D
  • 4 Ohm RMS Power 100 x 6; 300 x 3 Bridged
  • 2 Ohm RMS Power 150 x 6
  • Variable 12dB High Pass Filters 15 Hz - 500 Hz or 300 Hz - 10 kHz (Ch. 1-2); 15 Hz - 500 Hz (Ch. 3-4)
  • Variable 12dB Low Pass Filters 15 Hz - 500 Hz or 300 Hz - 10 kHz (Ch. 1-2); 30 Hz - 500 Hz or 600 Hz - 10 kHz (Ch. 3-4); 30 Hz - 500 Hz (Ch. 5-6)
  • Crossover Multipliers x1/x20
