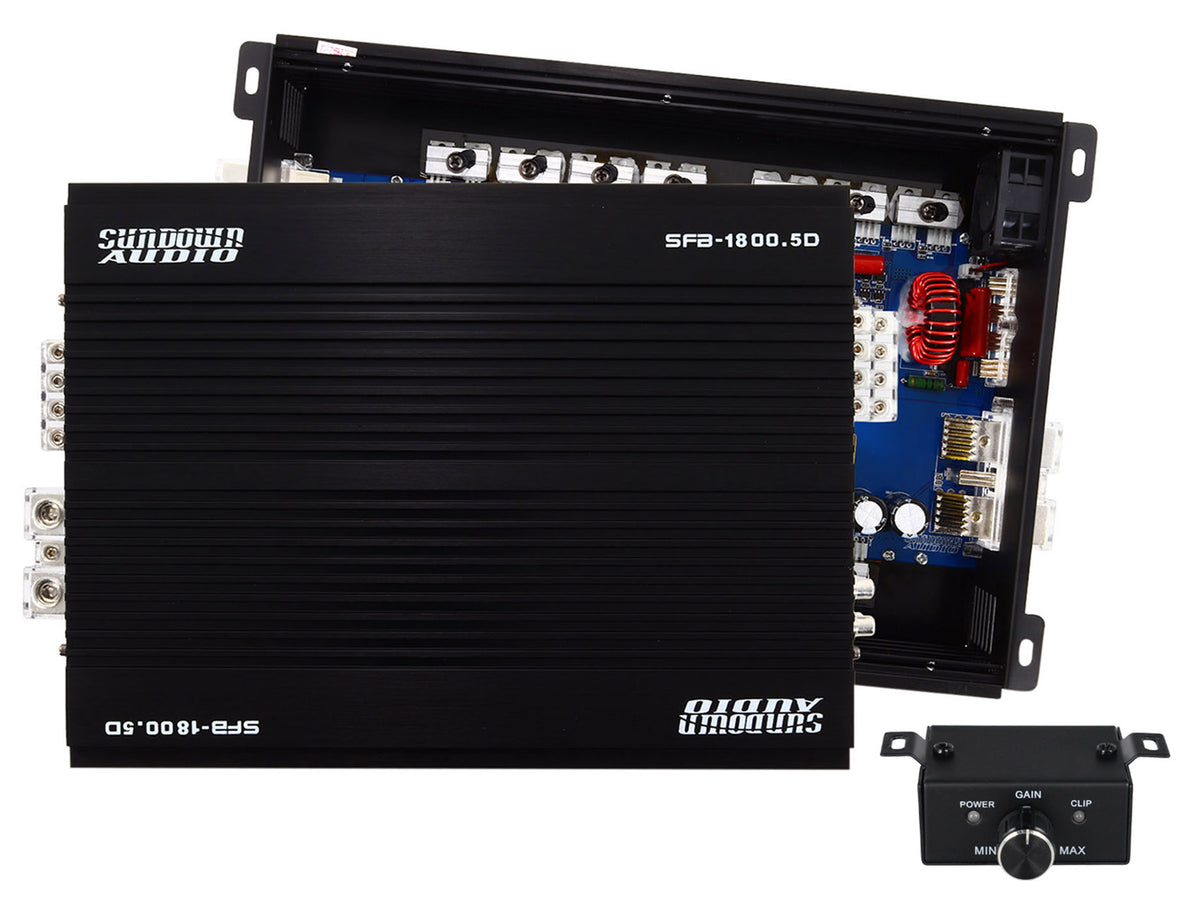

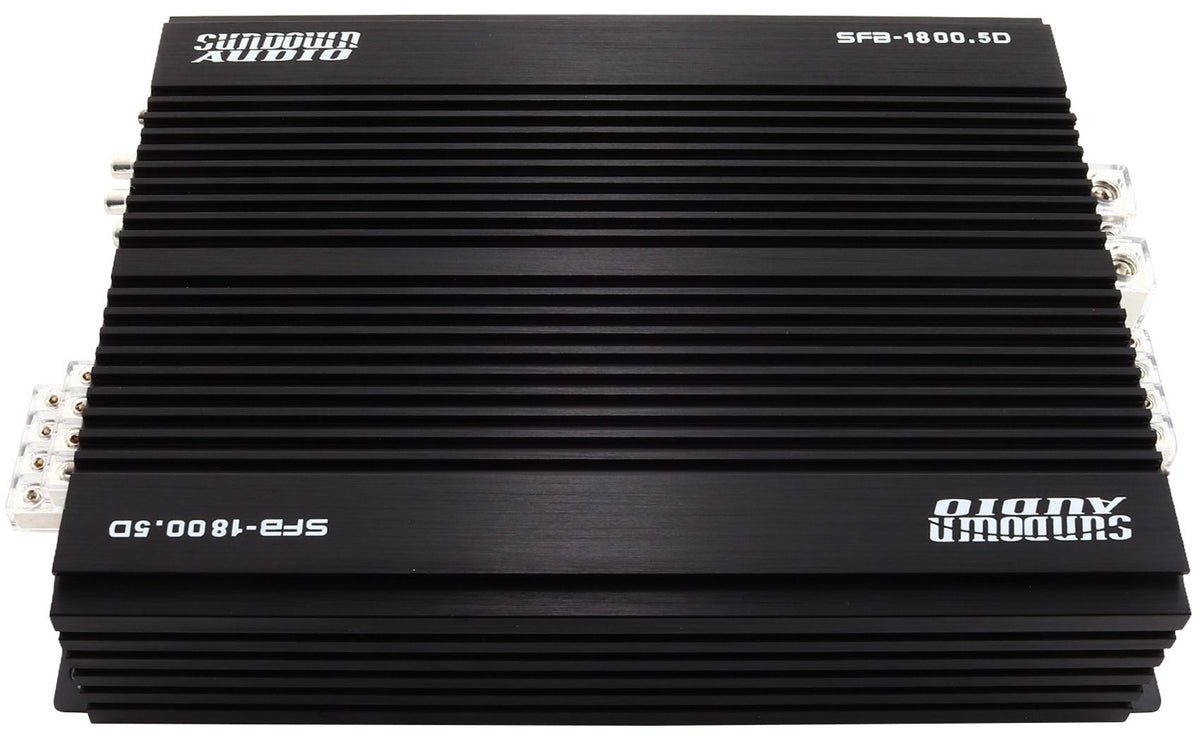

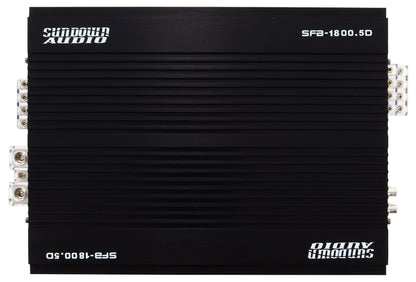

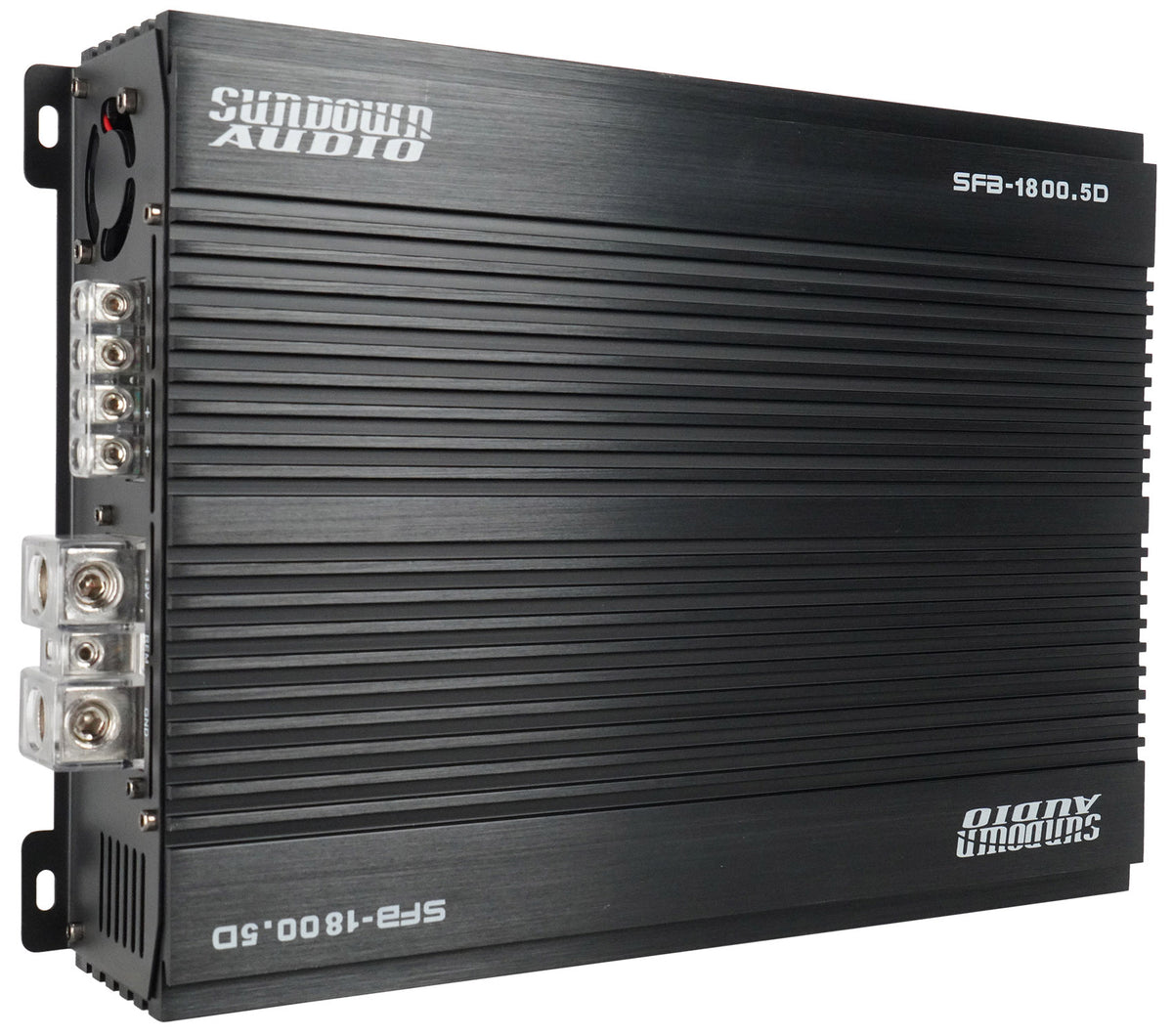

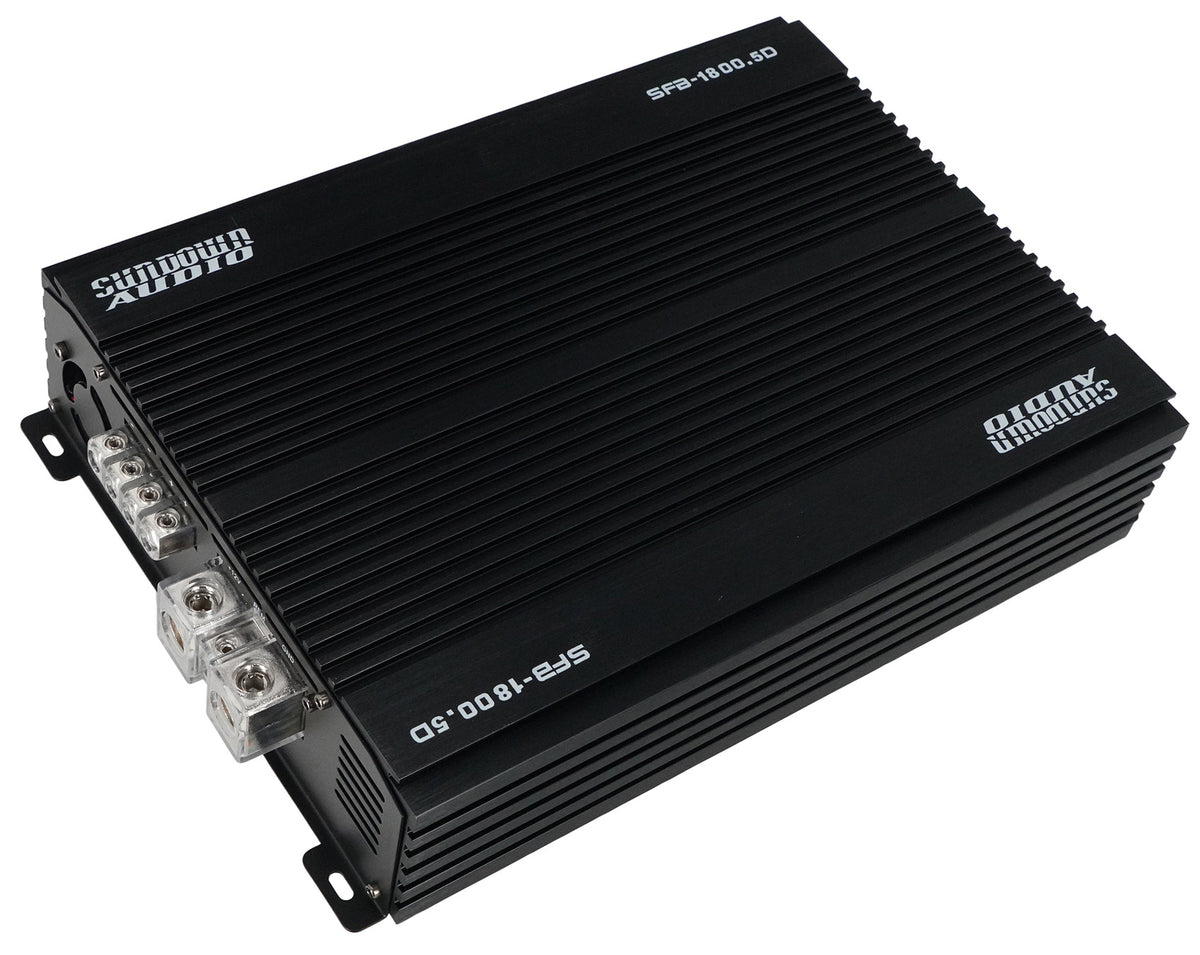

SFB-1800.5

SFB-1800.5

5-Channel Full-Range Amplifier, 300W x 4 Plus 1000W Bass Channel, 12dB Filters

Free Shipping

$499.99
$499.99 $599.99
Save 16%
Shipping calculated at checkout.
Features
    • 1000W x 1 at 1 ohm on the dedicated bass channel
    • 300W x 4 plus 500W x 1 at 2 ohms across five channels
    • Every channel is full range and handles low impedance loads
    • Separate 12dB high and low pass filters for channels 1-4 and 5
    • Frequency response of 10 Hz to 20 kHz with 100 dB signal to noise
30-Day Money-Back Guarantee
Fast & Free Shipping
Buy Now, Pay Later
    • SFB-1800.5 5-Channel Full-Range Car Amplifier

SKU: SFB-1800.5

View full details

Product Description

The SFB-1800.5 runs an entire system from one chassis, and it does not treat the speaker channels as an afterthought. Output is 300W x 4 on channels 1-4 plus 500W x 1 on channel 5 at 2 ohms, 200W x 4 plus 250W x 1 at 4 ohms, and 1000W x 1 at 1 ohm on the bass channel.

SFB stands for Sundown Full Bridge, the Brazilian-style design that fits high power into a compact chassis. Because every channel is full range and handles low impedance, you can wire several speakers per channel. That opens up builds a normal five-channel cannot handle: a P.A. mid and high speaker array, a large marine system with multiple zones, or a set of separates plus a dedicated subwoofer channel.

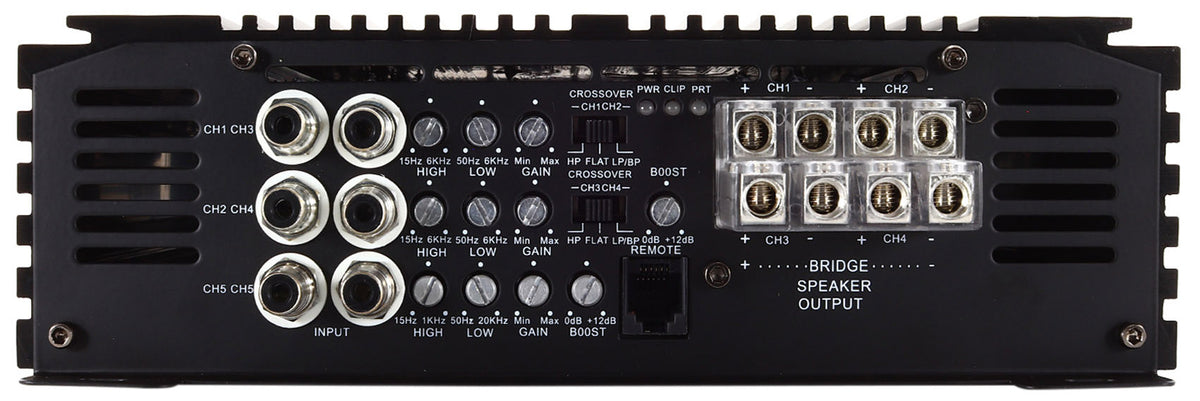

Filtering is separate for the two sections. Channels 1-4 have a variable 12dB low pass from 50 Hz to 6 kHz and a variable 12dB high pass from 15 Hz to 6 kHz. Channel 5 has a variable 12dB low pass from 50 Hz to 20 kHz and a variable 12dB high pass from 50 Hz to 1 kHz. Variable 12dB bass boost at 50 Hz is on board.

Frequency response runs 10 Hz to 20 kHz at -3 dB, input impedance is 56k ohms, input sensitivity is 5V max, and signal to noise ratio is 100 dB. Protection circuitry covers thermal, voltage, speaker short, and DC-offset faults, with power, protection, and clipping indicators.

A 150A fuse is recommended. Dimensions are 11.81 by 8.86 by 2.70 inches.

Features

    • One Amp For The Whole System

      Four full-range channels plus a 1000W bass channel mean a single chassis powers your speakers and subwoofer with one power and ground run.

    • Wire Multiple Speakers Per Channel

      Low-impedance stability on every channel lets you parallel speakers, which is how P.A. arrays and multi-zone marine systems get built.

    • Filters For Each Section

      Channels 1-4 sweep 15 Hz to 6 kHz while channel 5 covers 50 Hz to 20 kHz, so speakers and subs get independent crossover settings.

    • Wide, Quiet Bandwidth

      Response from 10 Hz to 20 kHz at -3 dB and a 100 dB signal to noise ratio keep the full range clean from deep bass to treble.

    • Compact For The Output

      An 11.81-inch chassis carries a five-channel system, so a full build fits under a seat or on a modest amp rack.

Technical Specifications

  • Product Type 5-Channel Full-Range Car Amplifier
  • Amplifier Type 5-Channel Full-Range
  • 1 Ohm RMS Power 1,000 x 1 (Ch. 5)
  • 2 Ohm RMS Power 300 x 4 (Ch. 1-4) + 500 x 1 (Ch. 5)
  • 4 Ohm RMS Power 200 x 4 (Ch. 1-4) + 250 x 1 (Ch. 5)
  • Variable 12dB Low Pass Filters 50 Hz - 6 kHz (Ch. 1-4); 50 Hz - 20 kHz (Ch. 5)
  • Variable 12dB High Pass Filters 15 Hz - 6 kHz (Ch. 1-4); 50 Hz - 1 kHz (Ch. 5)
