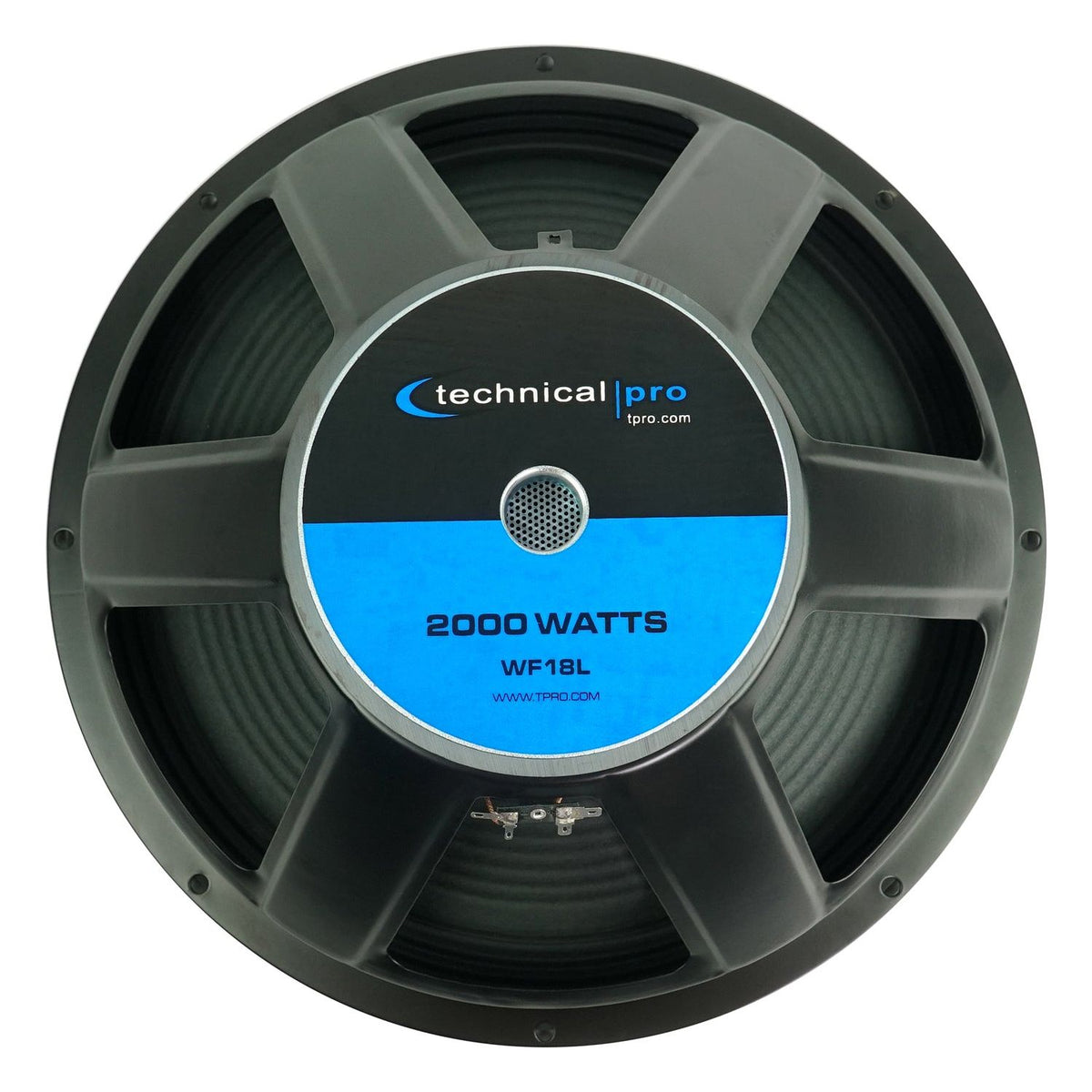

WF18L
WF18L

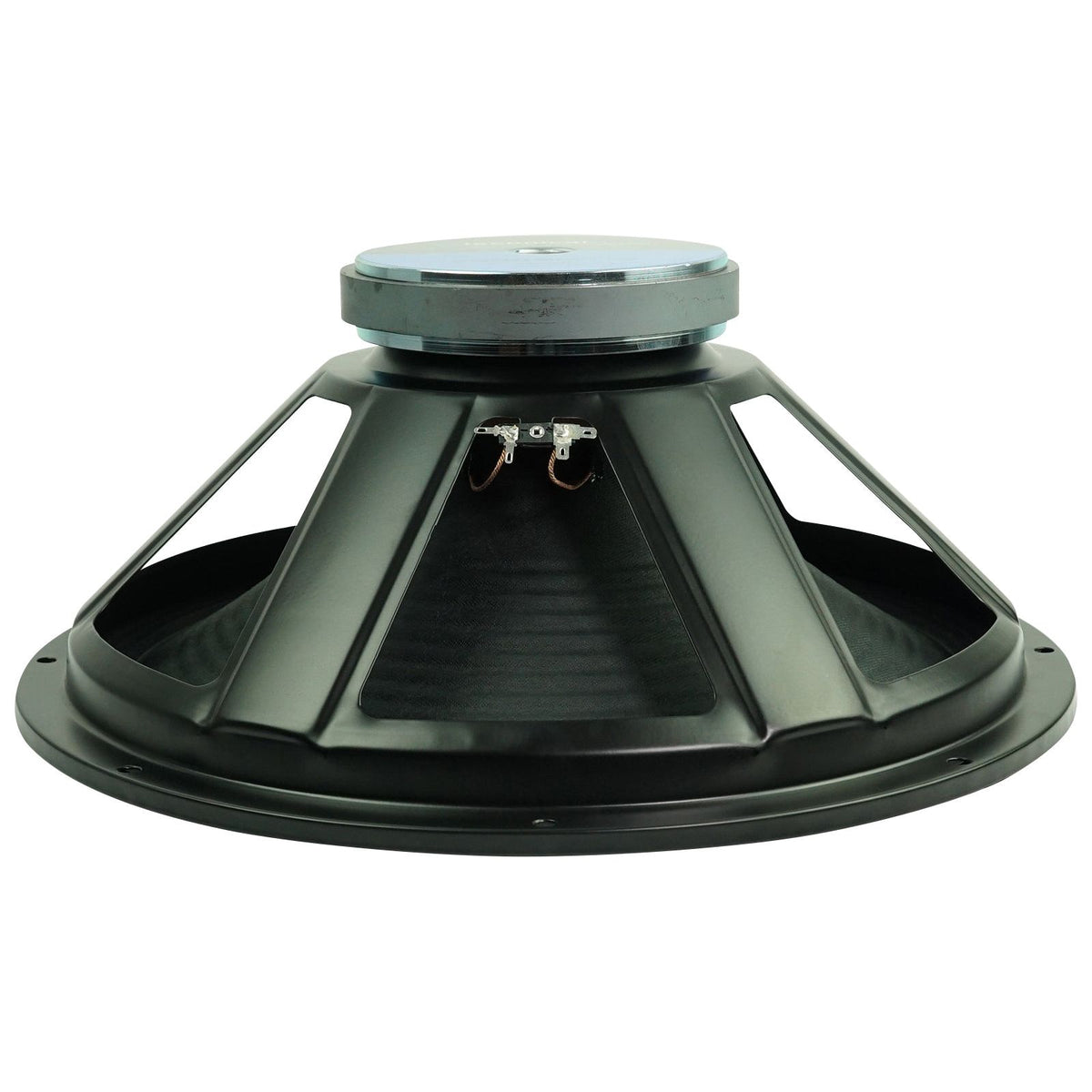

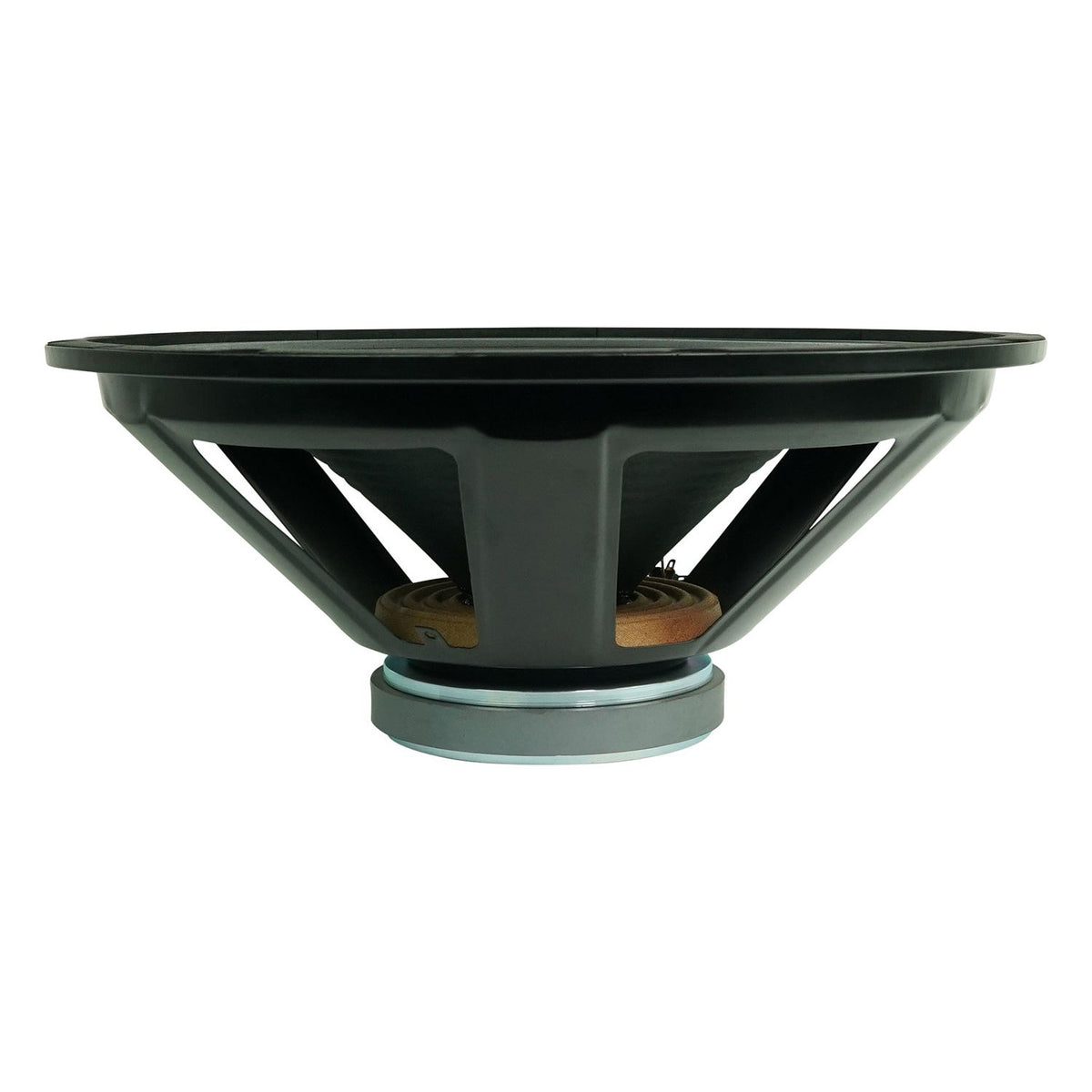

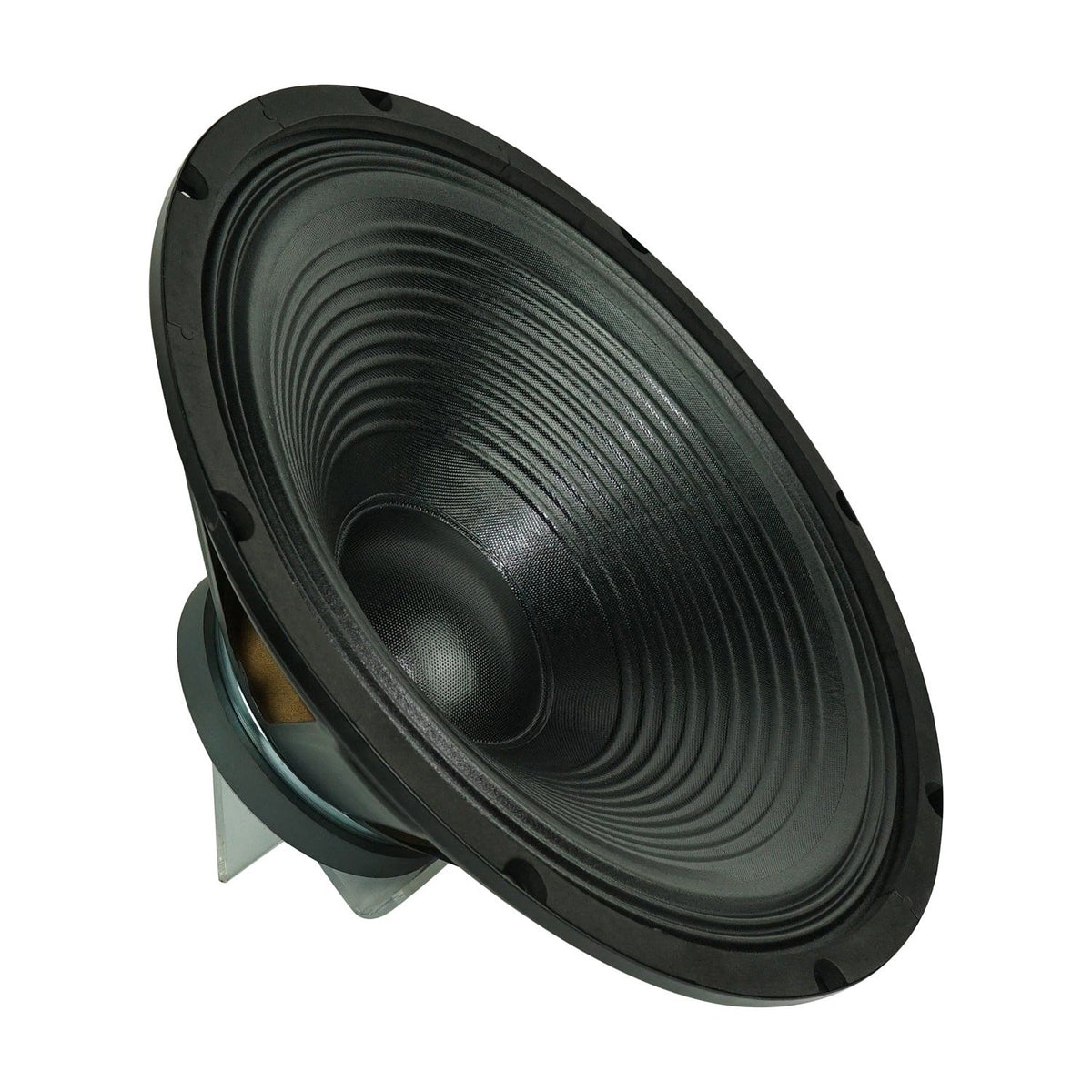

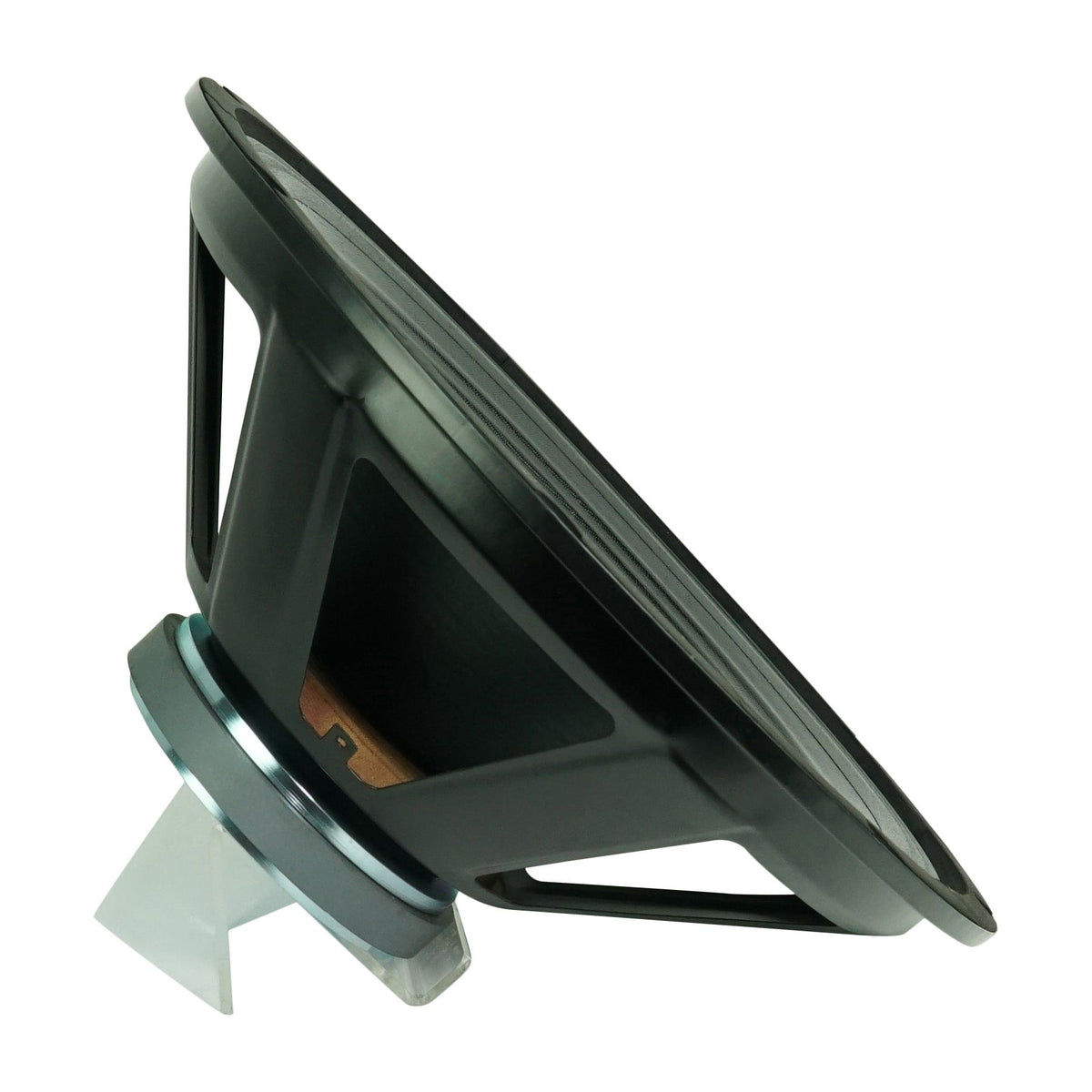

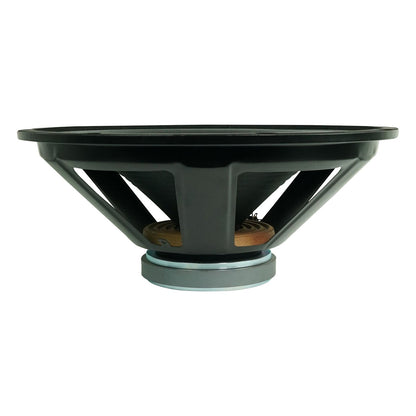

18" Raw Subwoofer, 2000W Peak, 3" Voice Coil, 80 Oz. Magnet, Push Button Bare Wire Terminals
Free Shipping
Features
- 2000W peak power handling from an 18" driver at 8 ohms
- 3" ASV voice coil and 80 oz. magnet for sustained low frequency output
- Frequency response of 30Hz-2kHz with 99 dB sensitivity
- Push button bare wire terminals connect without soldering
- Weighs 11.5 lb, keeping finished cabinet weight manageable
Couldn't load pickup availability
What's Included in the box
- Technical Pro WF18L 18" Raw Subwoofer
SKU: SKU: WF18L
View full details







Product Description
At 11.5 lb the basket is light for an 18" driver, which keeps total cabinet weight manageable when you are the one carrying it up stairs. Push button bare wire terminals connect without soldering or crimping, so a rewire in a garage takes minutes and a driver swap between sets is realistic.
The 18.5" L x 7.9" W x 18.5" H footprint suits standard 18" cabinet cutouts, making it a simple fit for DIY folded horn, bass reflex, and sealed designs. Use it in a mobile DJ sub, a band stage rig, a home theater build, a practice space, or a car audio enclosure where one large driver does the work of a pair of smaller ones.
Because it ships as a raw driver, you control enclosure volume, port tuning, and amplifier pairing instead of accepting someone else's compromise. That counts most when the room is unusual, the space for a box is fixed, or the target response is specific.
Match it with an amplifier rated near its peak handling, and keep the 8 ohm load in mind when wiring multiple drivers in series or parallel.
Features
-
Low End For A Custom Build

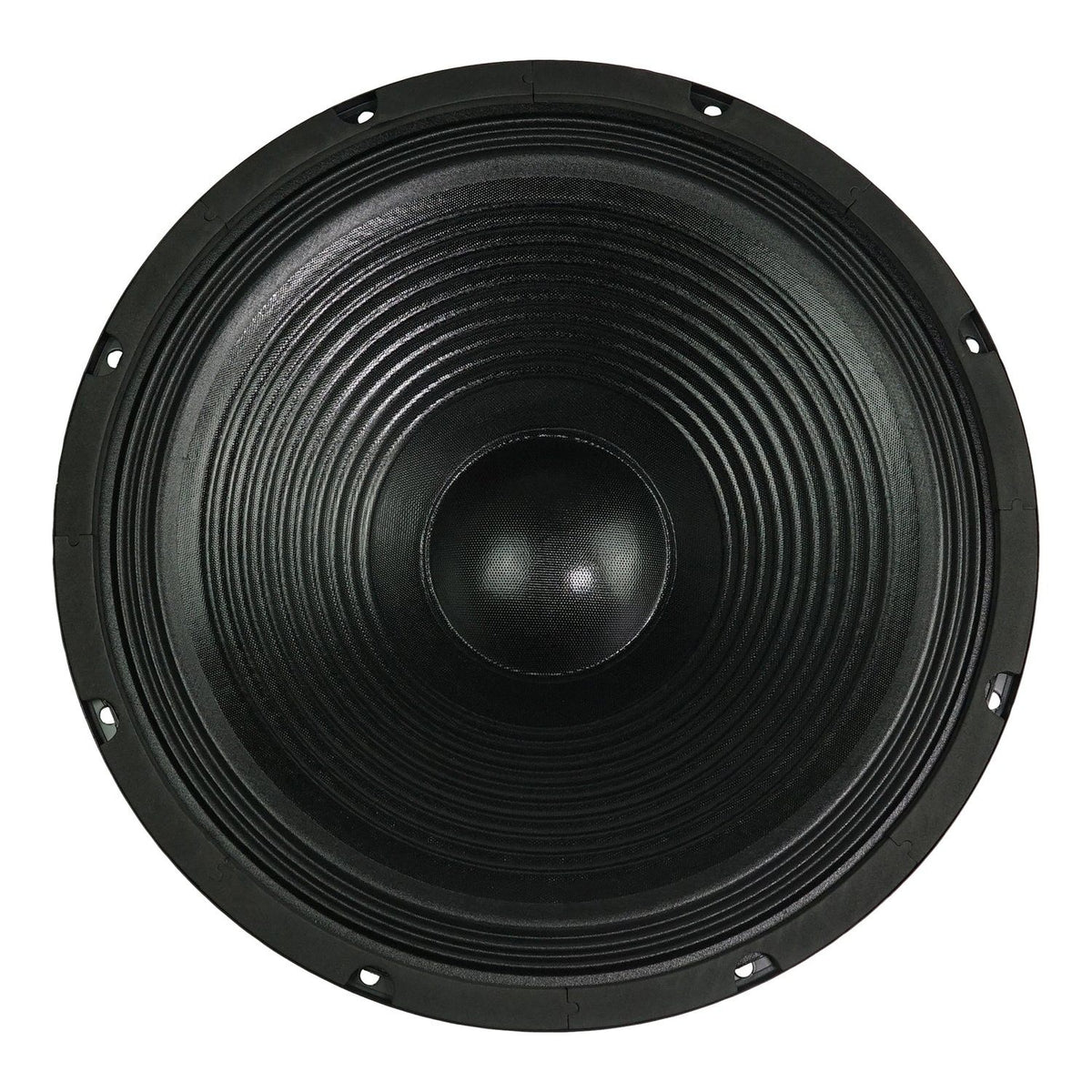

An 18" cone with 2000W peak handling and response down to 30Hz gives DIY cabinets depth that smaller drivers cannot reach at volume.
-
Coil And Magnet That Hold Up
A 3" ASV voice coil paired with an 80 oz. magnet keeps output steady through long sets instead of compressing as the driver heats.
-
Wiring Without Tools

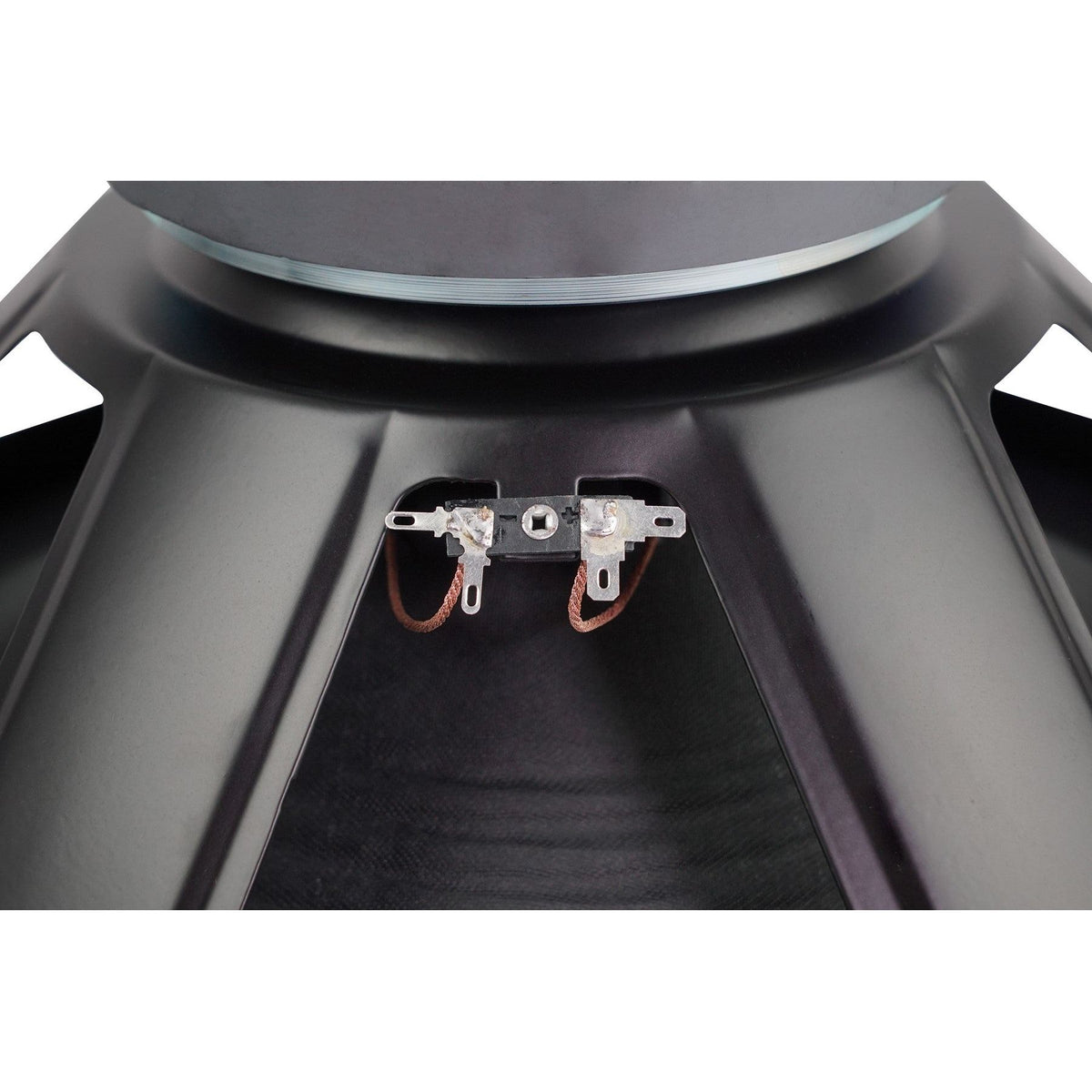

Push button bare wire terminals accept speaker cable directly, so a rebuild or a replacement swap happens without a soldering iron or crimp connectors.
-
Light For Its Size
At 11.5 lb the driver keeps a finished 18" cabinet light enough for one person to move, which counts on stairs and stage ramps.
-
Design The Box Your Way
As a raw 8 ohm driver it fits sealed, ported, and folded horn designs, letting you tune enclosure volume and amplifier pairing yourself.
Technical Specifications
- Product Type Raw Subwoofer
- Diameter 18"
- Peak Power 2000W
- Frequency Response 30Hz-2kHz
- Sensitivity 99 plus or minus 2dB
- Impedance 8 ohms
- Voice Coil 3" ASV
- Magnet 80 oz.
- Terminals Push button bare wire
- Weight 11.5 lb
- Dimensions 18.5" L x 7.9" W x 18.5" H
