TN12-04 Subwoofer, RS12 Sealed Enclosure, K1 Installation Kit

Name: TN12-04 Subwoofer, RS12 Sealed Enclosure, K1 Installation Kit
Brand: MTX
SKU: TN12-04+RS12+K1
Price: 127.90 USD
Availability: InStock

12-Inch Car Subwoofer, 400 W Peak, 0.75 cu ft Net Enclosure, Sealed MDF Box, Installation Kit

Free Shipping

$127.90

$127.90 ~~$234.93~~

Save 45%

Shipping calculated at checkout.

Features

12-inch subwoofer rated for 200 W RMS and 400 W peak
4-ohm impedance with a 100 to 200 W RMS amp recommendation
Sealed 3/4-inch MDF enclosure with 0.75 cu ft net volume
12 ft of 14 AWG blue speaker wire and two spade terminals
Ten metal drywall screws for fastening the subwoofer into the enclosure

30-Day Money-Back Guarantee

Fast & Free Shipping

Buy Now, Pay Later

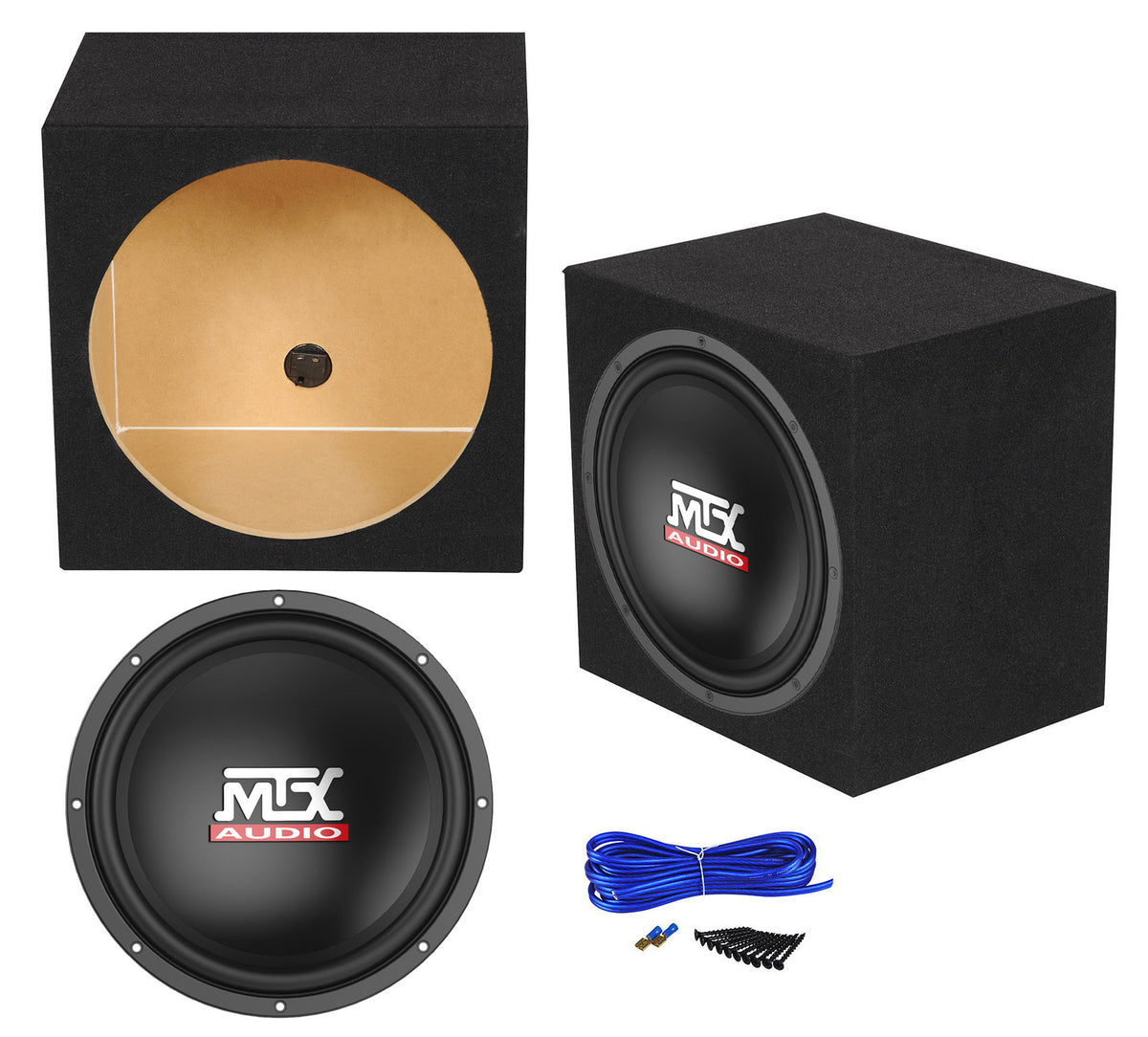

What's Included in the box

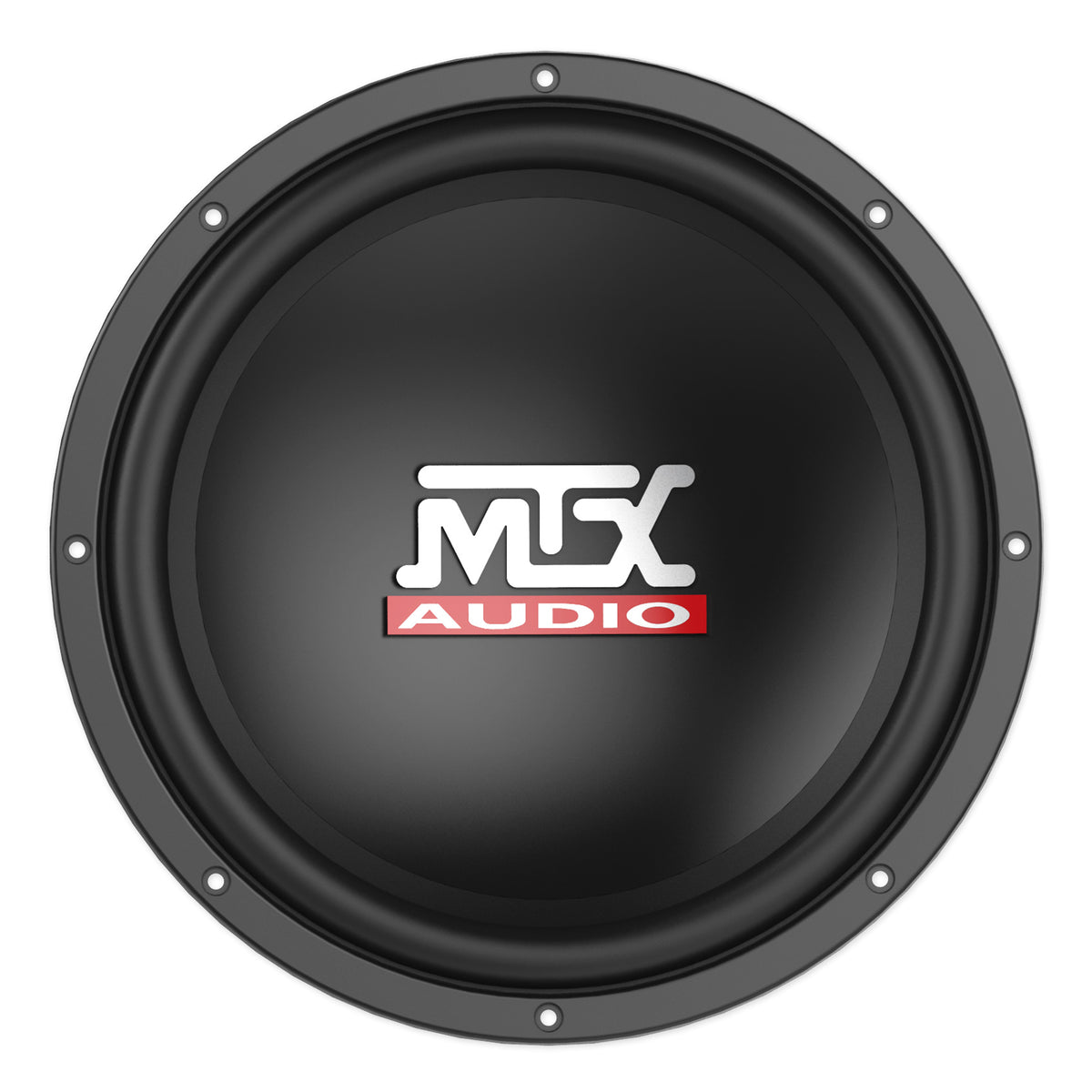

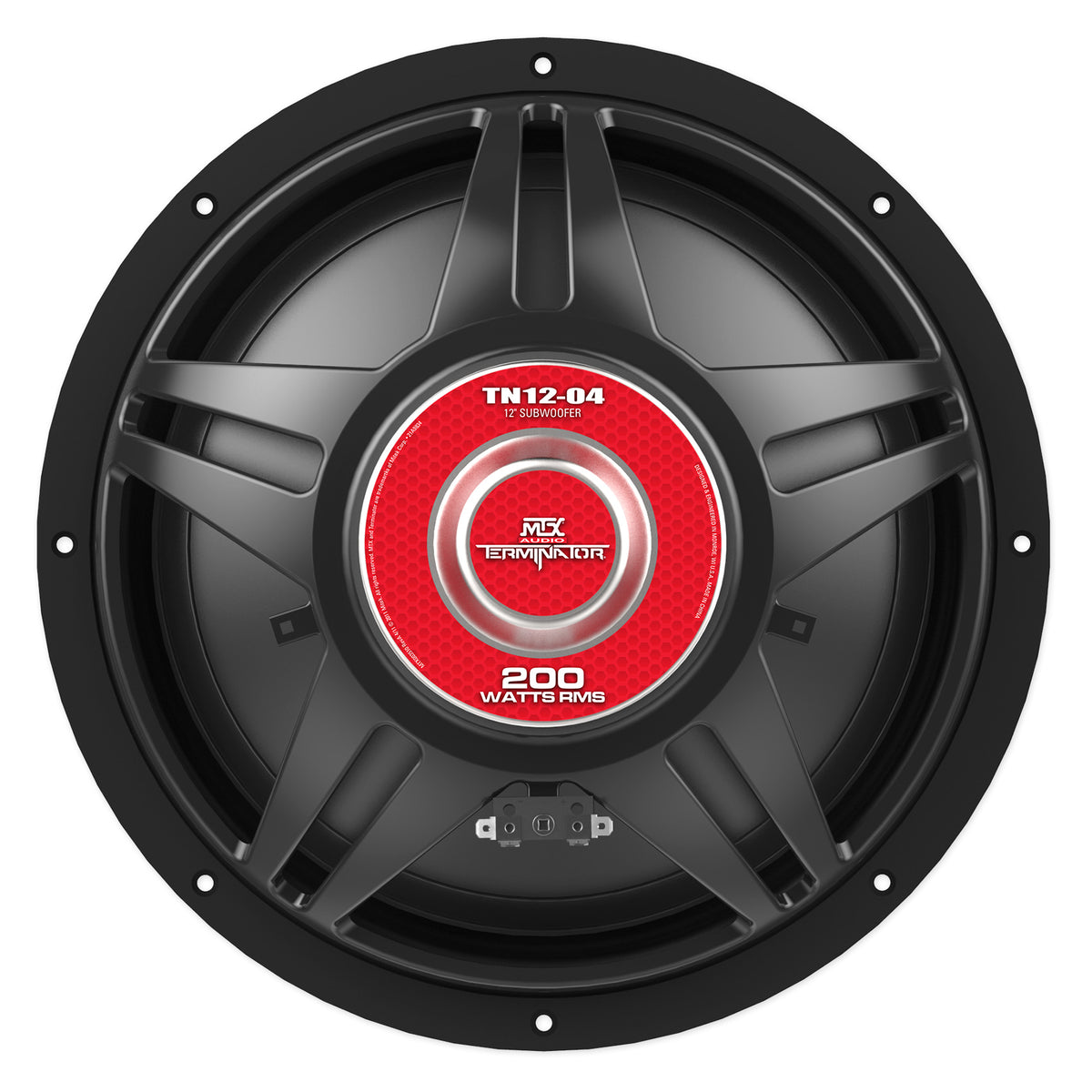

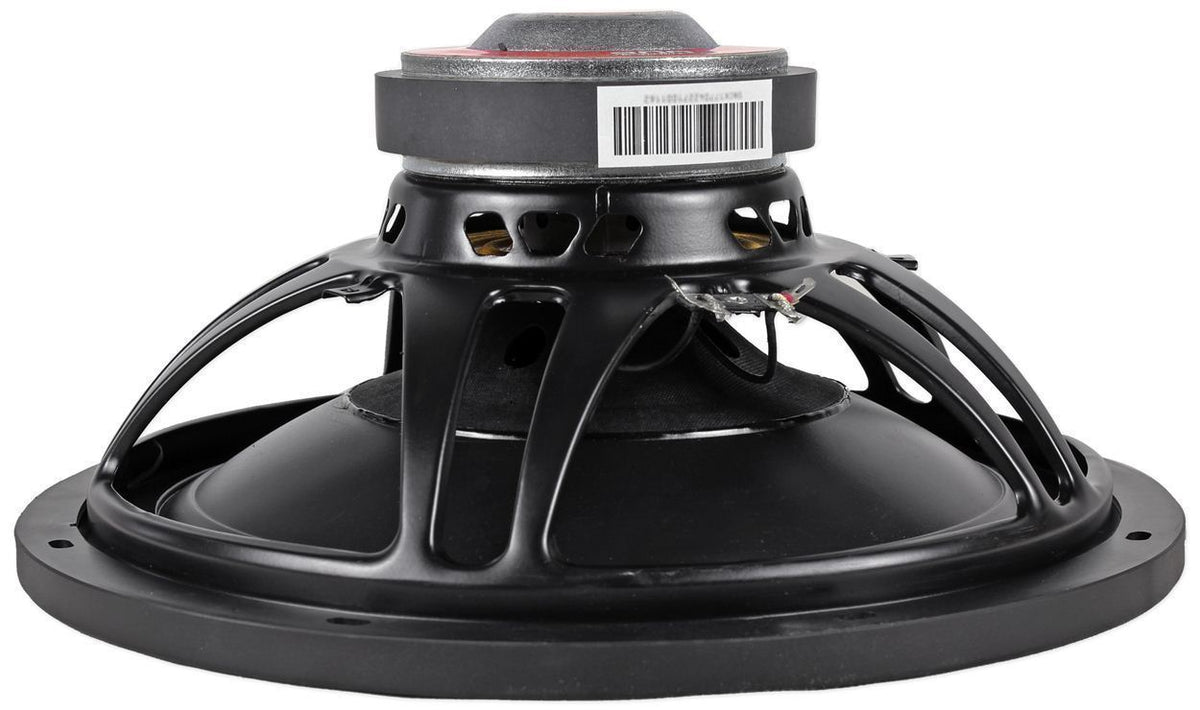

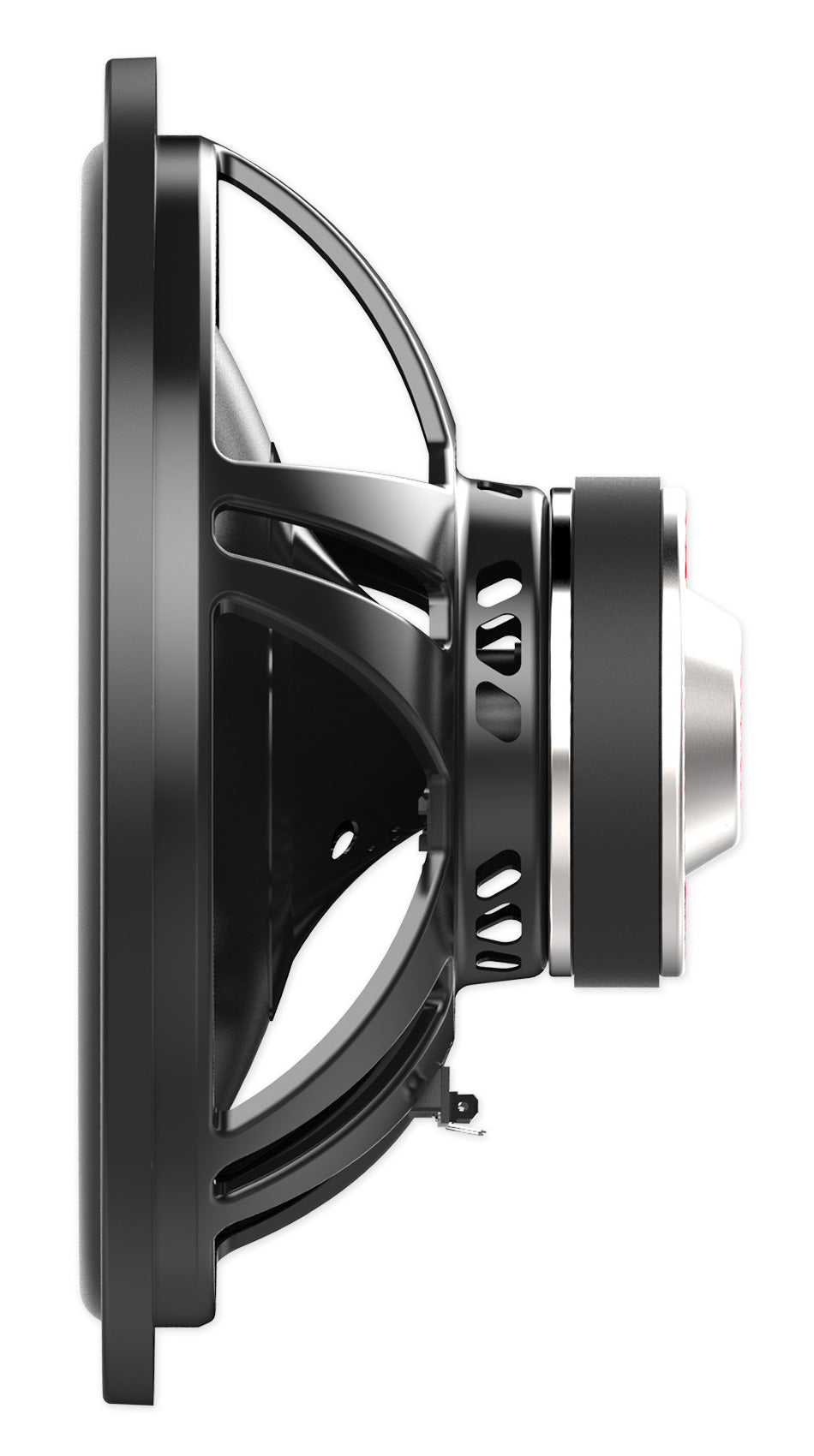

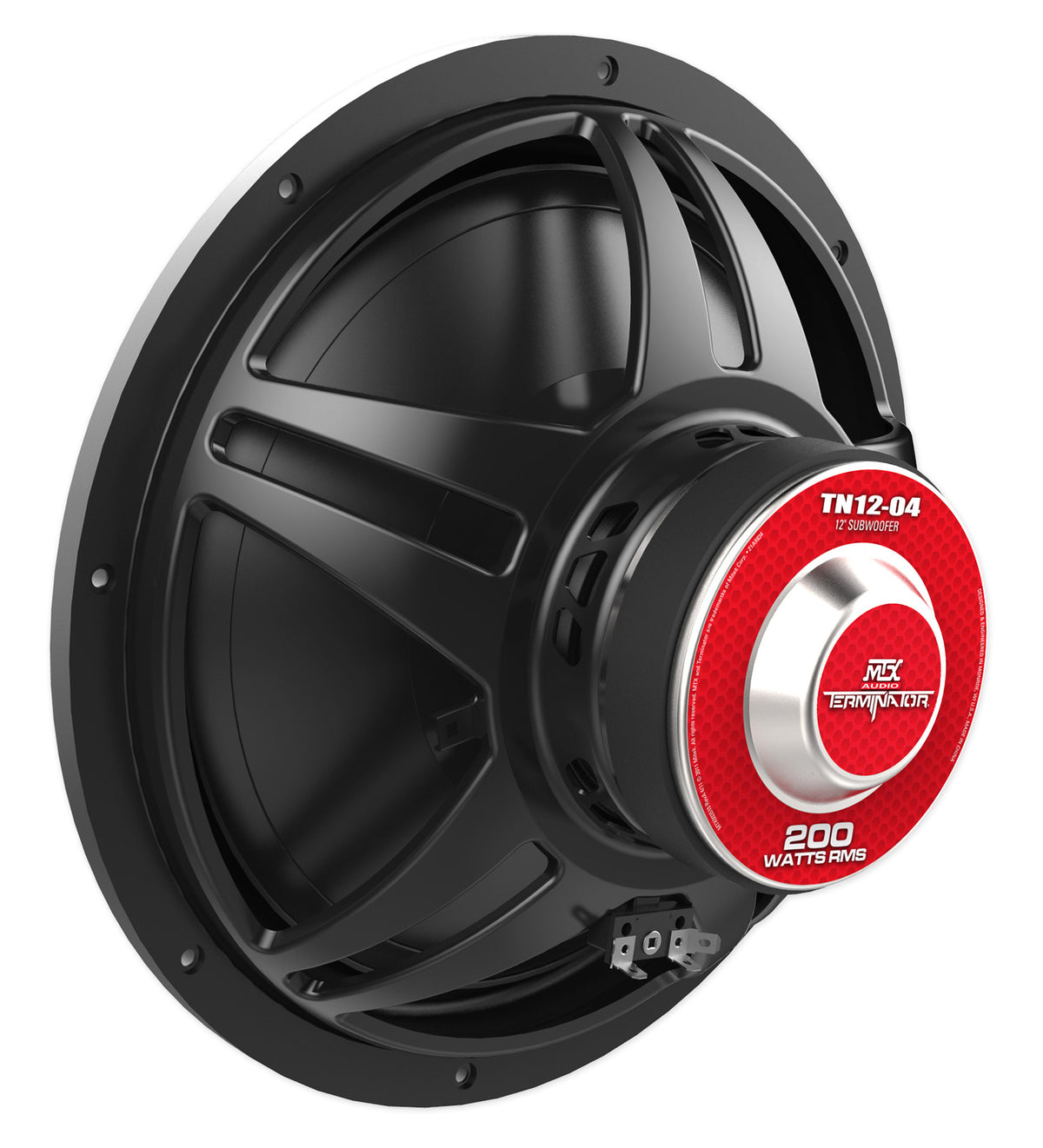

(1) TN12-04 12-inch car audio subwoofer

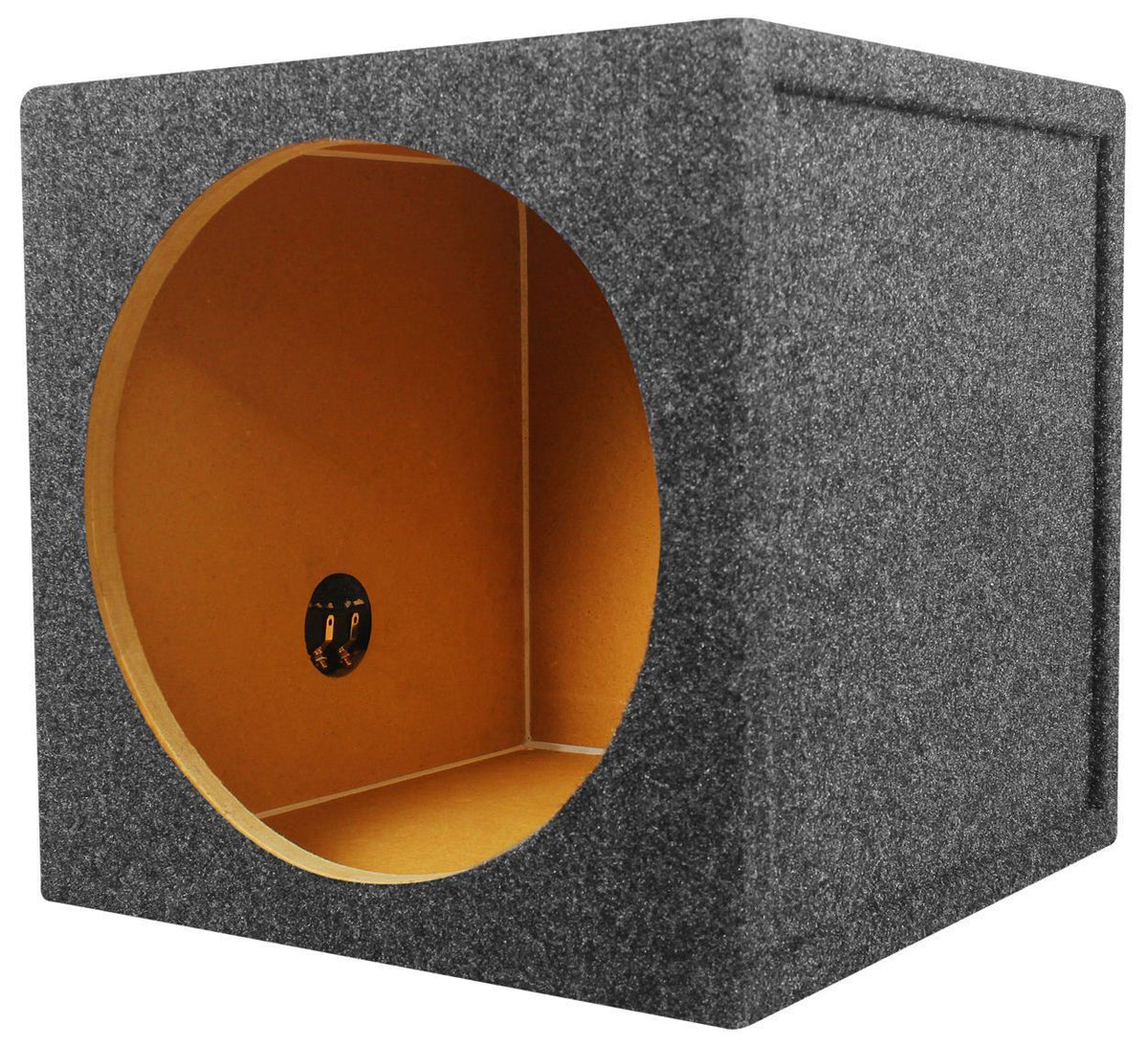

(1) RS12 single 12-inch sealed subwoofer enclosure

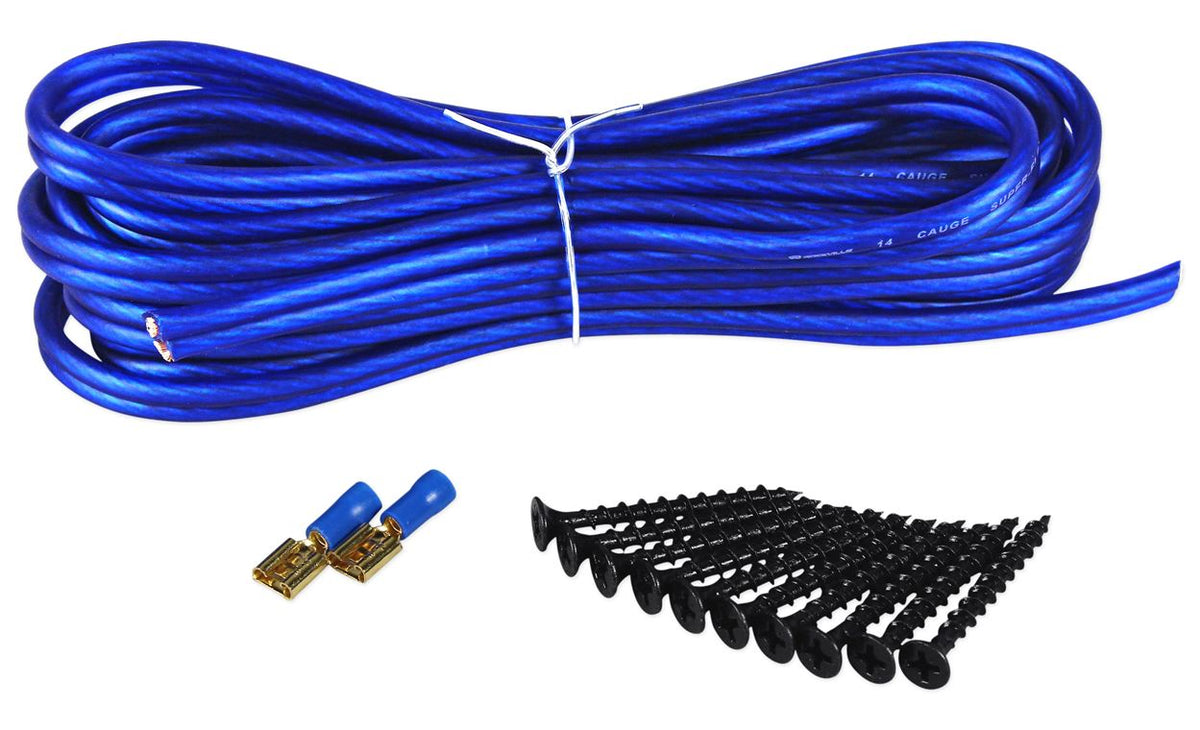

(10) drywall wood screws (metal)
12 ft of 14 AWG blue speaker wire
(2) spade terminals

SKU: SKU: TN12-04+RS12+K1

View full details

Product Description

Build out a single-subwoofer car audio installation with the TN12-04 12-inch subwoofer, RS12 sealed enclosure, and K1 installation kit. The subwoofer is rated at 200 W RMS and 400 W peak, with 4-ohm impedance and a recommended amplifier output of 100 to 200 W RMS. Its polypropylene cone, rubber surround, 24 Hz to 160 Hz frequency response, and Spider Plateau Venting system describe its low-frequency design and voice-coil cooling. The included single 12-inch enclosure uses 3/4-inch MDF, glued and stapled joints, a sealing layer at each seam, and spring-loaded terminals. The package also contains ten metal drywall screws, 12 feet of 14 AWG blue speaker wire, and two spade terminals for mounting and wiring. Source specifications list 0.75 cubic feet net for the included enclosure and 1.25 cubic feet as the subwoofer's sealed-enclosure recommendation, so verify the intended box volume before installation.

Features

Low-Frequency Playback
The 12-inch polypropylene cone and 24 Hz to 160 Hz response cover bass content in music and other in-car listening, helping low notes remain audible within the mix.
Clear Power Planning
With 200 W RMS handling, 400 W peak power, and a 100 to 200 W RMS amplifier recommendation, the listed ratings give installers a clear starting point for system matching.
Voice Coil Cooling
Spider Plateau Venting cools at the voice coil, while a flat progressive spider and extended pole piece support linear cone movement during repeated playback.
Firm Enclosure Construction
The sealed 12-inch enclosure uses 3/4-inch MDF with glued and stapled joints plus a sealing layer at each seam to reduce panel movement.
Installation Parts Included
The 12 ft of 14 AWG wire, two spade terminals, and ten metal screws cover basic signal wiring and subwoofer attachment to the enclosure.

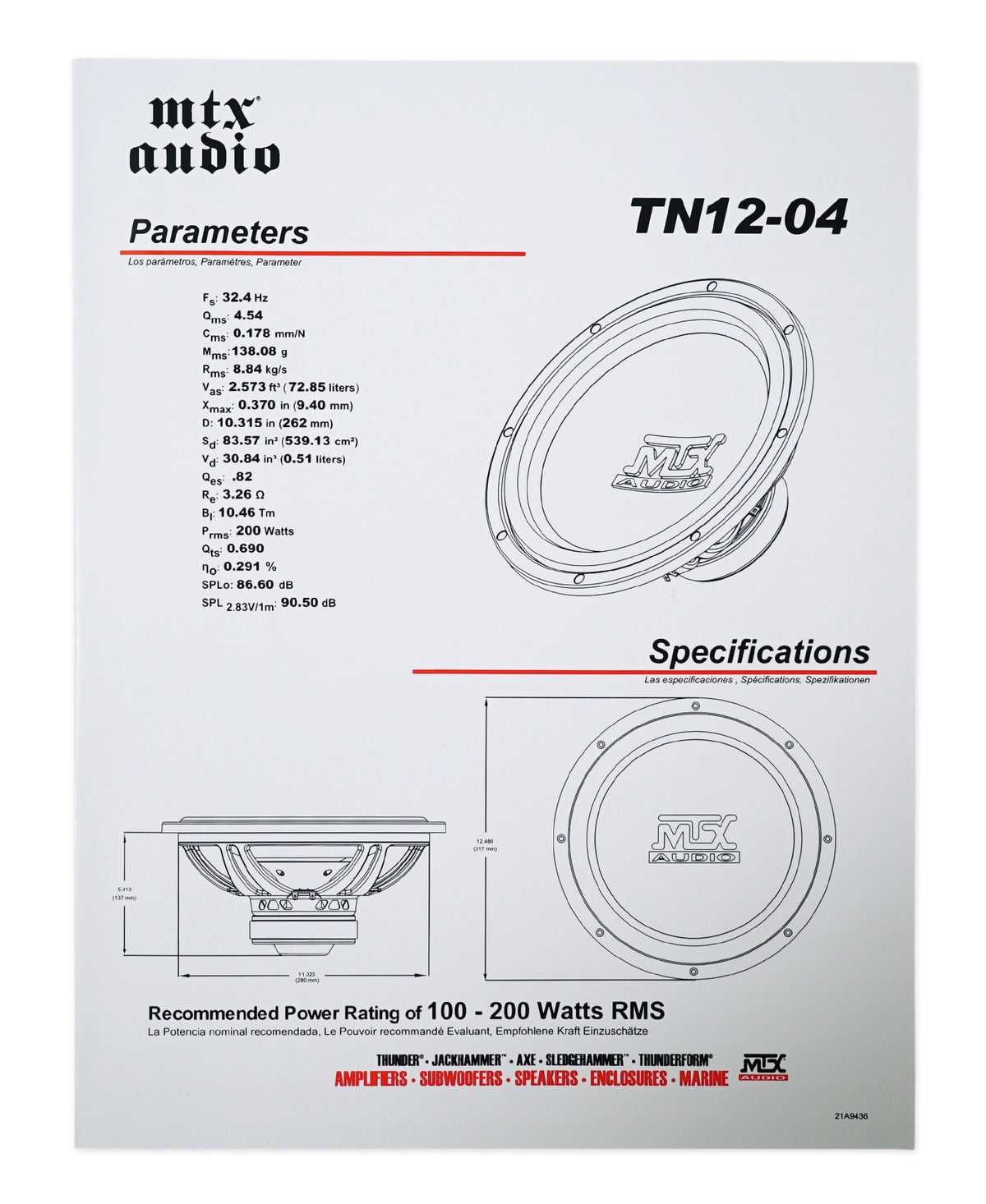

Technical Specifications

Product Type Car Audio Subwoofer Bundle
Subwoofer Model TN12-04
Subwoofer Size 12 in
Peak Power 400 W
RMS Power 200 W
Impedance 4 ohm
Recommended Amplifier Power 100 to 200 W RMS
Frequency Response 24 Hz to 160 Hz
Sensitivity 86.4 dB (1 W/1 m)
Voice Coil 1.50 in (3.81 cm)
Magnet Weight 27 oz
Subwoofer Mounting Depth 5.44 in (13.82 cm)
Subwoofer Cutout Diameter 11.08 in (28.14 cm)
Sealed Enclosure Recommendation 1.25 cu ft net
Enclosure Model RS12
Enclosure Type Sealed
Enclosure Sub Size Single 12 in
Enclosure Construction 3/4 in MDF
Enclosure Gross Volume 1.0 cu ft
Enclosure Net Volume 0.75 cu ft
Enclosure Max Mounting Depth 12.25 in
Enclosure Terminals Spring-loaded, gold
Dimensions 18 in L x 13.2 in W x 13.2 in H (enclosure)
