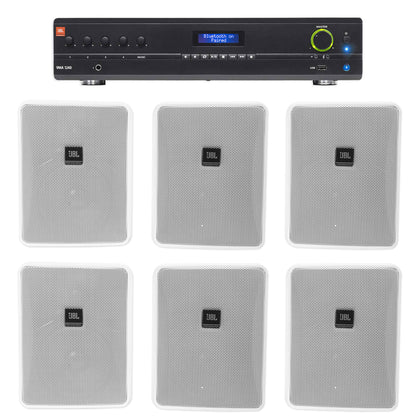

240W 70V Bluetooth Mixer Amp, 5 Inputs, (6) 5.25" White Wall-Mount Speakers for Restaurants, Bars, Retail
Features

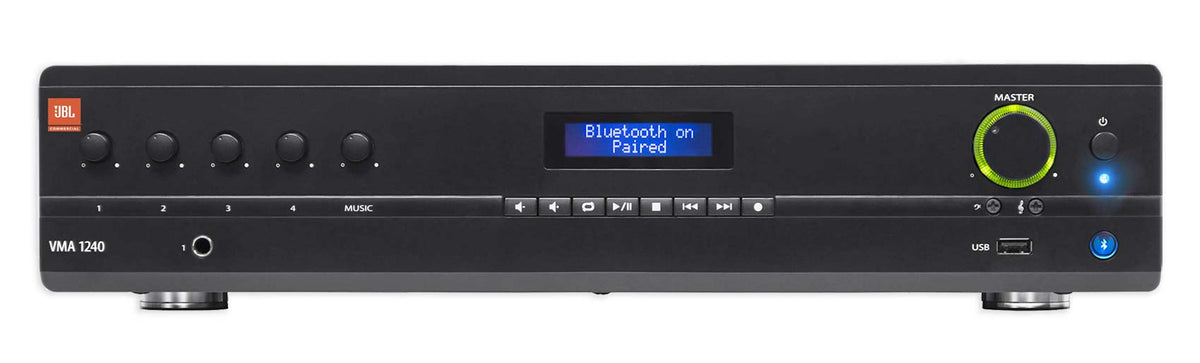

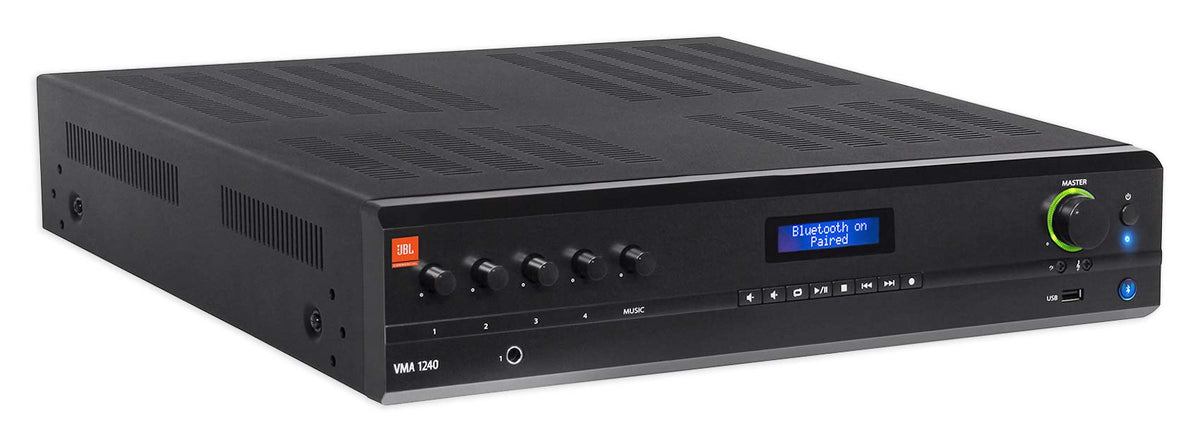

- 240W VMA1240 mixer amplifier powers 70V and 100V distributed speaker lines
- Five inputs with Bluetooth and USB stick playback for music from any source
- Voice-activated ducking lowers music automatically during mic announcements

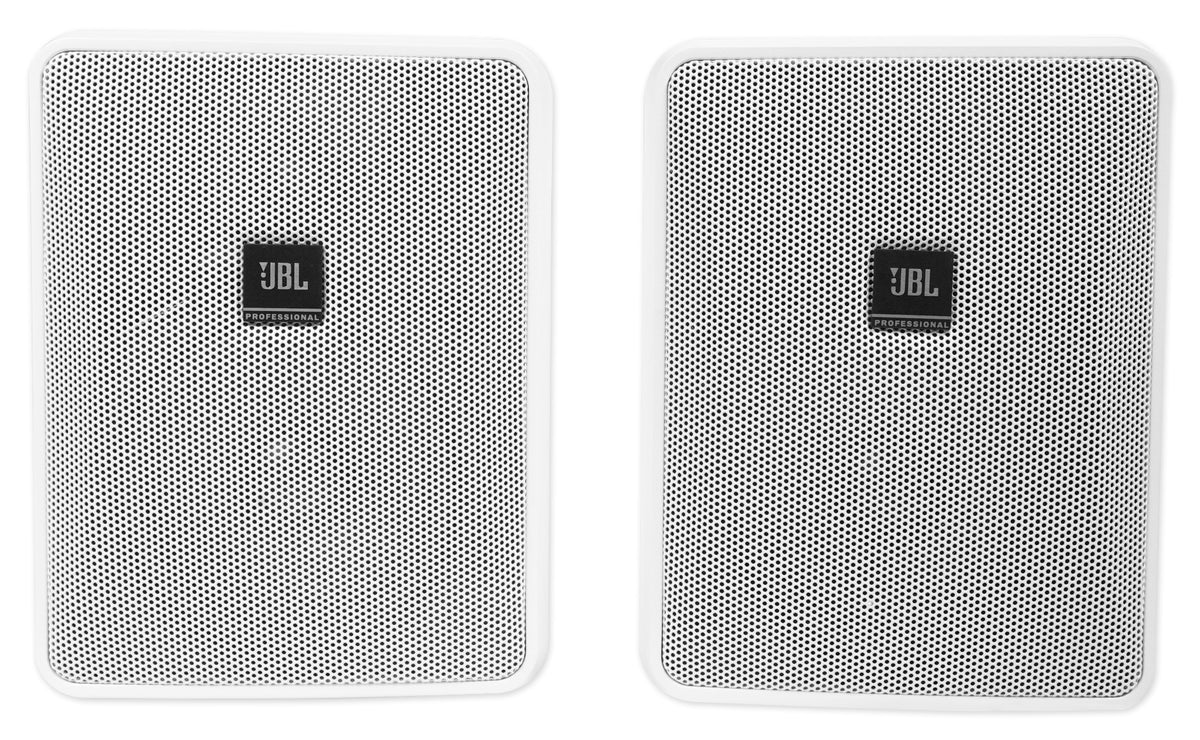

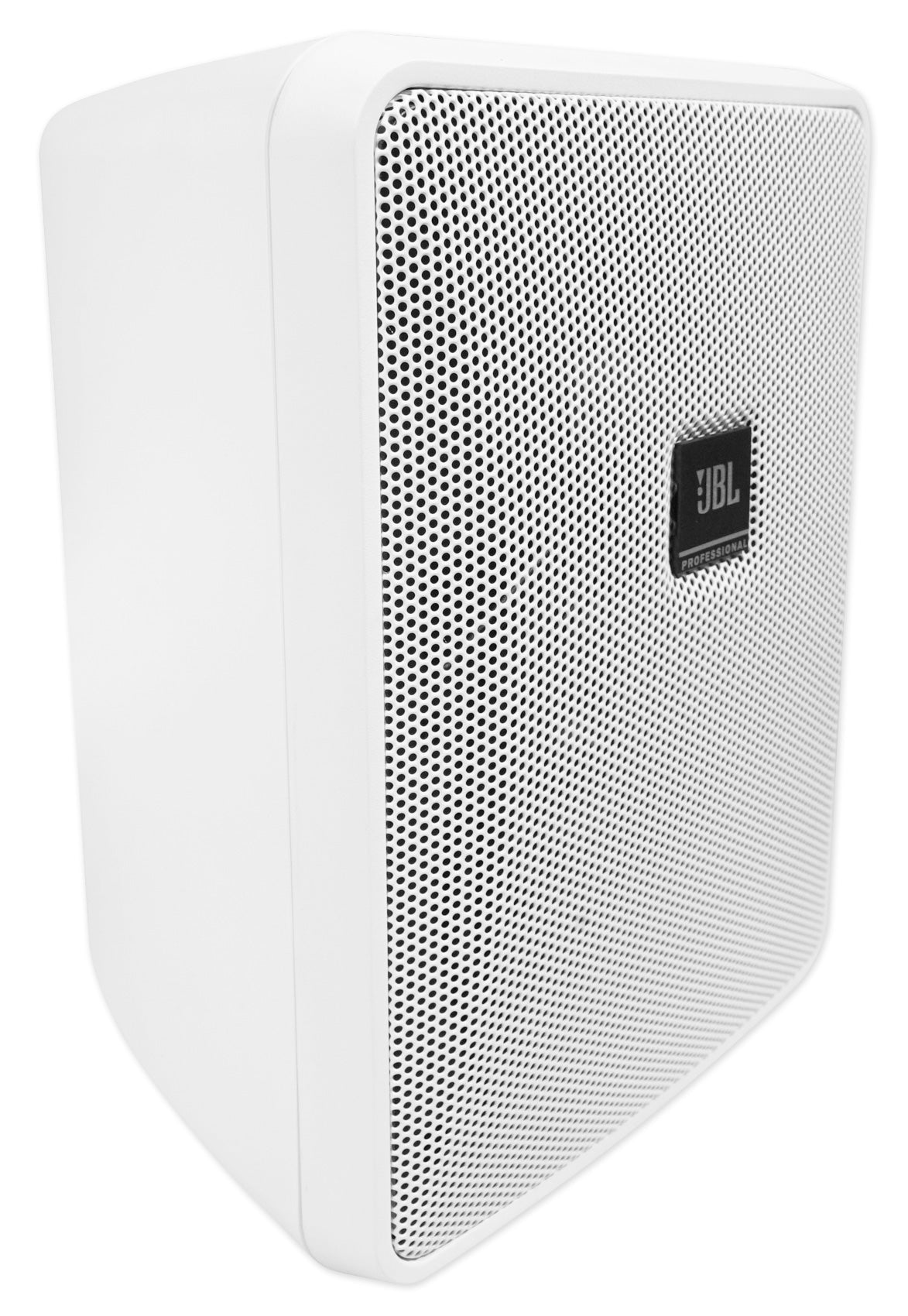

- Six white Control 25-1 two-way speakers with 5.25" woofers and 0.75" tweeters
- IP-44 weatherized cabinets with 30W, 15W, 7.5W, and 3.7W transformer taps
Couldn't load pickup availability
What's Included in the box

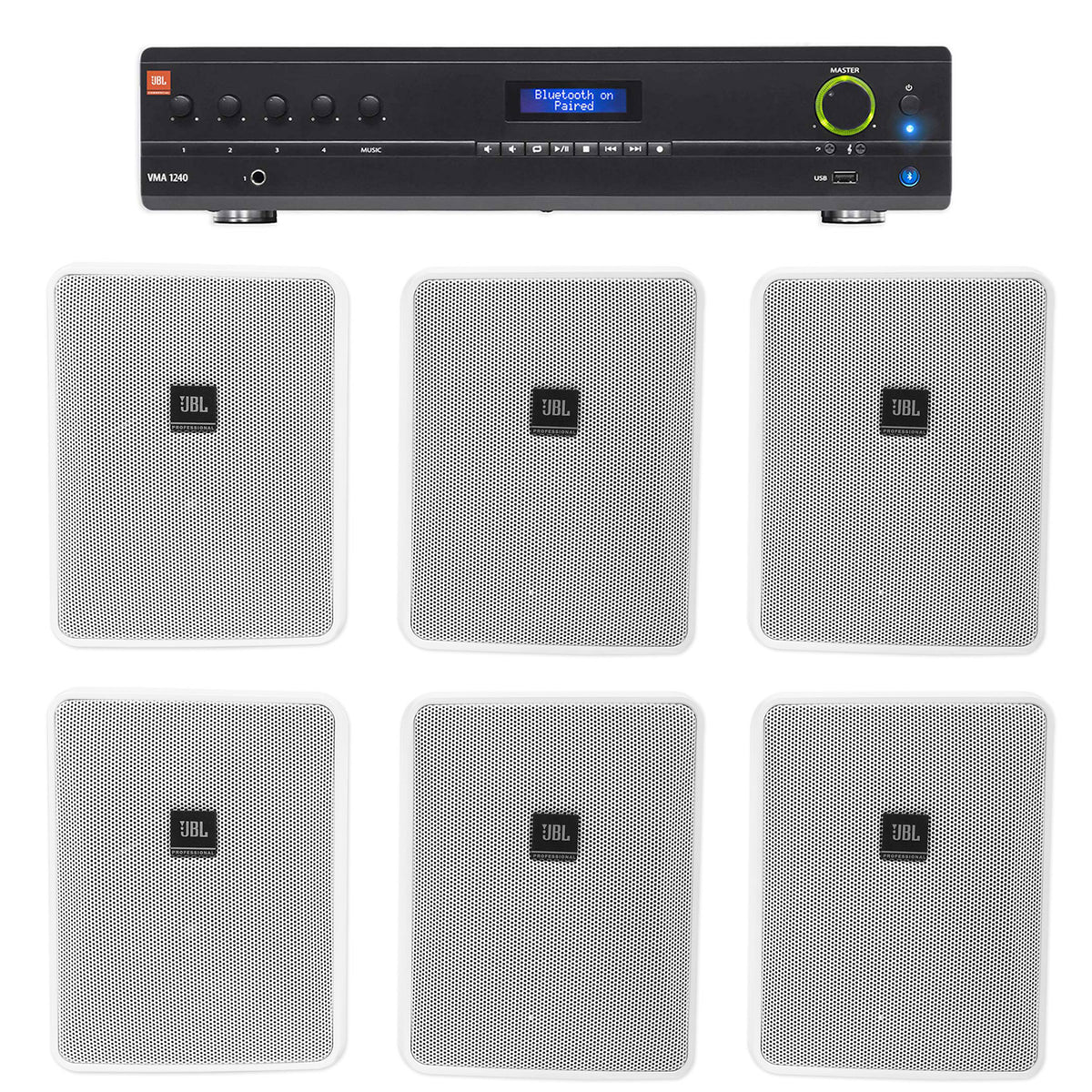

- (1) VMA1240 240W 70V Bluetooth Mixer/Amplifier
- (1) Rack Mount Kit

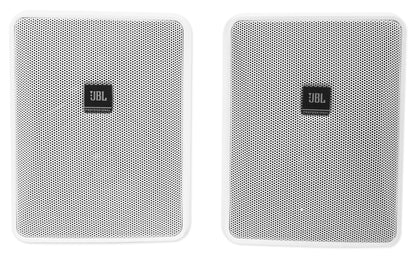

- (6) Control 25-1 5.25" White Wall-Mount Speakers (3 Pairs)

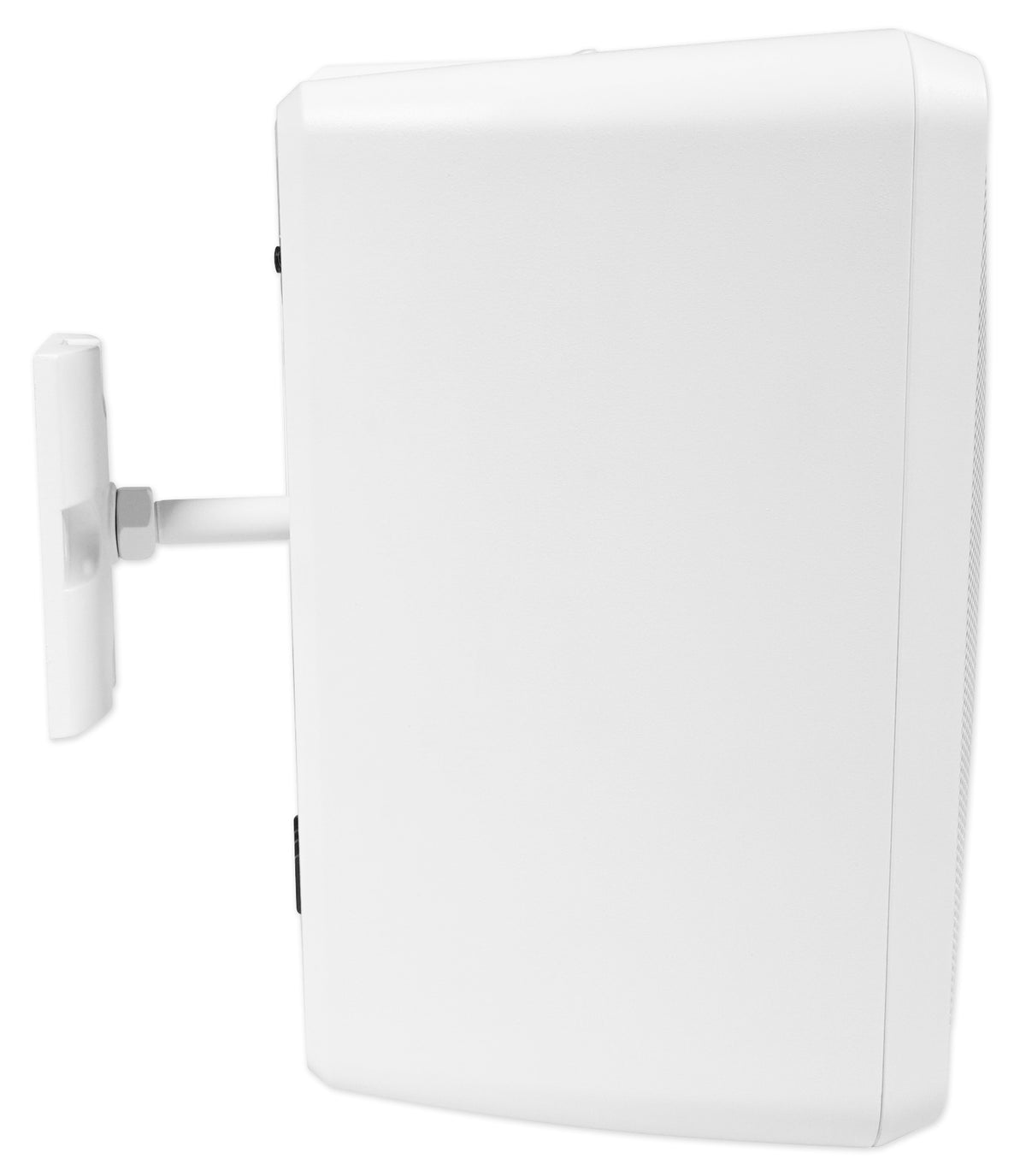

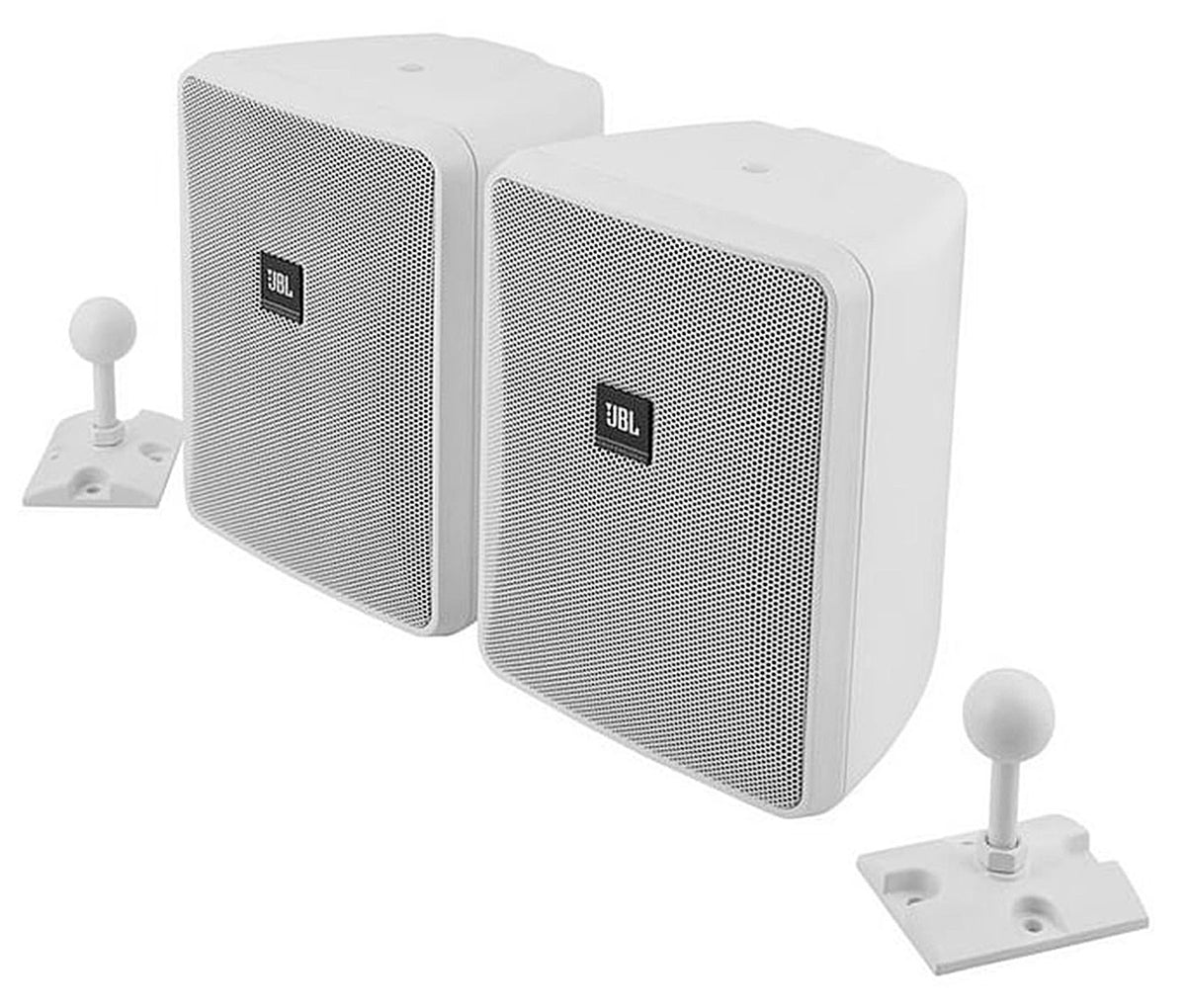

- (6) InvisiBall Mounting Hardware Sets
SKU: SKU: VMA1240+(3) Control 25-1-WH
View full details










Product Description
Three pairs of white Control 25-1 speakers, six in total, carry that sound through the building. Each two-way cabinet pairs a 5.25" woven-fiberglass woofer with a 0.75" PEI tweeter for clear vocals and full music, and a 100 x 100 degree coverage pattern keeps levels even for guests seated off to the side. The built-in multi-tap transformer offers 30W, 15W, 7.5W, and 3.7W settings on a 70V line, and all six speakers at the 30W tap total 180W, leaving headroom on the 240W amp. Set the speakers near the bar louder and the ones over a quiet dining nook softer. IP-44 rated, weatherized enclosures hold up on covered patios and in humid spaces, InvisiBall mounting hardware keeps installs clean, and the paintable white cabinets can be finished to match your walls.
Features
Sound for the Whole Floor
One 240W mixer amp and six matched wall-mount speakers give a larger restaurant, bar, or shop enough coverage for dining rooms, bar areas, and patios in a single kit.
Stream, Plug In, or Page
Five inputs cover Bluetooth, USB sticks, RCA, 1/4", and Euroblock sources, plus 27V phantom power, so phones, mics, and media players connect directly to the amp.
Announcements That Cut Through
Voice-activated ducking drops the music level the moment someone speaks into the mic, so specials, table calls, and closing times come through clearly without touching a knob.
Dial In Every Zone
Multi-tap transformers let each speaker run at 30W, 15W, 7.5W, or 3.7W on a 70V line, and six speakers at full tap still leave headroom on the 240W amp.
Built for Busy, Humid Spaces
IP-44 rated weatherized enclosures, Kapton voice coil formers, and zinc-plated grilles stand up to kitchen humidity, covered patios, and years of daily service.
Technical Specifications
- Product Type 70V Commercial Mixer Amplifier and Wall-Mount Speaker System
- Amplifier Output Power 240W into 4 or 8 Ohms

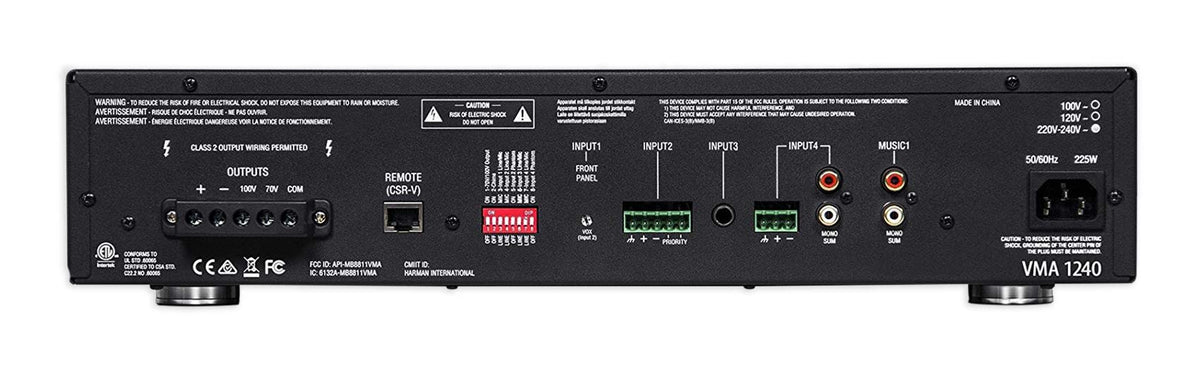

- Amplifier Outputs 4/8 Ohm, 70V, 100V
- Input Channels 5
- Input Types Euroblock, RCA, 1/4", Bluetooth, USB
- Tone Controls Bass ±14 dB @ 50 Hz, Treble ±14 dB @ 10 kHz per channel
- Phantom Power 27 VDC
- Signal to Noise Ratio Greater than 76 dB
- Amplifier THD Less than 0.5%, 20 Hz to 20 kHz
- Amplifier Frequency Response 20 Hz to 20 kHz ±2 dB (4/8 Ohm), 80 Hz to 15 kHz ±3 dB (70V/100V)
- AC Power 100, 120, 220 to 240 VAC, 50/60 Hz
- Speaker Quantity 6 (3 Pairs)
- Speaker LF Driver 5.25" Woven-Fiberglass Cone
- Speaker HF Driver 0.75" PEI Diaphragm
- Speaker Power Rating 200W Continuous Program, 100W Pink Noise (400W Peak)
- Speaker Impedance 8 Ohms (Thru)

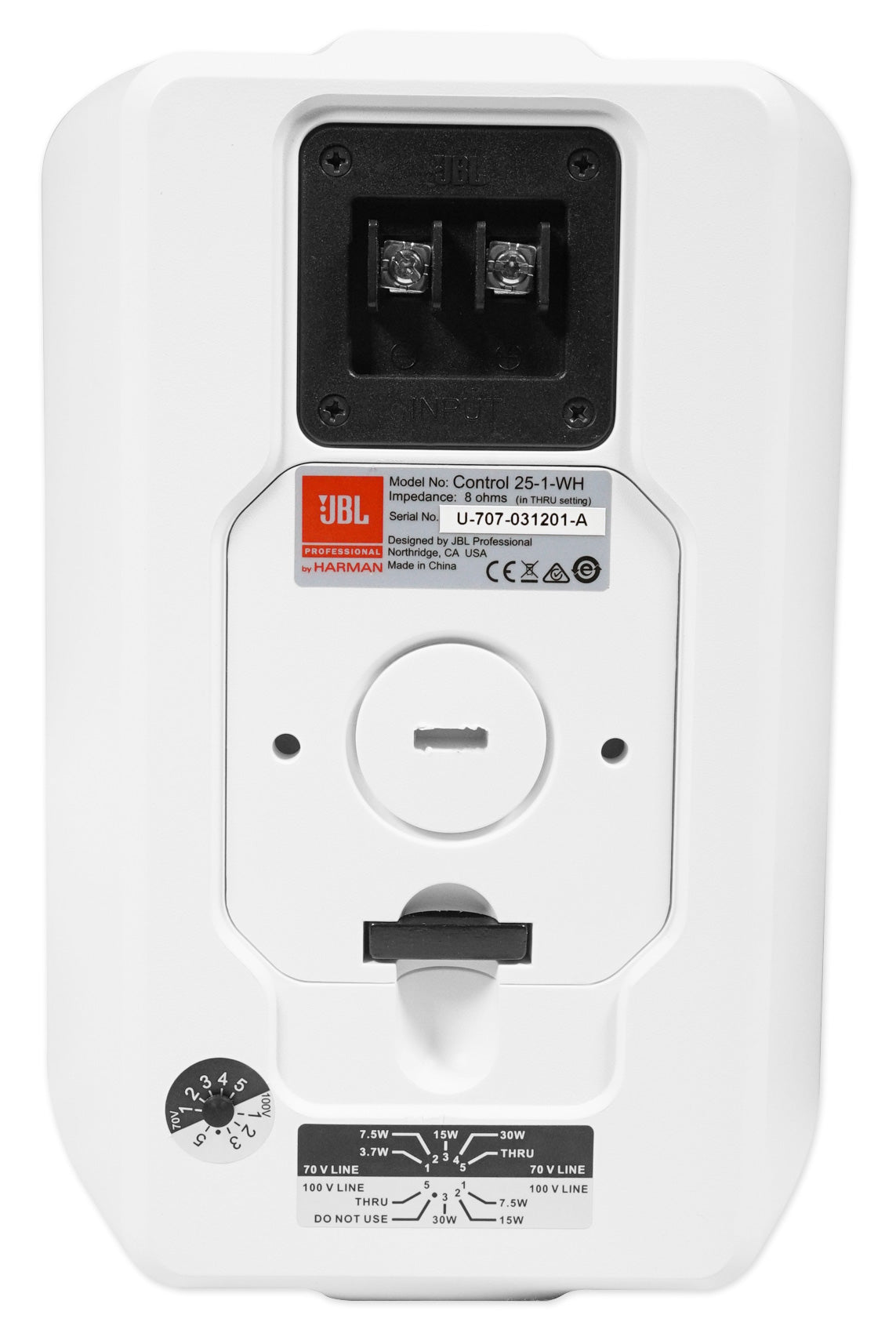

- Transformer Taps 70V: 30W, 15W, 7.5W, 3.7W; 100V: 30W, 15W, 7.5W
- Speaker Sensitivity 90 dB, 1W/1m
- Speaker Frequency Response 85 Hz to 17 kHz ±3 dB, 60 Hz to 20 kHz ±10 dB
- Coverage Angle 100° x 100°
- Speaker Enclosure High-Impact Polystyrene, White
- Environmental Rating IP-44
- Amplifier Weight 25.5 lb
- Speaker Weight 7.5 lb each
- Amplifier Dimensions (W x D x H) 17" x 16.3" x 3.5"
- Speaker Dimensions (H x W x D) 9.6" x 7.4" x 5.7"
