VMA1240 240W 70V Mixer/Amplifier + (5) Pairs Control 25-1 Speakers

Name: VMA1240 240W 70V Mixer/Amplifier + (5) Pairs Control 25-1 Speakers
Brand: JBL
SKU: VMA1240+(5) Control 25-1
Price: 2350.00 USD
Availability: InStock

240W 70V Mixer/Amplifier, 5 Inputs, Five Pairs Of Weatherized Wall-Mount Speakers

$2,350.00

$2,350.00 ~~$2,624.00~~

Save 10%

Shipping calculated at checkout.

Features

240W mixer/amplifier with five inputs and one output
Bluetooth and USB playback add flexible audio sources
Five pairs of weatherized two-way wall-mount speakers
70V taps from 3.7W to 30W support room-by-room setup
15W taps on ten speakers create a 150W 70V load

30-Day Money-Back Guarantee

Fast & Free Shipping

Buy Now, Pay Later

What's Included in the box

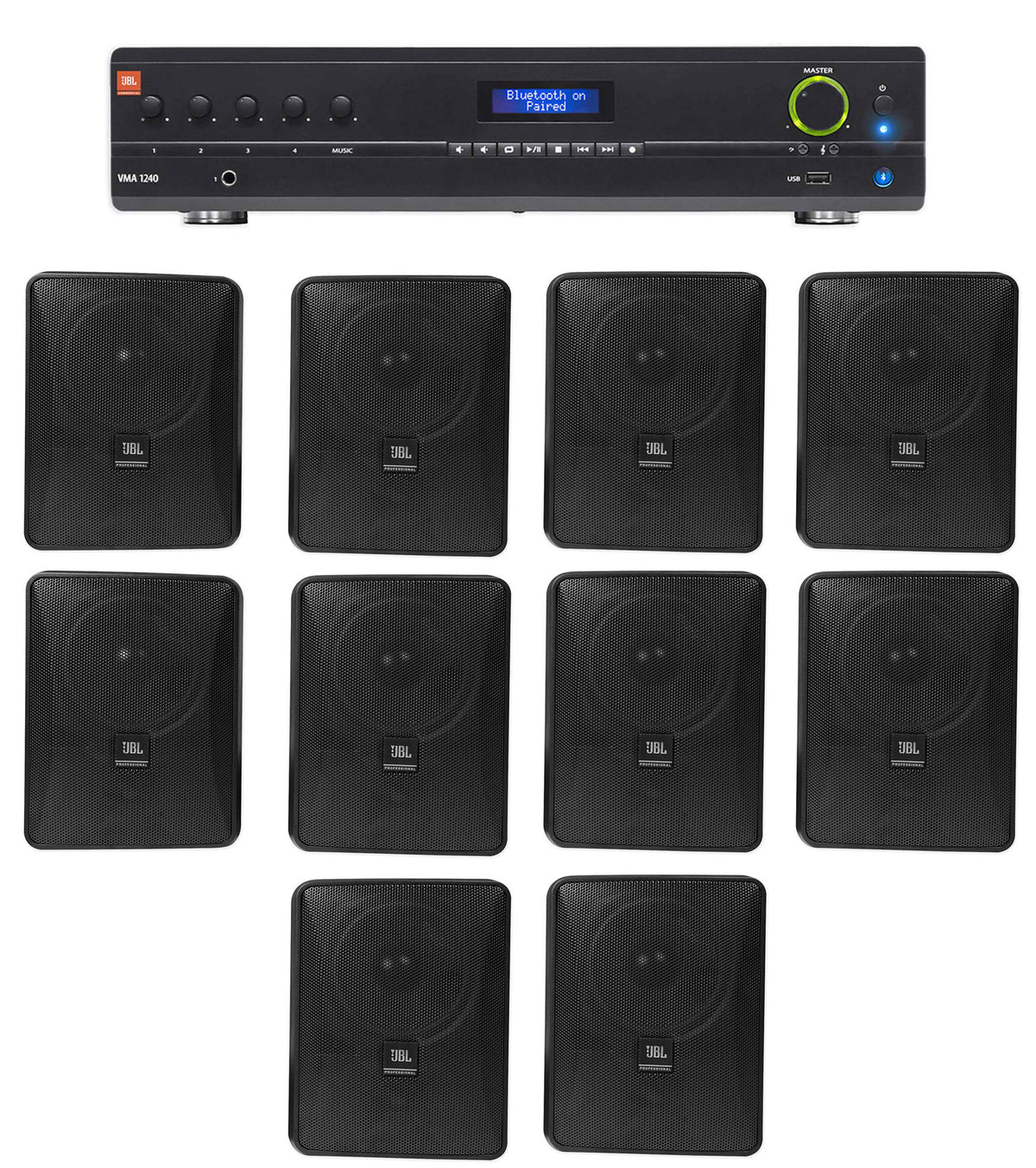

1 VMA1240 240W 70V Bluetooth mixer/amplifier
1 rack-mount kit

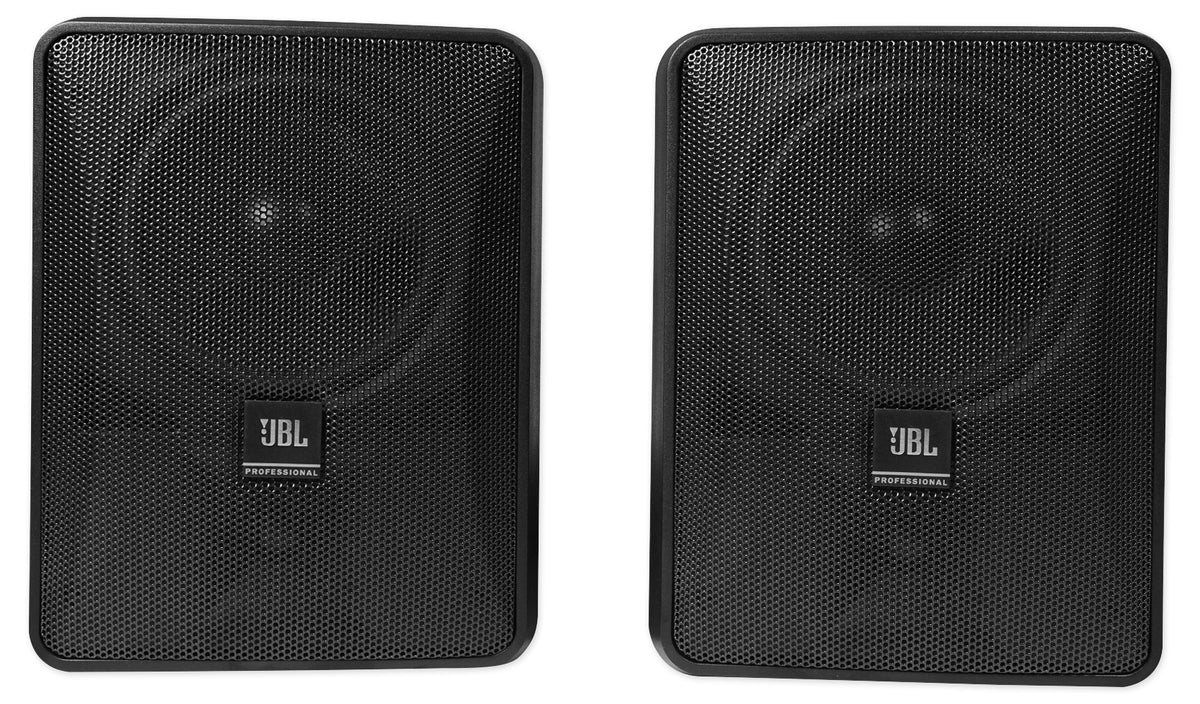

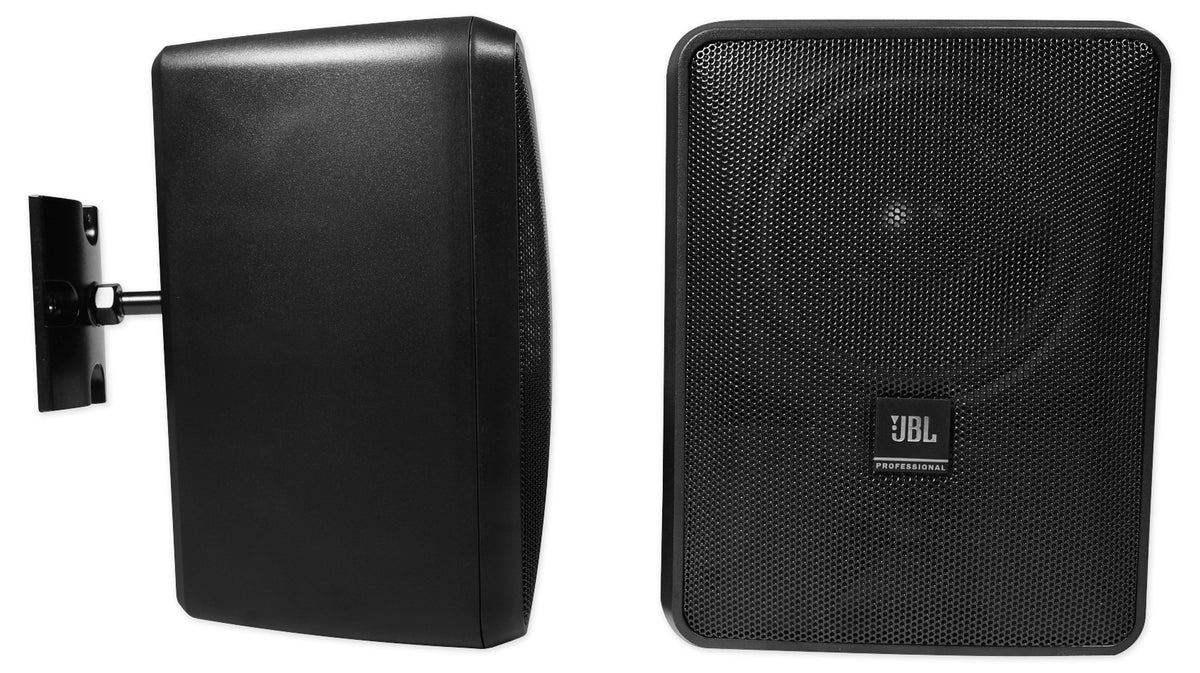

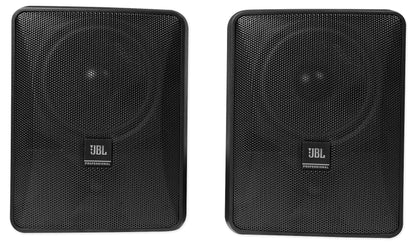

5 pairs of Control 25-1 5.25-inch weatherized wall-mount speakers (10 speakers total)

SKU: SKU: VMA1240+(5) Control 25-1

View full details

Product Description

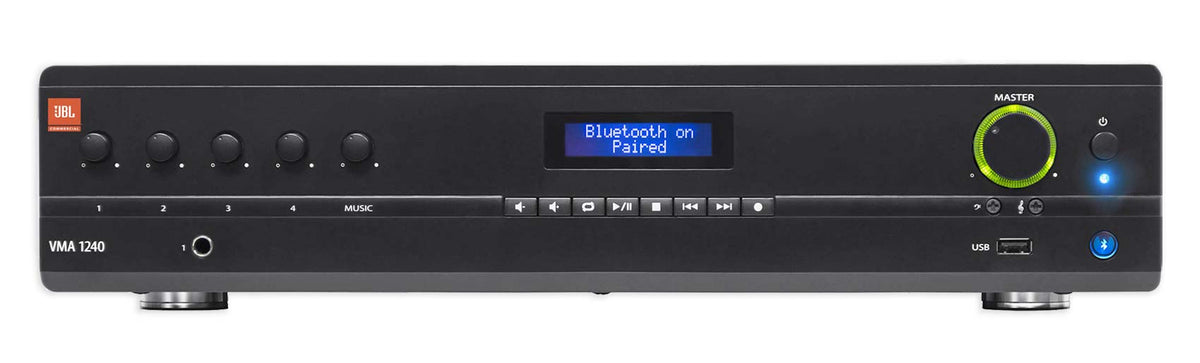

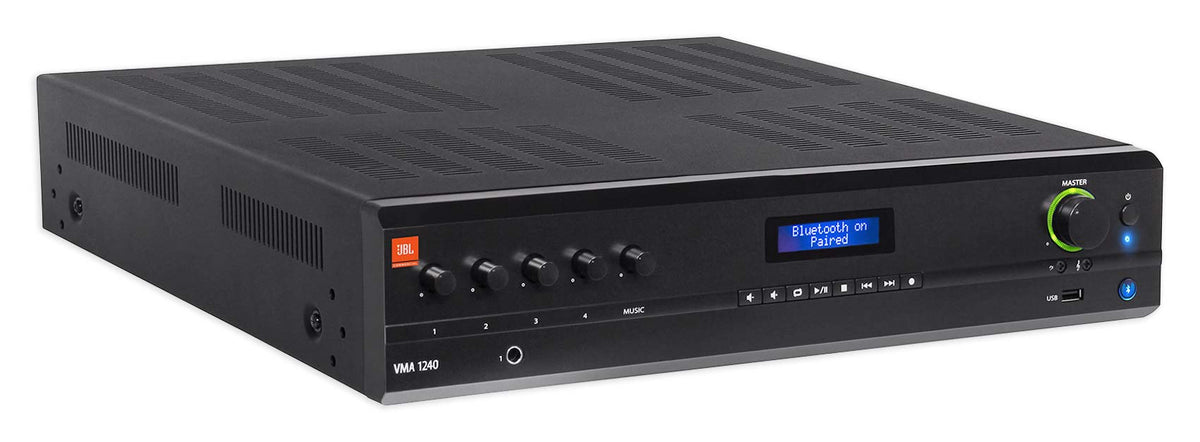

The VMA1240 240W mixer/amplifier gives a restaurant, bar, cafe, or paging system one control point for five inputs, USB playback, Bluetooth audio, and a single distributed-speaker output. This package adds five pairs of Control 25-1 wall-mount speakers, giving you ten weatherized two-way cabinets for foreground music, background music, and paging. Each speaker offers 70V tap choices from 3.7W to 30W, plus an 8-ohm setting. For a ten-speaker 70V setup, set every speaker to 15W or less so the combined 150W load stays within the source's 200W total limit; all ten speakers at 30W would produce a 300W load and exceed that limit. The amplifier adds per-channel bass and treble controls, voice-activated ducking, configurable output routing, front-panel controls, and Euroblock, RCA, and 1/4-inch connections. The speakers use 5.25-inch low-frequency drivers, 0.75-inch PEI tweeters, 100° x 100° coverage, and weatherized enclosures for indoor or outdoor installations. A rack-mount kit is included with the amplifier.

Features

Centralized Source Control
Five inputs, Bluetooth, USB playback, and front-panel controls keep music and paging sources accessible from one amplifier in a commercial audio system.
Distributed Speaker Coverage
Ten wall-mount cabinets with 100° x 100° coverage spread foreground or background audio across cafes, bars, restaurants, and other shared spaces.
Flexible Tap Settings

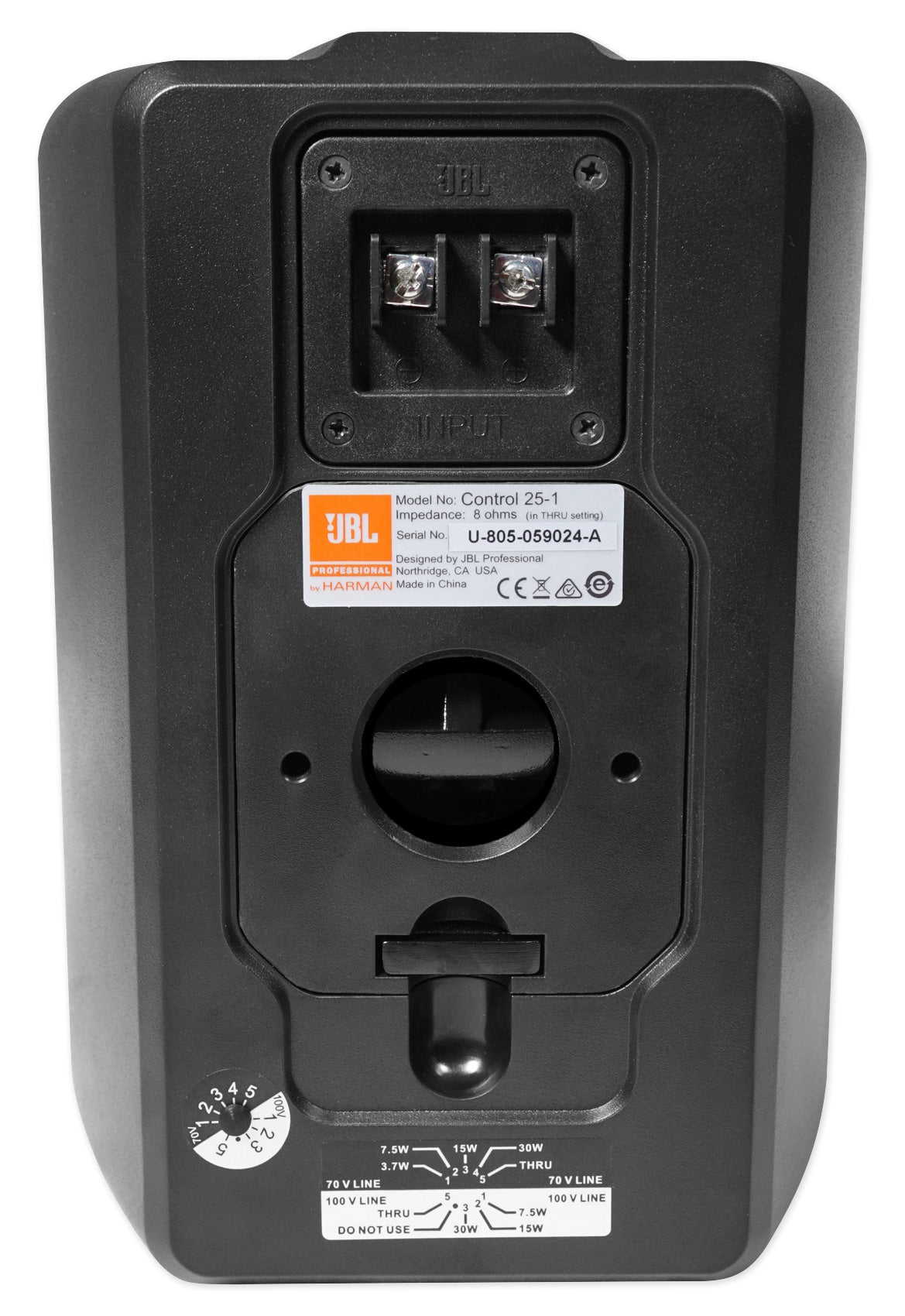

Selectable 70V taps from 3.7W to 30W let installers balance volume and amplifier load for different room sizes and listening levels.

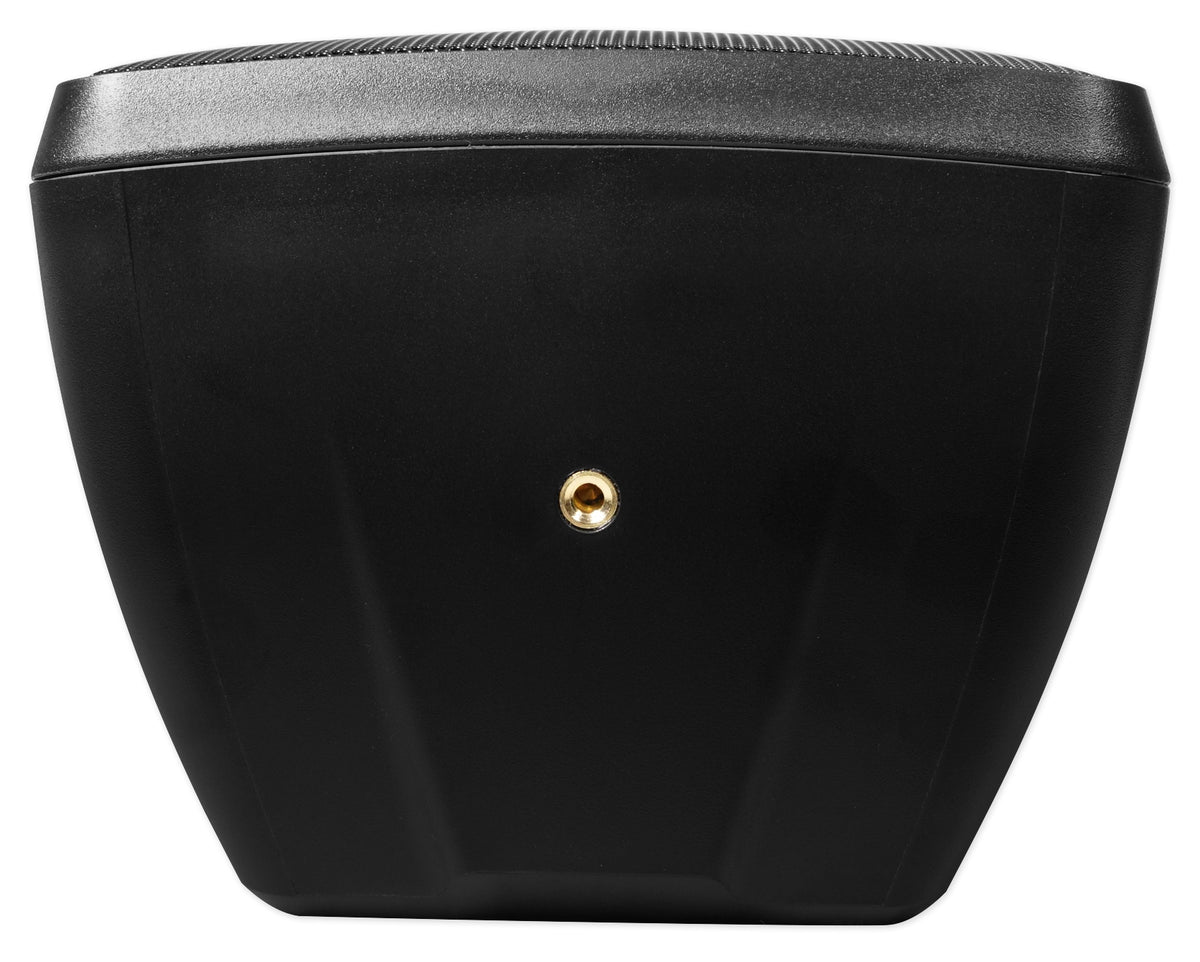

Weatherized Cabinet Protection
Weatherized cabinets, protected circuitry, zinc-plated grilles, and rubberized frame extensions suit indoor or outdoor commercial installations where moisture and temperature vary.
Balanced Two-Way Sound
5.25-inch low-frequency drivers, 0.75-inch PEI tweeters, and off-axis coverage support clear music and paging throughout the listening area with consistent detail.

Technical Specifications

Product Type 70V/100V Commercial Mixer/Amplifier And Ten Wall-Mount Speakers
Package Contents 1 mixer/amplifier; 5 pairs of speakers (10 total)
Amplifier Power 240 W into 4 or 8 Ohms; 70V/100V distributed output
Input Channels 5
Output Channels 1
Audio Sources Bluetooth and USB playback

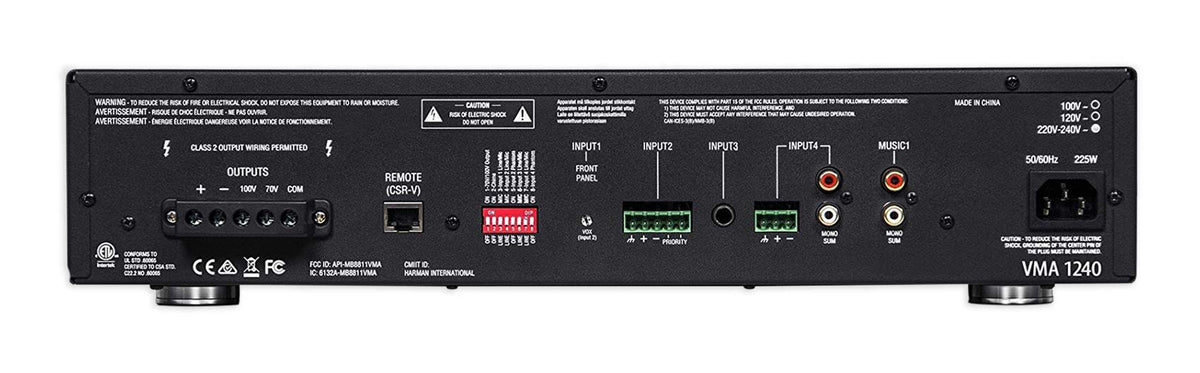

Amplifier Inputs Euroblock, RCA, and 1/4-inch
Amplifier Controls Per-channel bass and treble; voice-activated ducking; configurable output routing; front-panel controls
Amplifier Frequency Response 20 Hz to 20 kHz ±2 dB at 4/8 Ohms; 80 Hz to 15 kHz ±3 dB at 70V/100V
Signal To Noise Ratio Over 76 dB
Total Harmonic Distortion Under 0.5%, 20 Hz to 20 kHz
Phantom Power 27 VDC
Minimum Load Impedance 4 Ohms low impedance; 20 Ohms at 70V; 40 Ohms at 100V
Speaker Drivers 5.25-inch low-frequency driver; 0.75-inch PEI diaphragm tweeter
Speaker Power Handling 200 W continuous program at 8 Ohms; 70V taps: 30 W, 15 W, 7.5 W, 3.7 W
Speaker Frequency Response 60 Hz to 20 kHz ±10 dB; 85 Hz to 17 kHz ±3 dB
Speaker Coverage 100° x 100°
Speaker Sensitivity 90 dB, 1 W / 1 m
Speaker Impedance 8 Ohms nominal (THRU setting)
Environmental Rating IP-44 per IEC529

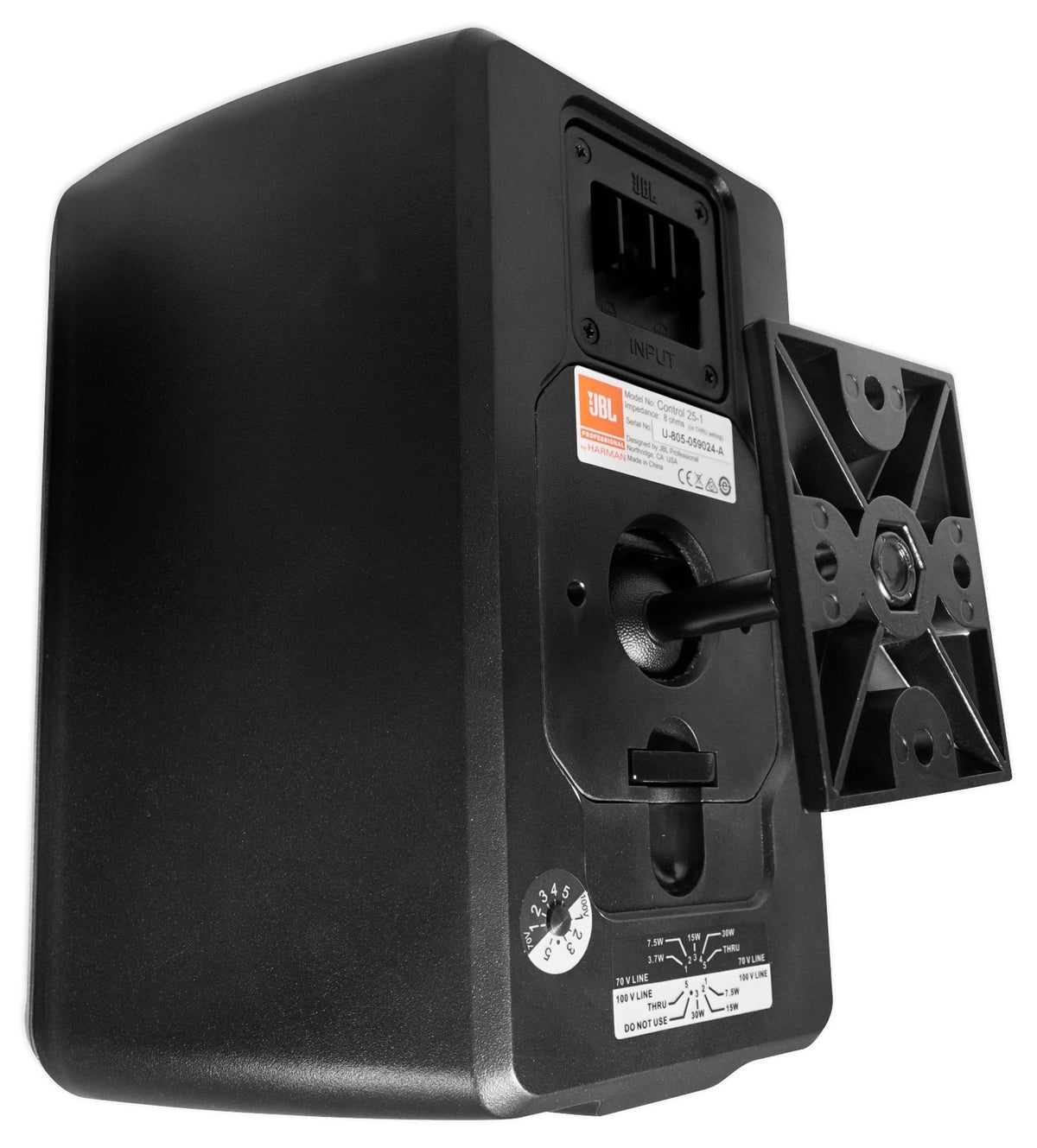

Speaker Termination Screw-down terminal strip; accepts bare wire up to 12 AWG
70V Load Guidance Ten speakers at 15 W taps draw 150 W total; source limit is 200 W
Rack Mount Kit Included
Weight Amplifier: 25.5 lb; each speaker: 7.5 lb
Dimensions Amplifier: 17 x 16.3 x 3.5 in (W x D x H); each speaker: 9.6 x 7.4 x 5.7 in (H x W x D)
