VMA1240 + CSR-V White Wall Volume Control
JBL
VMA1240 + CSR-V White Wall Volume Control
VMA1240 + CSR-V White Wall Volume Control
240W 70V/100V Bluetooth Mixer Amplifier, 5 Inputs, Rack Mount Kit, Remote Volume for Restaurants, Retail
Free Shipping
Features
- 240W output powers 4/8 Ohm speakers or 70V and 100V distributed lines
- Five inputs with Euroblock, RCA, and 1/4" connections for mics and line sources
- Bluetooth and USB flash playback provide a built-in background music source
- Voice-activated ducking lowers music automatically during announcements
- Included CSR-V wall controller adjusts volume remotely over Cat 5 up to 1000 ft
Couldn't load pickup availability

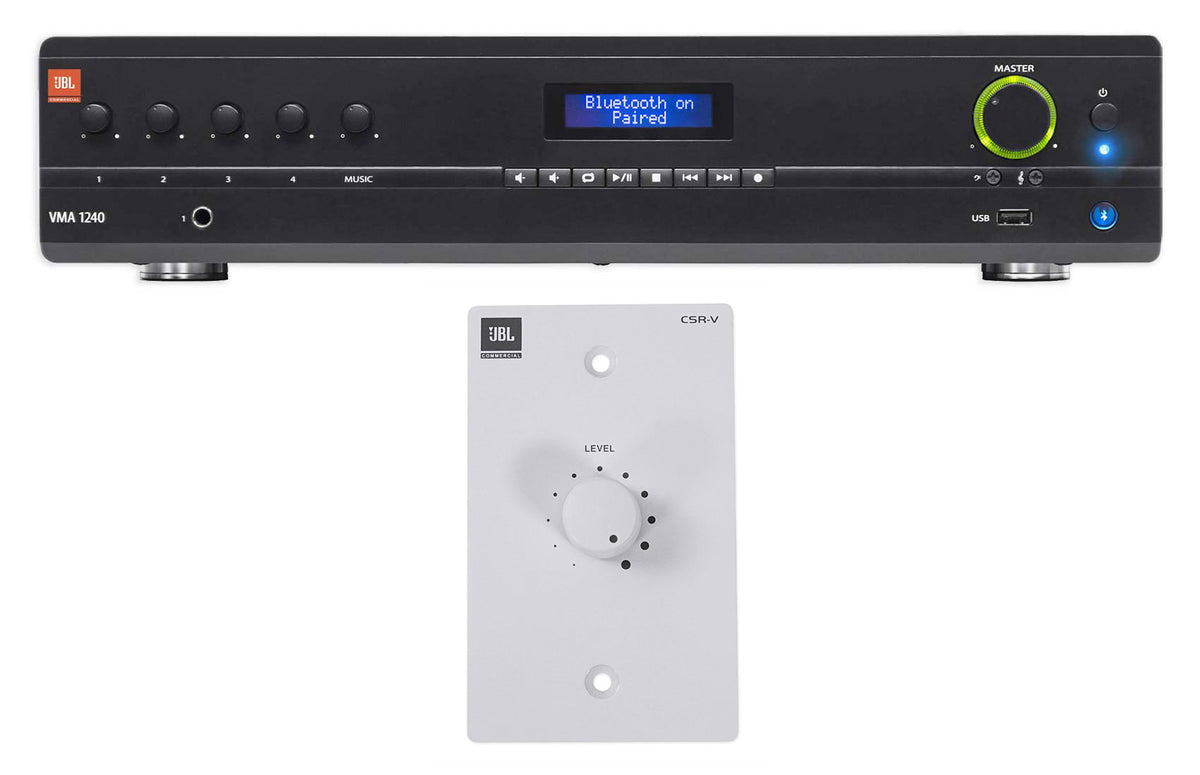

What's Included in the box
- (1) VMA1240 240W Bluetooth Mixer Amplifier
- (1) CSR-V White Wall Volume Controller
- (1) Rack Mount Kit
SKU: SKU: VMA1240+CSR-V-WHT
View full details










Product Description

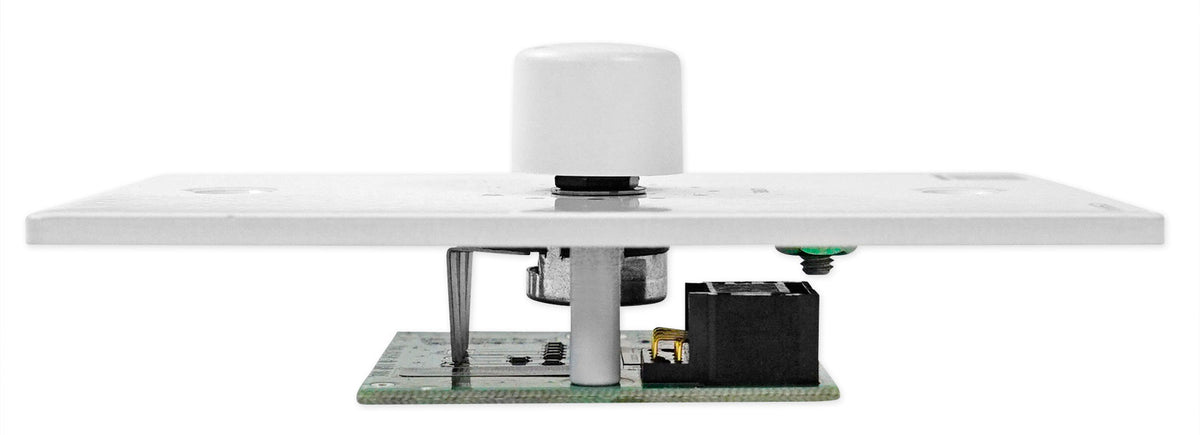

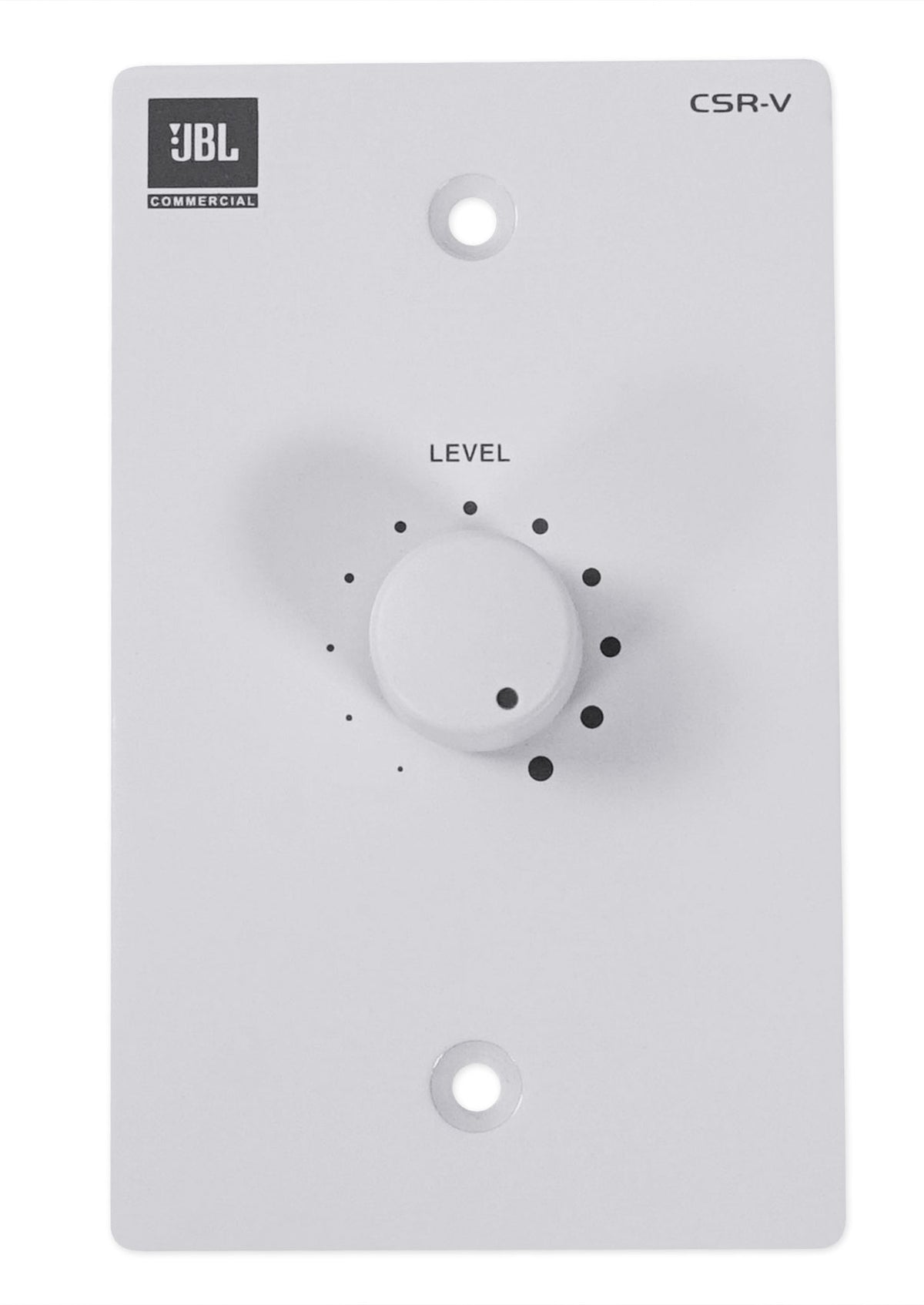

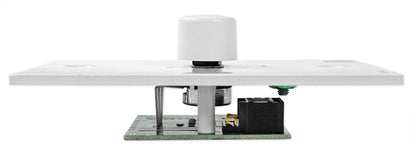

The white CSR-V controller is the piece most installs end up needing anyway. It wires to the system with standard Cat 5 cable and RJ45 connectors at runs up to 1000 ft (305 m), letting you mount volume control in a server station, front counter, or meeting room wall far from the amplifier. Including it here saves a separate purchase and gives you a complete, ready-to-install commercial audio control setup in one box.
This Bundle Includes

VMA1240

CSR-V-WHT
Features
One Amp for the Whole Venue
A 240W output that runs 4/8 Ohm speakers or 70V and 100V lines lets a single amplifier cover dining rooms, patios, and hallways together.
Music and Paging in One Unit
Five inputs take mics plus Euroblock, RCA, and 1/4" line sources, with Bluetooth and USB playback for background music without extra gear.
Clear Announcements Every Time
Voice-activated ducking automatically drops the music level when someone speaks into the mic, so specials and pages cut through a noisy room.
Volume Control Where Staff Work
The included white CSR-V wall controller connects over Cat 5 with RJ45 connectors at up to 1000 ft, putting volume at the counter or server station.
Tidy Rack Installation

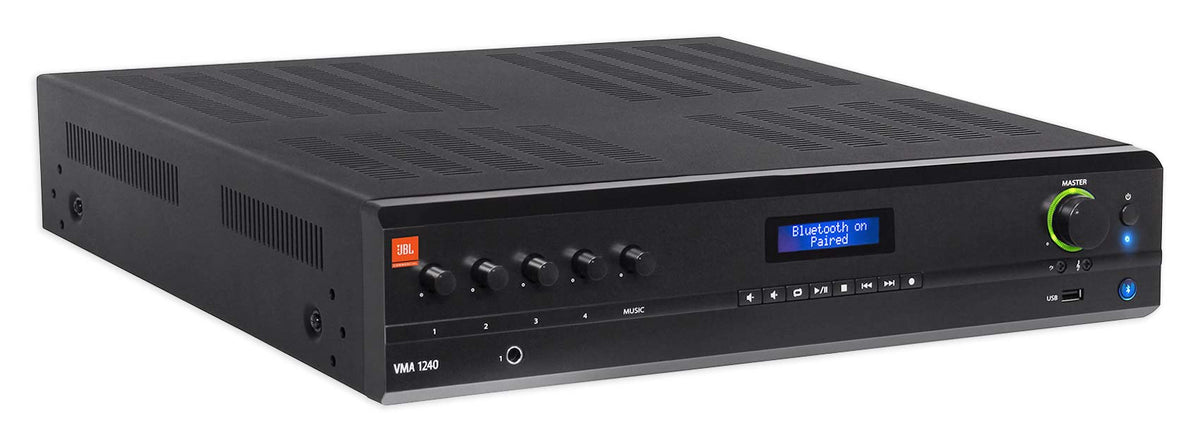

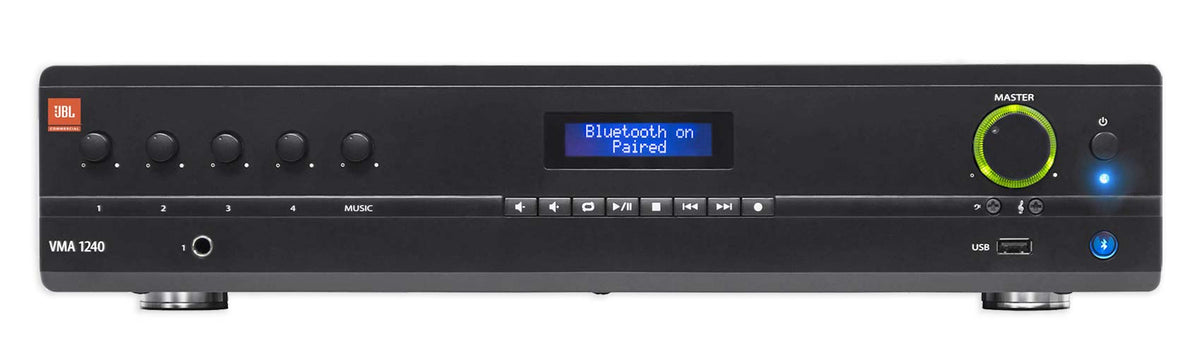

Front-panel display and controls make setup quick, and the included rack mount kit lets the amplifier sit cleanly in a standard equipment rack.
Technical Specifications
- Product Type Mixer Amplifier and Wall Volume Controller Bundle
- Amplifier Output Power 240W into 4 or 8 Ohms
- Output Options 4/8 Ohm, 70V, 100V
- Input Channels 5
- Output Channels 1

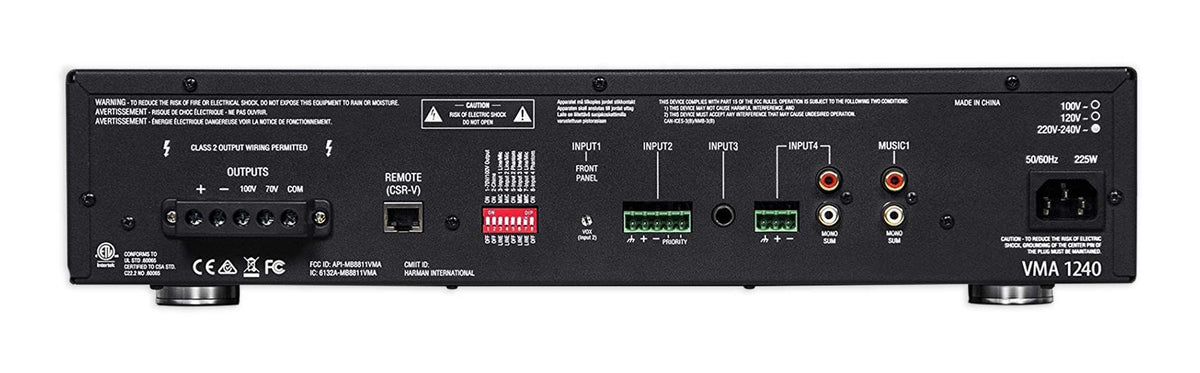

- Input Connectors Euroblock, RCA, 1/4"
- Output Connectors Euroblock
- Media Playback Bluetooth, USB
- Tone Control Bass ±14 dB @ 50 Hz, Treble ±14 dB @ 10 kHz (per channel)
- Mic Input Sensitivity 5.5 mVrms
- Line Input Sensitivity 1.3 Vrms
- RCA Input Sensitivity 130 mVrms
- Frequency Response (4/8 Ohm) 20 Hz to 20 kHz, ±2 dB
- Frequency Response (70V/100V) 80 Hz to 15 kHz, ±3 dB
- Insertion Loss (70V/100V) 1 dB max
- THD Less than 0.5%, 20 Hz to 20 kHz
- Signal to Noise Ratio Greater than 76 dB
- Input Impedance Mic 400 Ohms, Line 20k Ohms, RCA 50k Ohms
- Phantom Power 27 VDC
- Crosstalk -70 dB
- AC Line Voltage 100, 120, 220 to 240 VAC, 50/60 Hz
- Minimum Load Impedance 4 Ohms (low impedance), 20 Ohms (70V), 40 Ohms (100V)
- Operating Temperature 32°F to 95°F
- Storage Temperature -4°F to 185°F
- Humidity 95% RH
- Remote Controller CSR-V Wall Volume Controller

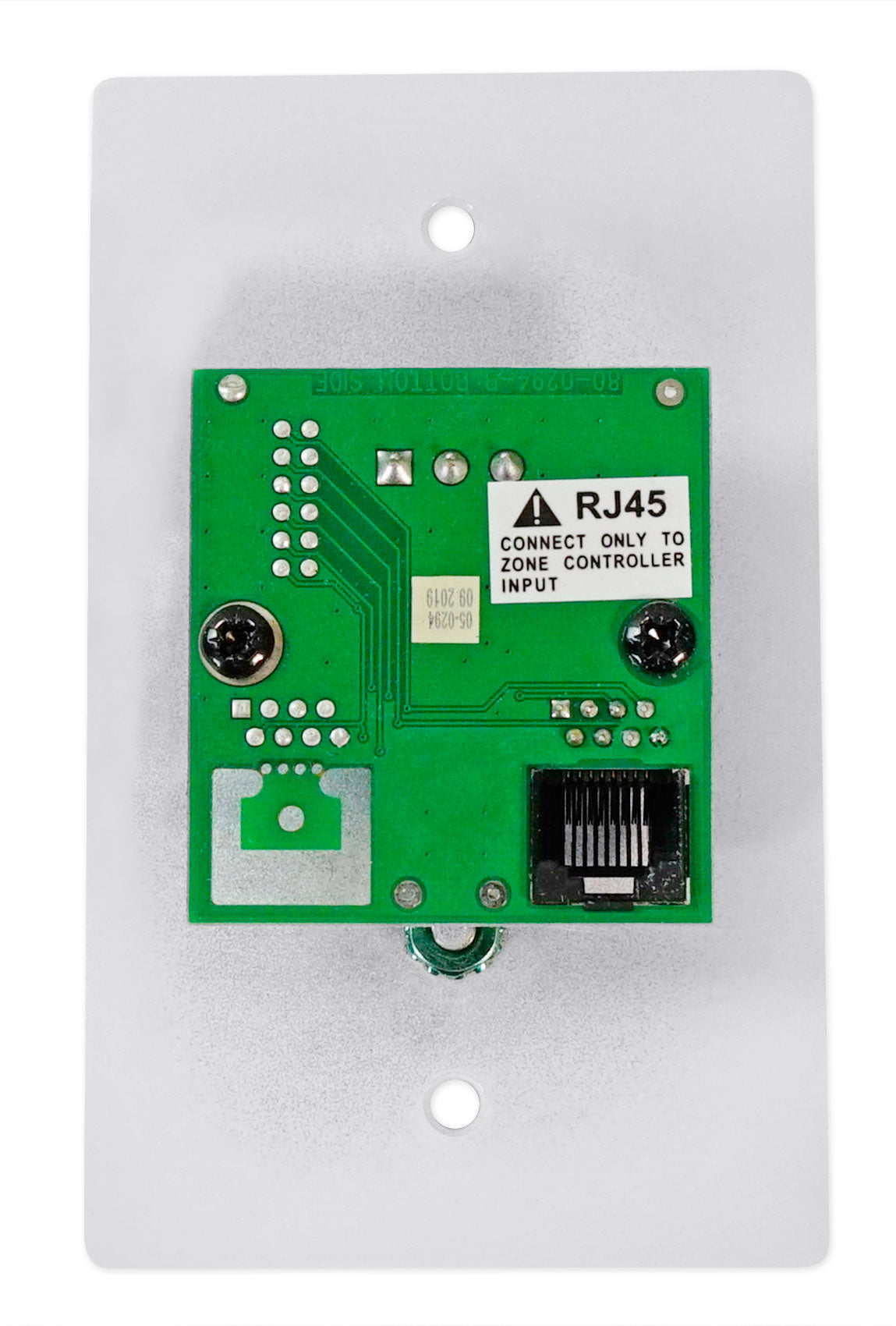

- Remote Connection Dual RJ45, Cat 5 cable up to 1000 ft (305 m)
- Remote Color White
- Weight 25.5 lb (amplifier)
- Dimensions 17" x 16.3" x 3.5" (W x D x H, amplifier)
