VMA2120 + (12) CCL6T Black 70V Ceiling Speakers
JBL
VMA2120 + (12) CCL6T Black 70V Ceiling Speakers
VMA2120 + (12) CCL6T Black 70V Ceiling Speakers

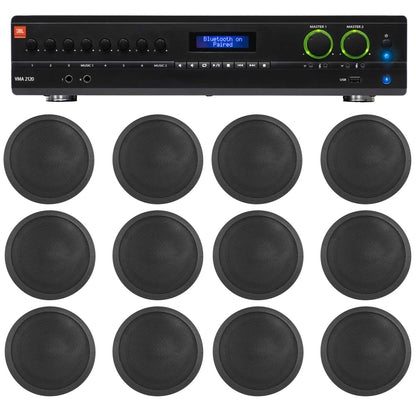

120W 70V Bluetooth Mixer Amplifier, 8 Inputs, 2 Outputs, 12 6-Inch Ceiling Speakers
Free Shipping
Features
- 120W two-channel mixer amplifier for distributed commercial audio
- Bluetooth and eight inputs handle music and paging sources
- 70V and 100V outputs support long speaker runs
- Twelve 6-inch speakers offer 10W, 5W, and 2.5W taps
- Paintable flush grilles suit restaurants, offices, schools, and retail spaces
Couldn't load pickup availability

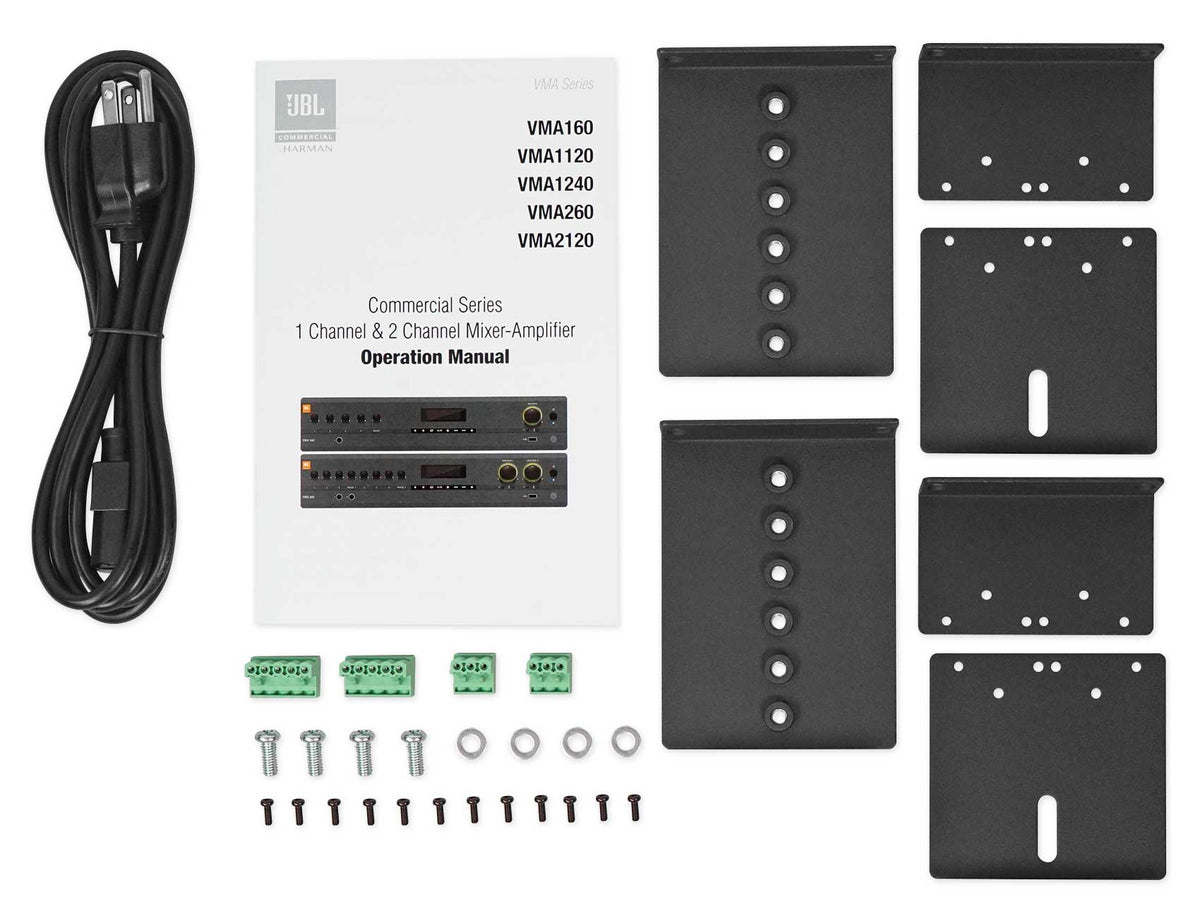

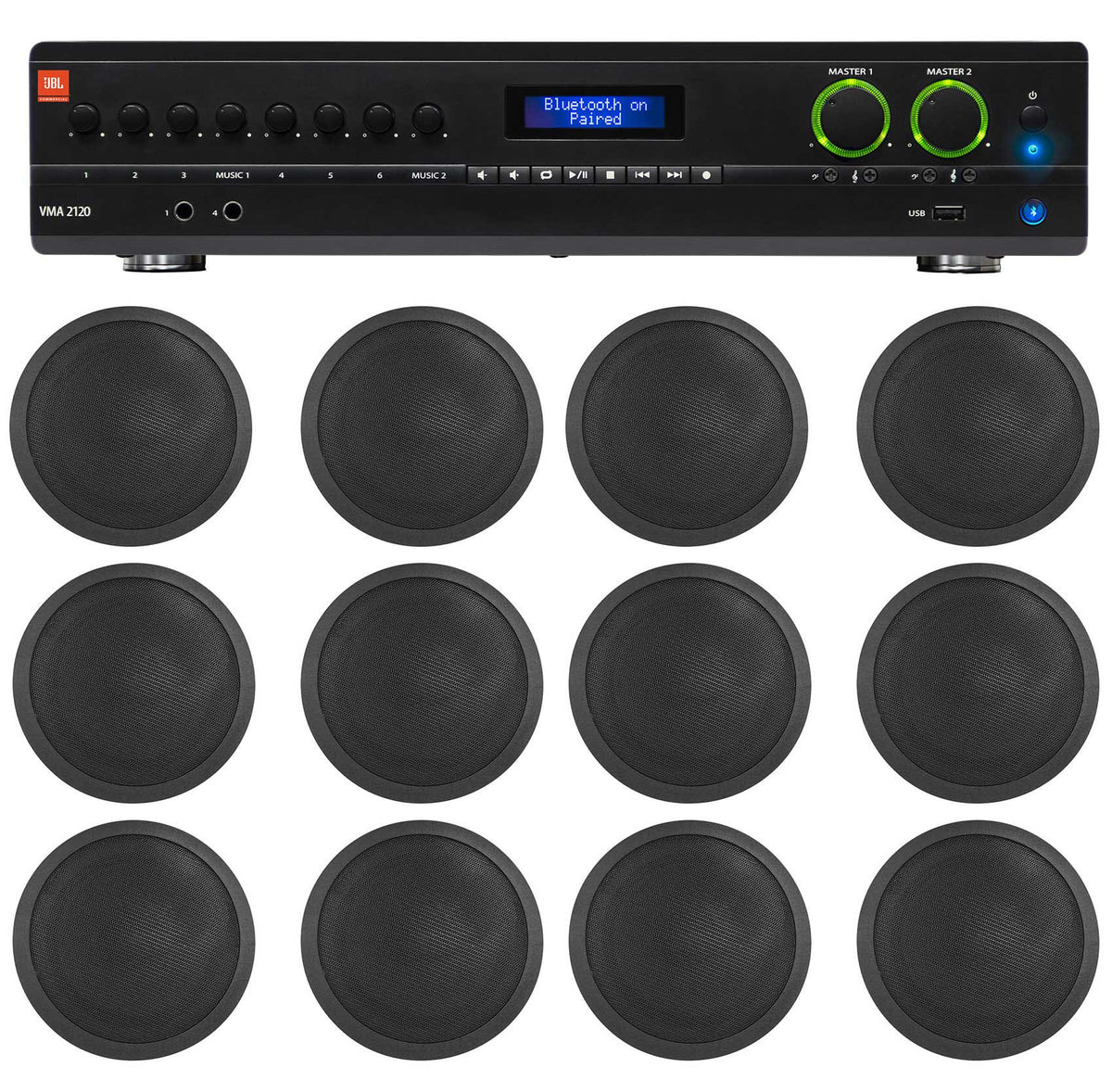

What's Included in the box

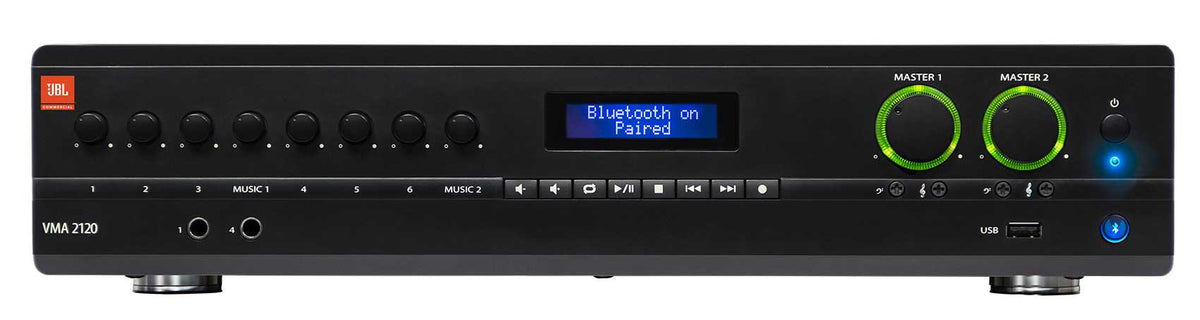

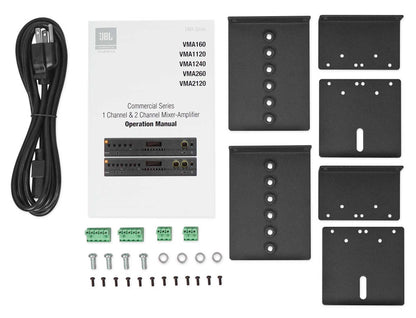

- (1) VMA2120 120W 2-channel 70V Bluetooth mixer amplifier with rack mounting hardware

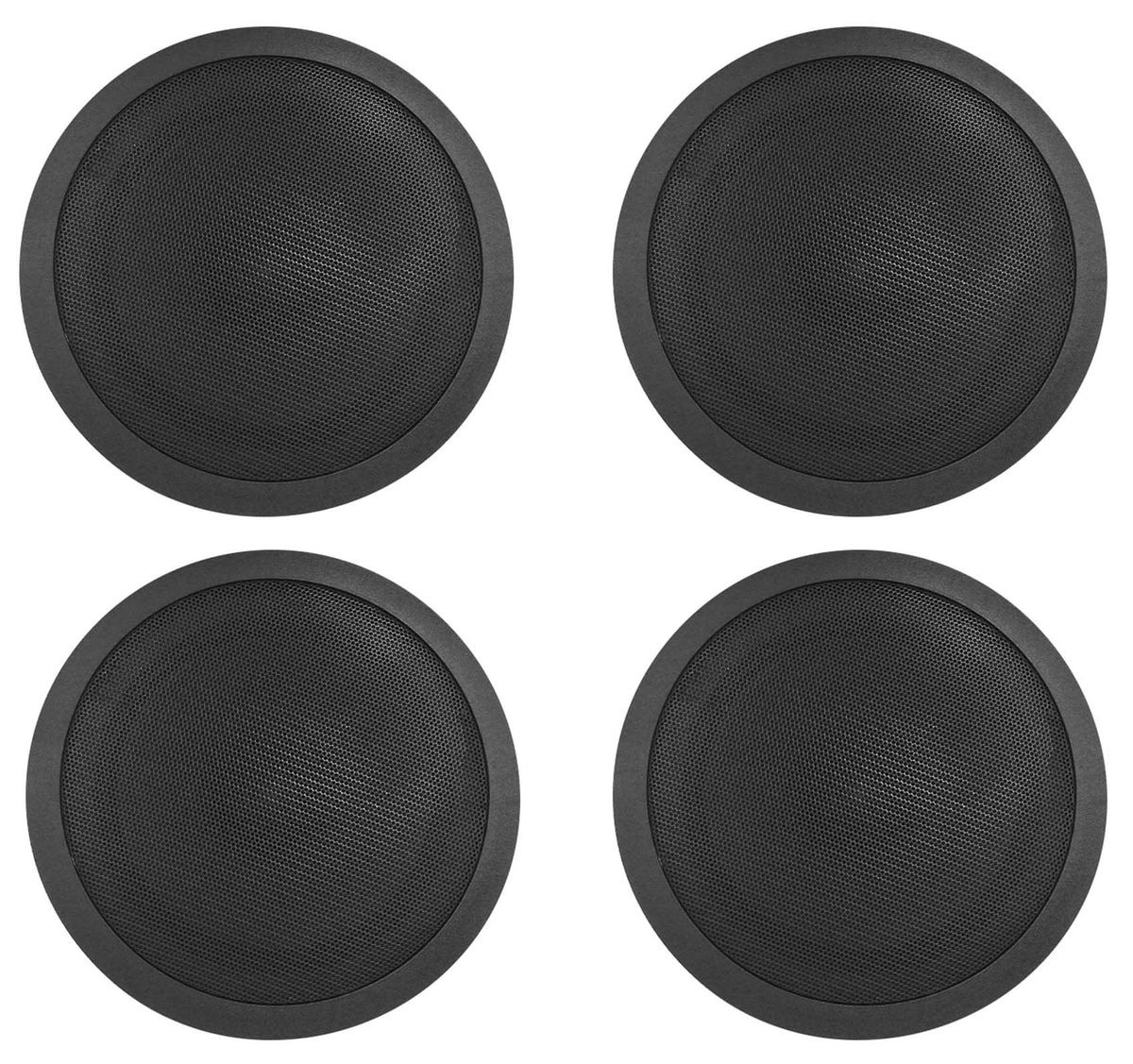

- (12) CCL6T Black 6-inch 70V commercial ceiling speakers
SKU: SKU: VMA2120+(3) CCL6T BLACK
View full details









Product Description
This Bundle Includes

VMA2120

CCL6T BLACK
Features
Central Audio Control
The 120W two-channel mixer amplifier combines Bluetooth and eight inputs for paging, announcements, and background music from one commercial audio hub.
Distributed Speaker Wiring
70V and 100V outputs support long cable runs, while three transformer taps help set speaker levels for different room areas.
Room-Specific Sound
Independent bass and treble controls on both outputs provide ±14dB adjustment at 50Hz and 10kHz during installation in each room.
Announcement Priority
Paging chime and priority muting help announcements stand out over background audio in restaurants, offices, schools, and retail spaces clearly.

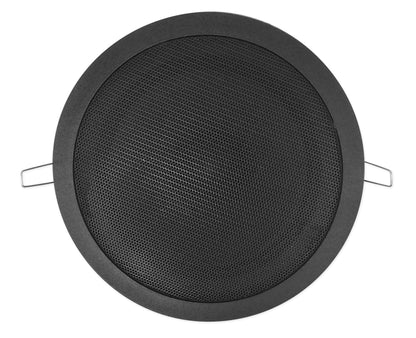

Discreet Ceiling Coverage

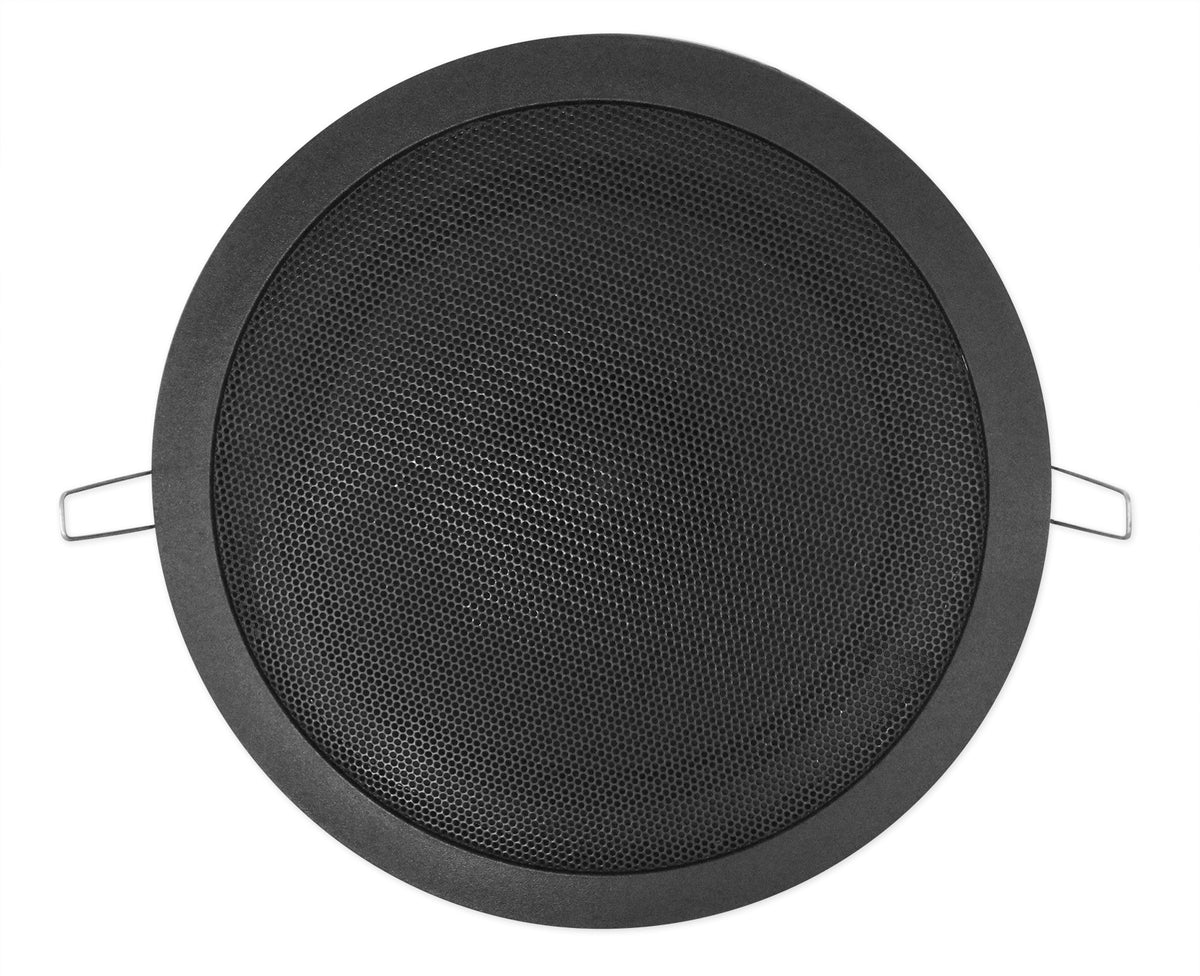

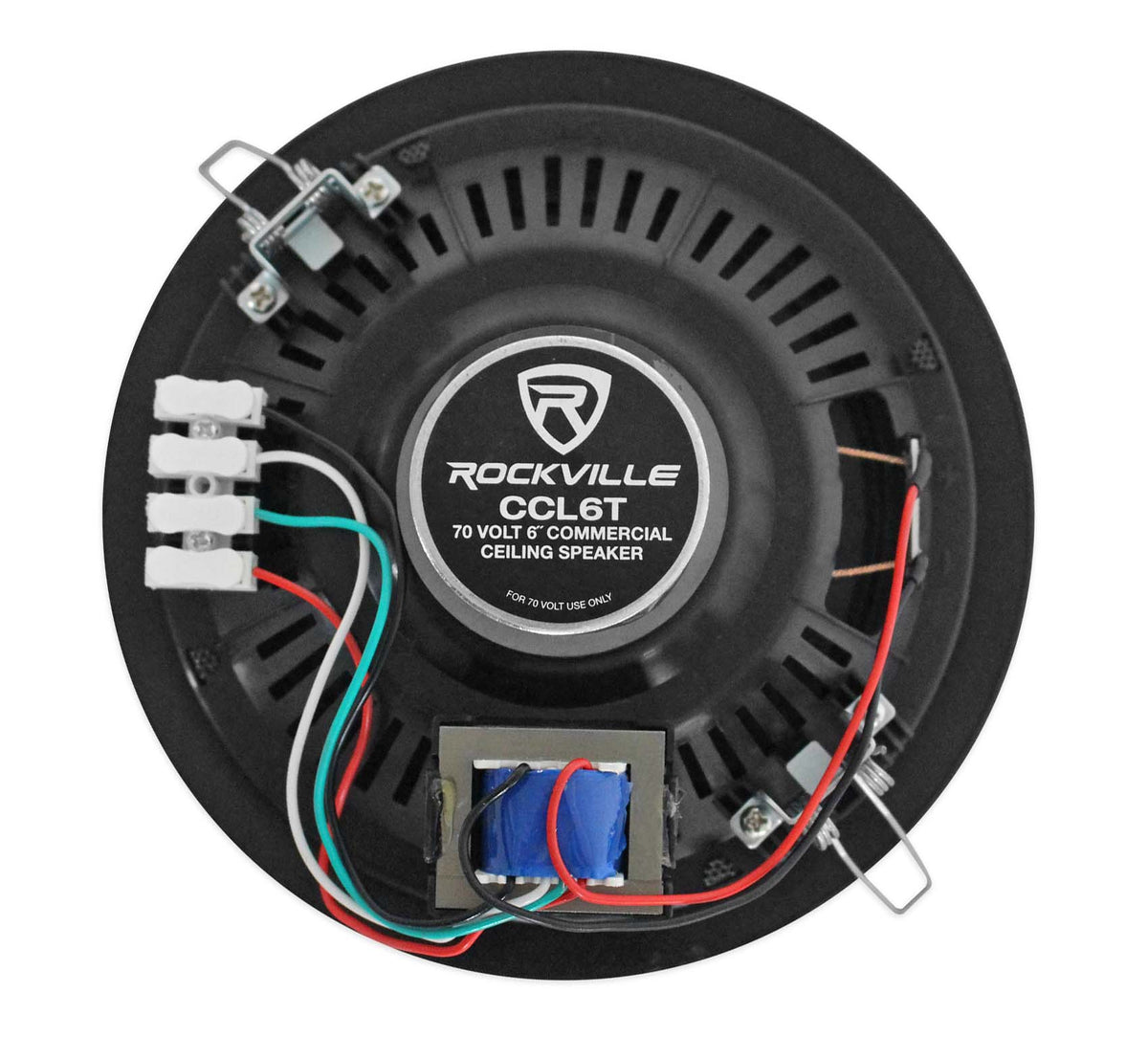

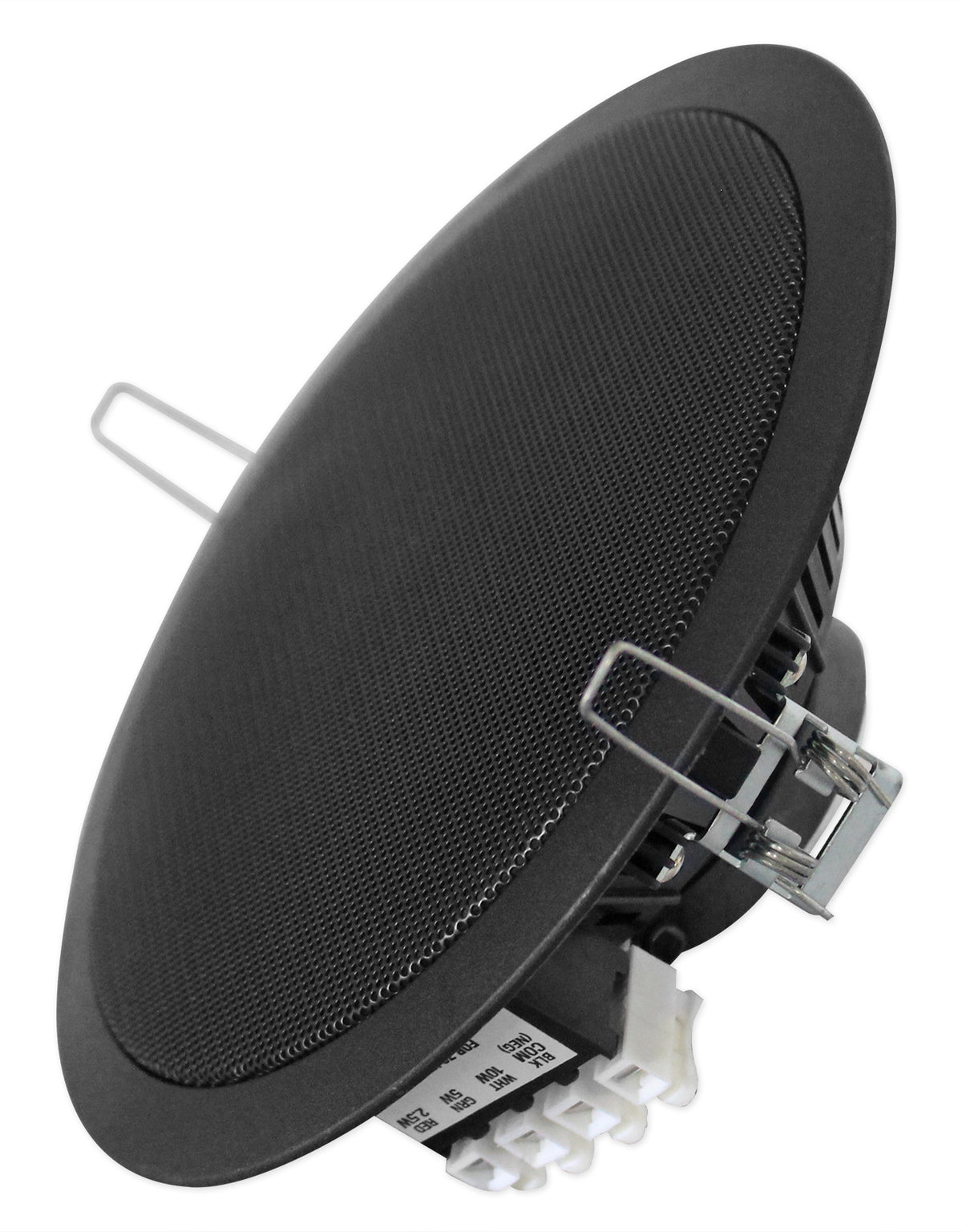

Each included 6-inch speaker pairs a double paper cone and paintable flush grille with spring-loaded push terminals for commercial installations.
Technical Specifications
- Product Type 120W 70V Mixer Amplifier With 12 Ceiling Speakers
- Amplifier Power 120 W
- Amplifier Channels 2
- Amplifier Inputs 8
- Amplifier Outputs 2
- Wireless Audio Bluetooth
- Amplifier Frequency Response 20 Hz to 20 kHz
- Total Harmonic Distortion Less than 0.5%
- Signal-to-Noise Ratio More than 76 dB
- Input Impedance Mic: 400 Ohms; Line: 20 kOhms balanced; RCA: 50 kOhms
- Phantom Power 27 VDC
- Crosstalk -70 dB
- Tone Control Bass ±14 dB at 50 Hz; Treble ±14 dB at 10 kHz

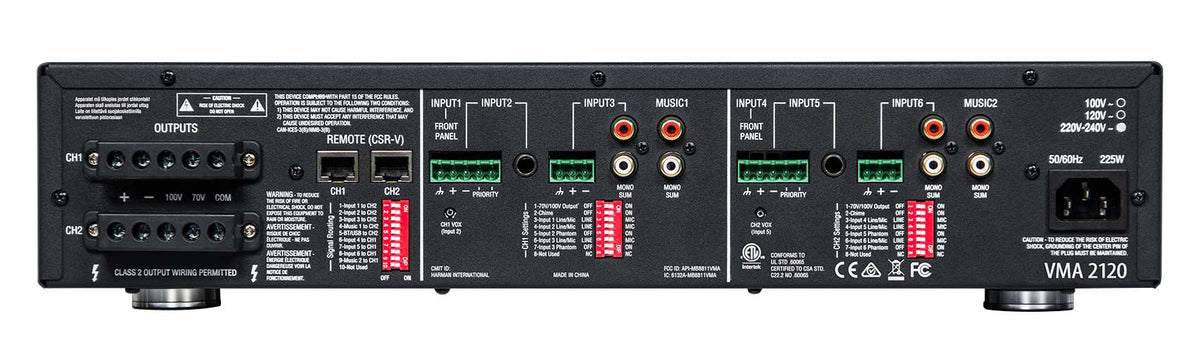

- Output Formats Low impedance, 70V, 100V
- Nominal AC Line Voltage 100V, 120V, 220V, 220 to 240V, 50/60 Hz
- Speaker Quantity 12
- Speaker Size 6 in woofer
- Speaker Transformer Taps 10 W, 5 W, 2.5 W
- Speaker Frequency Response 80 Hz to 15 kHz
- Speaker Sensitivity 88 dB at 1 W / 1 m
- Speaker Voice Coil 0.75 in
- Speaker Magnet 3.5 oz ferrite
- Speaker Cone Double paper
- Speaker Impedance 1K, 2K, 4K Ohms

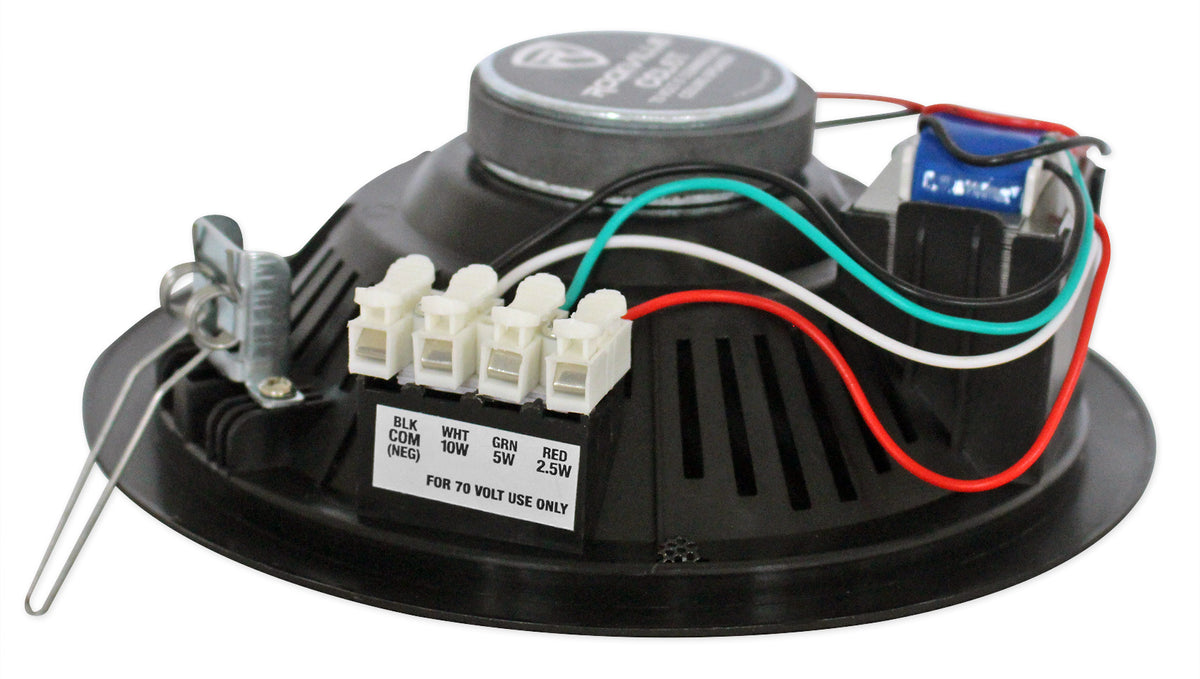

- Speaker Terminals Fireproof screw terminal block; spring-loaded push terminals
- Mounting Depth 2.36 in
- Cut-Out Diameter 6.5 in
- Speaker Color Black, paintable
- Weight 29.3 lb (amplifier)
- Dimensions 17 in W x 16.3 in D x 3.5 in H (amplifier)
