VRX928LA + (4) RockWedge LED
VRX928LA + (4) RockWedge LED
8-Inch Two-Way Line Array Speaker, 400 W, Four RGBWA+UV Battery Par Lights
Features
- 8-inch two-way line array speaker for compact array setups
- Constant-curvature waveguide with two high-frequency compression drivers
- 400 W / 800 W / 1600 W power ratings with passive or bi-amp modes
- Four 54 W RGBWA+UV rechargeable wireless DMX par lights
- 7500 mAh batteries and 6- or 10-channel DMX control
Couldn't load pickup availability

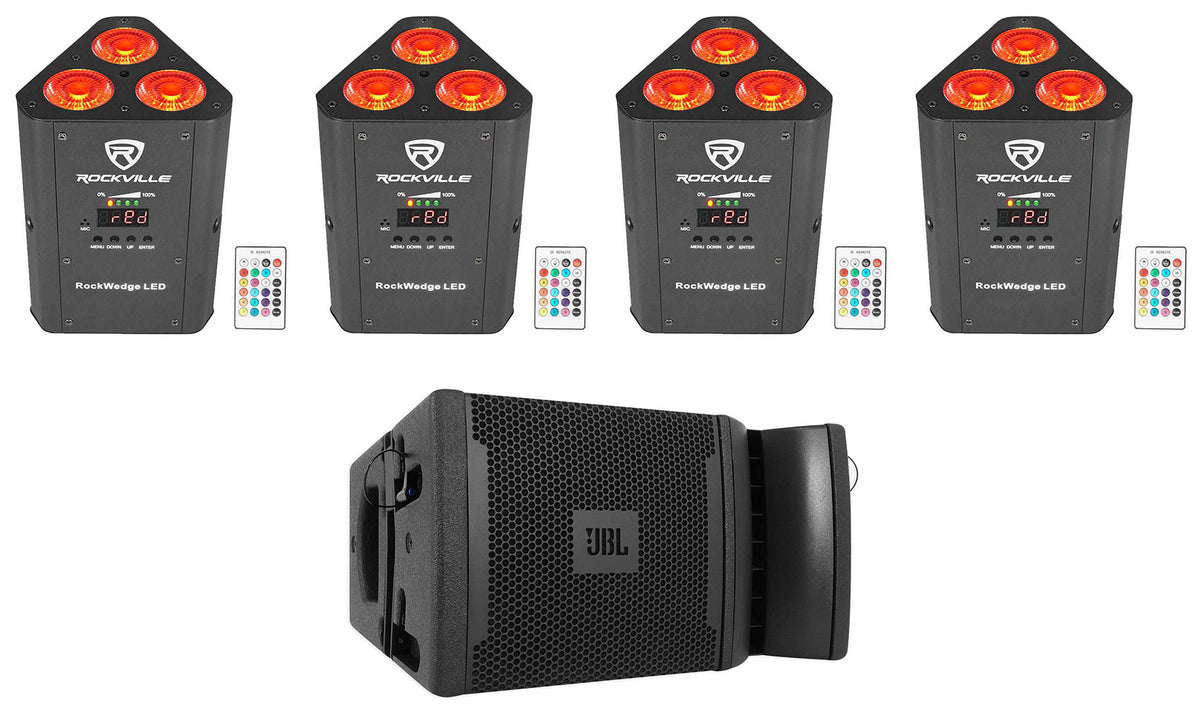

What's Included in the box

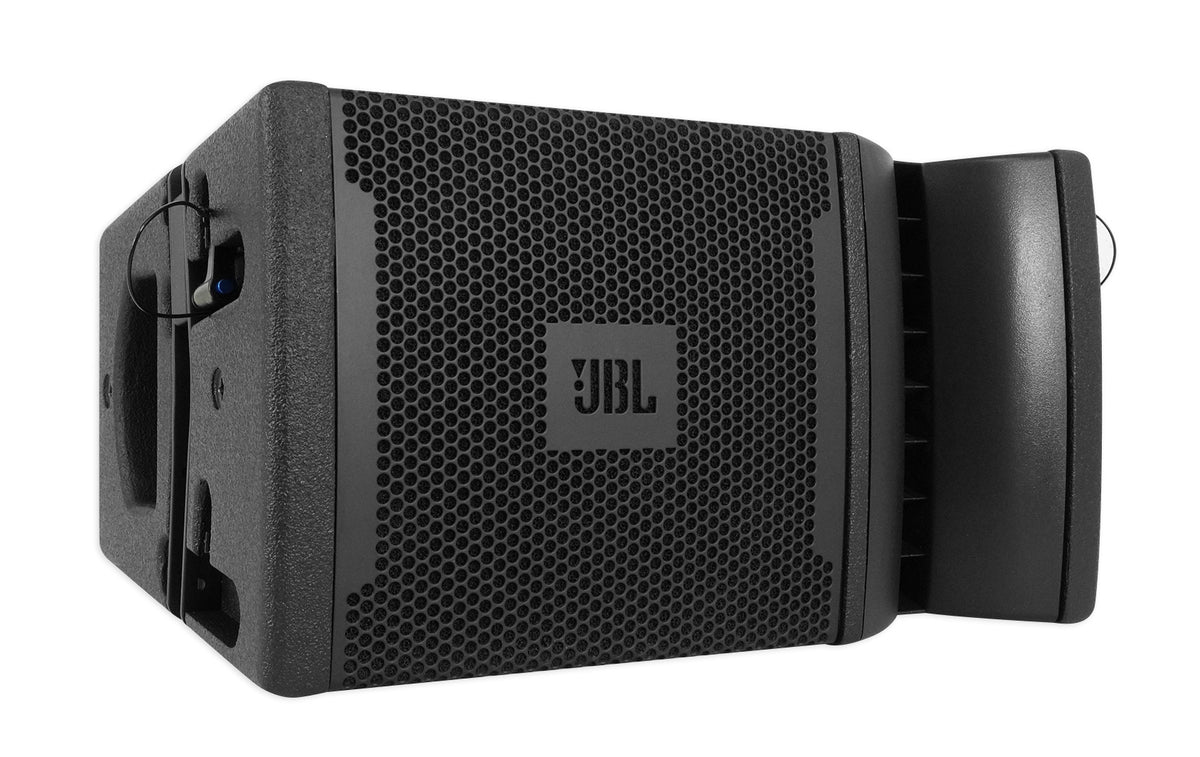

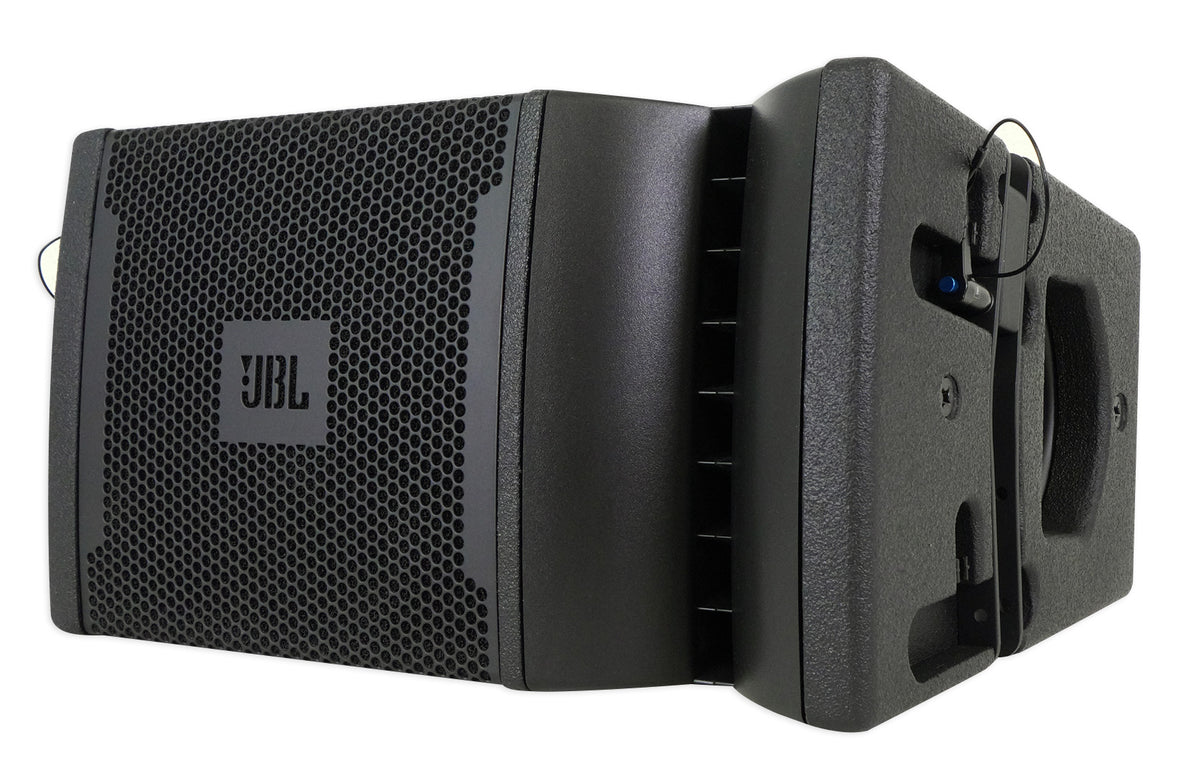

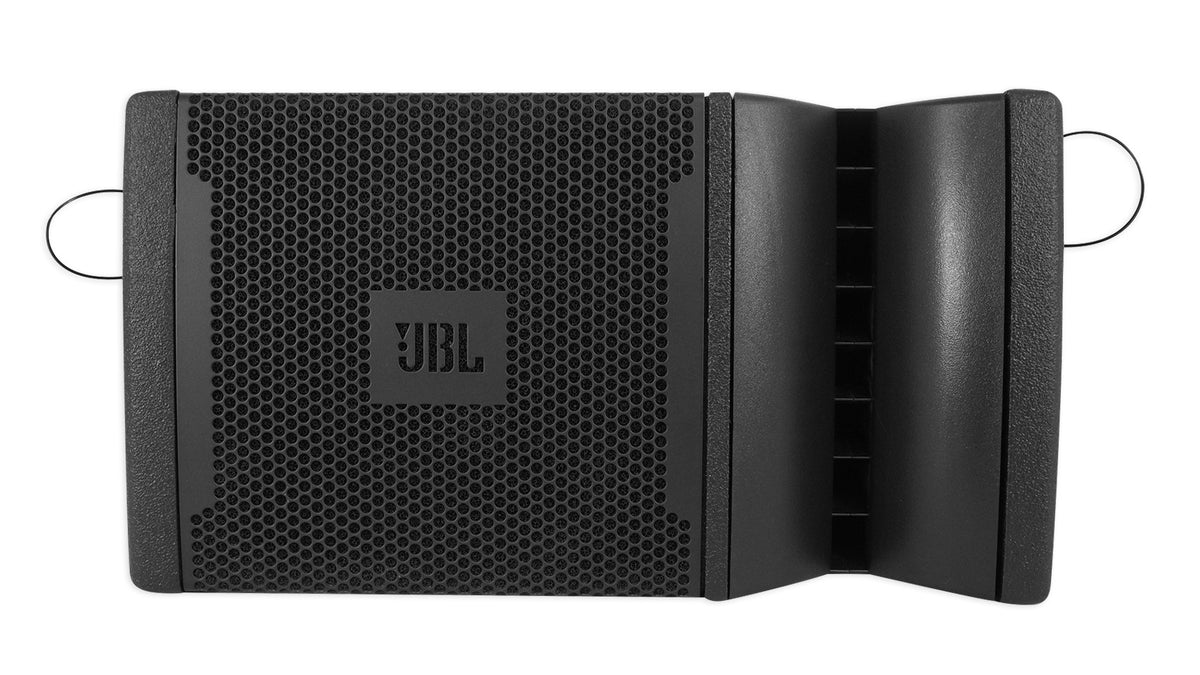

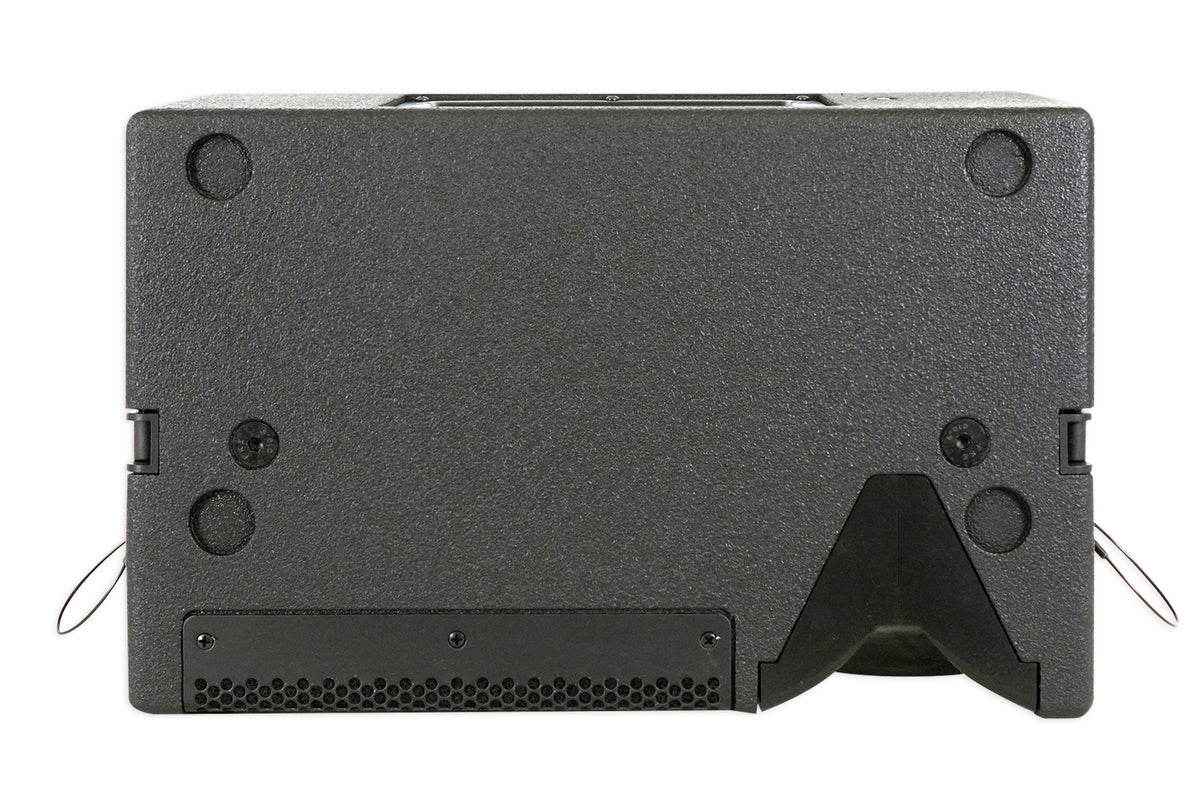

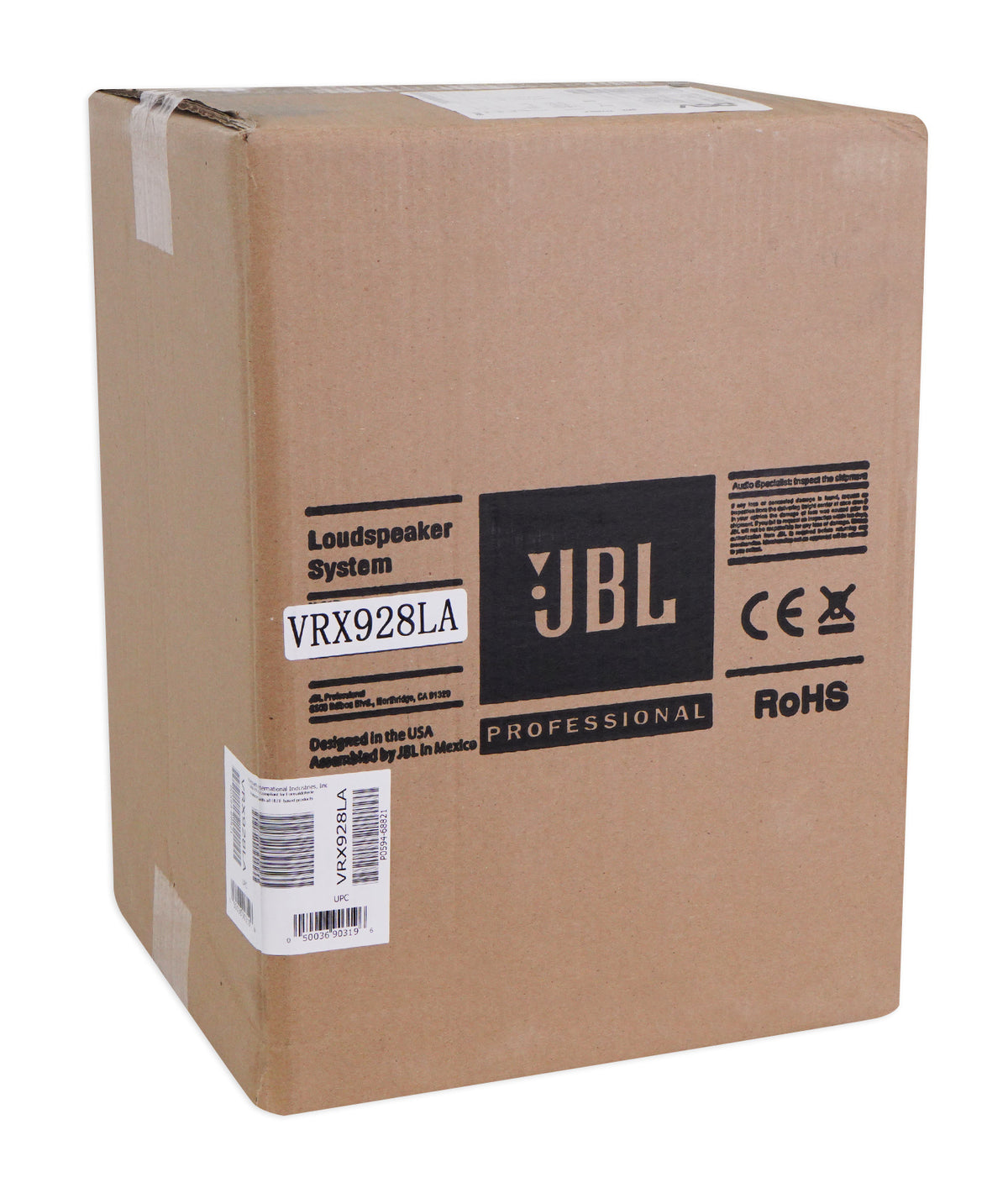

- (1) VRX928LA 8-inch two-way passive line array speaker in black

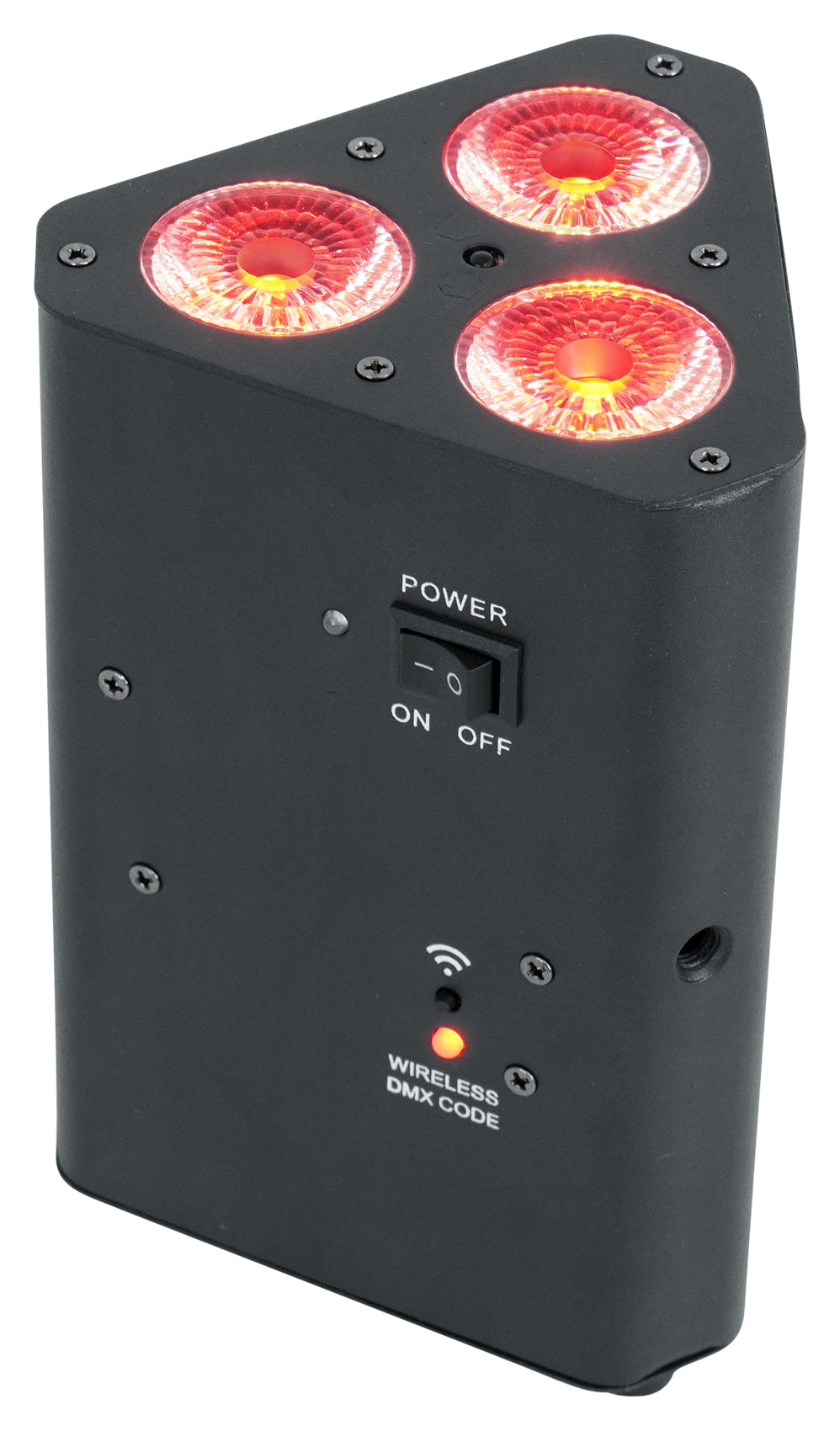

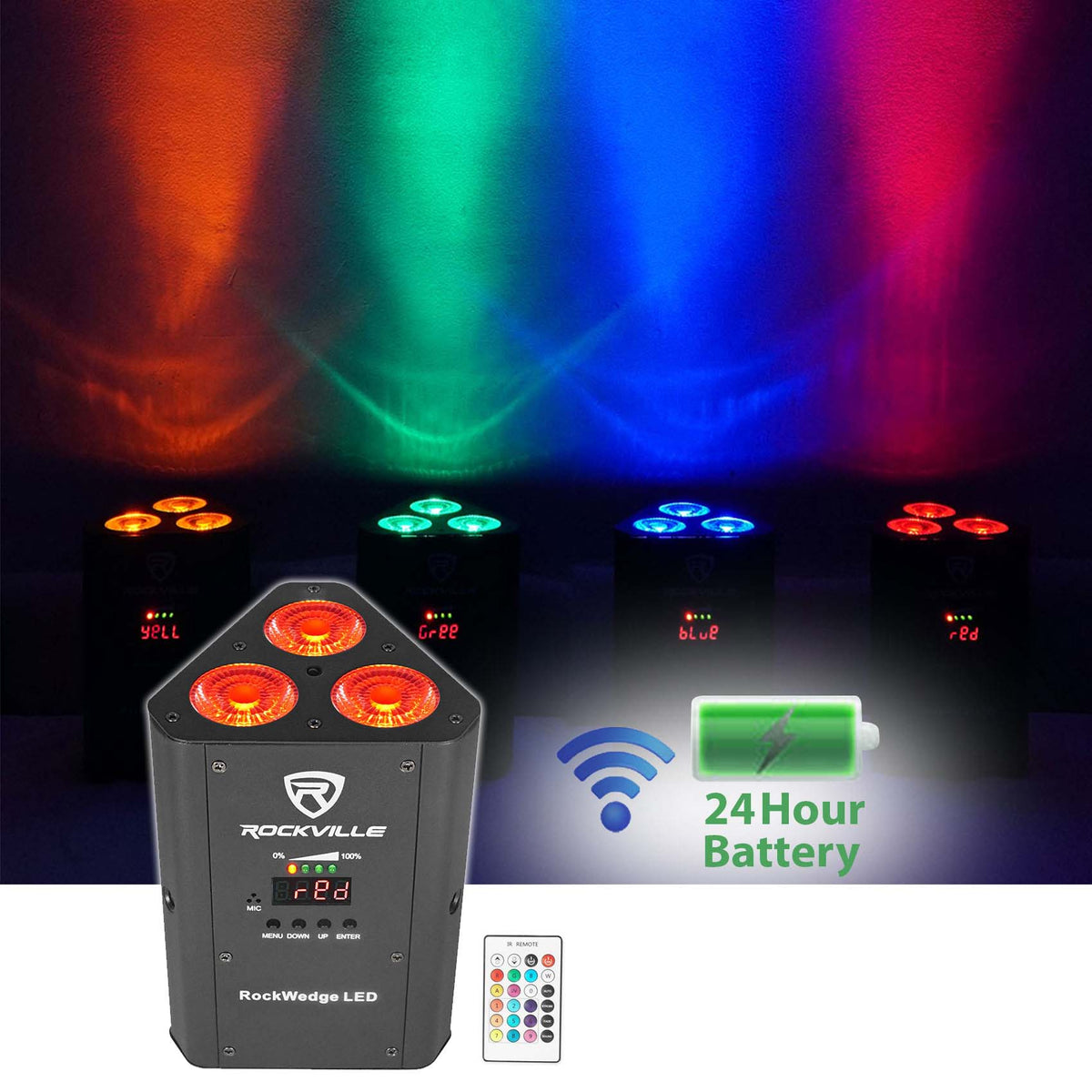

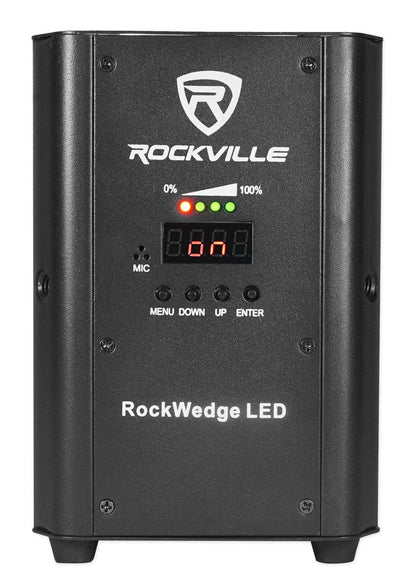

- (4) RockWedge LED 54 W RGBWA+UV rechargeable wireless DMX par lights
- (4) Wireless IRC remote controls
- (4) Mounting clamps
- (4) 4-foot power cables
SKU: SKU: VRX928LA+(4) RockWedge LED
View full details











Product Description
Features
Controlled Array Coverage
The constant-curvature waveguide aligns two compression drivers acoustically, while amplitude-shading switches help tailor high-frequency output in arrays up to six enclosures.

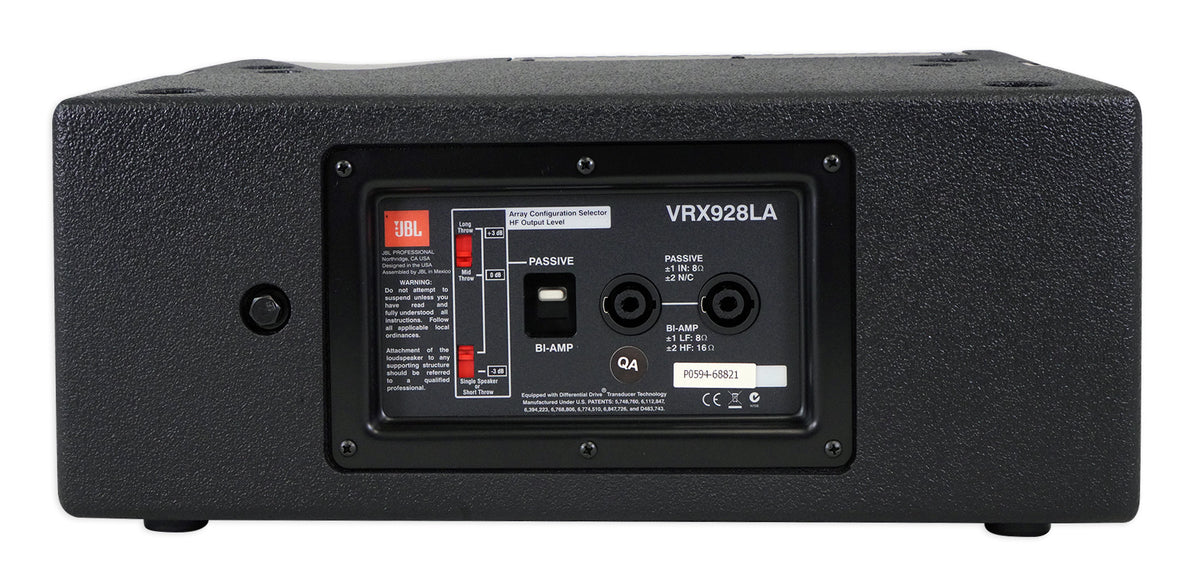

Flexible System Operation
Passive and bi-amp crossover modes, plus 400 W / 800 W / 1600 W ratings, let the speaker fit different signal and power setups.
Secure Placement Options
Dual 36 mm pole sockets support flexible aiming, while the coated plywood enclosure provides a practical cabinet for mobile or installed use.

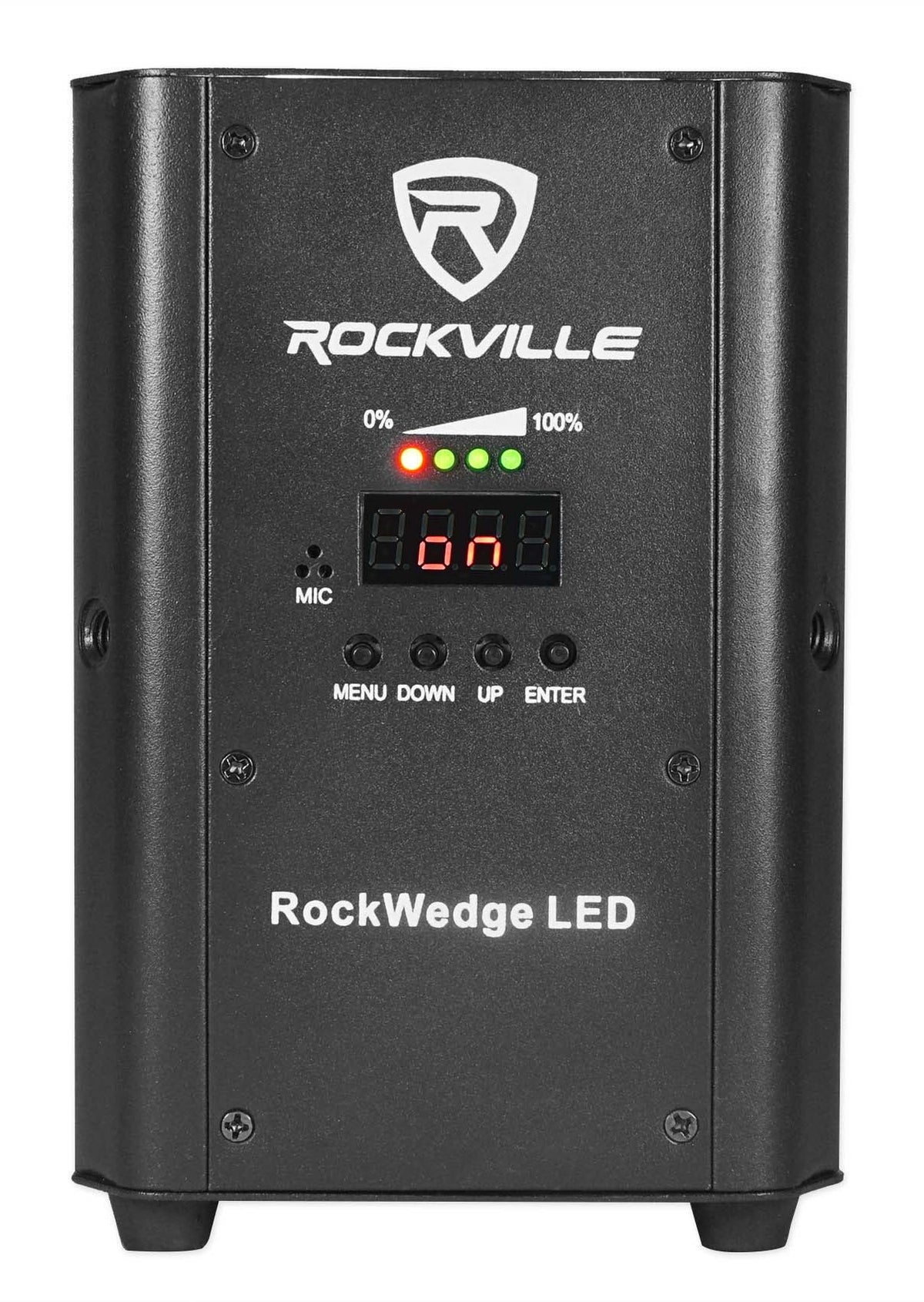

Wireless Color Control
Each included par light uses three 18 W RGBWA+UV LEDs, wireless DMX 512, and six or ten channels for coordinated event lighting.

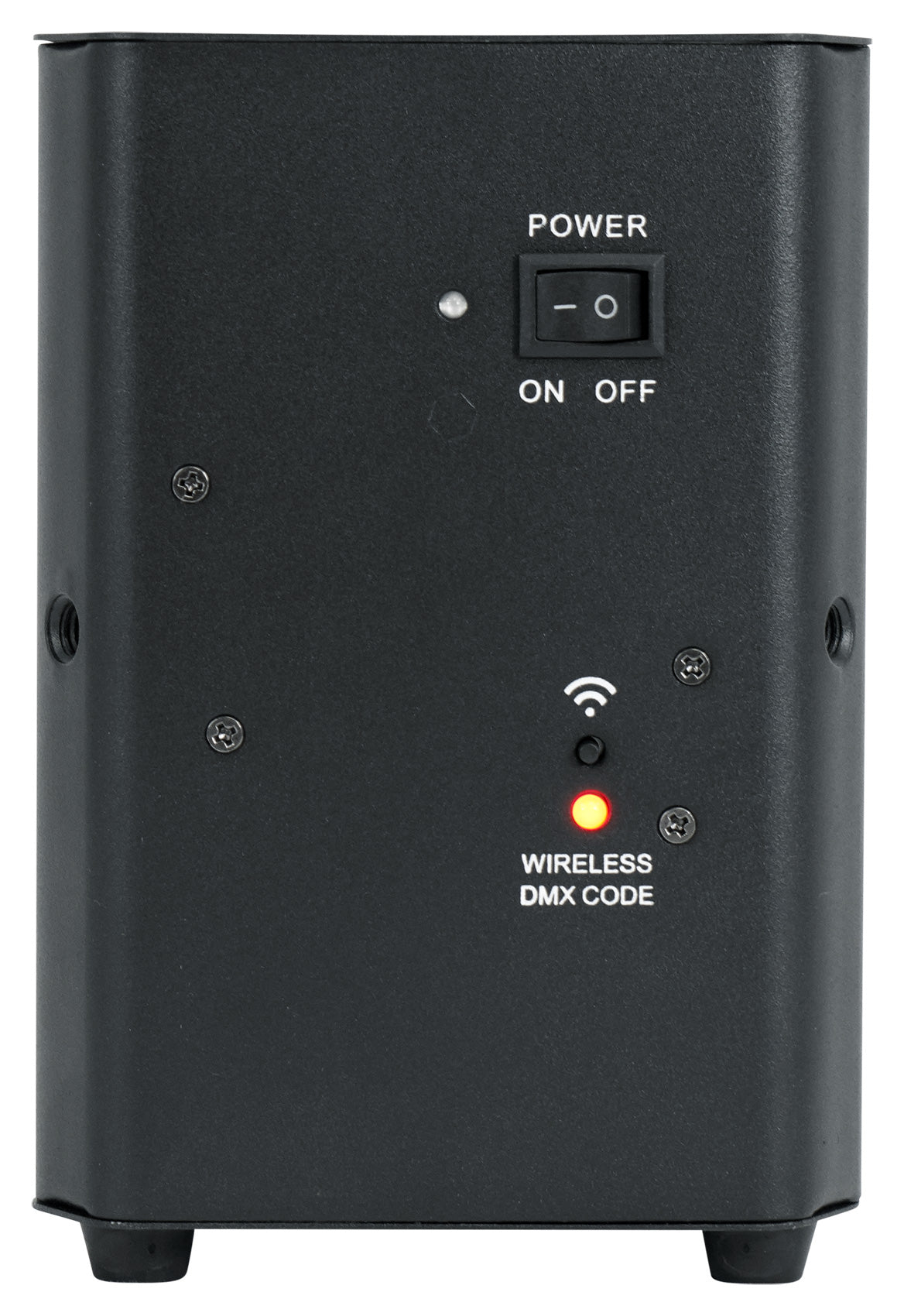

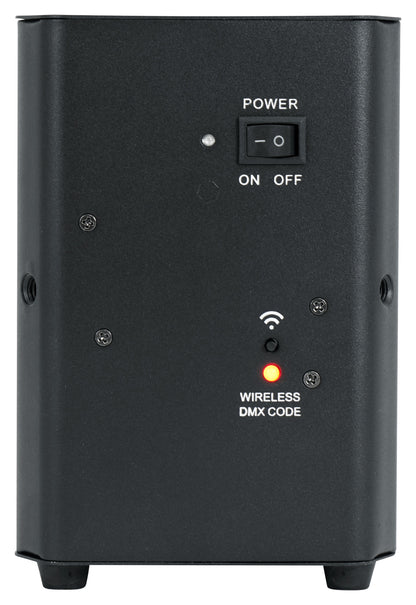

Long Battery Runtime
Each light has a 7500 mAh rechargeable battery, LCD battery indicator, and 4-hour recharge time for cable-free placement during events.
Technical Specifications
- Product Type 8-inch two-way passive line array speaker with four rechargeable wireless DMX par lights
- Power Rating 400 W / 800 W / 1600 W
- Frequency Range (-10 dB) 70 Hz to 20 kHz
- Speaker Dimensions (H x W x D) 230 mm x 420 mm x 270 mm (9.0 in x 16.5 in x 10.5 in)
- Coverage Pattern 100 x 15 nominal
- Frequency Response (±3 dB) 85 Hz to 19 Hz
- Crossover Modes Bi-amp / passive
- Crossover Frequency 2.0 kHz
- Speaker Inputs NL-4 speaker inputs (x2)
- Speaker Outputs 1 x XLR
- Enclosure Coated plywood
- System Type Constant-curvature 8-inch two-way line array system
- Maximum SPL (1 m) 122 dB SPL peak in passive mode; LF 122 dB; HF 128 dB in bi-amp mode
- Nominal Impedance Passive 8 ohm; bi-amp LF 8 ohm; bi-amp HF 16 ohm
- LF Driver 1 x 200 mm (8 in) low-frequency driver
- HF Driver 2 x 25 mm (1.0 in) neodymium compression drivers
- Suspension / Mounting Dual 36 mm pole socket included; optional line-array frame kit or M10 eyebolts required for suspension
- Par Light Quantity 4
- Par Light Power 54 W each (3 x 18 W LEDs)
- Par Light LED Type 6-in-1 RGBWA+UV
- DMX Control 6 or 10 channels; wireless DMX 512 receiver

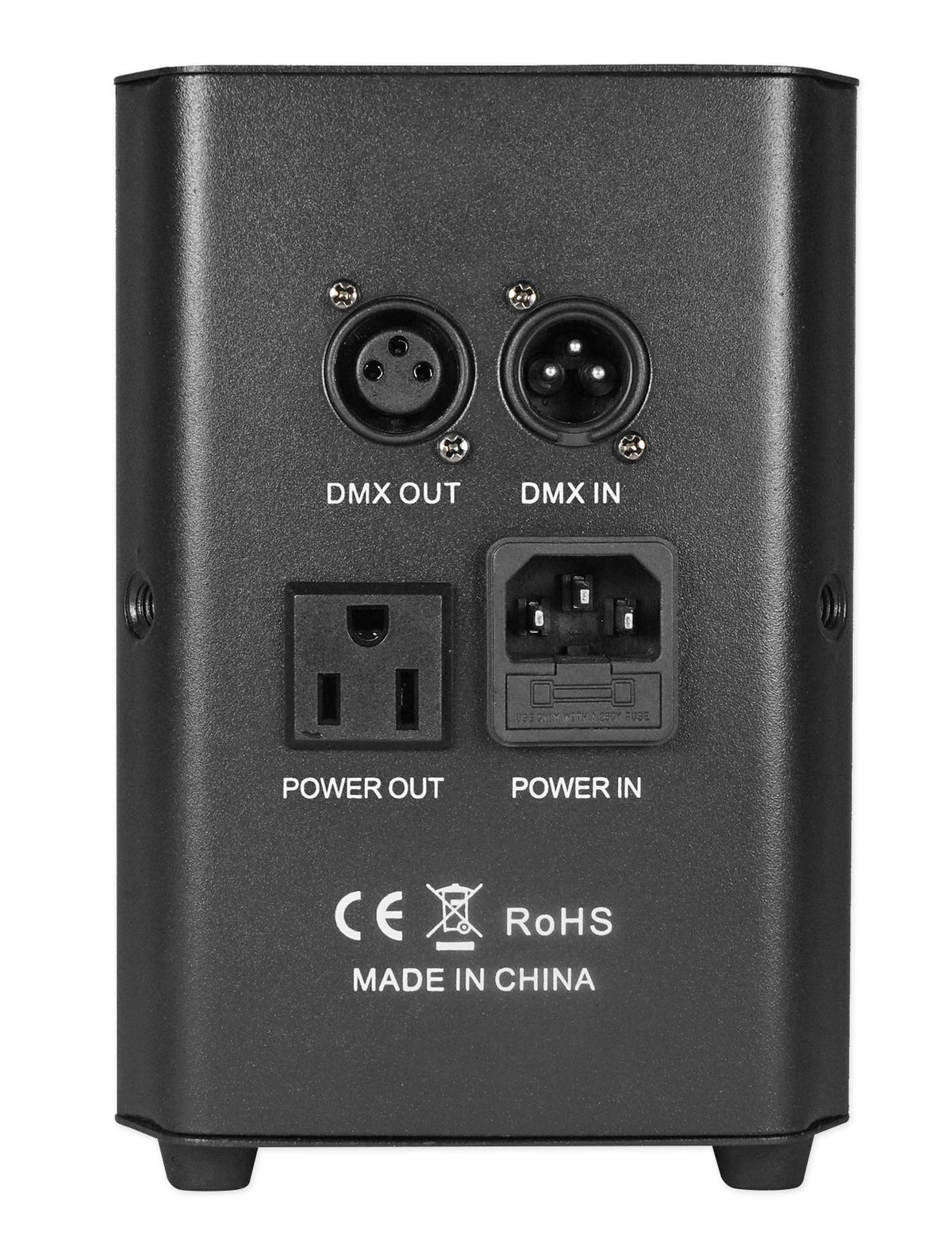

- DMX Connections 3-pin input and output
- LED Life Expectancy 50,000 hours
- Light Output 6500 lux at 1 m
- LED Angle 30 degrees (± 5 degrees)
- Battery 7500 mAh lithium battery
- Single-Color Runtime Red 36 hours; green 28 hours
- Double-Color Runtime 14 hours
- All-Color Runtime 8 hours
- Recharge Time 4 hours
- Battery Cycle Life Hundreds of charging cycles
- Battery Protection Overcharge protection
- Power Supply AC 110 V to 220 V, 50 to 60 Hz
- Power Consumption 25 W
- Automatic Modes Color change, strobe, dimmer, gradual color change, jump change, sound activated
- Flicker Free Yes
- Colors 16.7 million colors
- Field-Replaceable Battery Yes
- Wireless DMX Range 1,000 to 1,500 feet
- Warranty 1 year
- Weight 28 lb for speaker; 4.4 lb per par light
- Dimensions 9.0 in x 16.5 in x 10.5 in for speaker; 4.45 x 4.45 x 7.2 in per par light
