(2) JRX225 + RPA12 + (2) RCSS1425
JBL
(2) JRX225 + RPA12 + (2) RCSS1425
(2) JRX225 + RPA12 + (2) RCSS1425
Dual 15" Passive PA Speakers, 1400W RMS 2-Channel Power Amplifier, 25' Speakon Speaker Cables
Features
- (2) JBL JRX225 dual 15" passive speakers rated 500W continuous, 2000W peak each
- Rockville RPA12 amp delivers 700W RMS per channel into 4 ohms in stereo mode
- Each JRX225 reaches 133 dB max SPL with 90° x 50° coverage
- Built-in limiter and SonicGuard help protect drivers from clipping and overload
- (2) 25' RCSS1425 14 AWG Speakon cables with 100% copper conductors
Couldn't load pickup availability
What's Included in the box

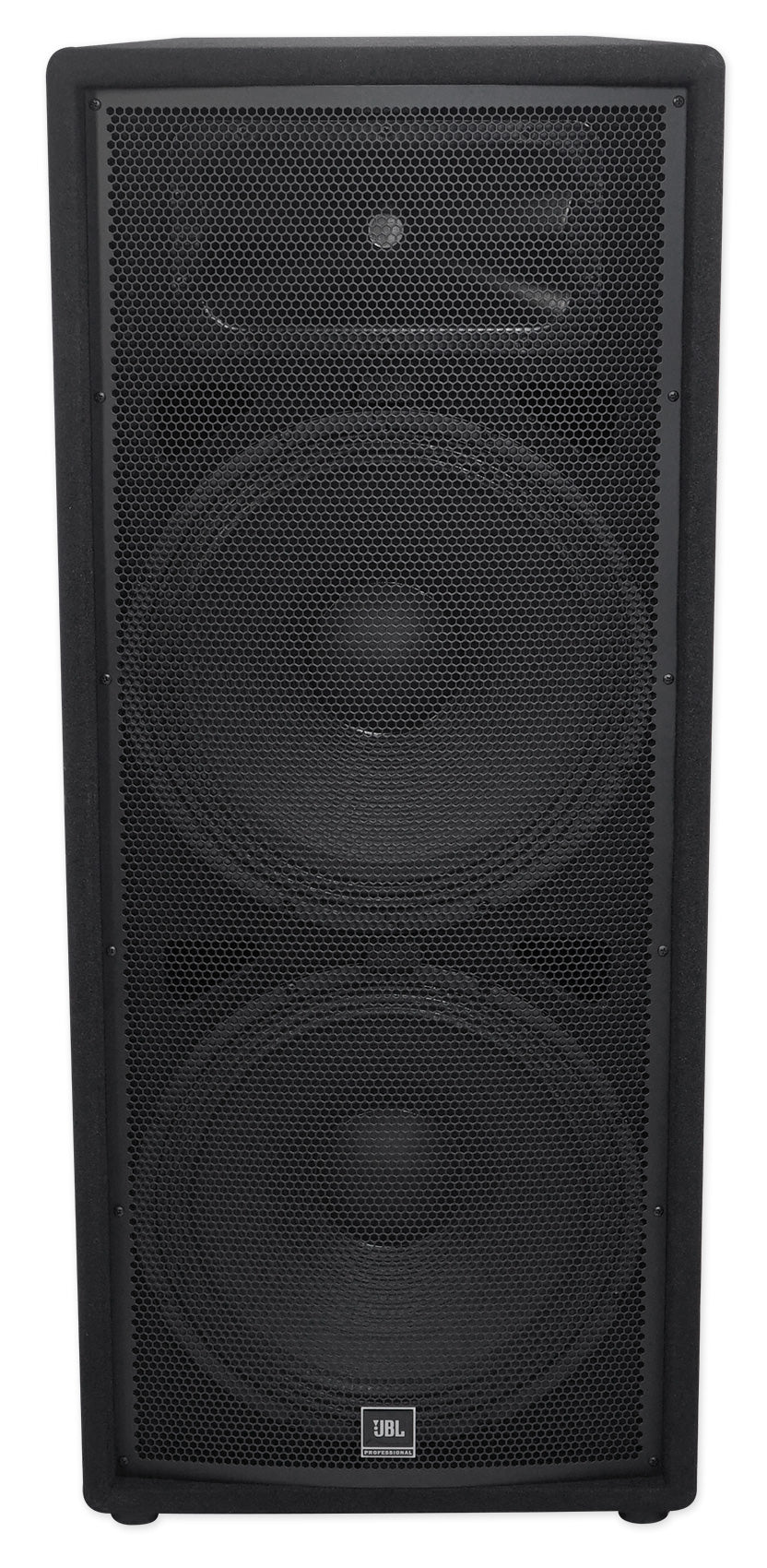

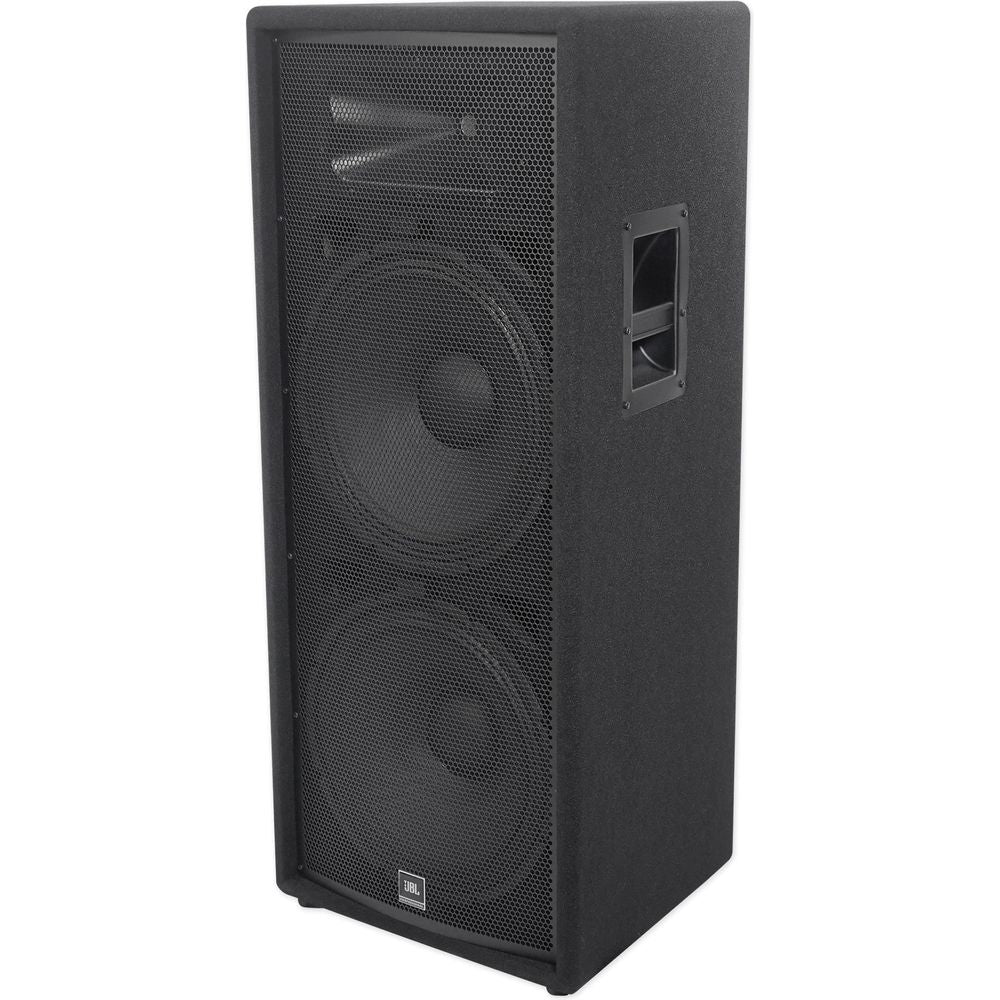

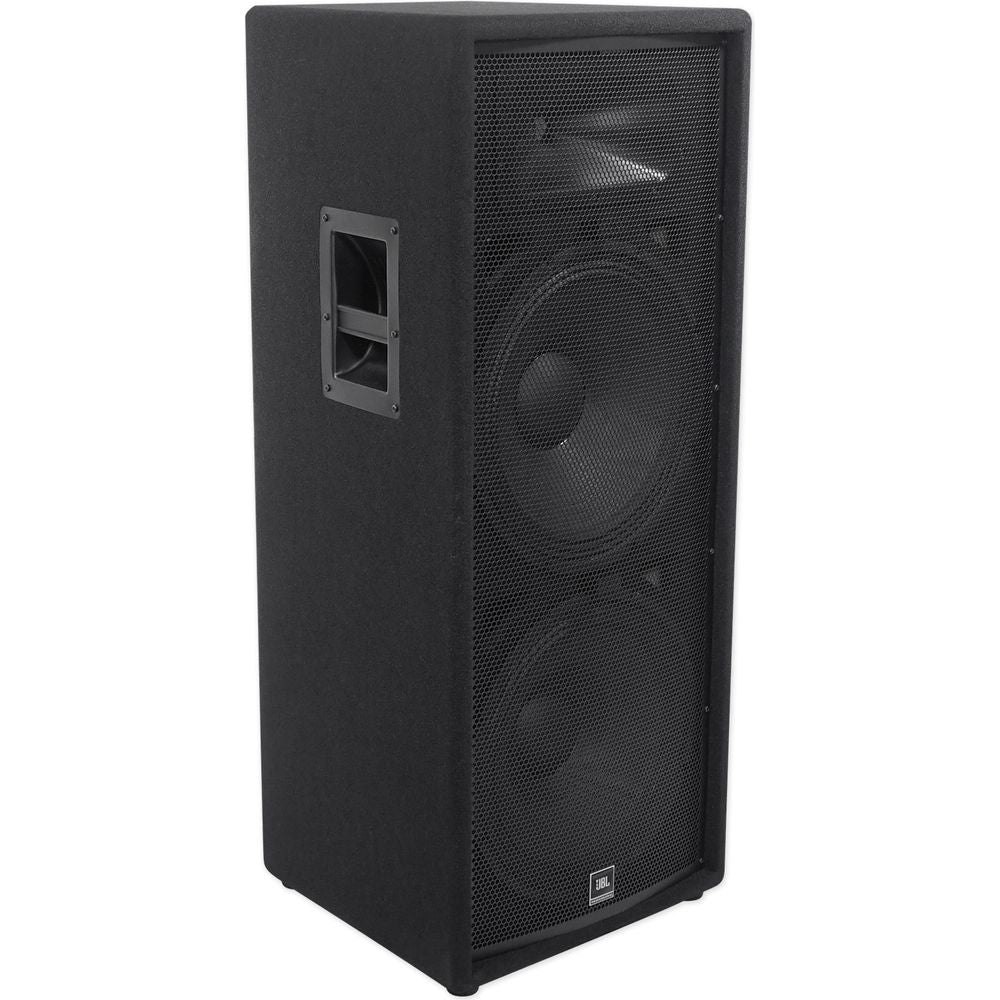

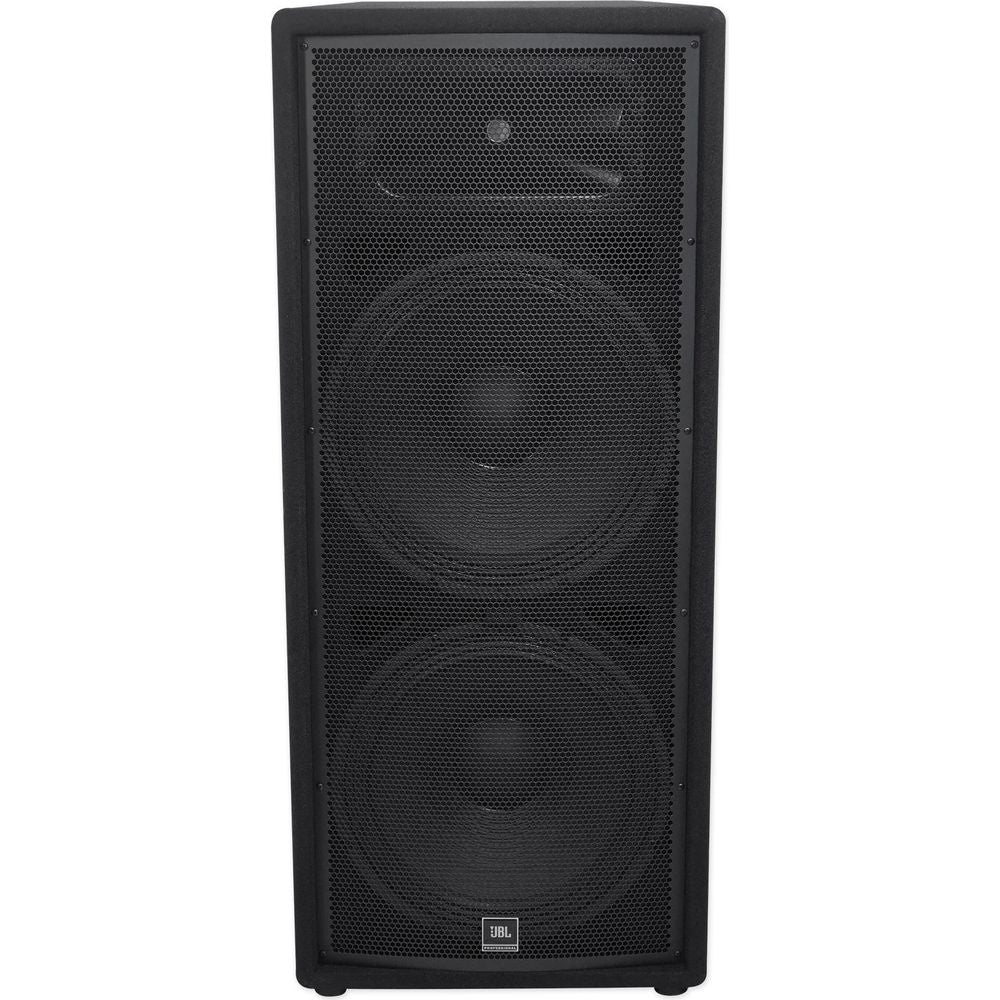

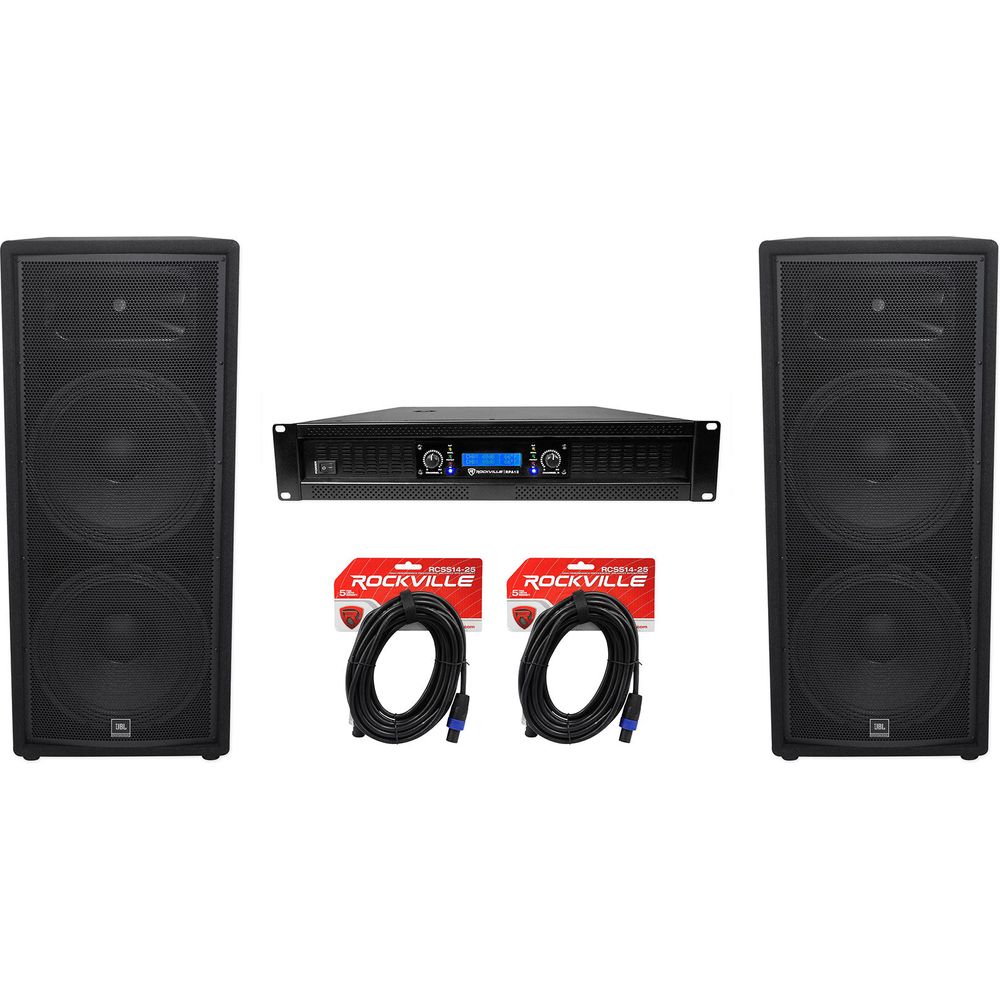

- (2) JBL JRX225 Dual 15" 2-Way Passive PA Speakers
- (1) Rockville RPA12 2-Channel Power Amplifier
- (2) Rockville RCSS1425 25' 14 AWG Speakon to Speakon Speaker Cables
SKU: SKU: (2) JRX225+RPA12+(2) RCSS1425
View full details











Product Description

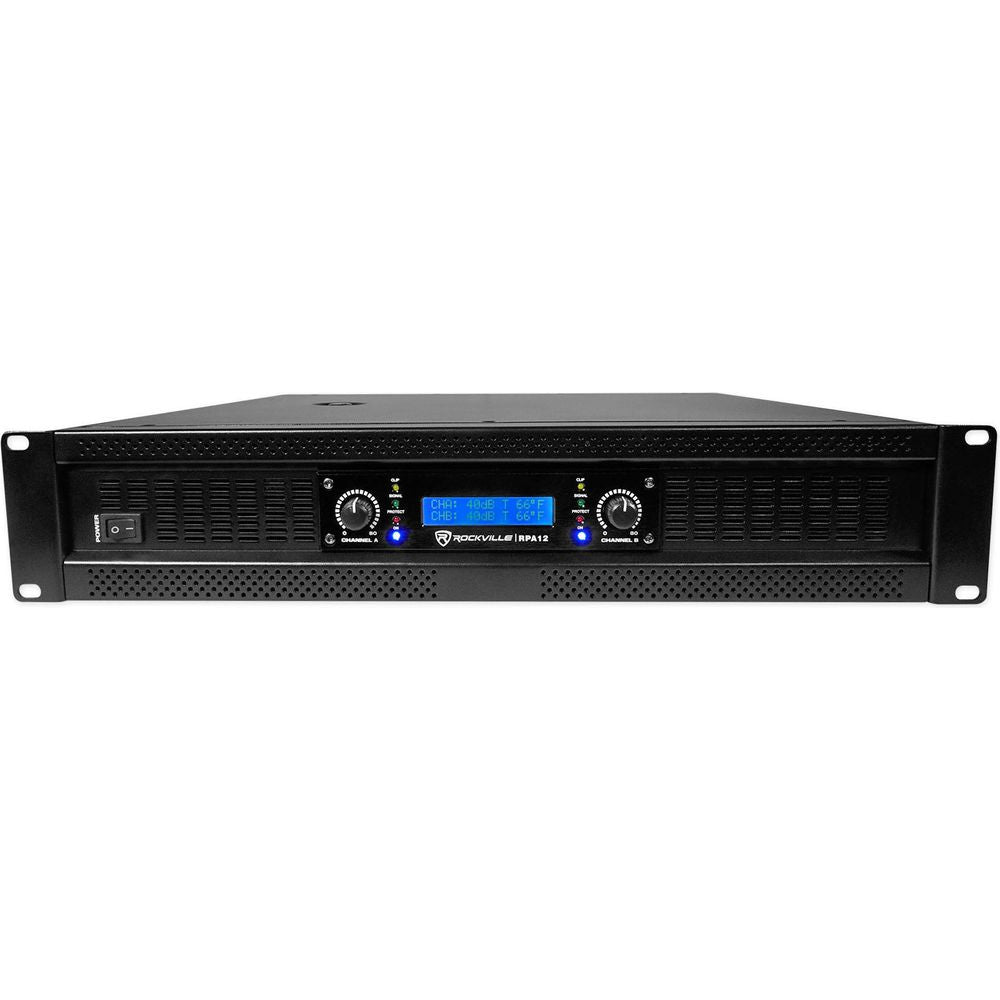

The RPA12 is sized for these speakers. In stereo mode at 4 ohms it delivers 700W RMS per channel, right inside the JRX225's recommended 500W to 1000W range, and its built-in limiter helps protect the drivers from clipping and distortion. Front-panel LCD readouts show each channel's level in dB plus operating temperature, so you can keep an eye on things mid-show. The 2U chassis fits a standard rack case, and parallel mode sends the same signal to both channels when you want mono coverage. The two RCSS1425 cables run 25' each with 14 AWG, 100% copper conductors and locking Speakon connectors on both ends, giving you plenty of reach from the rack to each speaker. SonicGuard on each JRX225 adds another layer of protection for the high frequency driver during long, loud sets.
Features
Matched Power From Day One
The RPA12 puts out 700W RMS per channel at 4 ohms, right in the JRX225's recommended 500W to 1000W range, so speakers and amp work together from the start.
Big Sound for Big Rooms
Dual 15" low frequency drivers and a 1" compression driver reach 133 dB max SPL with 90° x 50° coverage, filling banquet halls, gyms, and outdoor stages.
Built-In Speaker Protection
The RPA12 limiter guards against clipping and distortion, while SonicGuard on each JRX225 shields the high frequency driver from excess power without interrupting the show.
Clear Monitoring During Shows
LCD readouts display each channel's level in dB and operating temperature, and clipping LEDs flag problems early so you can adjust before the crowd hears it.
Ready to Connect
Two 25' RCSS1425 cables with 14 AWG, 100% copper conductors and locking Speakon connectors give you reach from the rack to each speaker on stage.
Technical Specifications
- Product Type Passive PA Speaker and Amplifier System with Speaker Cables
- Speakers (2) JBL JRX225
- Speaker Configuration Dual 15" 2-Way Passive
- Speaker Power Rating (Each) 500W Continuous / 2000W Peak
- Speaker Frequency Range (-10 dB) 42 Hz to 18 kHz
- Speaker Frequency Response (±3 dB) 62 Hz to 13 kHz
- Speaker Sensitivity (1W/1m) 100 dB SPL
- Speaker Max SPL 133 dB
- Speaker Nominal Impedance 4 Ohms
- Recommended Amplifier Power 500W to 1000W into 4 Ohms
- Speaker Dispersion 90° x 50°
- Speaker Crossover Frequency 2.2 kHz
- High Frequency Driver JBL 2414H-C 1" Compression Driver on Progressive Transition Waveguide
- Low Frequency Drivers (2) JBL M115-8A 15"

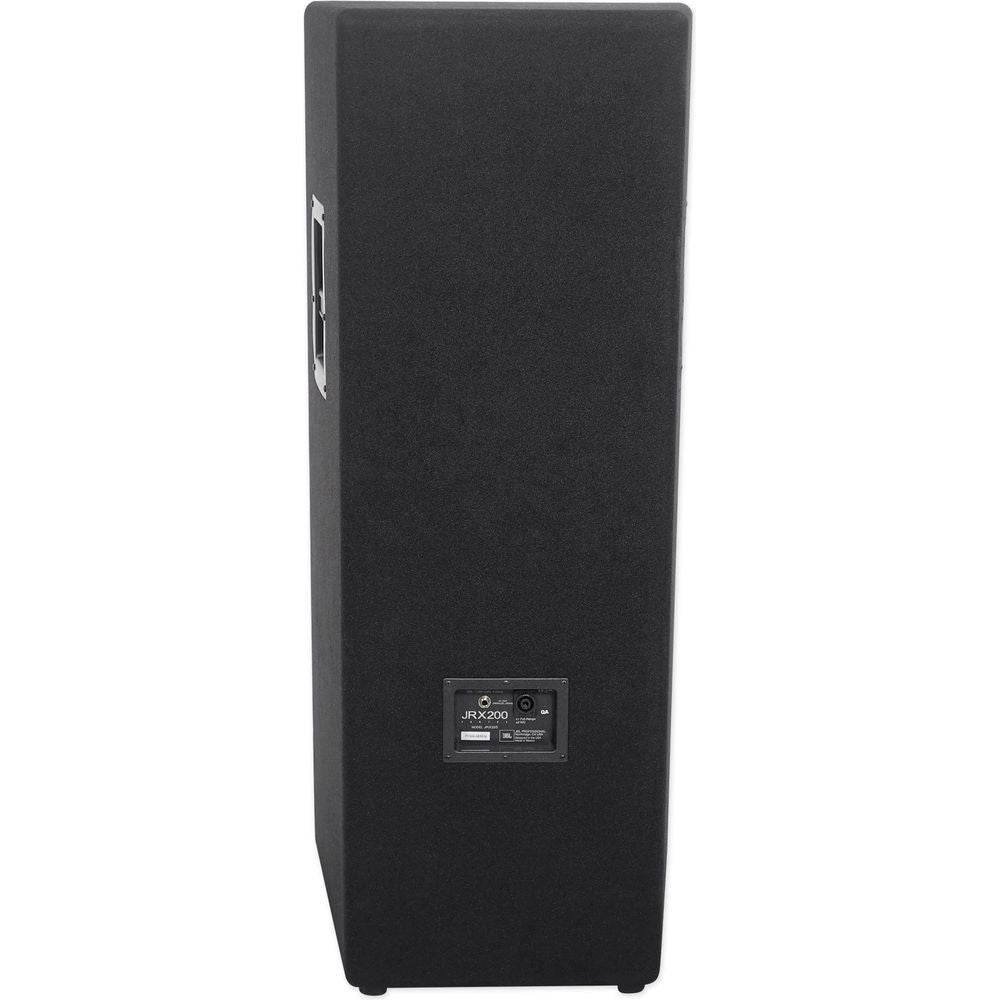

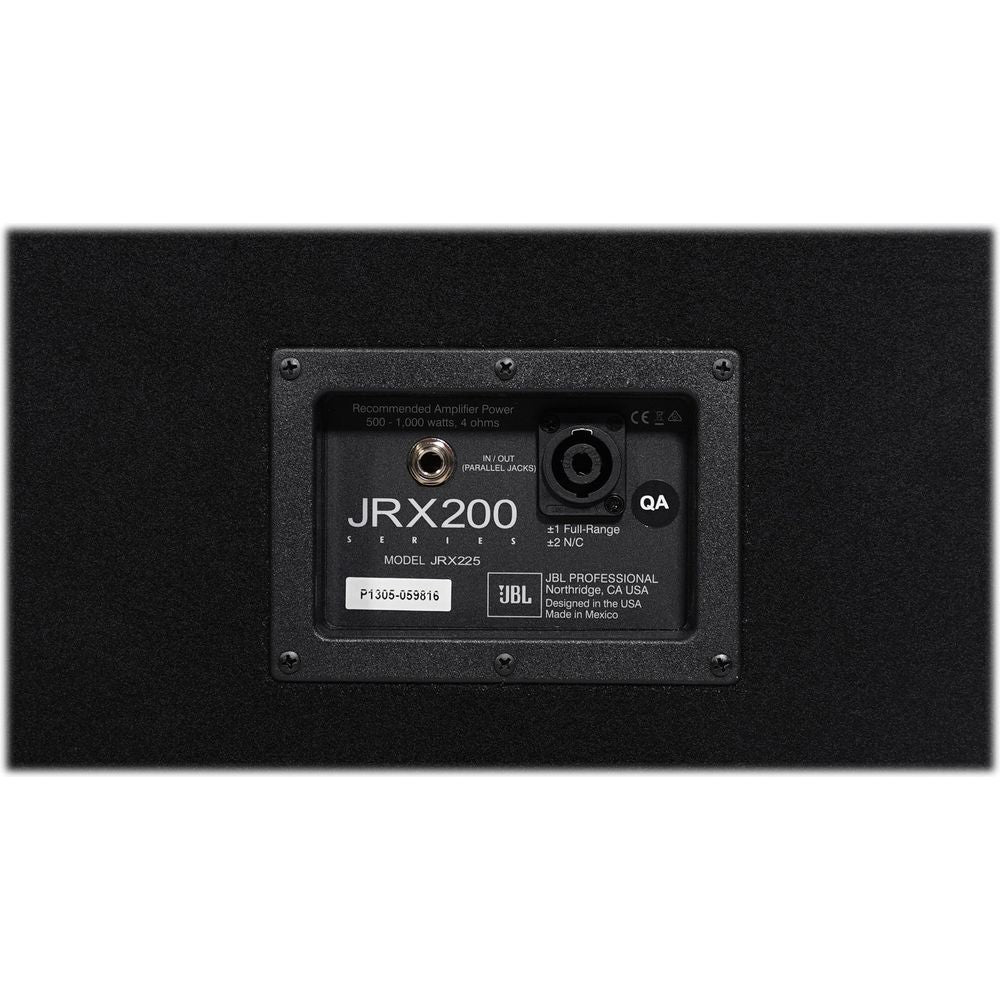

- Speaker Inputs (1) Neutrik Speakon NL4, (1) 1/4" TS, Parallel
- Speaker Enclosure 19mm (0.75") MDF
- Speaker Grille 18-Gauge Powder-Coated Perforated Steel
- Speaker Mounting Dual-Angle Pole Mount Socket, 10° Tilt
- Amplifier (1) Rockville RPA12
- Amplifier Channels 2
- Amplifier RMS Power 2 x 500W at 8 Ohms, 2 x 700W at 4 Ohms, 1 x 1400W Bridged at 8 Ohms
- Amplifier Peak Power 2 x 2000W at 8 Ohms, 2 x 2500W at 4 Ohms, 1 x 5000W Bridged at 8 Ohms
- Amplifier Modes Stereo, Parallel, Bridged
- Amplifier Inputs (2) XLR/1/4" Combo Jacks

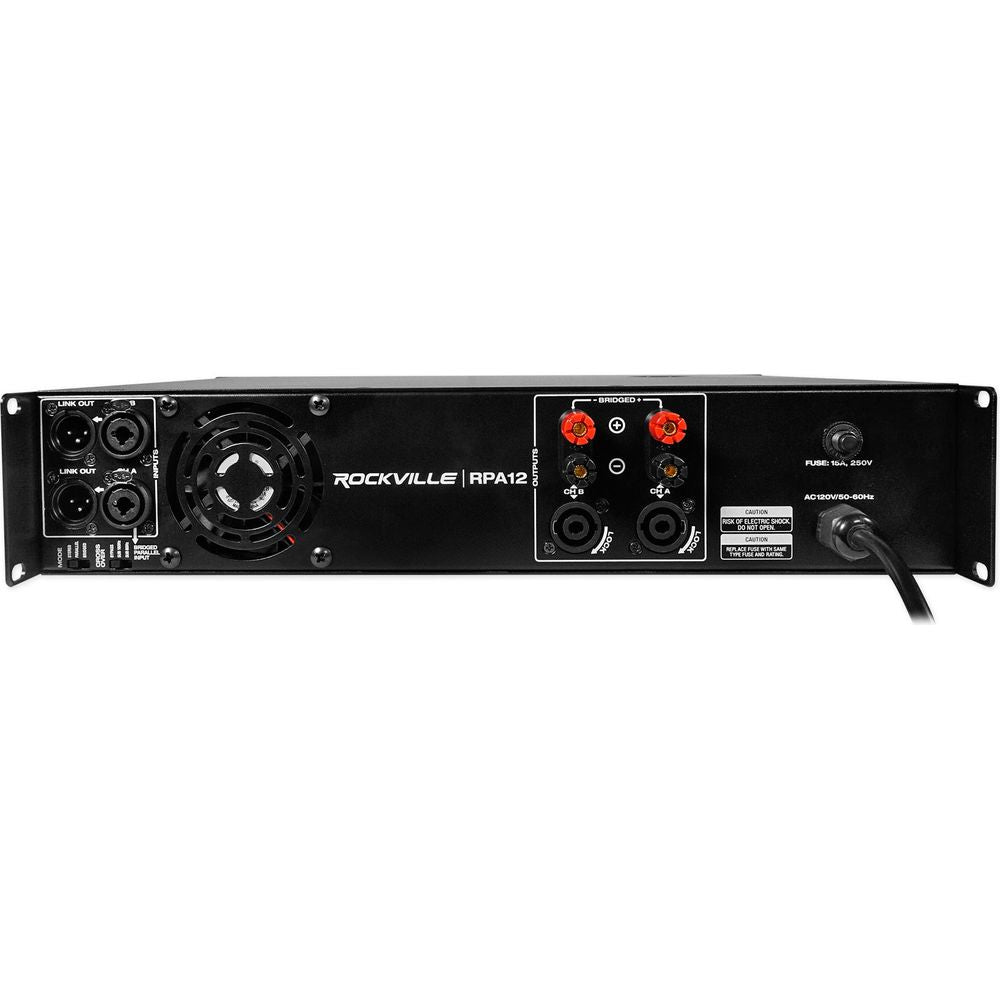

- Amplifier Outputs Banana Binding Posts, Speakon, XLR Link Output
- Amplifier Crossover Bypass, 80 Hz, 160 Hz
- Amplifier Frequency Response 10 Hz to 30 kHz
- Amplifier THD+N Under 0.03% at 1 kHz Full Power
- Amplifier Signal to Noise Ratio Over 100 dB
- Amplifier Rack Space 2U
- Amplifier Protection Limiter, Short Circuit, Thermal Overload, DC Overload
- Amplifier Power Requirements 120V, 50/60 Hz
- Speaker Cables (2) Rockville RCSS1425
- Cable Length 25 ft
- Cable Gauge 14 AWG
- Cable Connectors Speakon to Speakon, 2-Conductor
- Cable Conductors 100% Copper
- Cable Jacket Black PVC
- Speaker Weight (Each) 94 lb (42.6 kg)
- Amplifier Weight 26.5 lb
- Speaker Dimensions (H x W x D) 43" x 18.3" x 17" (1092 x 464 x 432 mm)
- Amplifier Dimensions 19.09" x 16.93" x 3.35"
