(6) Control 412C/T + RCS180-6 6-Zone 70V Amplifier
JBL
(6) Control 412C/T + RCS180-6 6-Zone 70V Amplifier
(6) Control 412C/T + RCS180-6 6-Zone 70V Amplifier
Six 3" 70V/8-Ohm Ceiling Speakers, Bonus 180W 6-Zone Bluetooth Amp, Restaurants, Bars, Retail
Free Shipping
Features

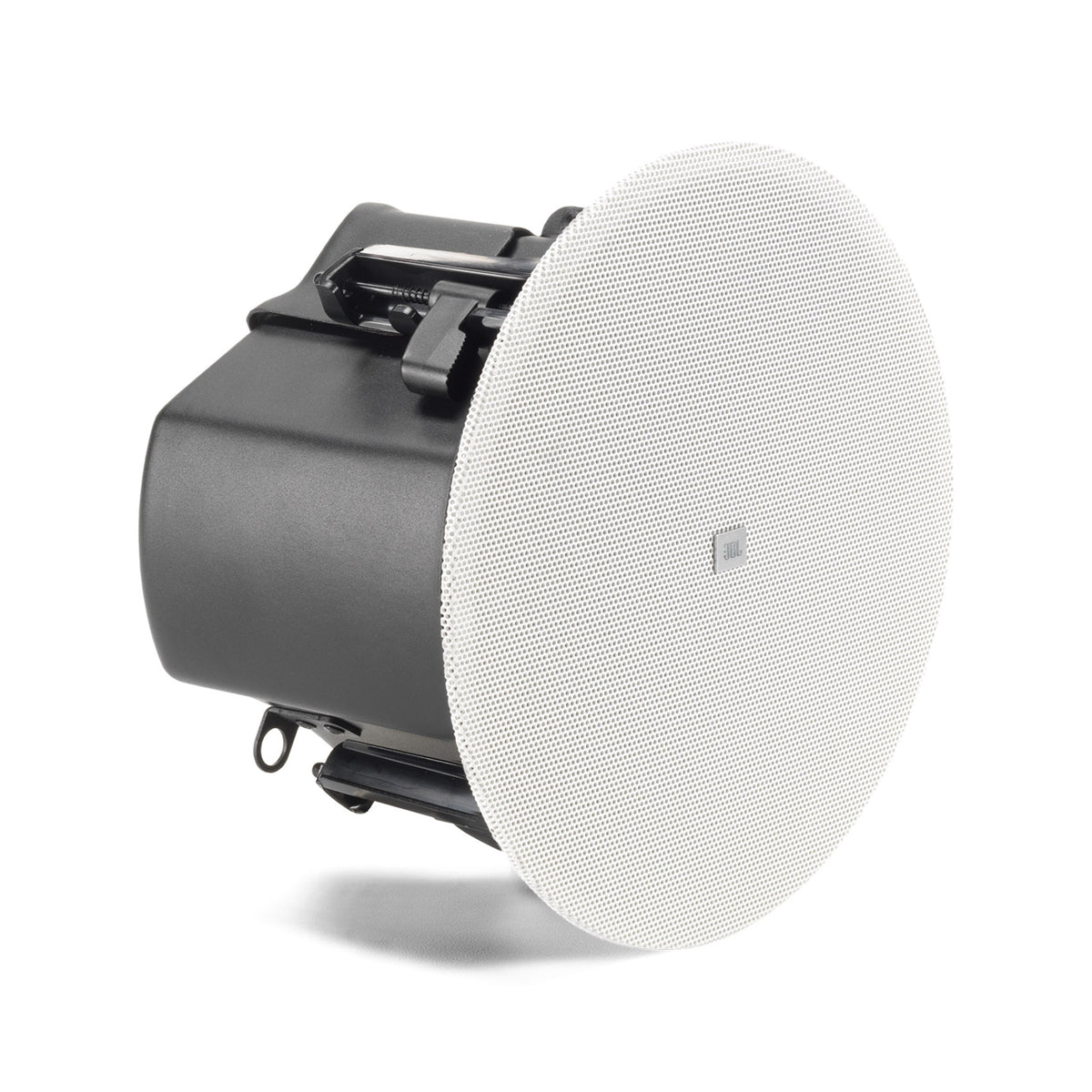

- (6) JBL Control 412C/T 3" full-range ceiling speakers for full-room coverage
- Built-in 70V/100V multi-tap transformer plus 8-ohm direct input
- Wide 160° conical coverage spreads sound evenly from fewer speakers

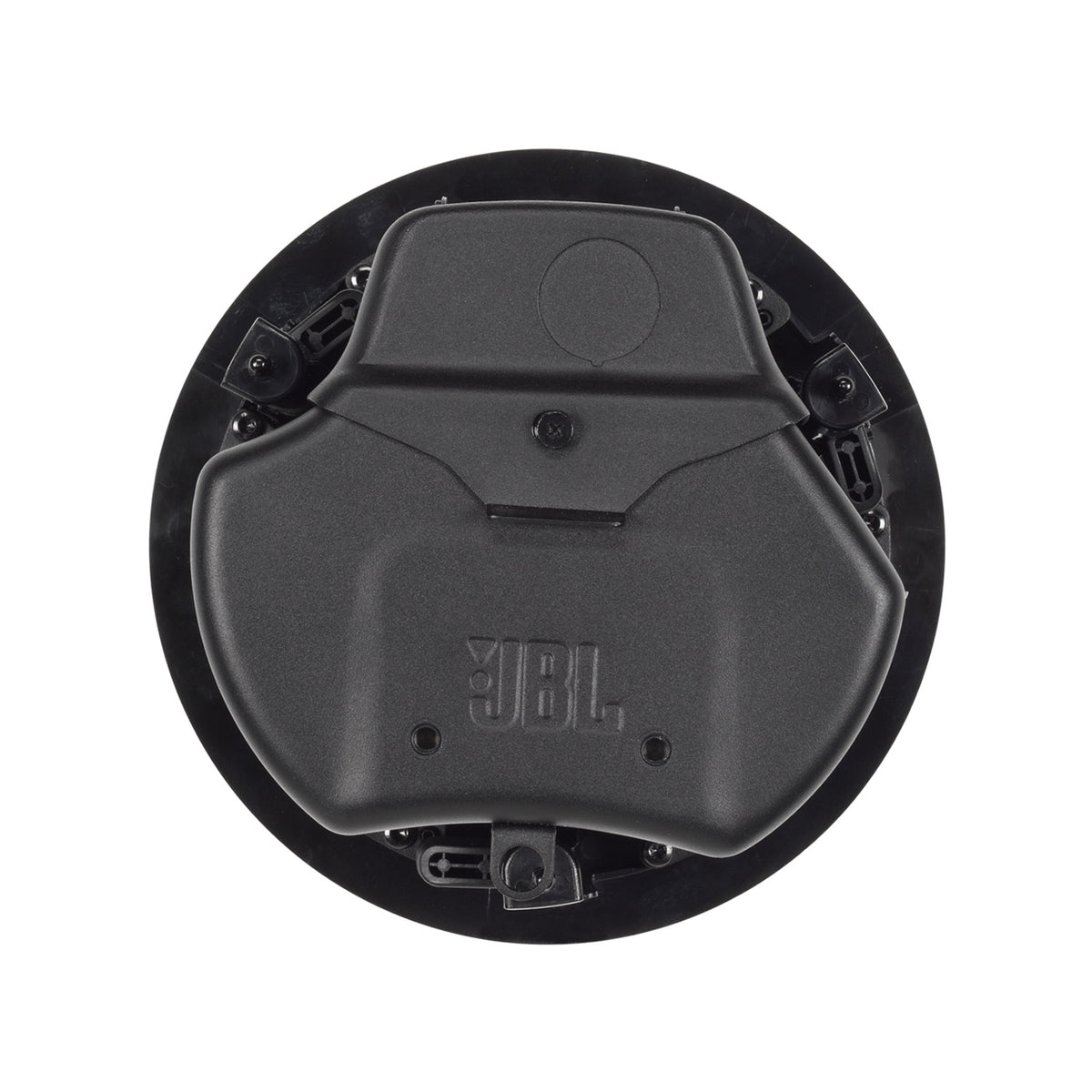

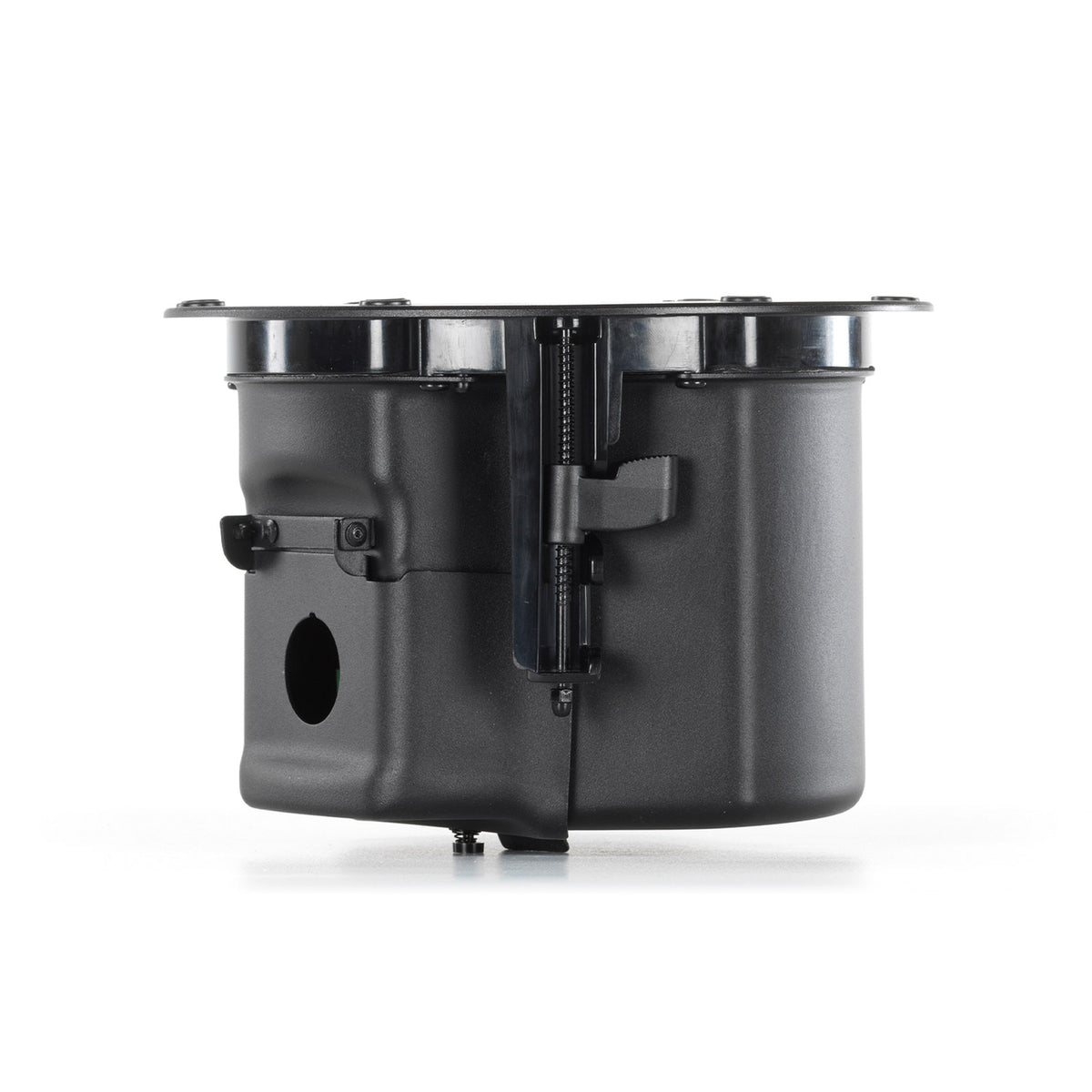

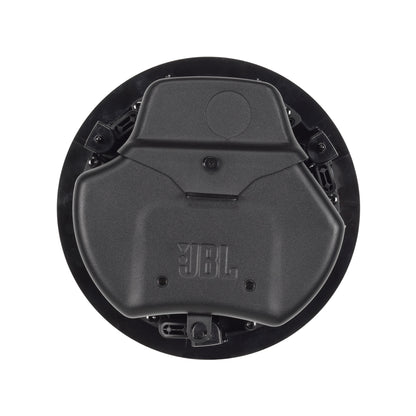

- Captive dogears and top or side cable entry for faster installs
- Bonus Rockville RCS180-6 180W 6-zone 70V amplifier with Bluetooth and 3 mic inputs
Couldn't load pickup availability

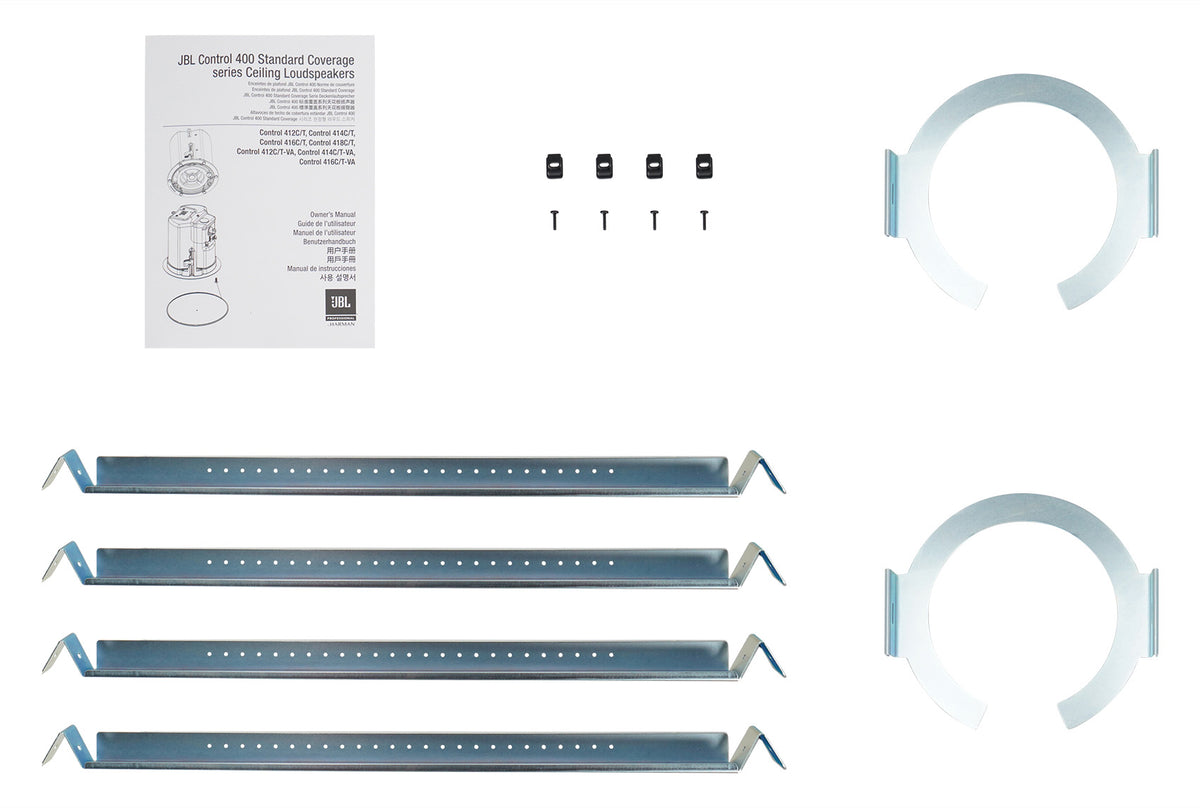

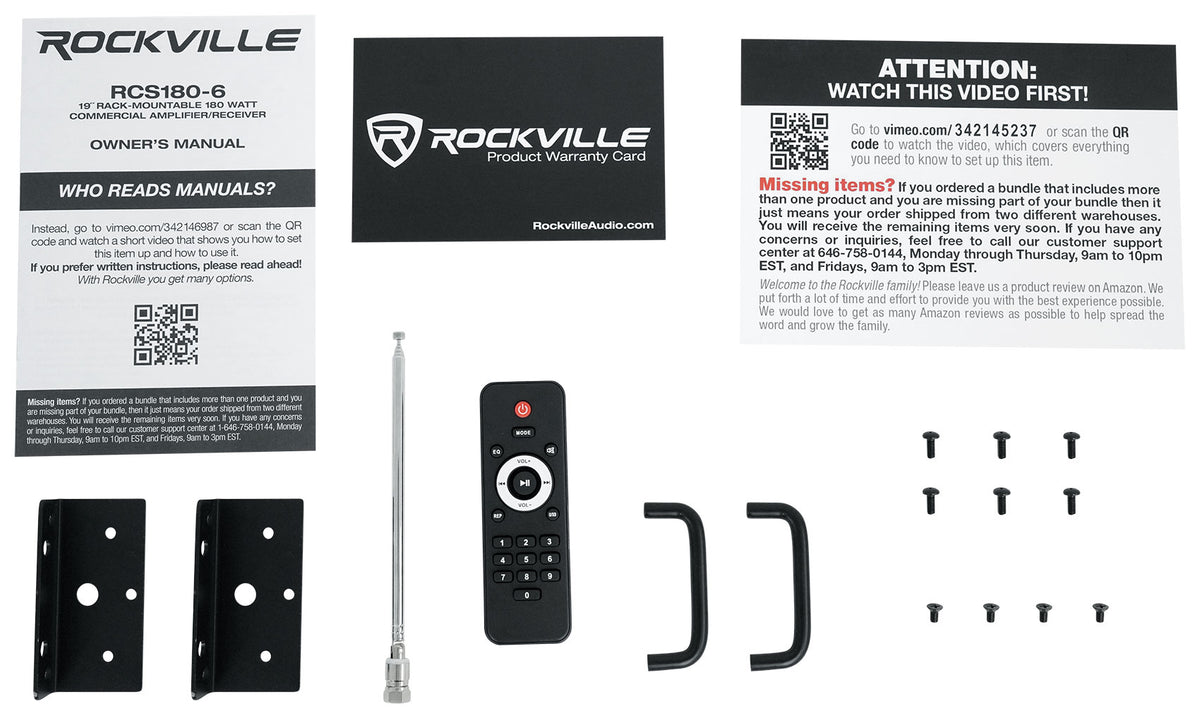

What's Included in the box

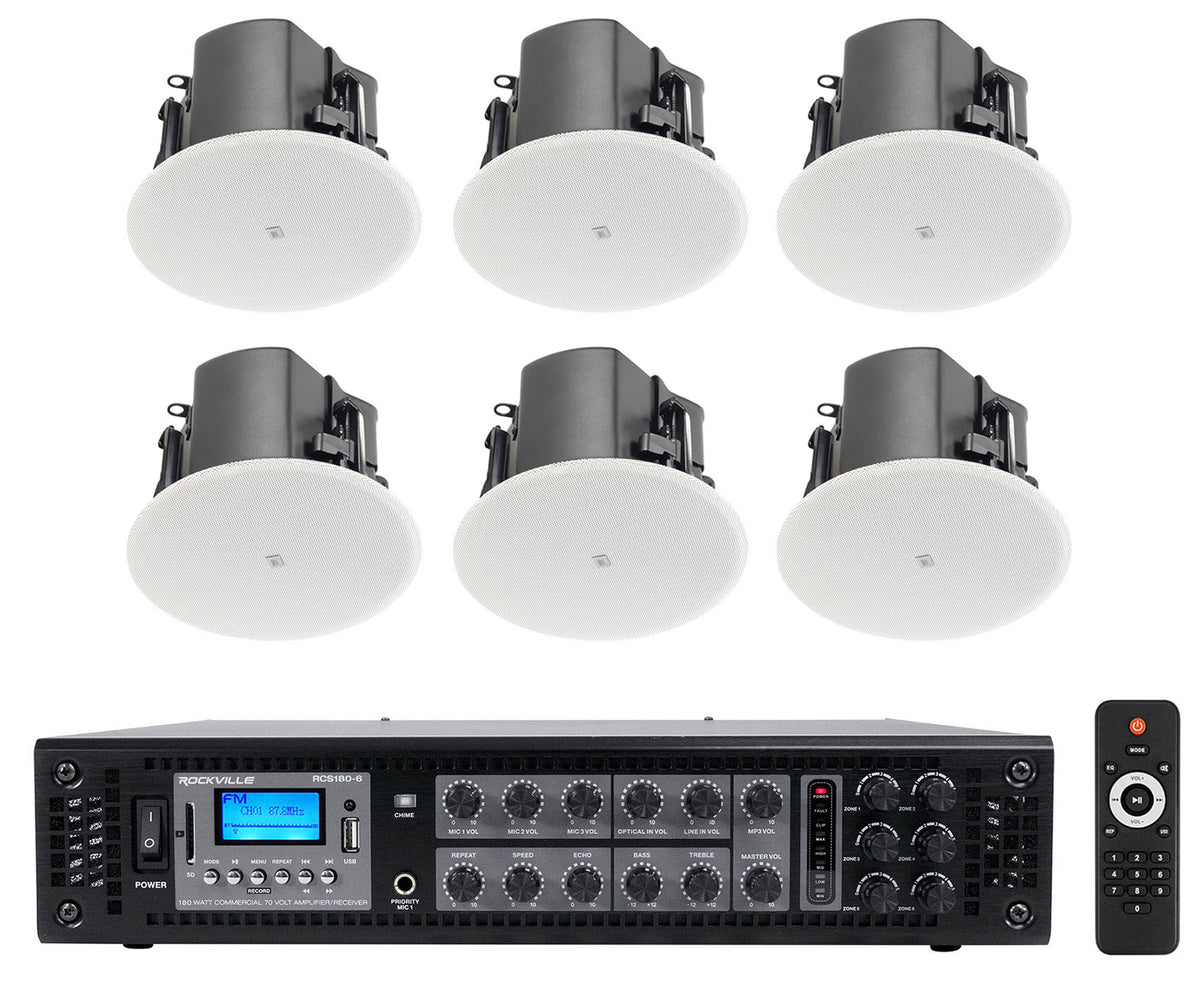

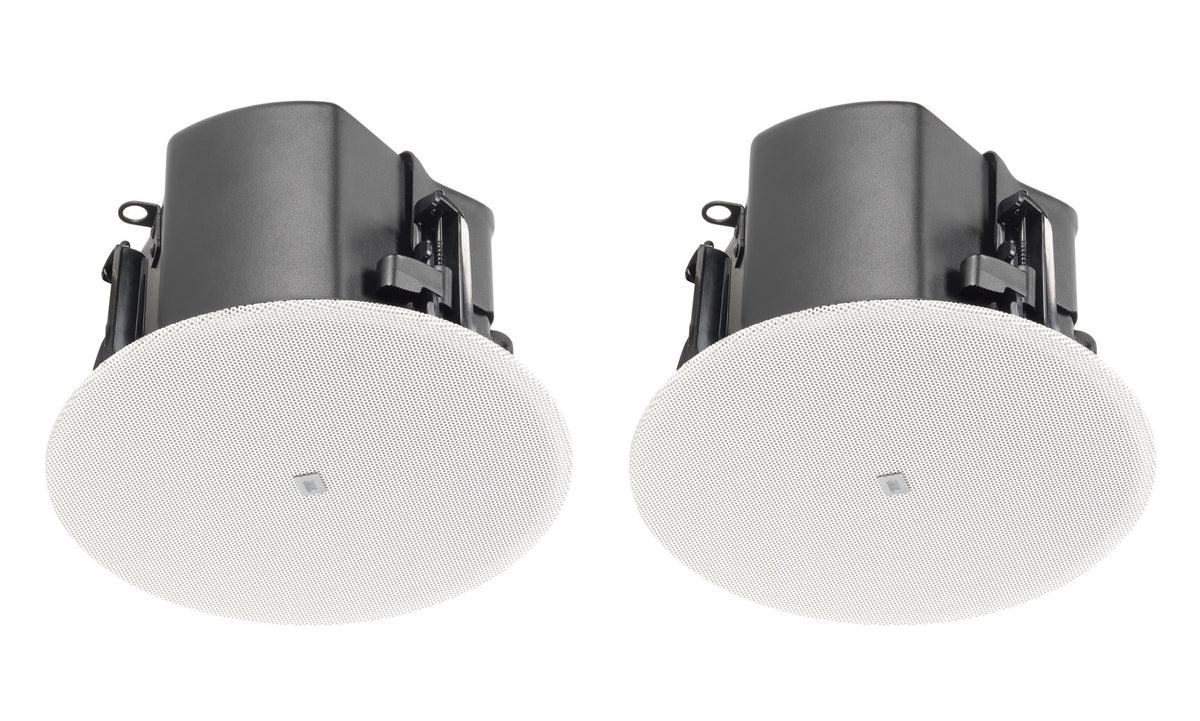

- (6) JBL Control 412C/T 3" 70V Ceiling Speakers (3 Pairs)
- (6) White Full-Face Magnetic Grilles with Safety Tethers

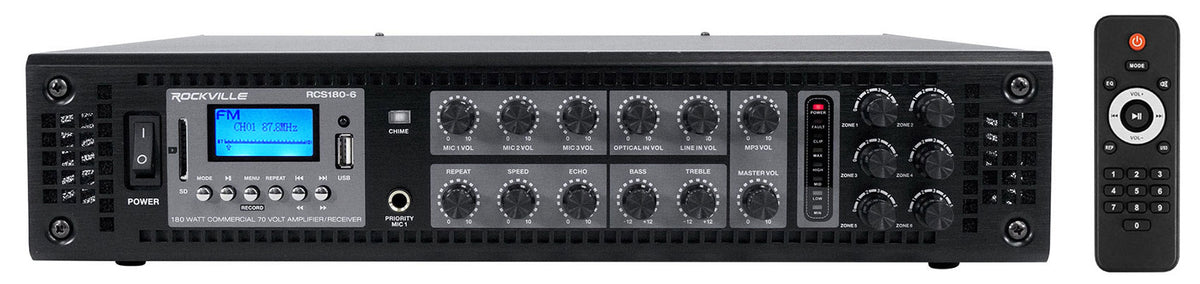

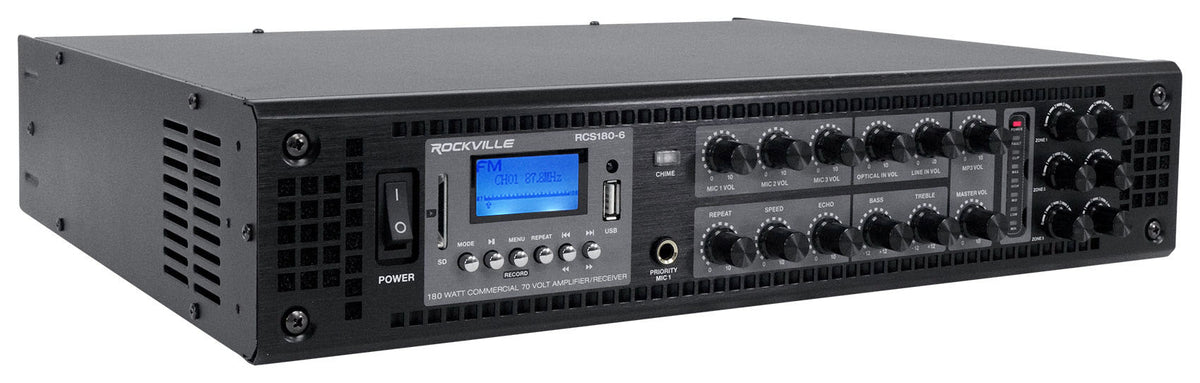

- (1) Rockville RCS180-6 180W 6-Zone 70V Amplifier
- (1) Remote Control
- (1) Pair Rack Mount Ears
- (1) Power Cable
- (1) FM Radio Antenna
SKU: SKU: (3) Control 412C/T+RCS180-6
View full details












Product Description
The bonus amplifier is the piece you'd otherwise have to buy separately. Six speakers tapped at 15W total 90W, well under the RCS180-6's 180W output at 70V, leaving plenty of headroom. Assign speakers to up to six zones with their own volume knobs, so the bar can run louder than the dining room. Music comes from Bluetooth, USB, SD card, FM radio, optical, or two line inputs, and three mic inputs with echo control plus a chime button handle announcements and paging. The amp mounts in a standard 19" rack with removable ears, and detachable euro-block terminals keep wiring tidy.
Features
Coverage for the Whole Room
Six speakers with a 160° conical pattern spread music and announcements evenly across dining rooms, sales floors, and offices, or split them across several zones.
A Complete System in One Box
The bonus RCS180-6 runs all six speakers at their 15W tap with room to spare, so there is no separate amplifier to source before install day.
Six Zones, Separate Volume
Assign speakers to up to six zones, each with its own volume knob, to keep the bar lively while the dining room stays at conversation level.
Music and Announcements Covered
Play from Bluetooth, USB, SD, FM, or optical, and plug in up to three mics with echo control and a chime button for paging and events.
Rated for Commercial Ceilings
UL 2043 listing for air handling spaces, IP33 protection, and tethered grilles let each speaker go into drop ceilings and plenum spaces in commercial buildings.
Technical Specifications
- Product Type 70V Ceiling Speaker System with 6-Zone Amplifier
- Speakers (6) JBL Control 412C/T (3 Pairs)
- Bonus Amplifier (1) Rockville RCS180-6 180W 6-Zone

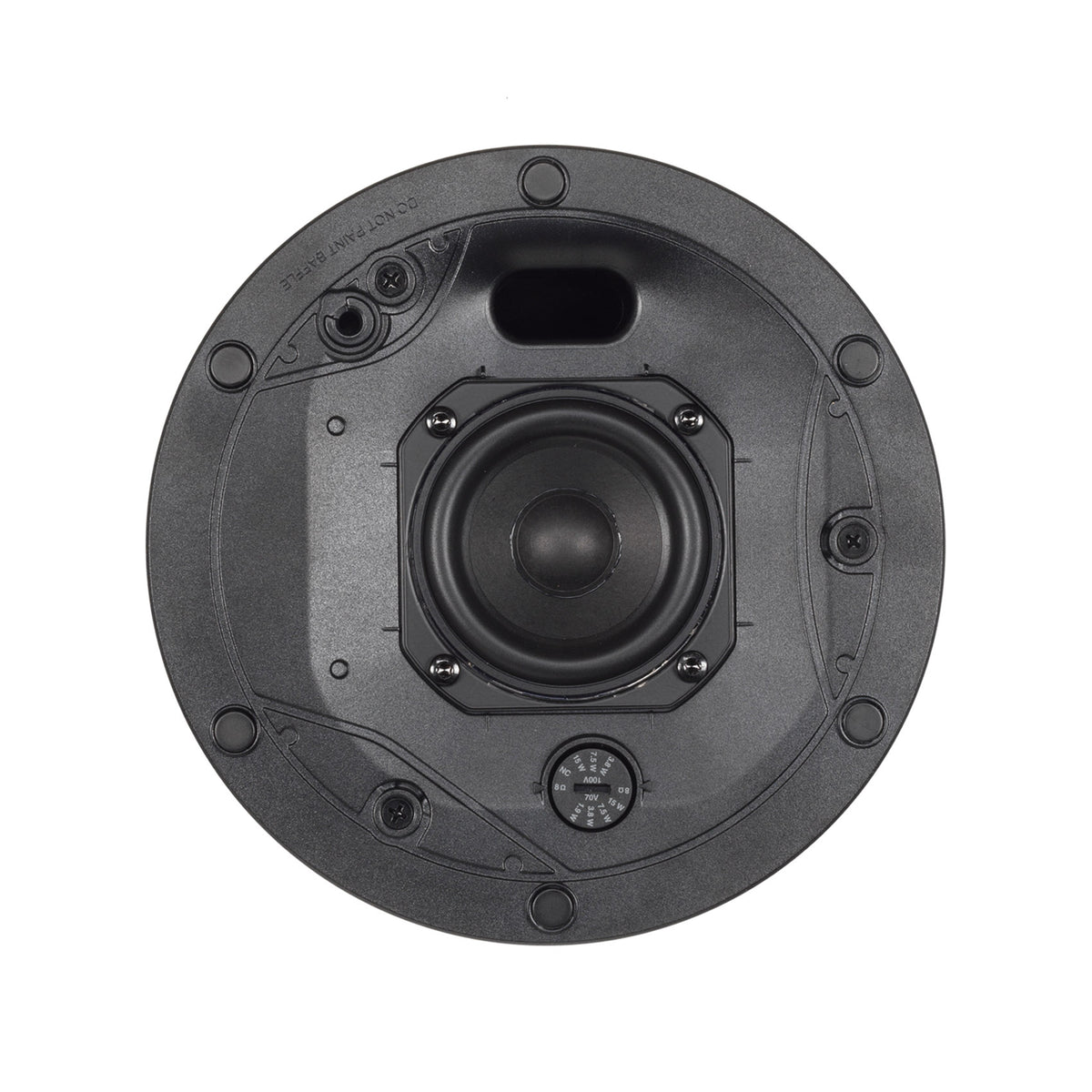

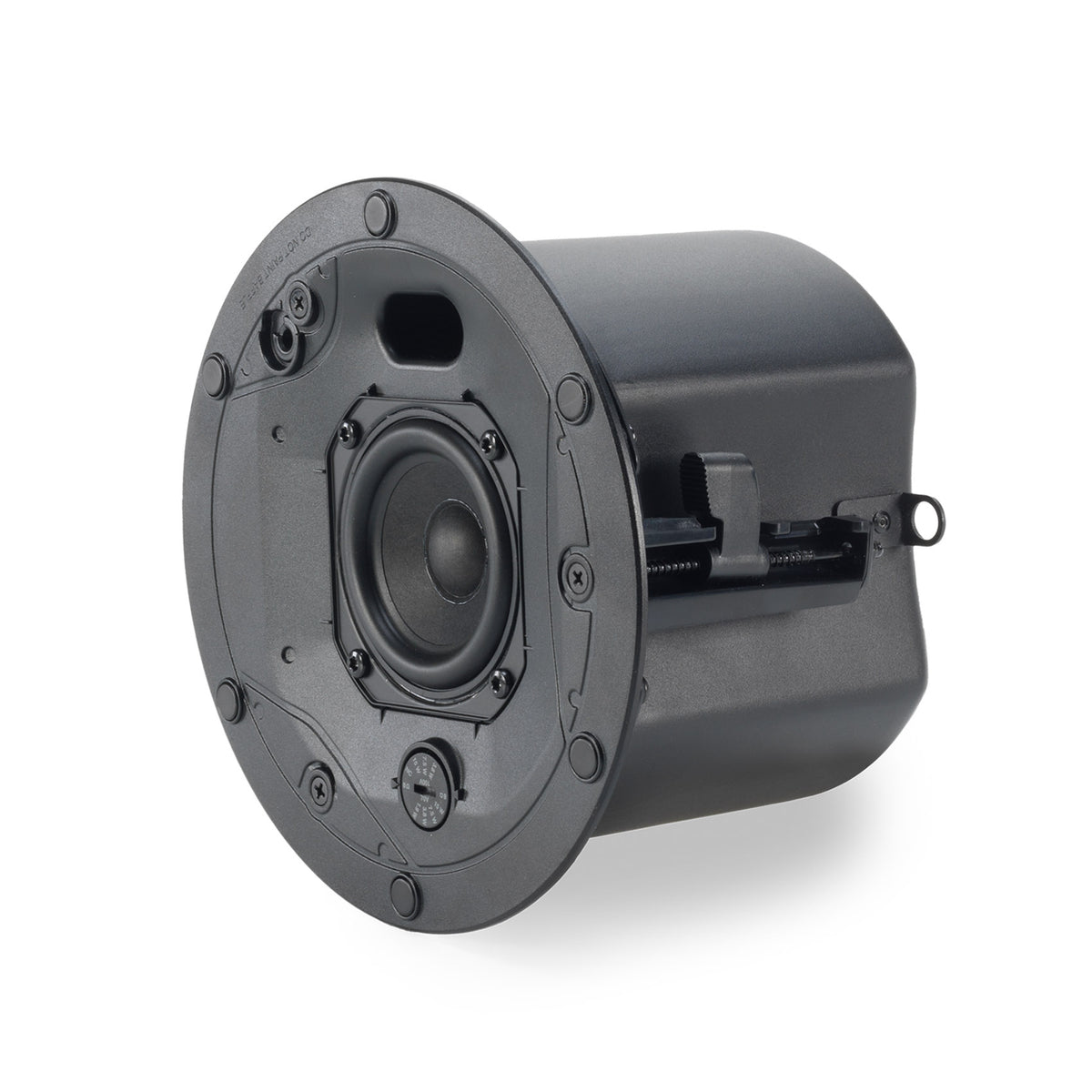

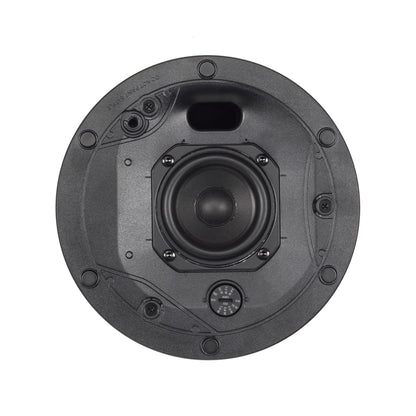

- Speaker Driver 3" (76 mm) Full-Range, Paper Cone, SBR Surround
- Frequency Range (-10 dB) 68 Hz to 17 kHz
- Speaker Power Capacity 30W Continuous (120W Peak) Pink Noise, 2 Hrs; 20W (80W Peak), 100 Hrs
- Sensitivity (1W/1m) 84 dB
- Max SPL (1m) 99 dB Continuous, 105 dB Peak
- Coverage Angle 160° Conical
- Nominal Impedance 8 Ohms

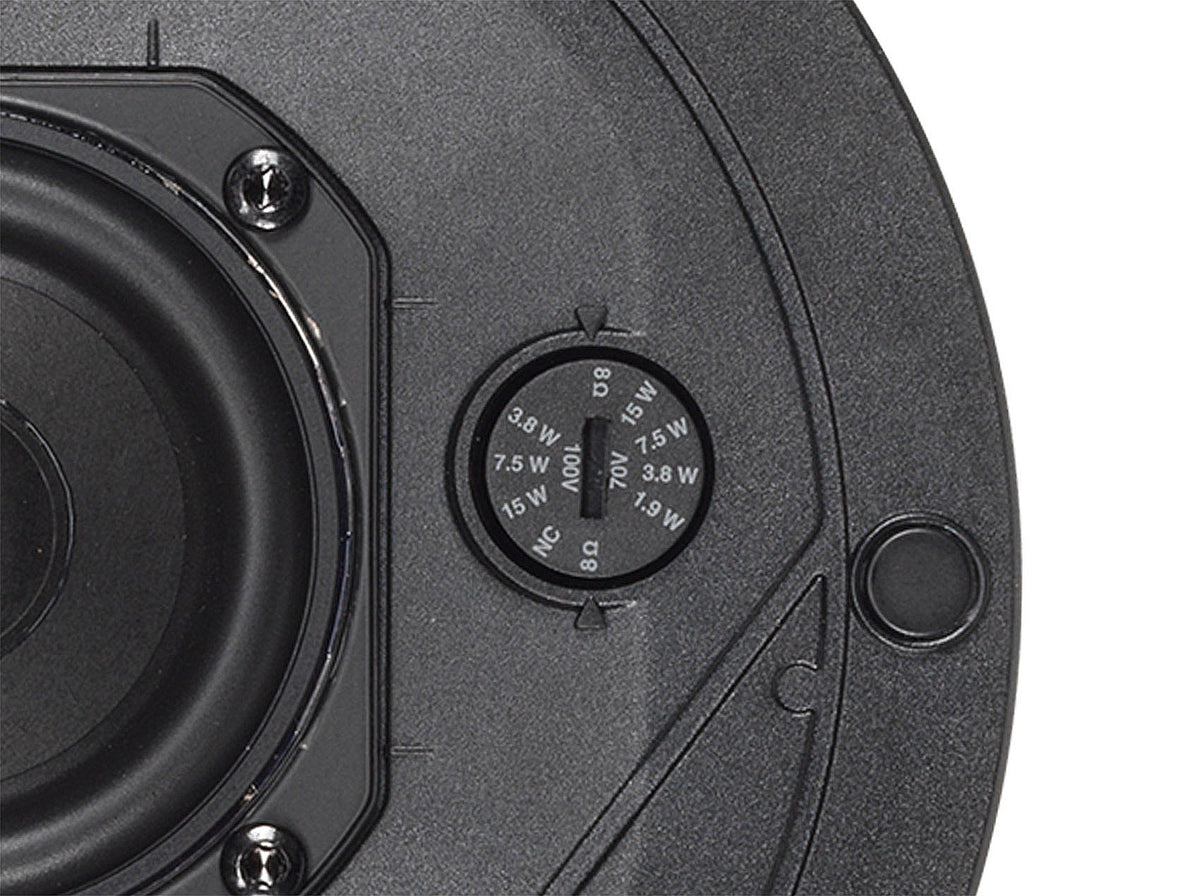

- Transformer Taps (70V) 15W, 7.5W, 3.8W, 1.9W
- Transformer Taps (100V) 15W, 7.5W, 3.8W
- Ceiling Cutout 6.6" (168 mm)
- Safety Rating UL 2043, NFPA 90A, NFPA 70, CSA C22.2 No. 205, UL 1480A
- IP Rating IP33
- Amplifier Power (70V/100V) 180W (184W RMS)

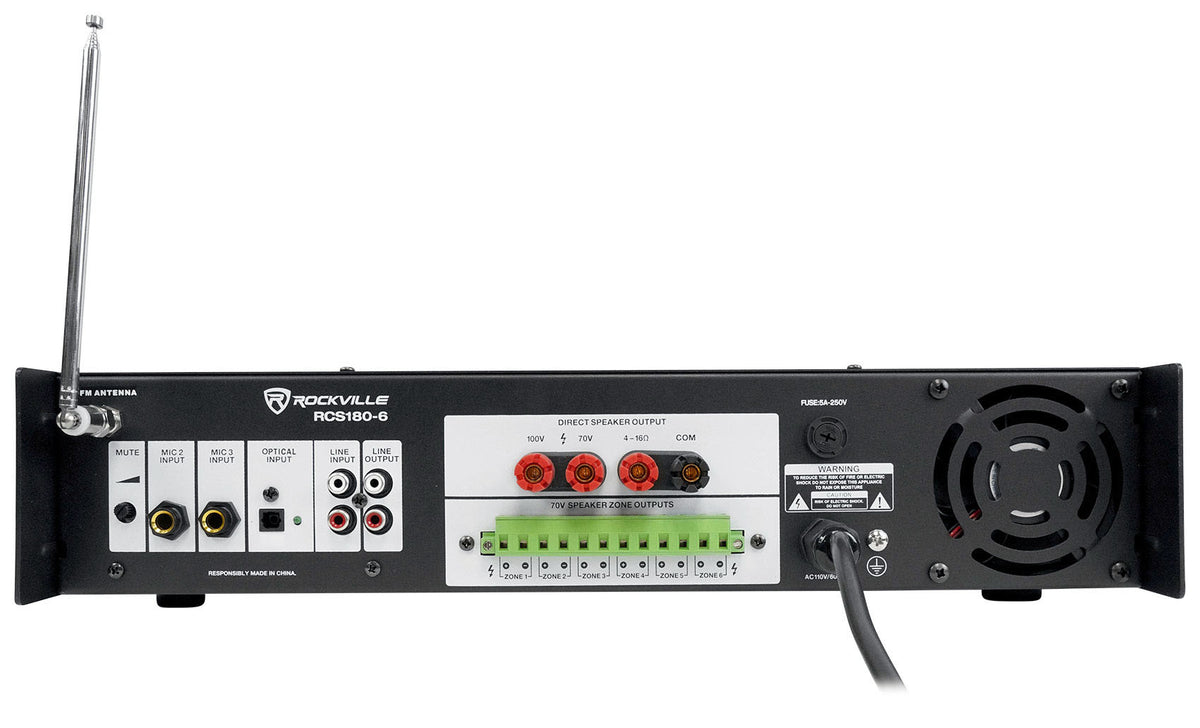

- Amplifier Outputs 6 Zones with Individual Volume, 70V/100V Binding Posts, 4-16 Ohm Binding Posts
- Amplifier Sources Bluetooth, FM Tuner, USB (32GB Max), SD Card (32GB Max), Optical, (2) Line Inputs
- Mic Inputs (3) with Echo Control and Chime
- Tone Controls Bass, Treble
- Protection Clipping Limiter, Built-In Cooling
- Amplifier Mounting 19" Rack Mountable, Removable Ears
- Speaker Weight (Each) 3.86 lb (1.75 kg)
- Speaker Dimensions (Each) 5.7" H x 8.1" Dia. (143 x 203 mm)
