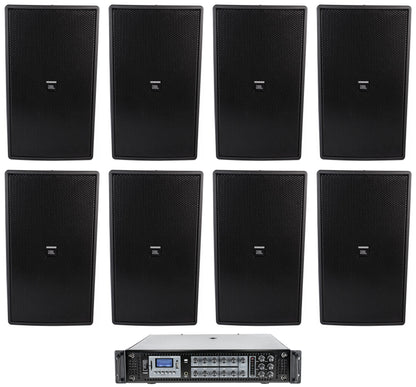

8" 2-Way 70V Indoor/Outdoor Speakers, IP-X5 Rated, RCS1000-6 1000W 6-Zone Bluetooth Amp, Restaurants and Bars
Features
- 8" Kevlar cone woofer and 1" titanium compression driver cover 45 Hz to 18 kHz
- Rotatable 110° x 85° horn lets you mount each speaker vertically or horizontally
- 110W 70V/100V transformer with 110W, 55W, 28W, and 14W taps plus 8 ohm thru
- IP-X5 rated cabinets with sealed input cover for patios and outdoor bars
- Includes RCS1000-6 1000W 6-zone amplifier with Bluetooth and 3 mic inputs
Couldn't load pickup availability

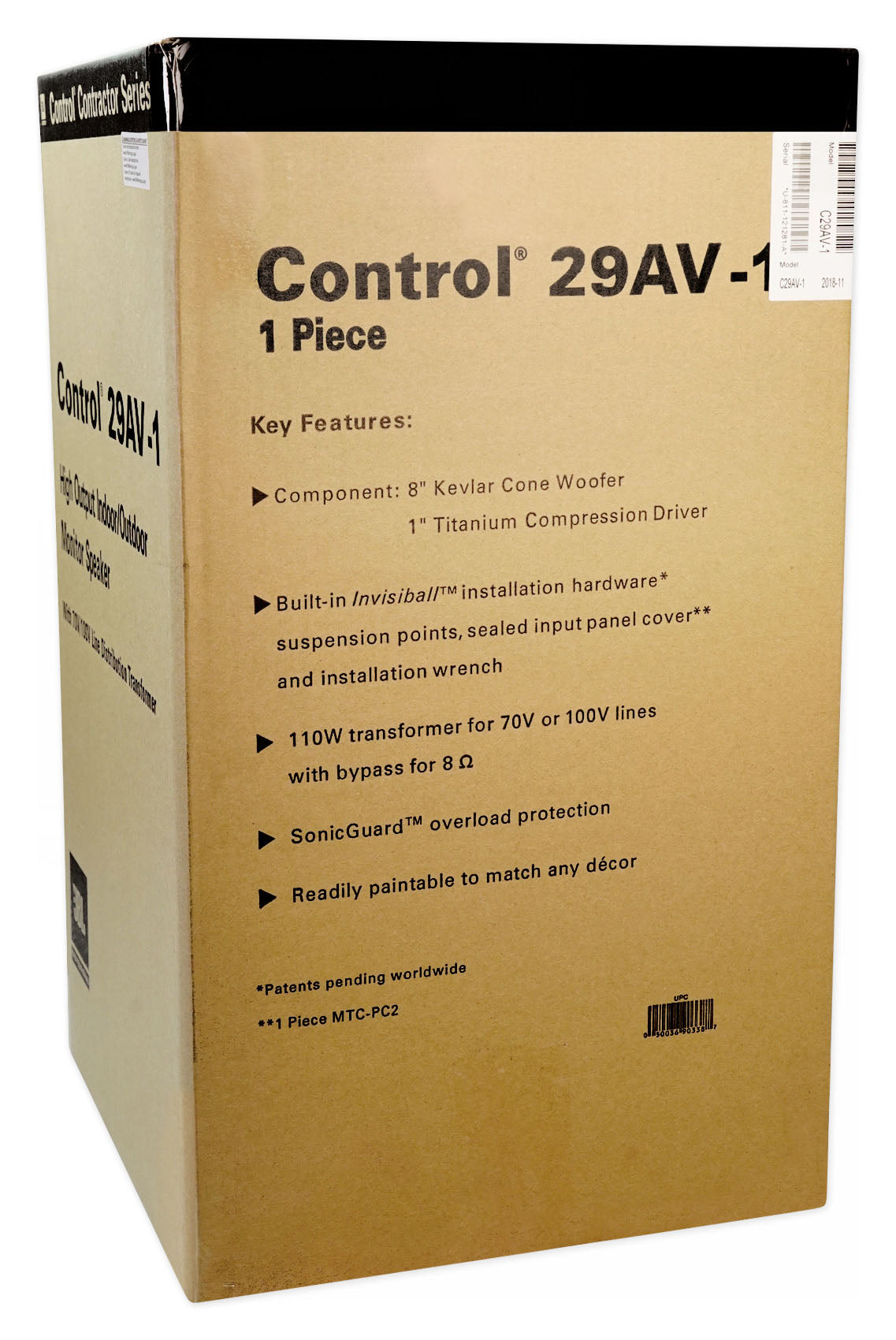

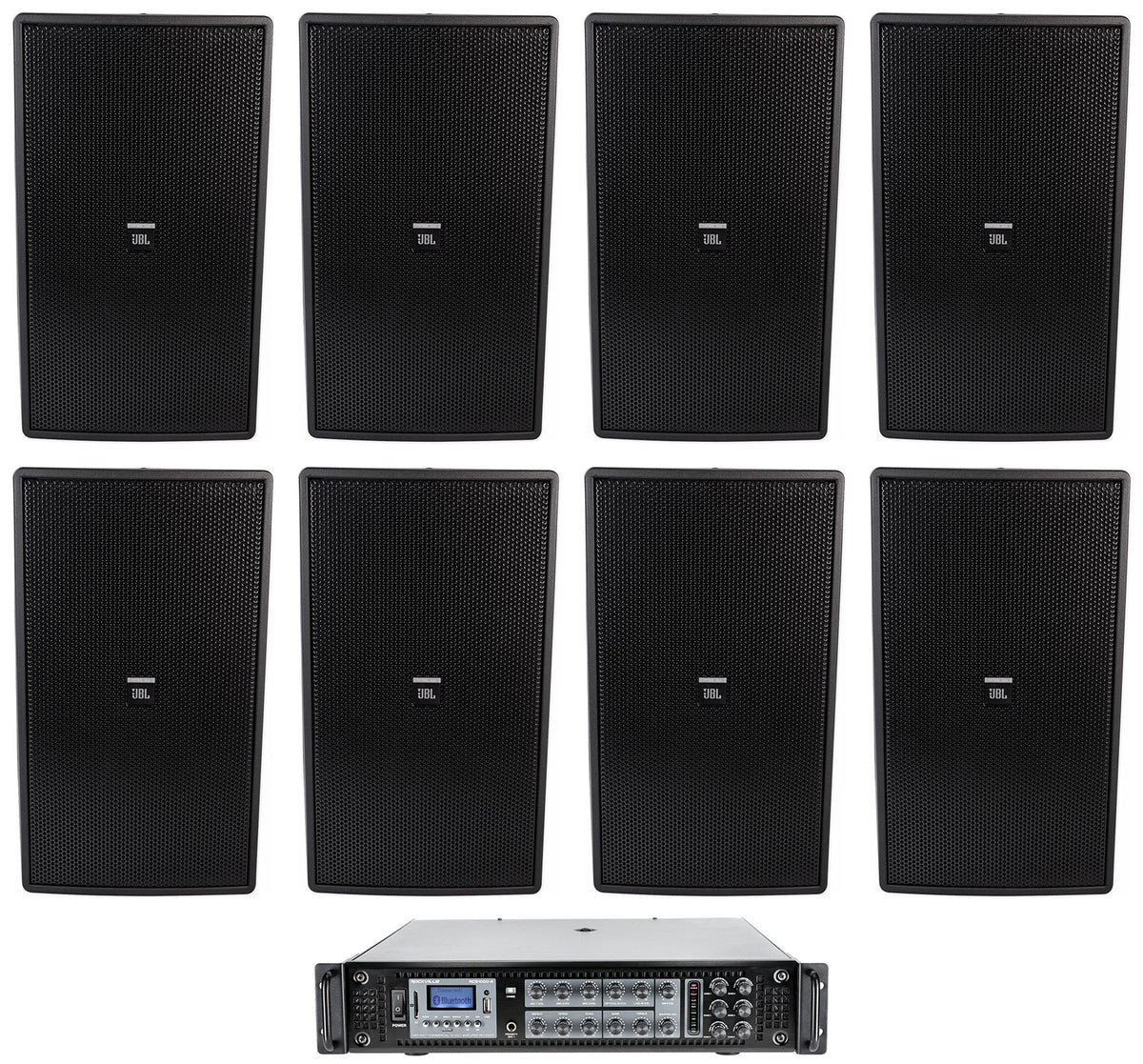

What's Included in the box

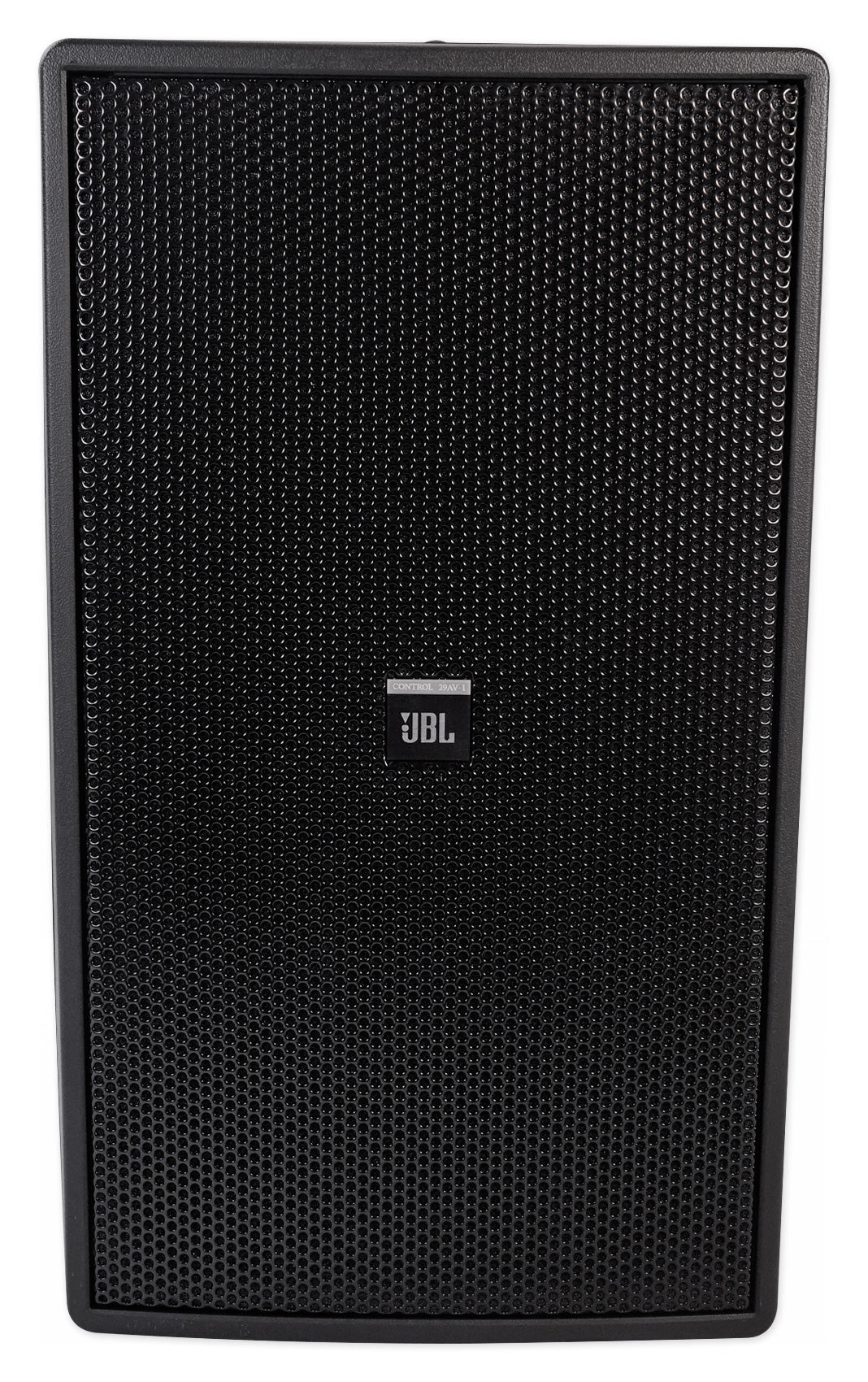

- (8) JBL Control 29AV 8" 2-Way 70V Indoor/Outdoor Speakers

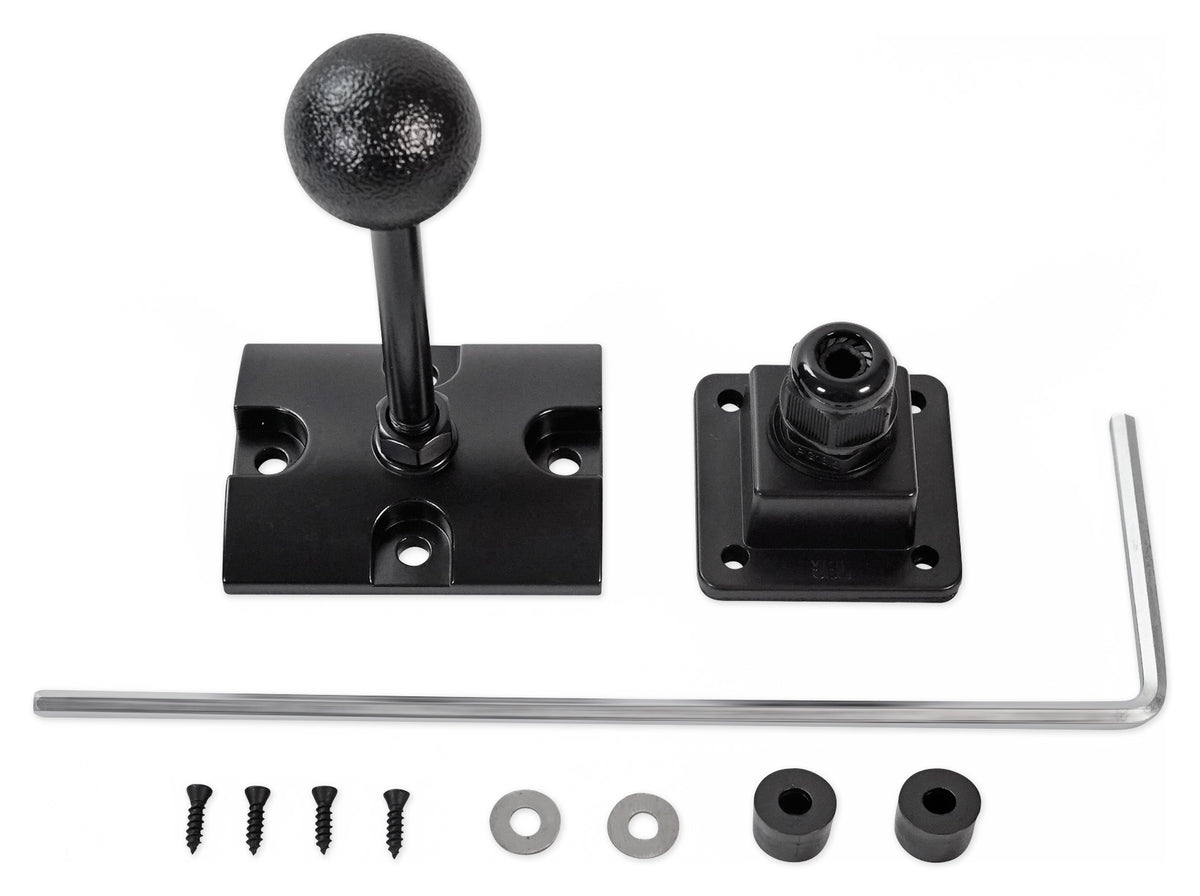

- (8) InvisiBall Mounting Bases

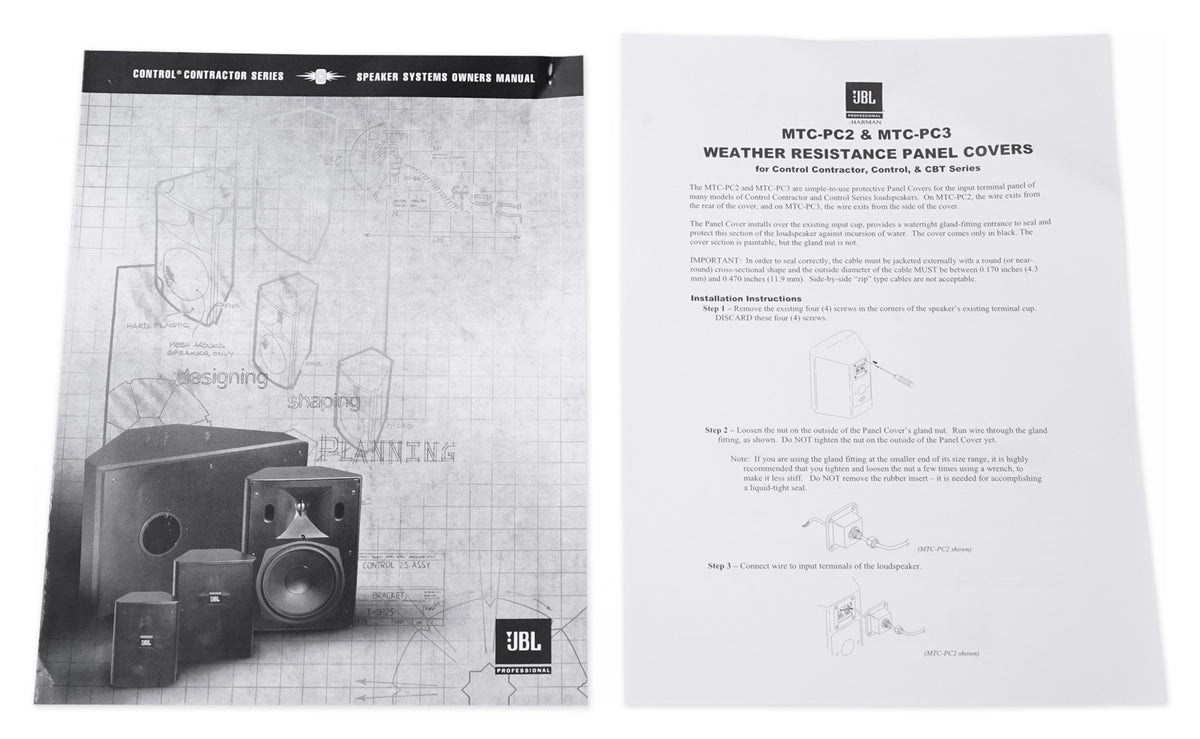

- (8) MTC-PC2 Input Panel Covers
- (8) 6 mm x 260 mm InvisiBall Hex Wrenches

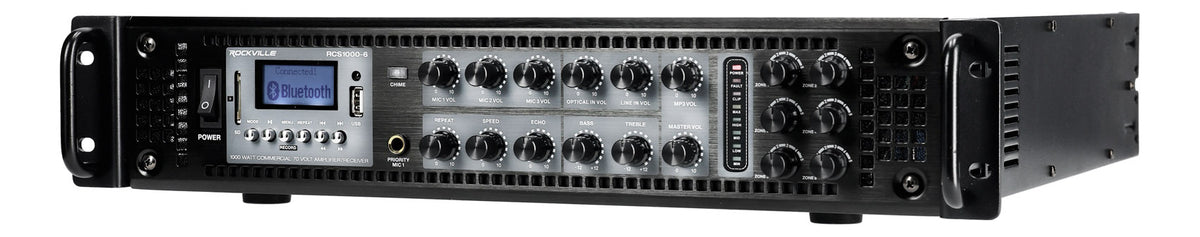

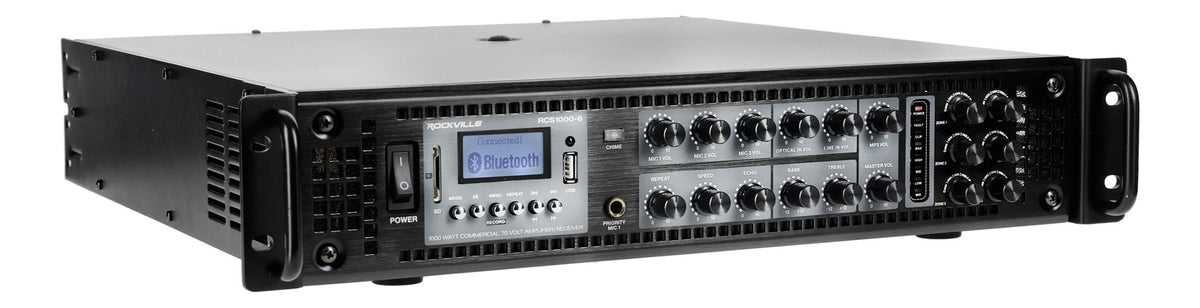

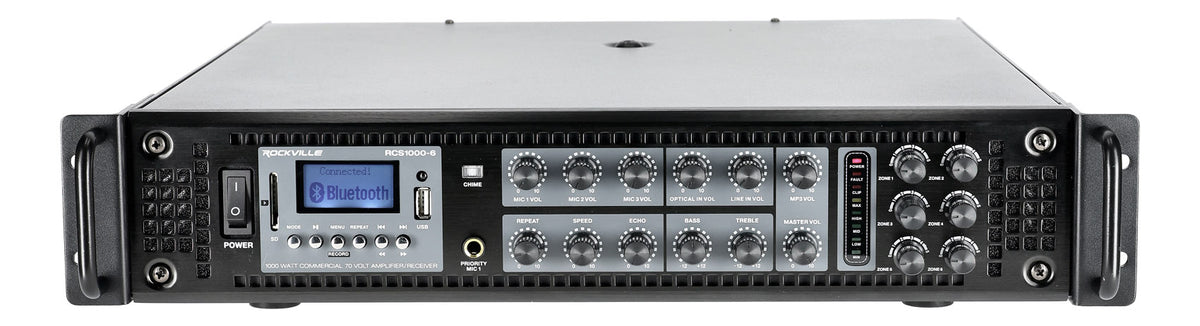

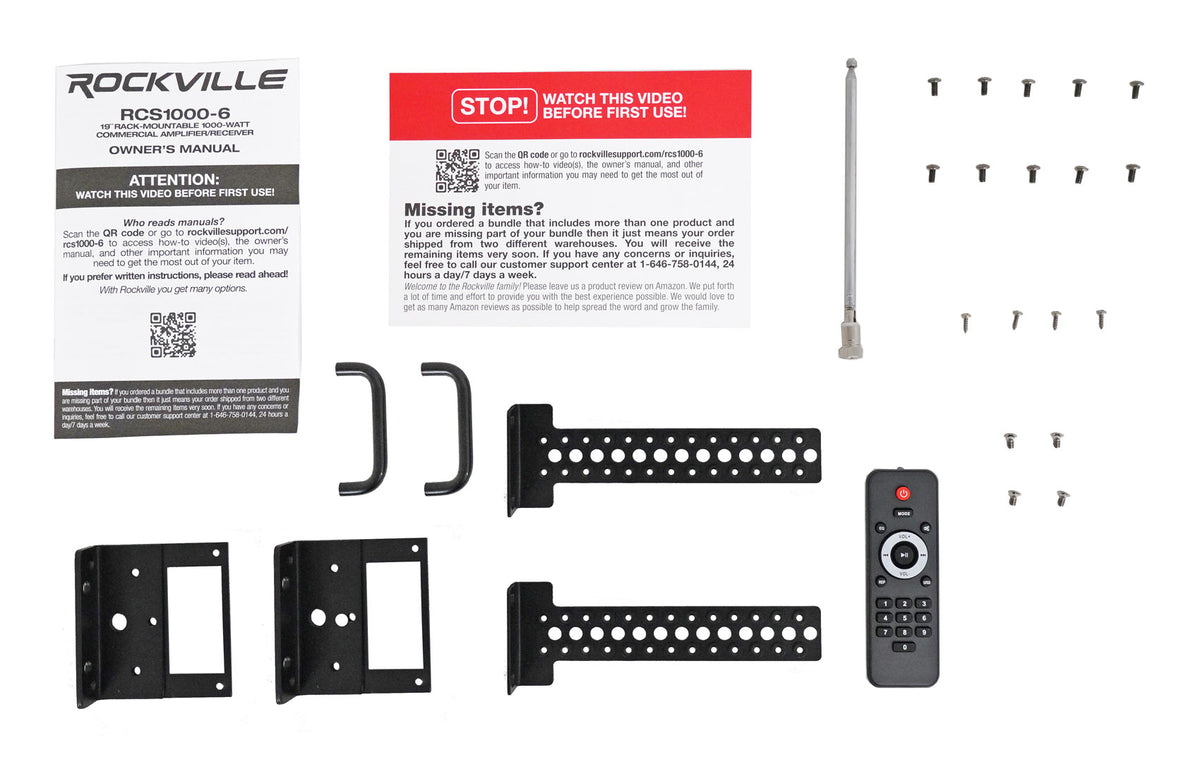

- (1) Rockville RCS1000-6 1000W 6-Zone 70V Amplifier
- Remote
- Rack Mount Ears
- Power Cable
- FM Radio Antenna
SKU: SKU: (8) Control 29AV+RCS1000-6
View full details
















Product Description

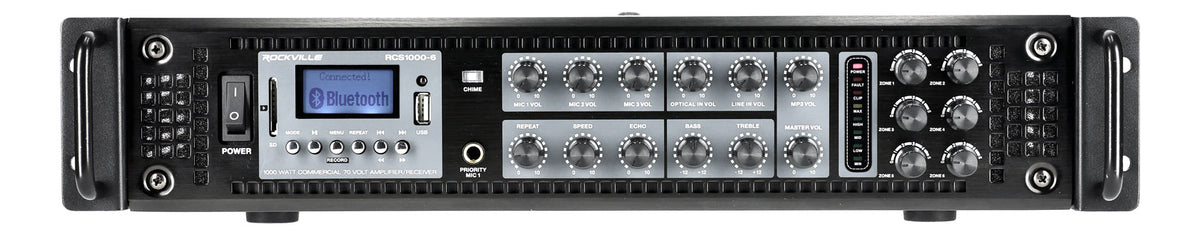

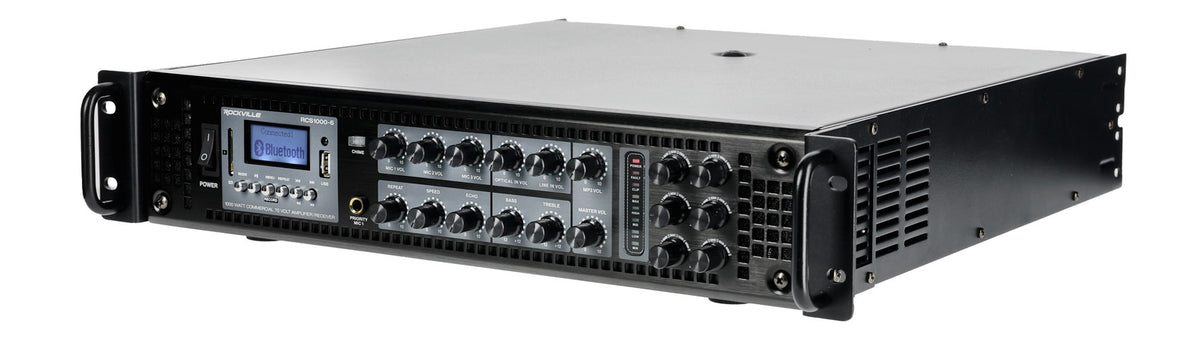

The Rockville RCS1000-6 amplifier is included, so there's no separate amp to source. It puts out 1,000W at 70V or 100V, split across six zones with up to 300W each and a volume knob for every zone. With all eight speakers on the 110W tap, the system totals 880W, inside the recommended 900W limit. Three mic inputs with echo control and a chime button handle announcements, while Bluetooth, FM, USB, SD, optical, and two RCA line inputs cover your music sources. The 19" chassis fits a standard equipment rack.
This Bundle Includes

Control 29AV

RCS1000-6
Features
Full-Range Sound for Busy Rooms
An 8" Kevlar cone woofer and 1" titanium compression driver reproduce 45 Hz to 18 kHz, keeping background music full and announcements clear over a noisy dinner crowd.
Aim It Any Way You Mount It
The 110° x 85° horn rotates, so each speaker can hang vertically or horizontally and still spread sound evenly across dining rooms, bars, and decks.
Set Each Speaker's Level

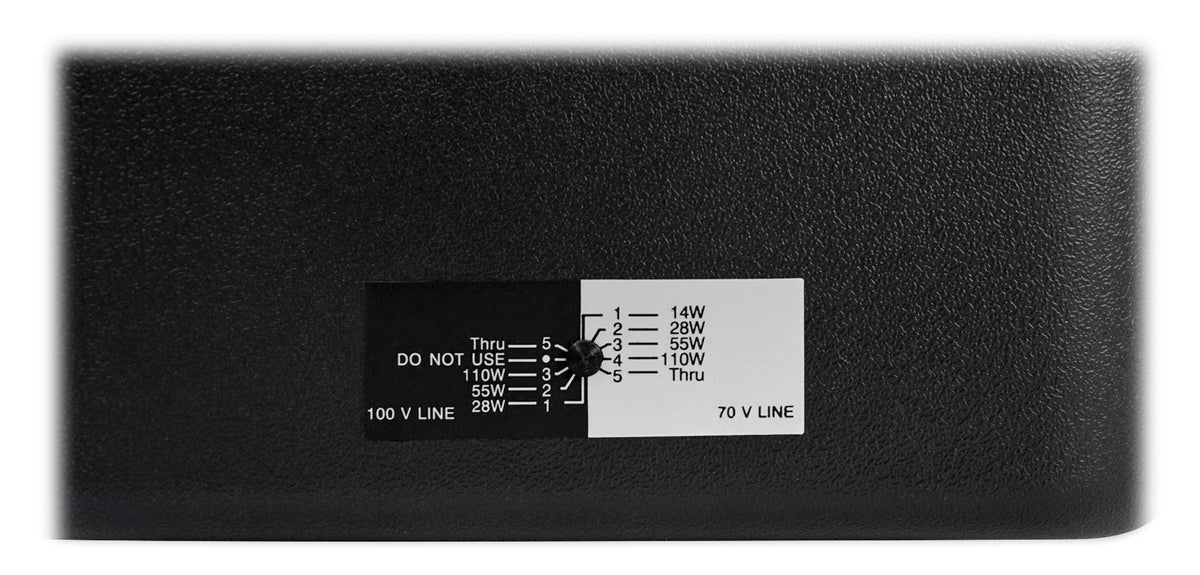

Transformer taps at 110W, 55W, 28W, and 14W on 70V lines let you run speakers louder out on the patio and softer near the host stand.
Ready for Rain and Sun
IP-X5 rated cabinets exceed Mil Spec 810 for humidity, salt spray, temperature, and UV, and the sealed input cover keeps terminals dry on open patios.
Amplifier Included for Six Zones
The included RCS1000-6 puts out 1,000W across six zones with per-zone volume, Bluetooth, FM, USB, three mic inputs, and a chime button for paging.
Technical Specifications
- Product Type 70V Commercial Speaker and Amplifier Package
- Speakers Included (8) JBL Control 29AV
- Amplifier Included Rockville RCS1000-6
- Speaker Configuration 2-Way, 8" Kevlar Cone Woofer, 1" Titanium Compression Driver
- Speaker Frequency Range (-10 dB) 37 Hz to 18 kHz
- Speaker Frequency Response (±3 dB) 45 Hz to 18 kHz
- Speaker Power Capacity 300W Continuous Program, 150W Continuous Pink Noise
- Speaker Transformer Taps (70V) 110W, 55W, 28W, 14W
- Speaker Transformer Taps (100V) 110W, 55W, 28W
- Speaker Sensitivity 90 dB (2.83V/1m)
- Speaker Maximum SPL 120 dB Short-Term, 114 dB Long-Term
- Speaker Coverage 110° x 85°, Rotatable
- Speaker Impedance 8 Ohms (Thru Setting)
- Speaker Crossover Frequency 2.5 kHz
- Speaker Enclosure High Impact Polystyrene
- Speaker Environmental Rating IP-X5
- Speaker Mounting InvisiBall Mounting System, 10 Suspension Points
- Amplifier Power 1000W at 70V/100V
- Amplifier Zones 6, Up to 300W Per Zone
- Amplifier Operating Modes 70V, 100V, 8 Ohm, 4 Ohm

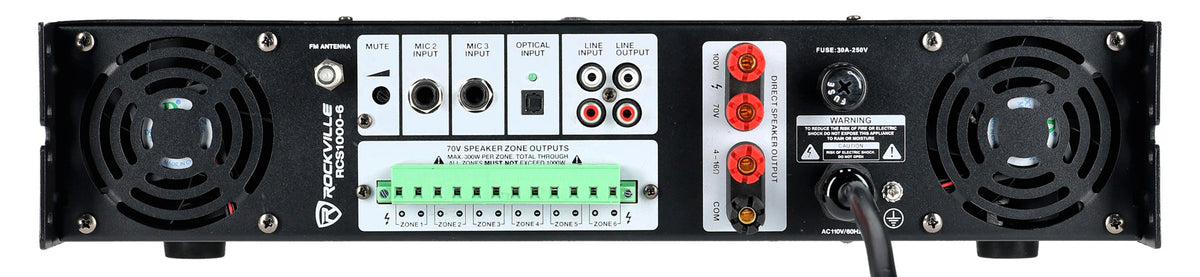

- Amplifier Inputs (3) Mic, (2) RCA AUX, Optical, USB, SD Card, Bluetooth, FM Tuner
- Amplifier Output RCA Line Output
- Amplifier Frequency Response 40 Hz to 24 kHz
- Power Requirements 120V, 50/60 Hz

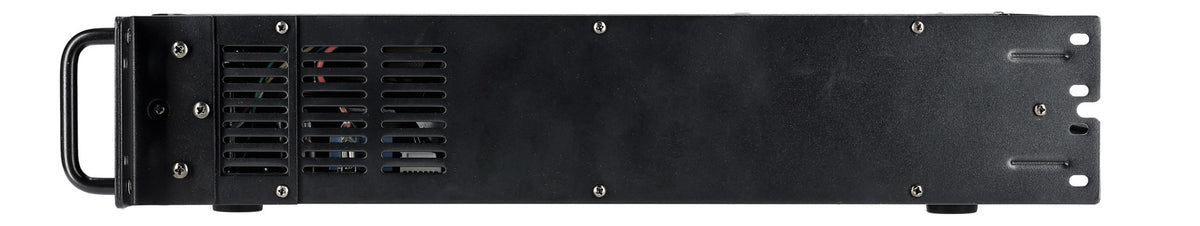

- Rack Mount 19" (Removable Rack Ears)
- Weight Speaker: 26.8 lb (12.2 kg) Each; Amplifier: 45.8 lb
- Dimensions Speaker (H x W x D): 20.5 x 12.0 x 10.9 in; Amplifier: 19 x 18.1 x 4 in
