JBL

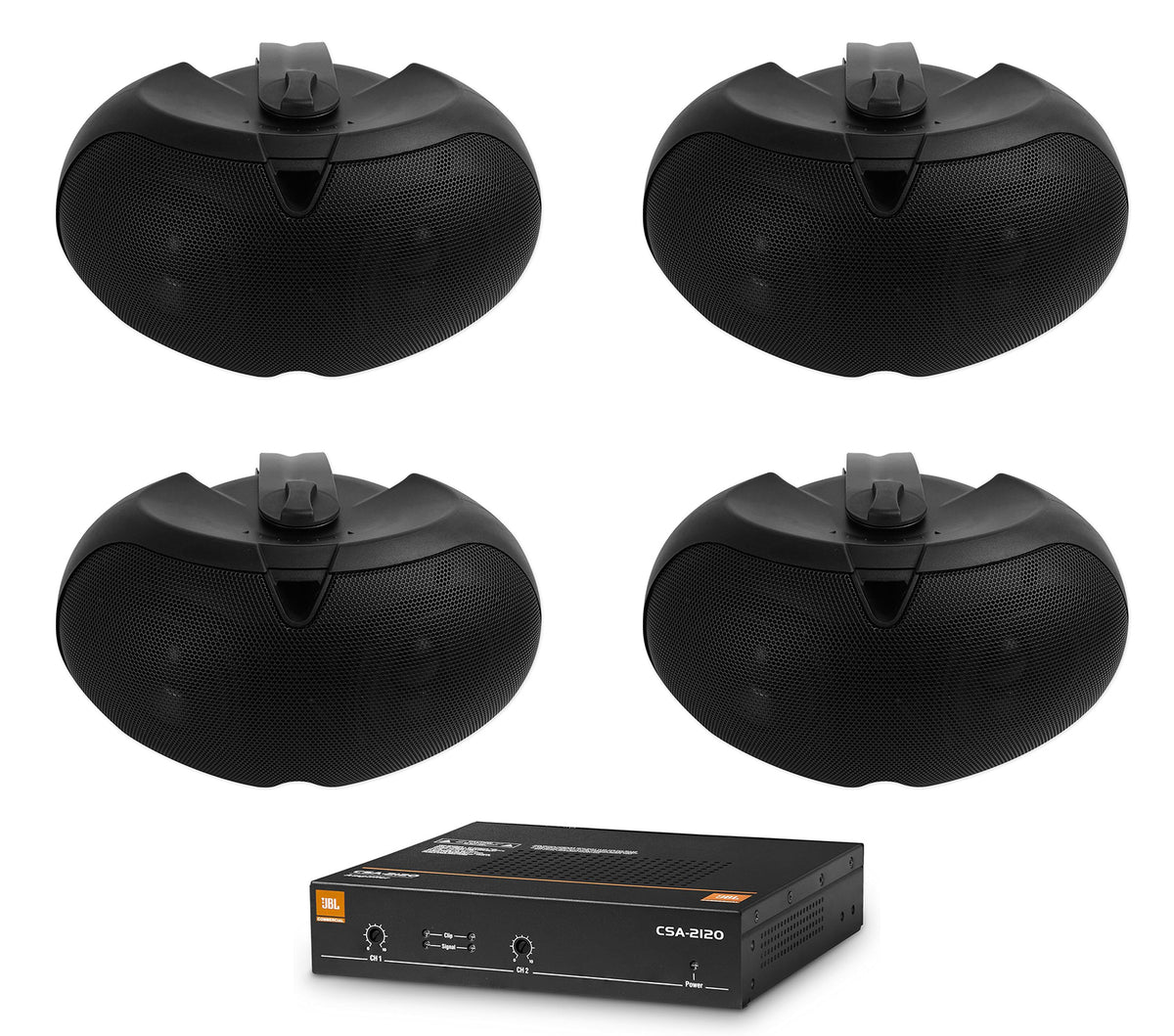

CSA2120 Amplifier + (4) D4-8 Black Wall Speakers

CSA2120 Amplifier + (4) D4-8 Black Wall Speakers

Commercial Sound System, 2 x 120W Amplifier, (4) Dual 4" Wall Mount Speakers for Restaurants, Bars, Patios

Free Shipping

Regular price $724.75
Sale price $724.75 Regular price $716.13
Shipping calculated at checkout.
Features
    • JBL CSA-2120 amplifier delivers 120W per channel at 4 or 8 ohms
    • Four Rockville D4-8 dual 4" speakers handle 50W RMS and 200W peak each
    • Stable from 2 to 16 ohms, so each channel can run two 8 ohm speakers
    • Weather-resistant ABS speaker cabinets suit patios and indoor dining rooms
    • Plenum-rated UL2043 amp with auto-standby mode and included rack mount kit
30-Day Money-Back Guarantee
Fast & Free Shipping
Buy Now, Pay Later

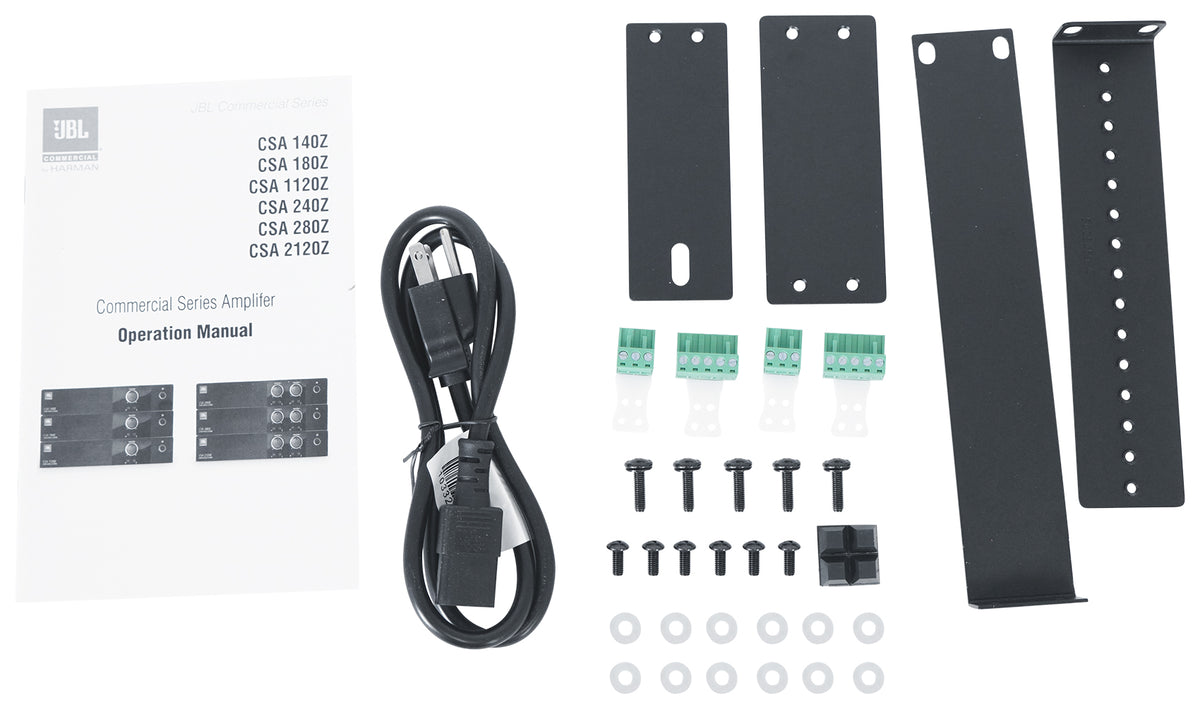

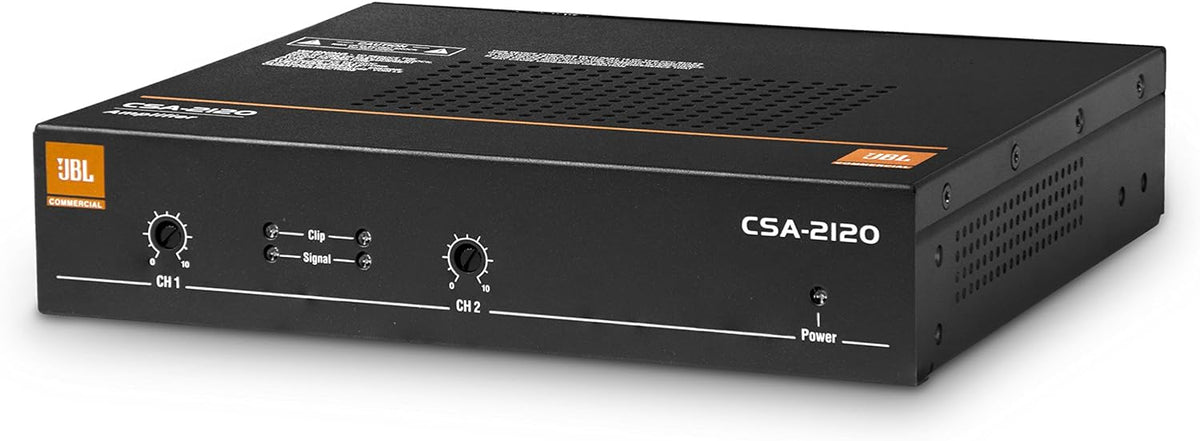

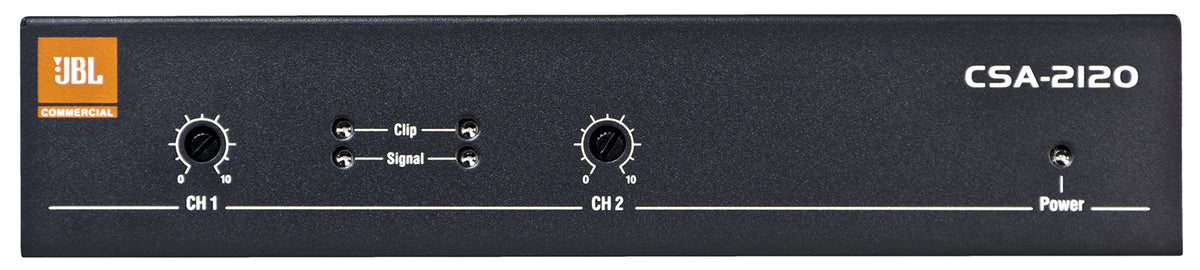

    • (1) JBL CSA-2120 2-Channel 120W Commercial Power Amplifier
    • (4) Rockville D4-8 Black Dual 4" 8 Ohm Wall Mount Swivel Speakers
    • (1) Amplifier Rack Mounting Kit

SKU: SKU: CSA2120+(4) D4-8 BLACK COMM

View full details

Product Description

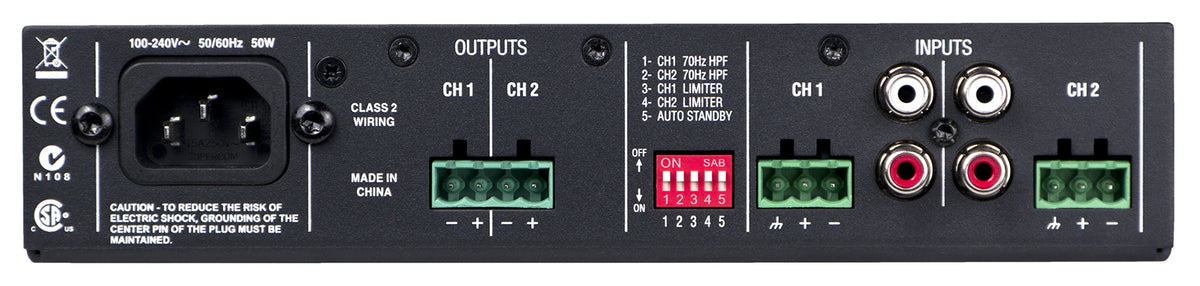

This JBL and Rockville package gives restaurants, bars, retail floors, and patios a complete background music system in one order: a two-channel commercial amplifier and four wall-mount speakers matched to run together. The JBL CSA-2120 delivers 120W per channel at 4 or 8 ohms and stays stable from 2 to 16 ohms, so you can wire two of the 8 ohm Rockville D4-8 speakers on each channel and cover a dining room and a patio, or two zones of a shop, from a single compact unit. Summing RCA inputs on each channel accept a mixer, streamer, or media player, and auto-standby mode saves energy during quiet hours. The amp is convection cooled, plenum rated to UL2043 for air-handling spaces, and ships with a rack mounting kit for an equipment closet or bar back.

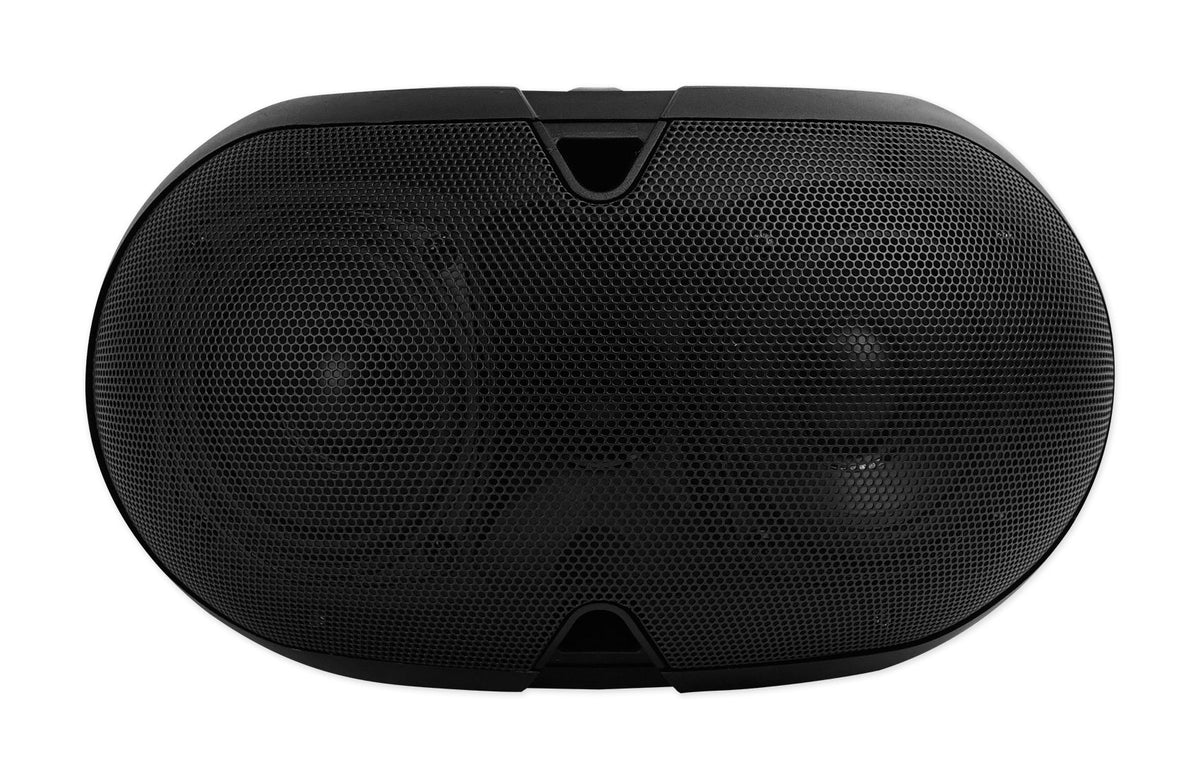

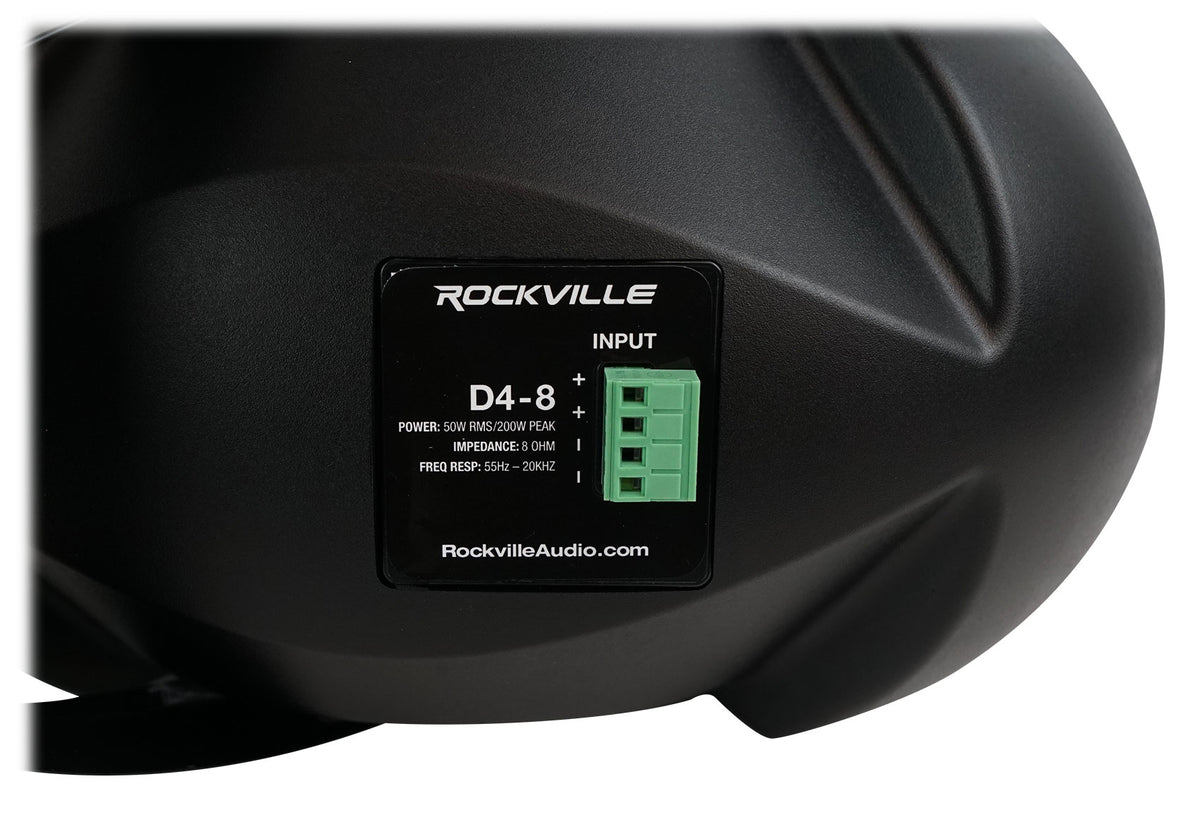

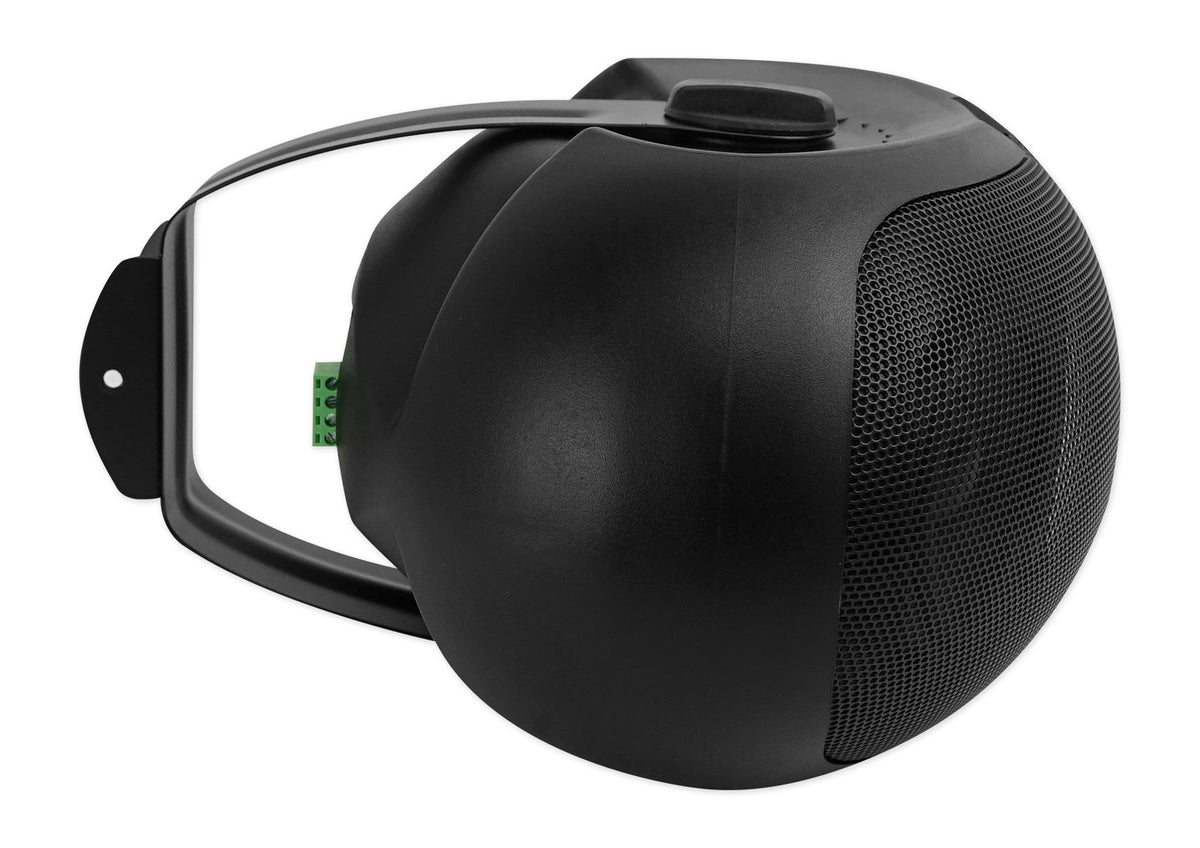

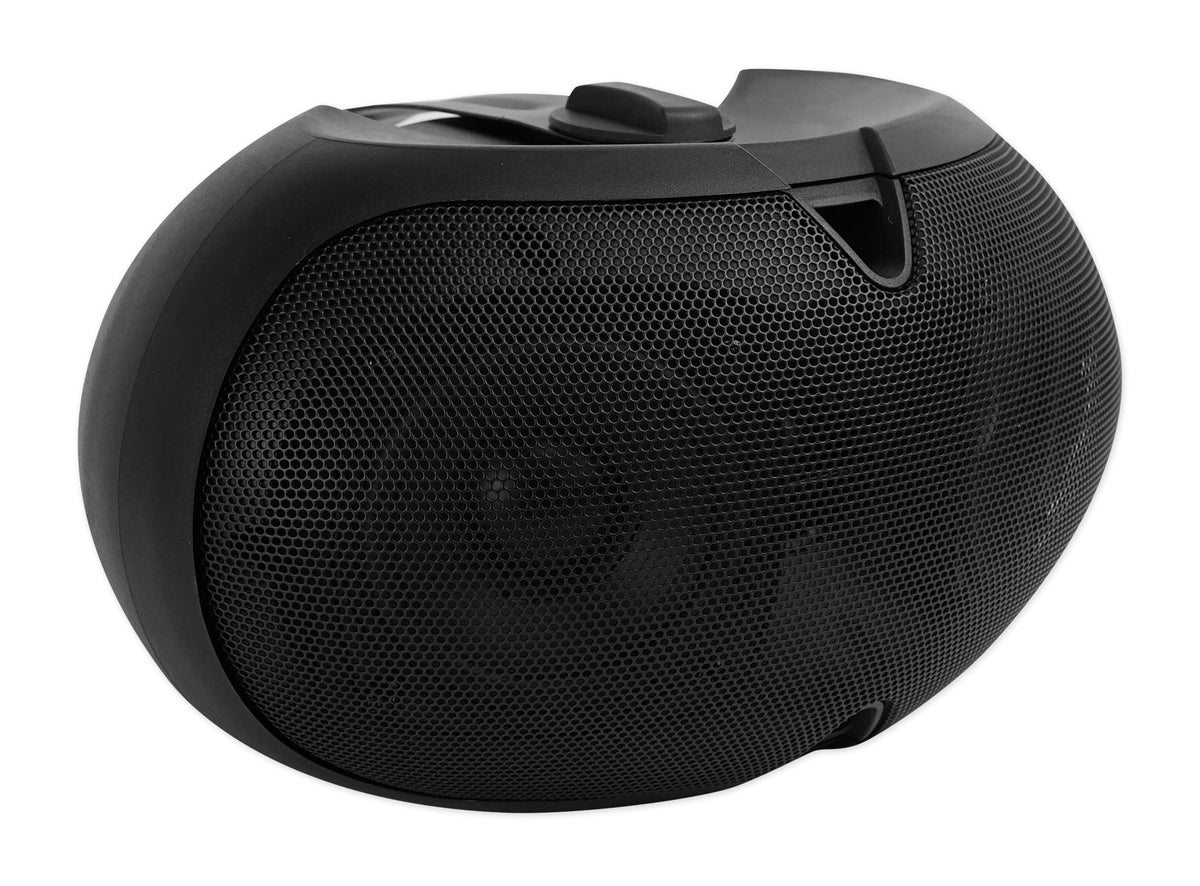

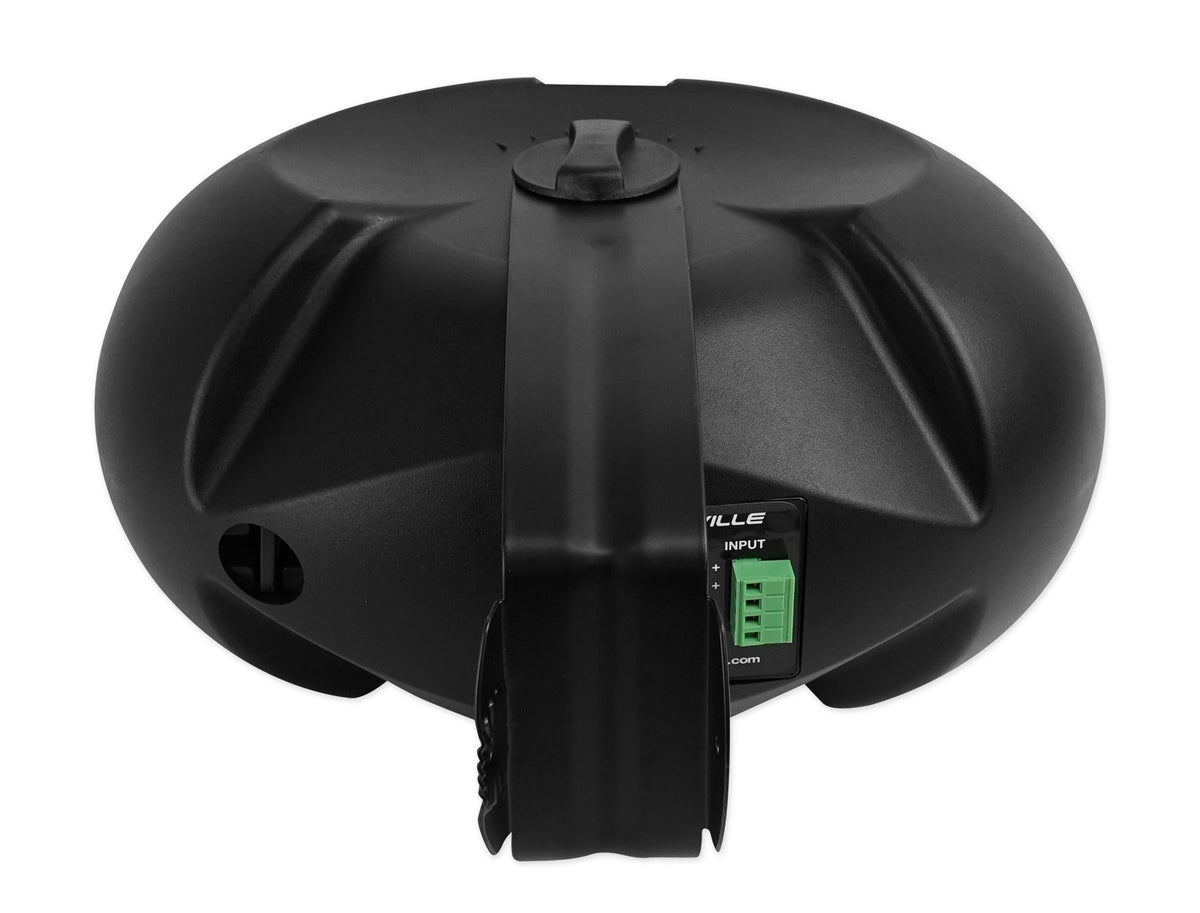

Each D4-8 pairs two 4" polypropylene woofers with a 1" silk dome tweeter and a 2500Hz crossover for clear vocals and full music playback from 55Hz to 20kHz. The weather-resistant ABS cabinet is built for outdoor patios as well as indoor rooms, and its curved front spreads sound across an 80 x 120 degree pattern so tables near the wall and across the room hear the same mix. A swivel bracket tilts 90 degrees vertically and turns 100 degrees horizontally, letting you aim each speaker at the seating area after it's mounted. Detachable euro-block terminals take ordinary speaker wire, which keeps installation and future changes quick.

Features

    • Complete Two-Zone Sound System

      The two-channel JBL amplifier and four matched 8 ohm speakers arrive together, so you can wire a dining room and patio as separate zones from one compact unit.

    • Steady Power for Every Speaker

      Delivering 120W per channel at 4 or 8 ohms and stable down to 2 ohms, the CSA-2120 comfortably handles two D4-8 speakers on each of its channels.

    • Built for Commercial Installs

      UL2043 plenum rating, convection cooling, and an included rack mounting kit let the amplifier live in a ceiling space, equipment closet, or behind the bar.

    • Wide, Even Coverage

      Each speaker's curved cabinet spreads sound across an 80 x 120 degree pattern, and the swivel bracket turns 100 degrees horizontally and 90 degrees vertically for precise aiming.

    • Clear Sound Indoors and Out

      Dual 4" polypropylene woofers, a 1" silk dome tweeter, and a weather-resistant ABS cabinet deliver 55Hz to 20kHz response on patios and in dining rooms alike.

Technical Specifications

  • Product Type Commercial Amplifier and Wall Mount Speaker Package
  • Amplifier Channels 2
  • Amplifier Output 120W x 2 @ 4/8 Ohms (1kHz, THD+N under 0.5%)
  • Amplifier Load Impedance Stable from 2 to 16 Ohms
  • Amplifier Sensitivity 1.4Vrms
  • Amplifier Signal to Noise Ratio Greater than 100 dB (1kHz, A-weighted)
  • Amplifier Input Impedance Balanced 20K Ohms / Unbalanced 10K Ohms
