CSMA280 + (4) Control 25-1 + (2) CSR-V Black
JBL
CSMA280 + (4) Control 25-1 + (2) CSR-V Black
CSMA280 + (4) Control 25-1 + (2) CSR-V Black
70V Commercial Sound System, 2 x 80W Mixer Amp, (4) 5.25" Wall Speakers, (2) Wall Volume Controls
Features

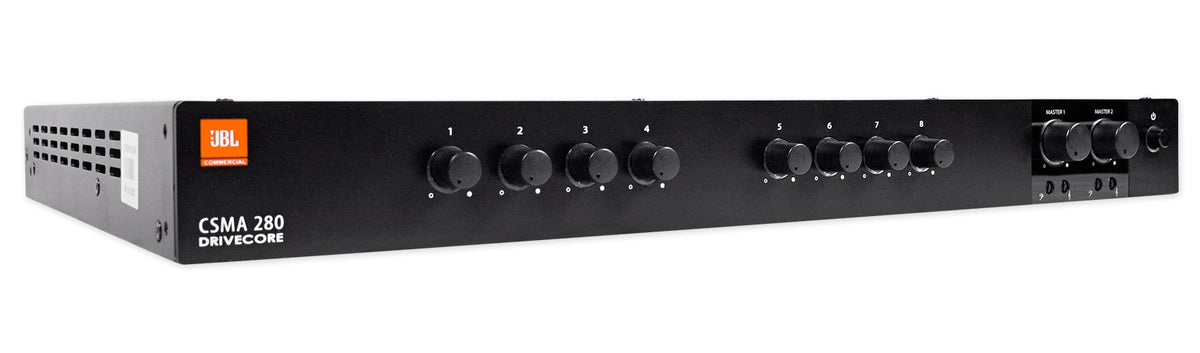

- CSMA280 mixer amp puts 80W on each of two output channels for two-zone audio
- Built-in transformer runs 70V and 100V speaker lines without extra hardware
- 8 mic/line inputs with euroblock and RCA connections plus 27V phantom power

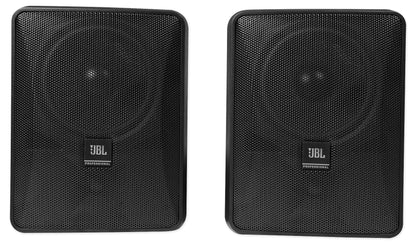

- Four Control 25-1 5.25" two-way speakers with wide 100° x 100° coverage

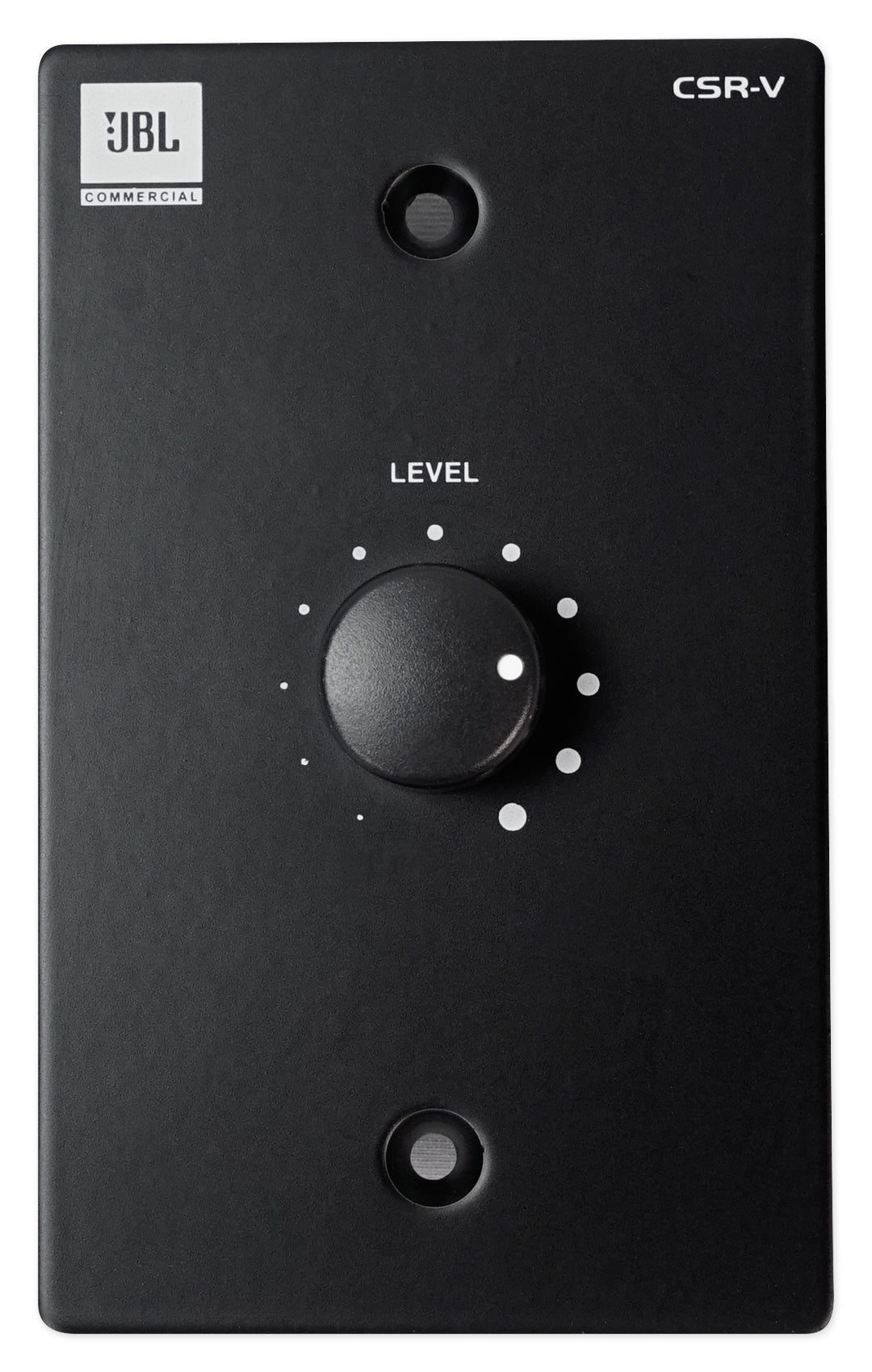

- Two CSR-V black wall controllers adjust volume right inside each zone
Couldn't load pickup availability

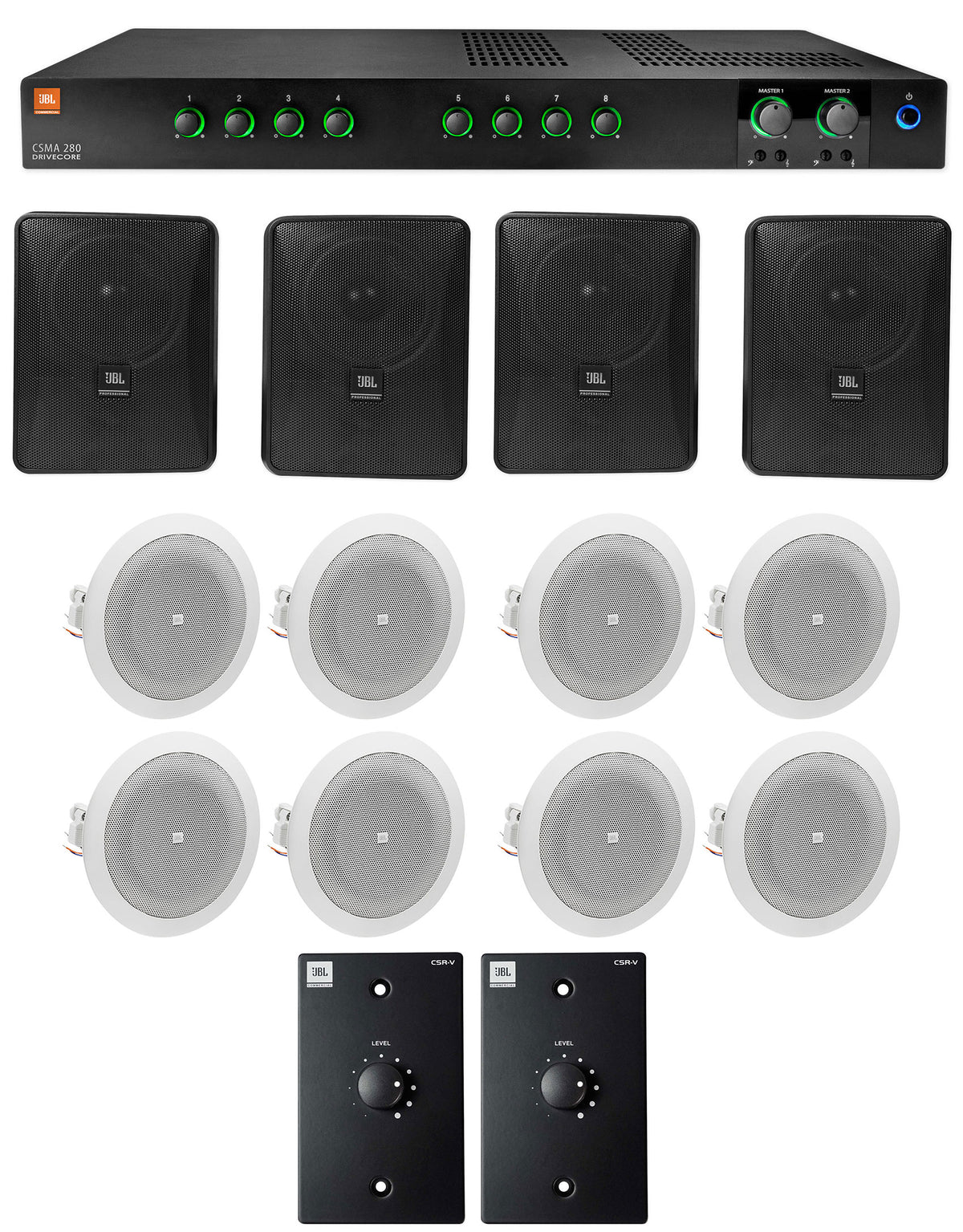

What's Included in the box

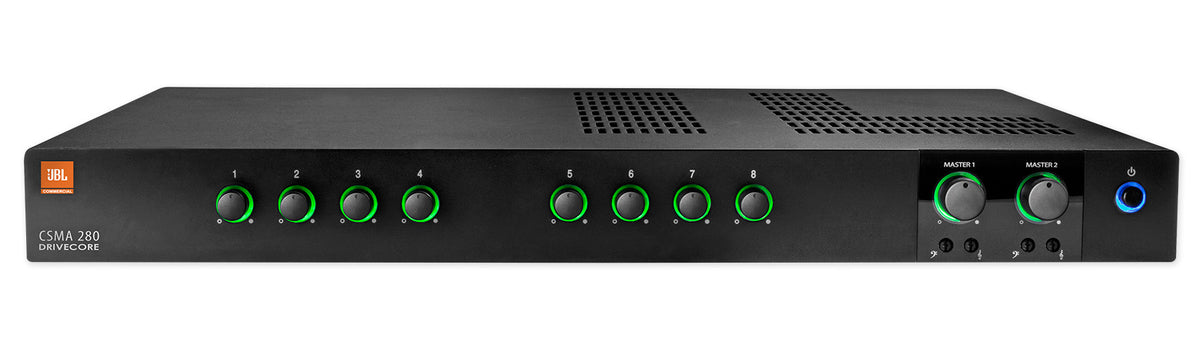

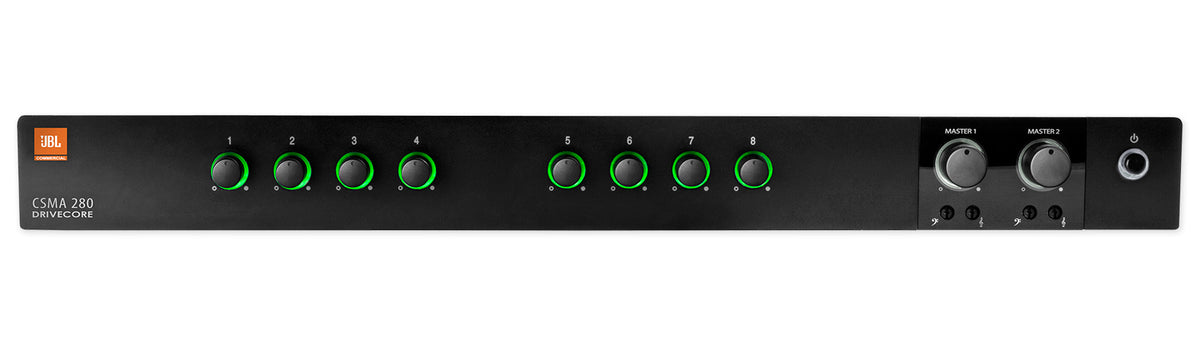

- (1) JBL CSMA280 Commercial Mixer Amplifier

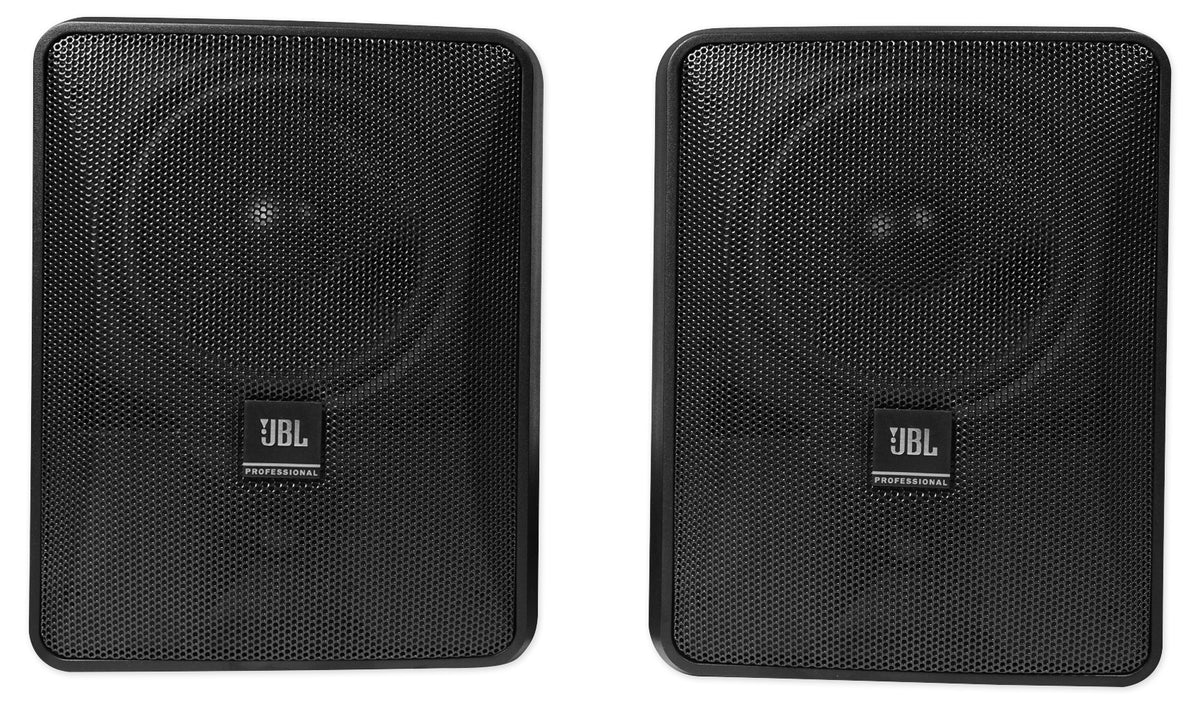

- (4) JBL Control 25-1 5.25" Two-Way Wall-Mount Speakers
- (2) JBL CSR-V Black Wall Volume Controllers
- InvisiBall Mounting Hardware for Control 25-1 Speakers
SKU: SKU: CSMA280+(2) Control 25-1+(2) CSR-V-BLK 2
View full details










Product Description
The four Control 25-1 speakers split neatly across the amp's two output channels, giving you two independent zones with two speakers each. Every two-way cabinet pairs a 5.25" woven-fiberglass woofer with a 0.75" PEI tweeter and spreads sound across a 100° x 100° pattern, so tables along the wall hear the same clear mix as the middle of the room. Weather-protected, IP-44 rated enclosures hold up in covered outdoor seating, and InvisiBall mounting hardware keeps the install tidy.
Two CSR-V black wall controllers connect back to the amp over Ethernet cable, putting a volume knob in each zone so staff can turn things up for a packed Friday night or down for a quiet lunch without walking to the equipment closet. Voice-activated ducking on channels 1 and 5 drops the music when someone speaks into the paging mic, priority muting clears the air for announcements, and sleep mode powers the amp down after about 30 minutes with no signal.
Features
Two Zones, One Amplifier
With 80W available on each of its two output channels, the CSMA280 lets a dining room and a bar or patio run their own volume from one amplifier.
Long Wire Runs Made Simple
A built-in output transformer powers 70V or 100V distributed lines directly, so speakers can sit far from the amp without a separate transformer in the chain.
Paging Over Background Music
Voice-activated ducking on channels 1 and 5 lowers the music when someone talks, while priority muting silences every other input for clear, uninterrupted announcements.
Even Sound At Every Table
Each Control 25-1 pairs a 5.25" woven-fiberglass woofer with a 0.75" PEI tweeter and 100° x 100° dispersion, so off-axis seats still hear a balanced mix.
Volume Control Where Staff Work
Two CSR-V wall controllers connect to the amp's RJ45 ports over Ethernet cable, giving each zone its own knob instead of a walk back to the equipment closet.
Technical Specifications
- Product Type Commercial 70V/100V Sound System Bundle
- Amplifier Output Power 2 x 80W

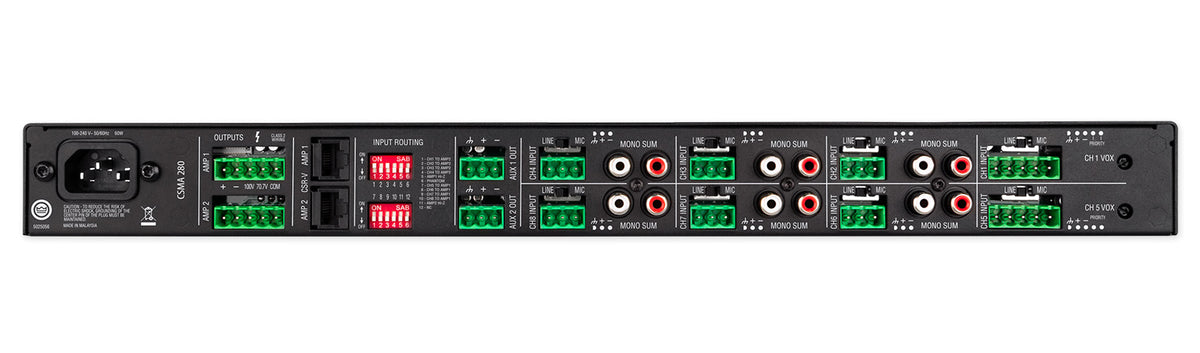

- Amplifier Inputs 8 (Mic/Line Euroblock, RCA)
- Amplifier Outputs 2 Channels, 4/8 Ohm or 70V/100V
- Phantom Power 27 VDC
- Amplifier Frequency Response 20 Hz to 20 kHz ±2 dB (4/8 Ohm), 80 Hz to 15 kHz ±2 dB (70V/100V)
- Signal to Noise Ratio Greater than 90 dB
- Remote Volume Ports 2 x RJ45
- AC Input 100-240 VAC, 50/60 Hz
- Speaker Quantity 4
- Speaker Drivers 5.25" Woven-Fiberglass Woofer, 0.75" PEI Tweeter
- Speaker Power Rating 200W Continuous Program, 100W Pink Noise (400W Peak)
- Speaker Transformer Taps 70V: 30W, 15W, 7.5W, 3.7W; 100V: 30W, 15W, 7.5W
- Speaker Impedance 8 Ohms (Thru)
- Speaker Frequency Response 60 Hz to 20 kHz (±10 dB)
- Speaker Sensitivity 90 dB (1W/1m)
- Speaker Coverage 100° x 100°
- Speaker Environmental Rating IP-44
- Wall Volume Controllers 2 x CSR-V, Black
- Color Black
- Amplifier Weight 11.9 lb (5.4 kg)
- Amplifier Dimensions (W x D x H) 17.2 x 11.9 x 1.7 in (436.9 x 302.3 x 43.2 mm)
