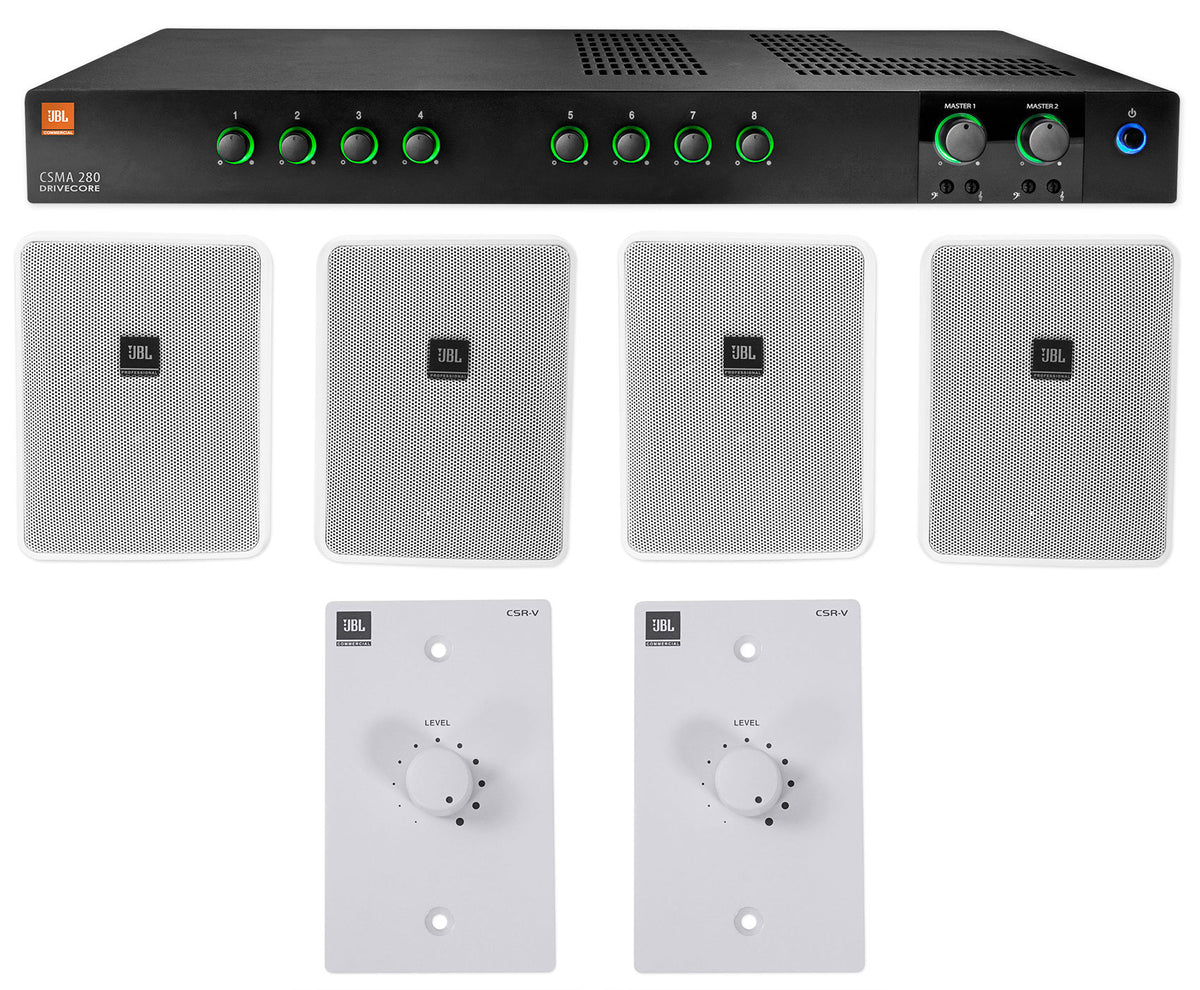

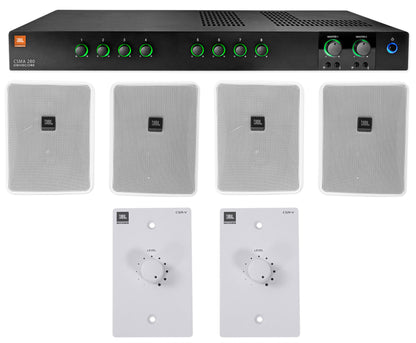

CSMA280 + (4) Control 25-1 White + (2) CSR-V White

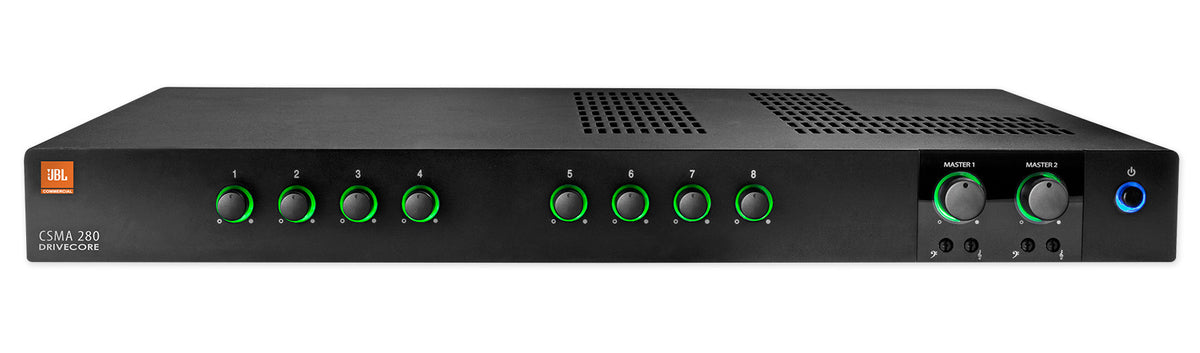

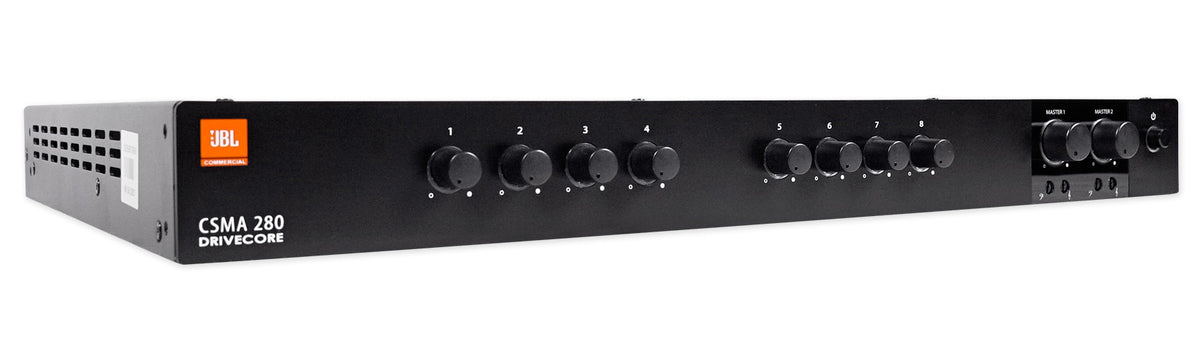

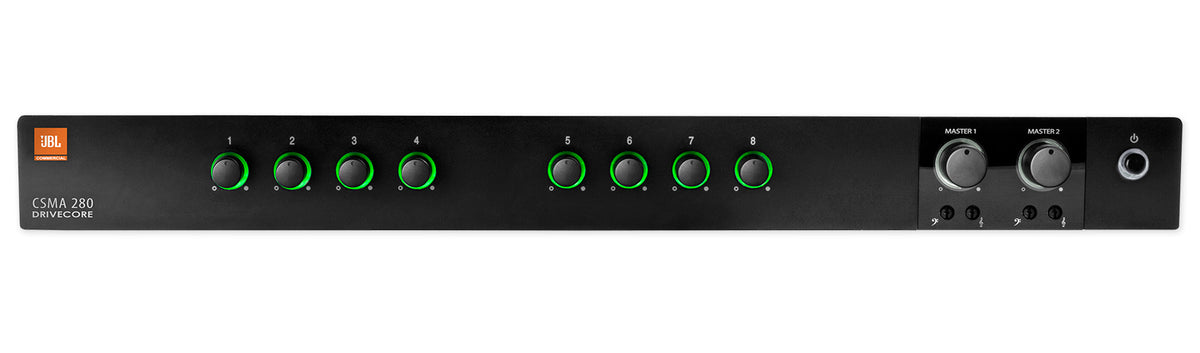

This JBL package puts a complete background music and paging system on the walls of a restaurant, bar, cafe, retail floor, or gym without piecing parts together. The CSMA280 mixer amplifier sits at the center with eight input channels and two 80W output channels, so you can run a music source, a paging mic, and a TV or jukebox through one unit and send the mix to two separate zones. Its built-in output transformer powers 70V or 100V speaker lines directly, which keeps long cable runs across a dining room or patio simple to wire.

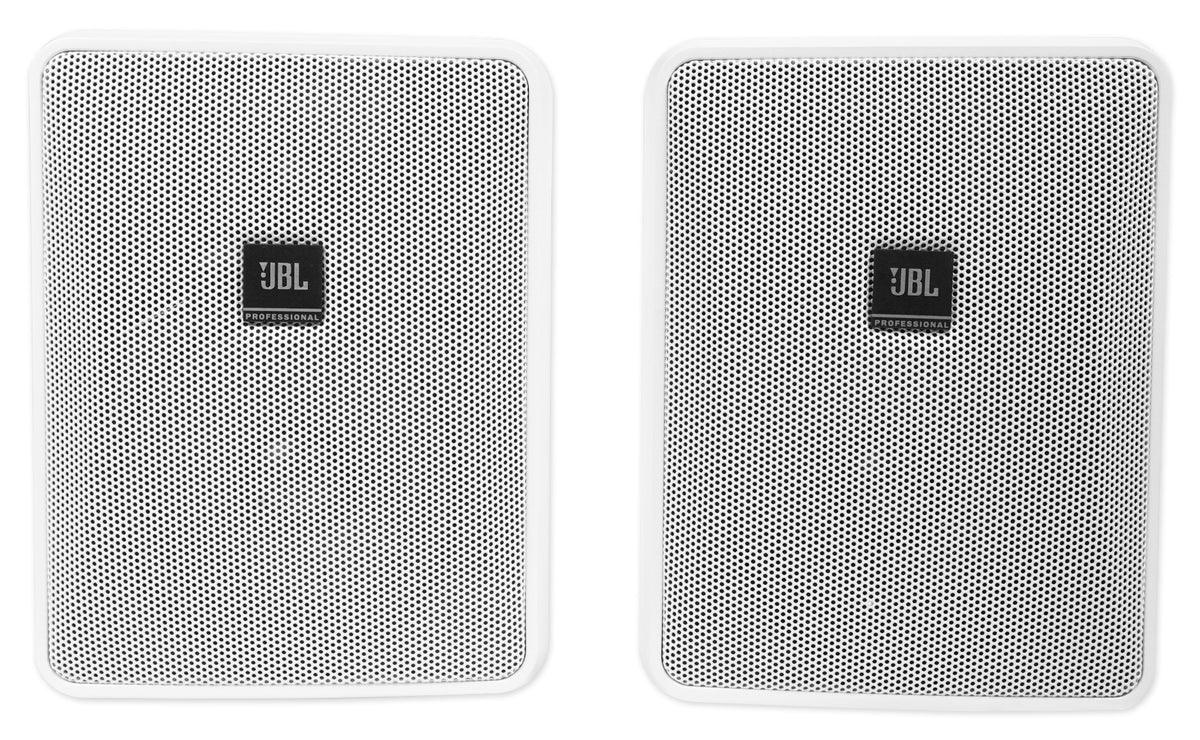

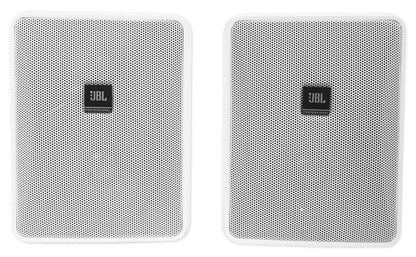

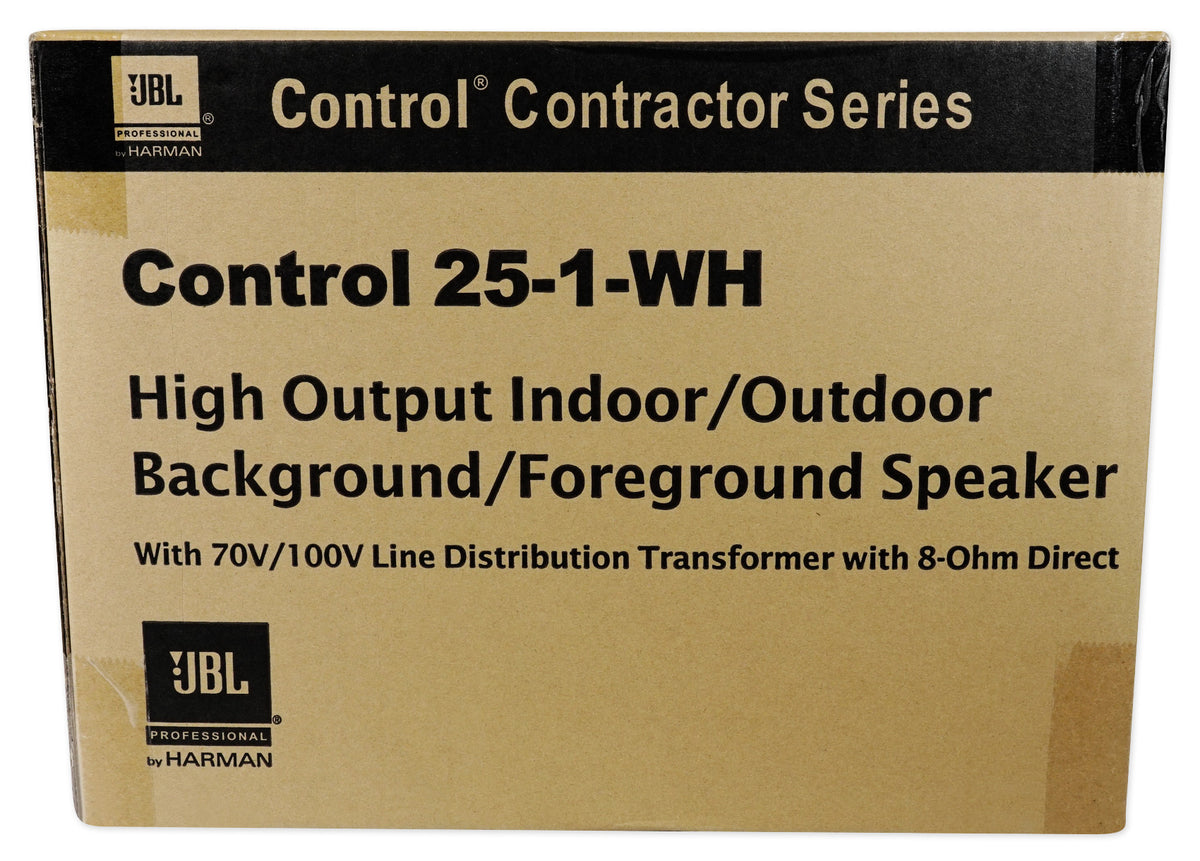

Four white Control 25-1 two-way speakers, two pairs, cover the zones with 5.25" woven-fiberglass woofers and 0.75" PEI tweeters. A 100° x 100° coverage angle spreads sound evenly across tables and seating, and the multi-tap transformer lets you set each speaker at 30W, 15W, 7.5W, or 3.7W on a 70V line. IP-44 weather protection means the same speakers work indoors or on a covered patio, and InvisiBall hardware hides the mounting point behind the logo badge for a clean install.

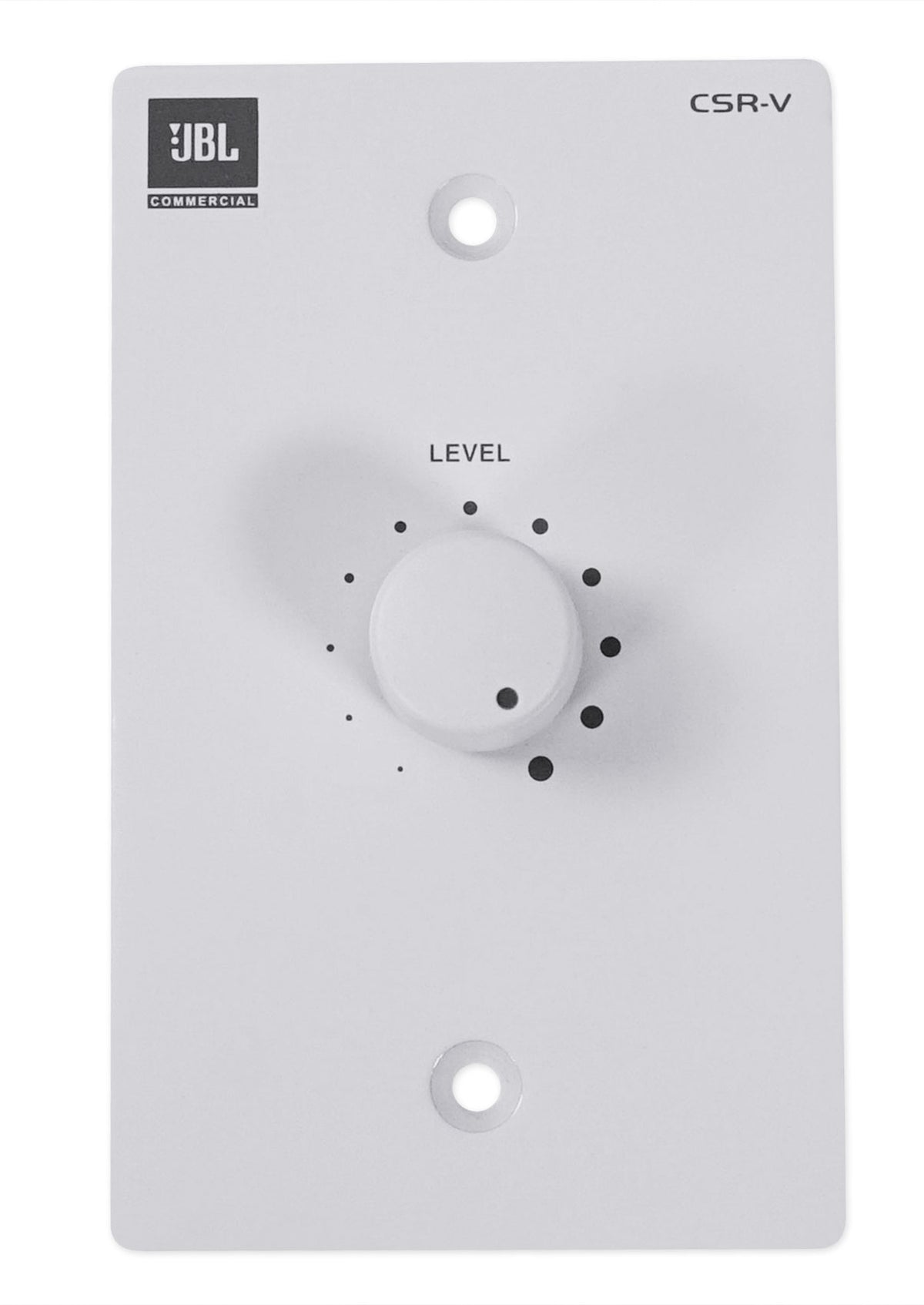

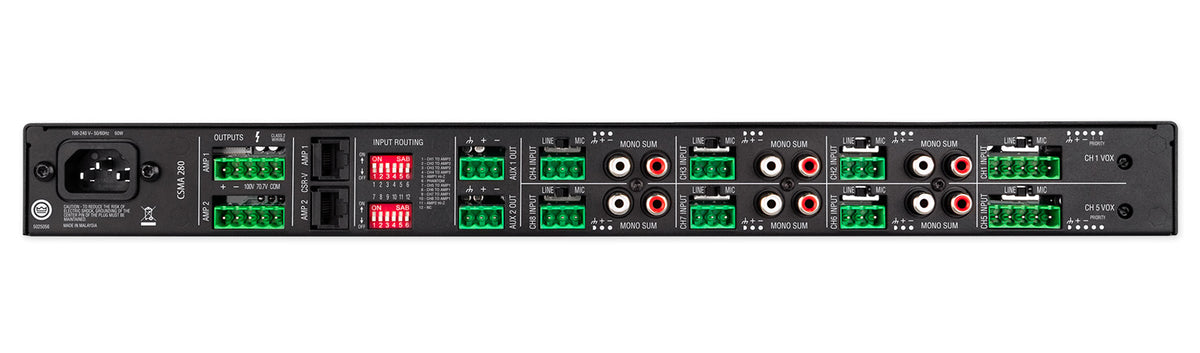

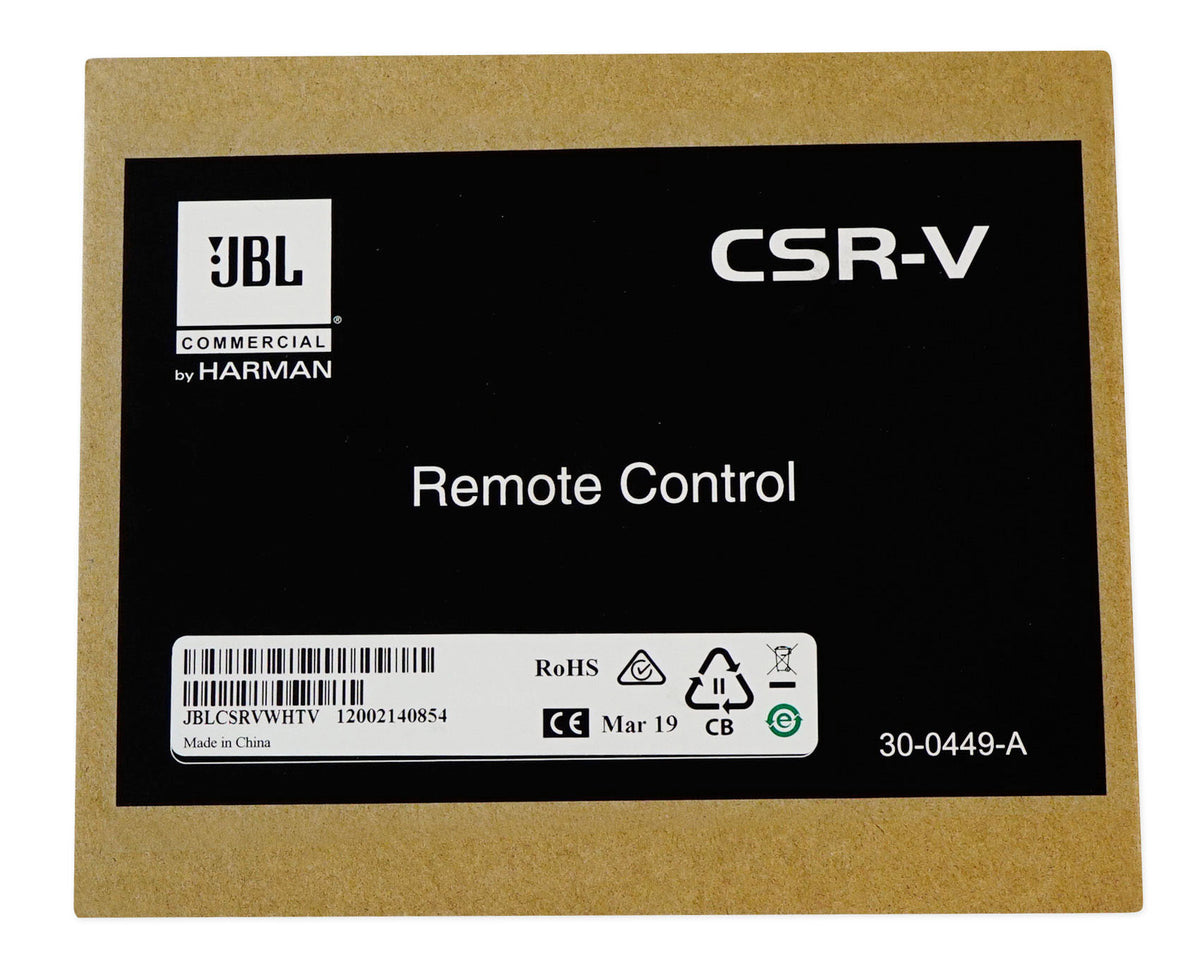

Two white CSR-V wall volume controllers connect to the CSMA280's RJ45 ports over standard Ethernet cable, giving staff a wall control for each zone so nobody has to walk back to the rack to turn the bar down. Voice-activated ducking on channels 1 and 5 lowers the music when someone pages, priority muting cuts through for announcements, and sleep mode powers the amp down after about 30 minutes without signal. White finishes on every speaker and controller blend into light walls, and the Control 25-1 enclosures accept paint for a custom match.
