VMA2120 120W 70V Mixer Amplifier with 24 CCL5T Black 5-Inch Ceiling Speakers
JBL
VMA2120 120W 70V Mixer Amplifier with 24 CCL5T Black 5-Inch Ceiling Speakers
VMA2120 120W 70V Mixer Amplifier with 24 CCL5T Black 5-Inch Ceiling Speakers

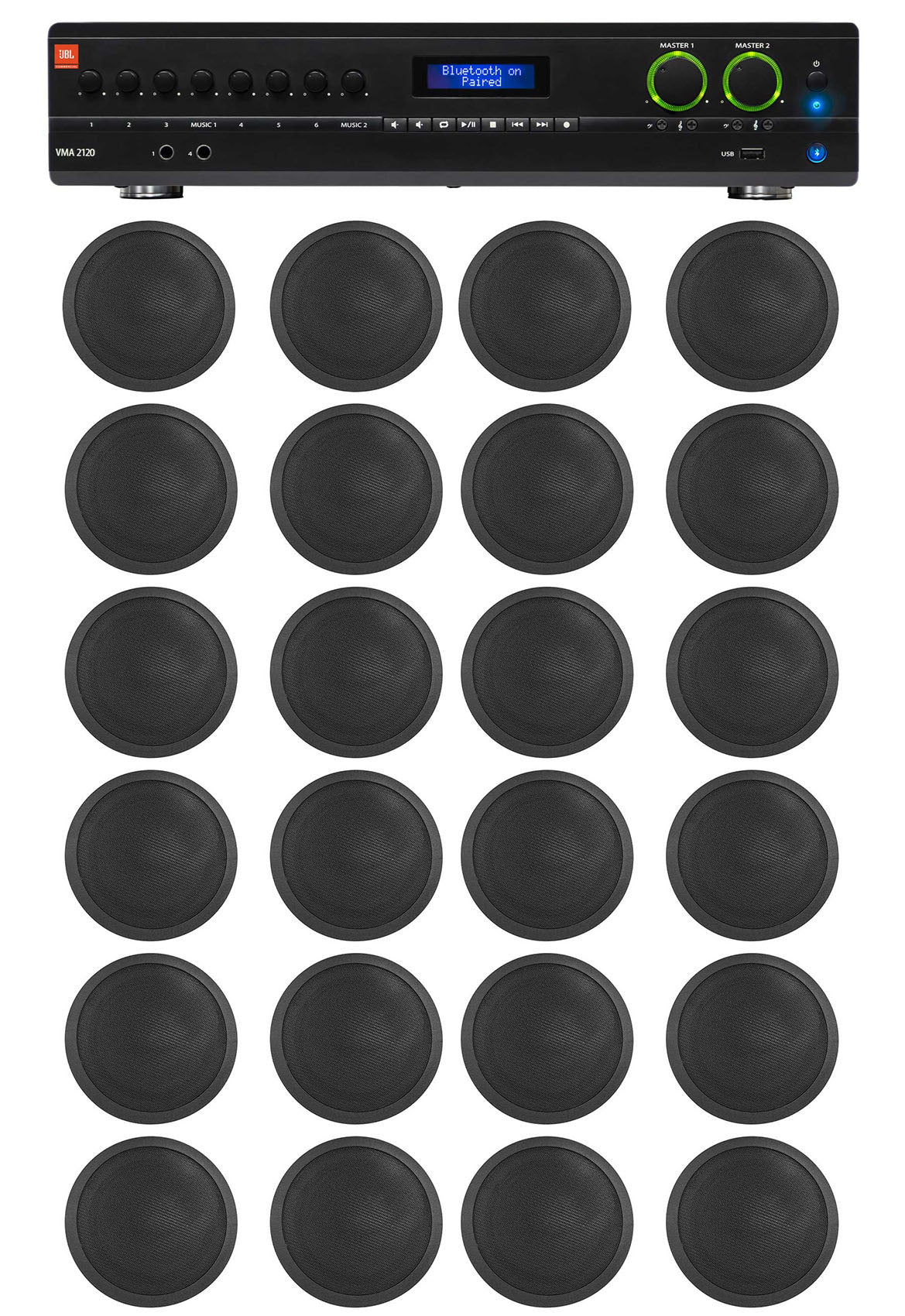

120W 70V Mixer Amplifier, 8 Inputs, 24 Black 5-Inch Ceiling Speakers
Free Shipping
Features
- 120W 70V mixer amplifier with Bluetooth and 8 inputs
- 24 black 5-inch flush-mount ceiling speakers included
- Speaker taps offer 1.25W, 2.5W, and 5W settings
- Paging chime and priority muting support announcements
- 24 speakers at 2.5W create a 60W total tap load
Couldn't load pickup availability

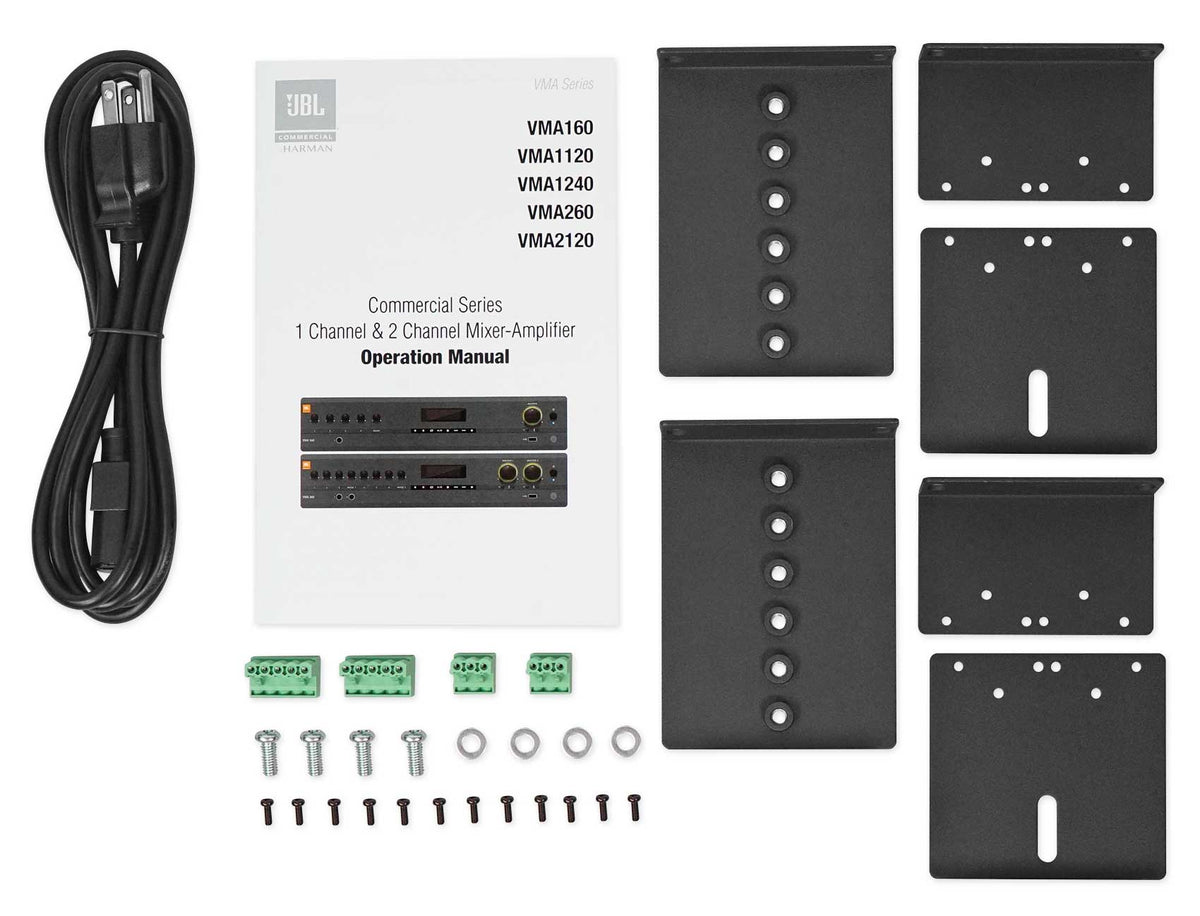

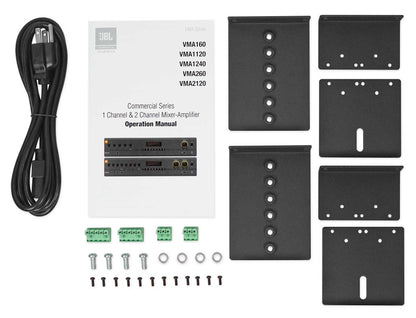

What's Included in the box

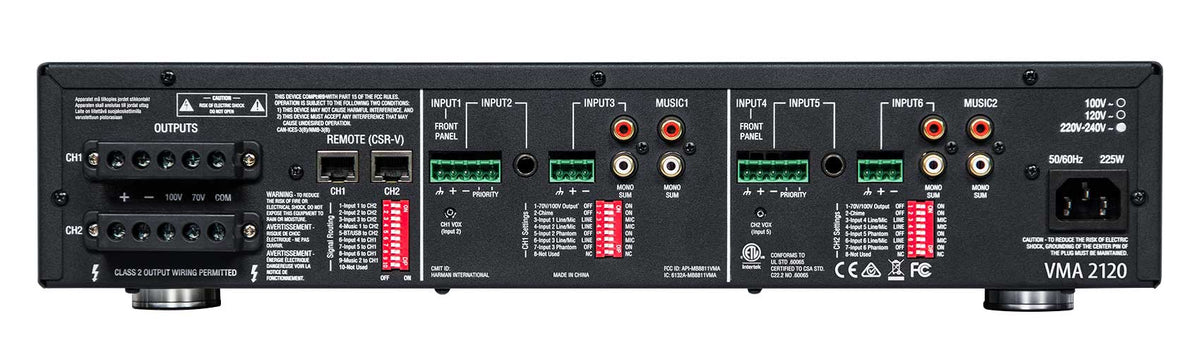

- (1) VMA2120 120W 70V 2-Channel Mixer Amplifier

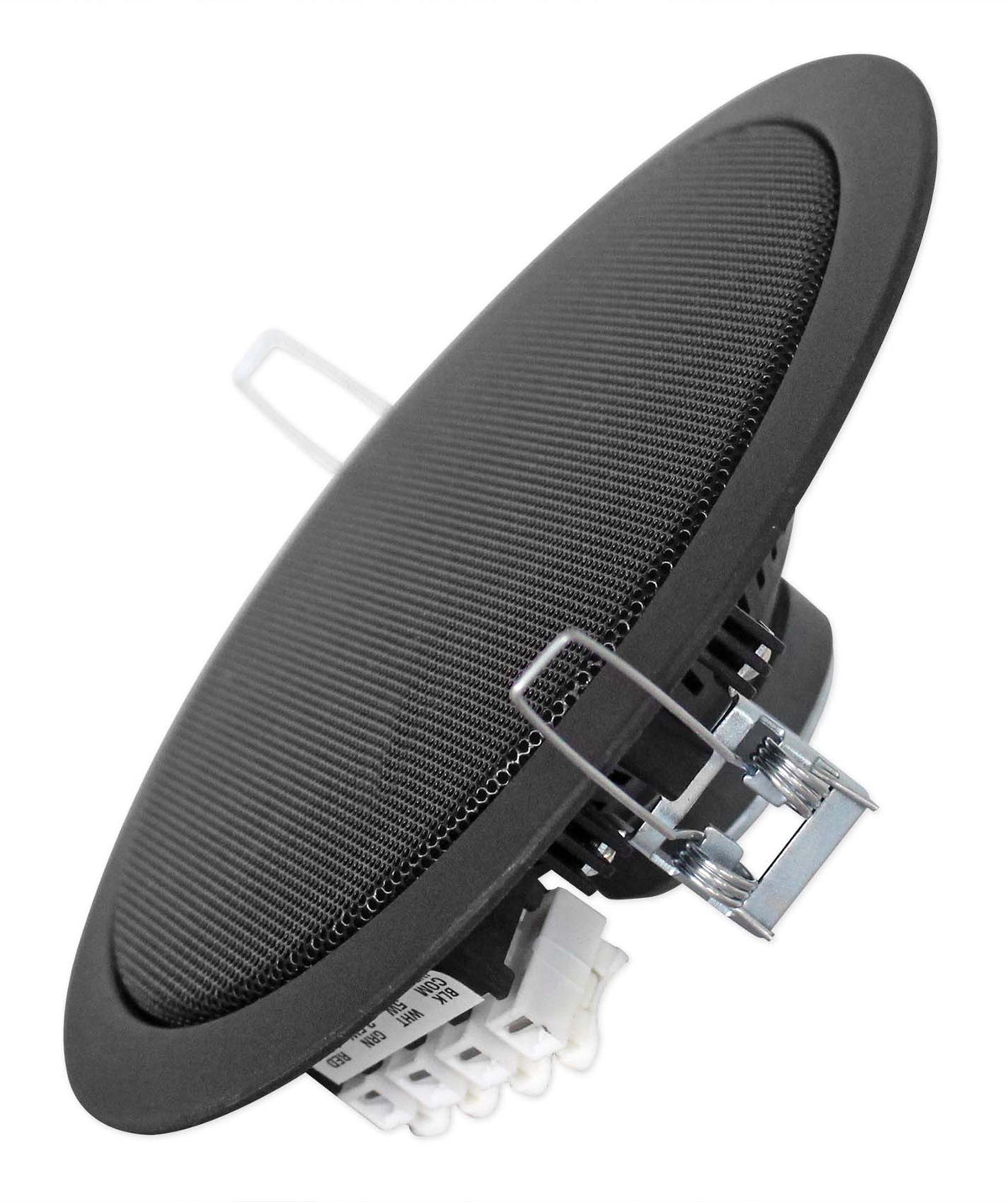

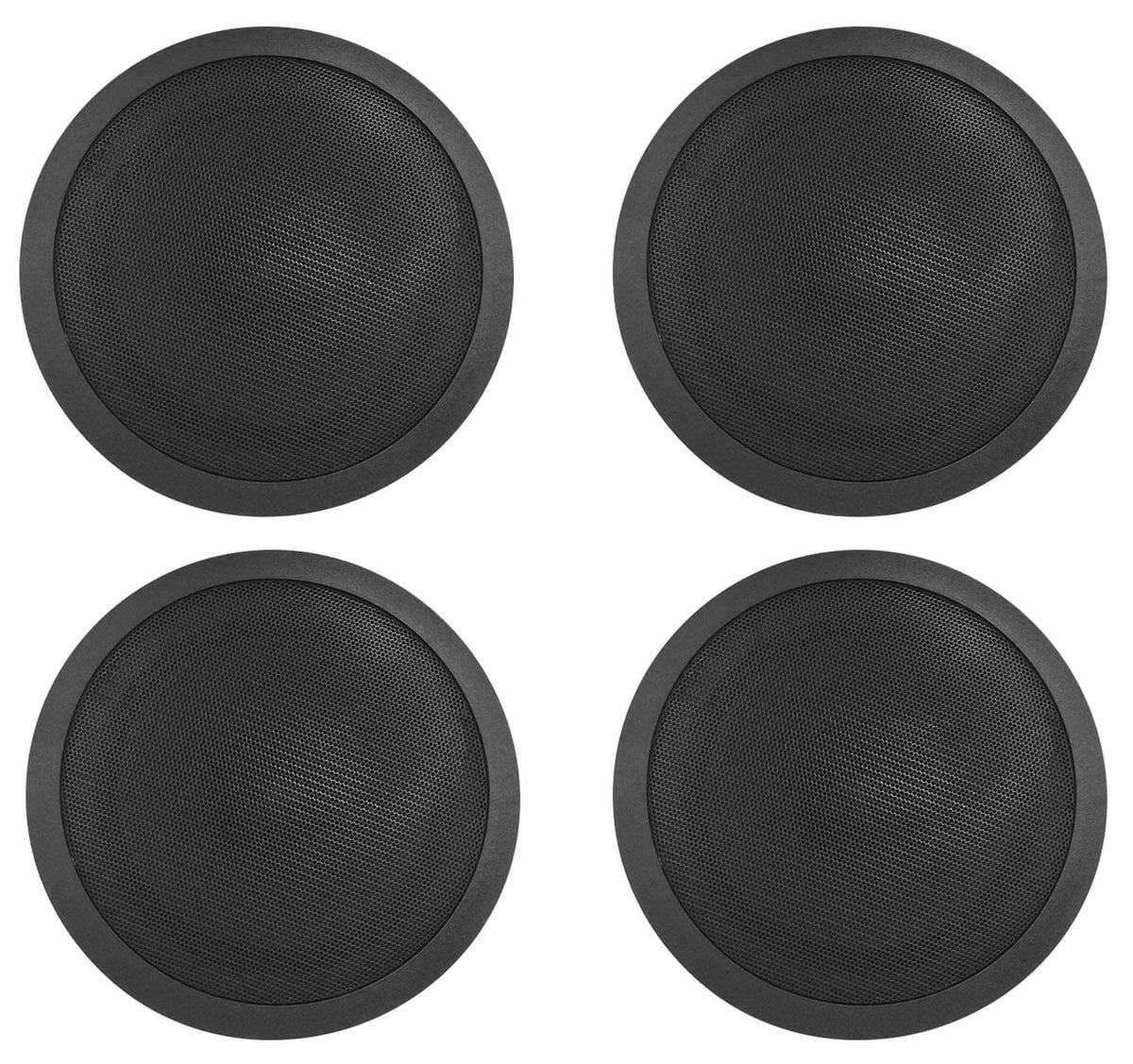

- (24) CCL5T Black 70V 5-Inch Commercial Ceiling Speakers
- Rack mounting hardware
SKU: SKU: VMA2120+(6) CCL5T BLACK
View full details









Product Description
Features
Distributed Commercial Audio
The 120W 70V amplifier and 24 ceiling speakers provide a practical foundation for background music and announcements across restaurants, offices, schools, or retail spaces.
Flexible Speaker Leveling
Three transformer taps at 1.25W, 2.5W, and 5W let installers set output by area, from quieter hallways to busier dining rooms.
Simple System Wiring
70V wiring uses positive and negative terminals at each speaker, making long speaker runs practical without impedance matching between individual ceiling speakers.
Music And Paging Control

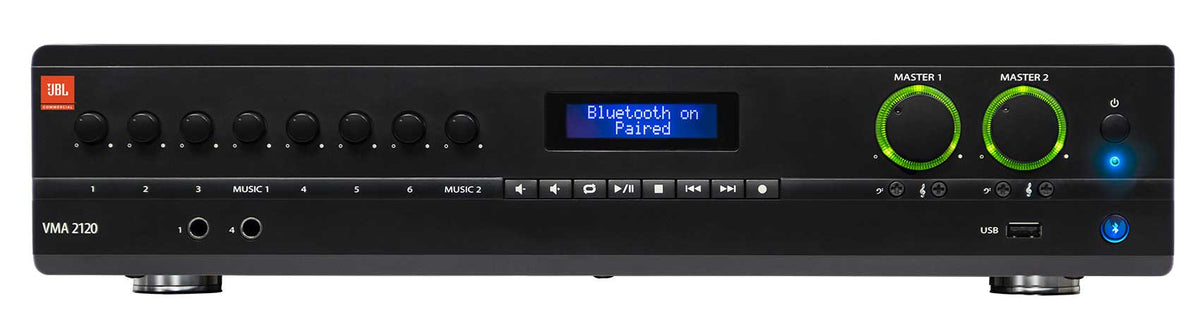

Bluetooth playback, eight inputs, paging chime, priority muting, and independent bass and treble controls keep music and announcements manageable from one amplifier.

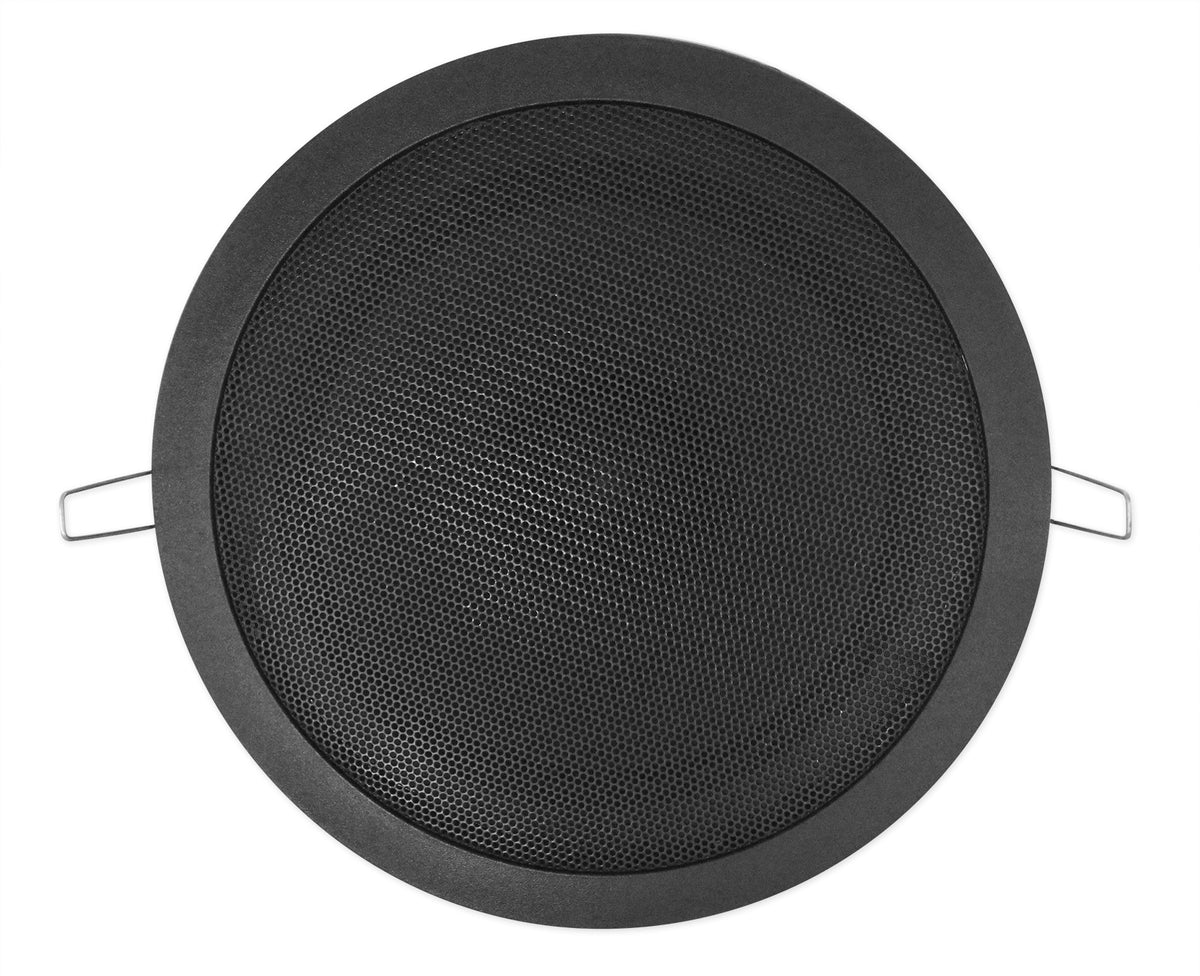

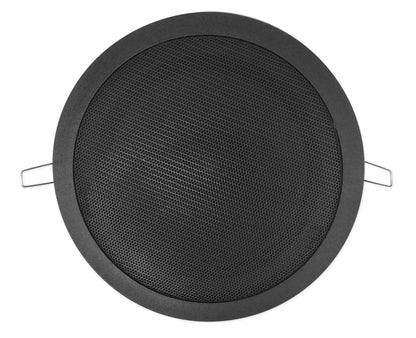

Flush-Mount Installation

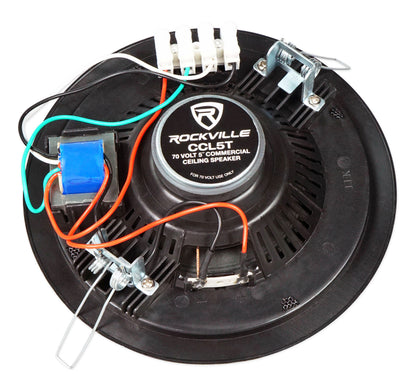

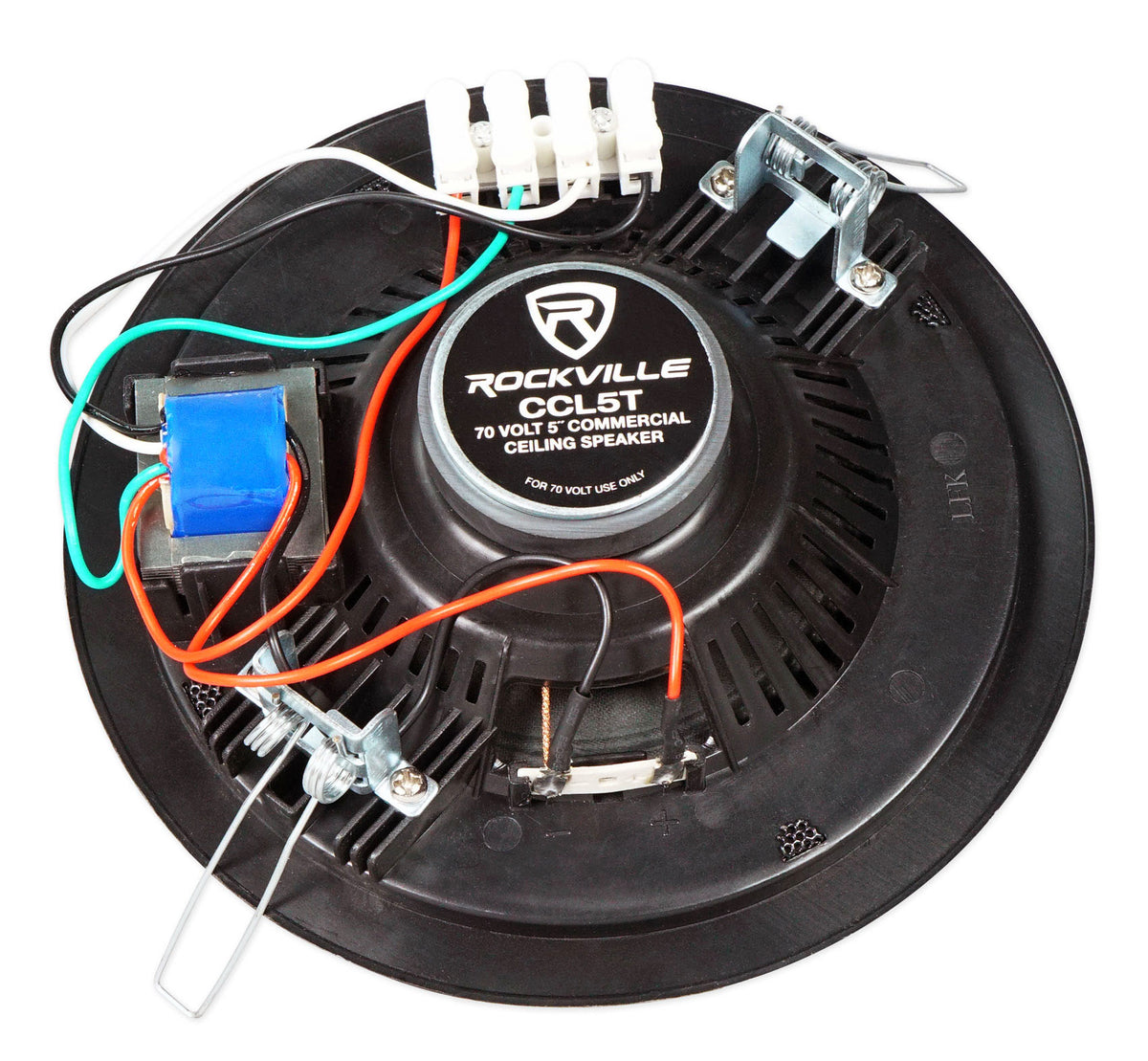

Paintable grilles, spring-loaded push terminals, and a 5.98-inch cutout support a clean ceiling installation with dependable connections for commercial spaces.
Technical Specifications
- Product Type 70V Mixer Amplifier and Flush-Mount Ceiling Speaker System
- Amplifier Power 120 W
- Amplifier Frequency Response 20 Hz - 20 kHz
- Amplifier Inputs 8
- Amplifier Outputs 2
- Bluetooth Yes
- Amplifier THD Less than 0.5%
- Signal-to-Noise Ratio More than 76 dB
- Output Modes 4 ohms, 8 ohms, 70V, and 100V
- Phantom Power 27 VDC
- Nominal AC Line Voltages 100V, 120V, 220V, and 220-240V at 50/60 Hz
- Input Impedance Mic: 400 ohms; balanced line: 20 kOhms; RCA: 50 kOhms
- Input Sensitivity Mic: 5.5 mVRMS; line: 1.3 VRMS; RCA stereo: 130 mVRMS
- Crosstalk -70 dB
- Insertion Loss 1 dB maximum
- Tone Control Bass +/-14 dB at 50 Hz; Treble +/-14 dB at 10 kHz
- Output Controls Independent bass and treble per output channel
- Speaker Quantity 24
- Speaker Size 5 in
- Speaker Transformer Taps 1.25 W, 2.5 W, and 5 W
- Speaker Frequency Response 100 Hz - 17 kHz
- Speaker Sensitivity 86 dB at 1 W / 1 m
- Speaker Impedance 2K, 4K, and 8K ohms
- Speaker Voice Coil 0.5 in
- Speaker Magnet 1.7 oz ferrite
- Speaker Cone Double paper

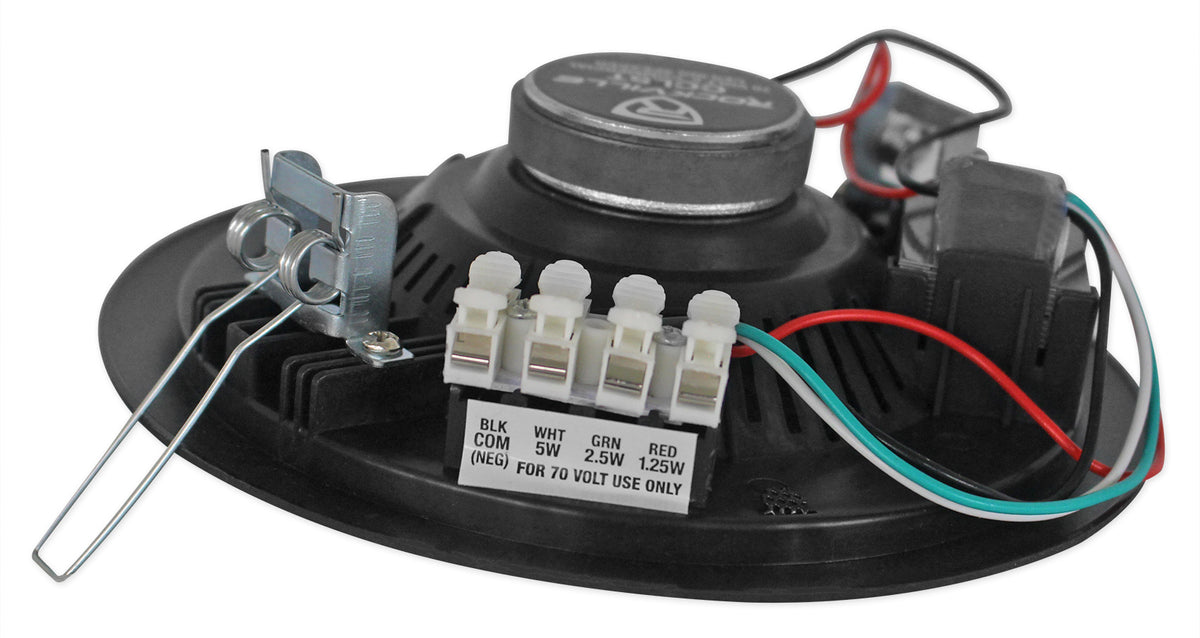

- Speaker Connection Fireproof screw terminal block and spring-loaded push terminals
- Speaker Mounting Depth 1.77 in
- Speaker Cutout Diameter 5.98 in
- Color Black, paintable
- Weight 29.3 lb
- Dimensions 17 in W x 16.3 in D x 3.5 in H
