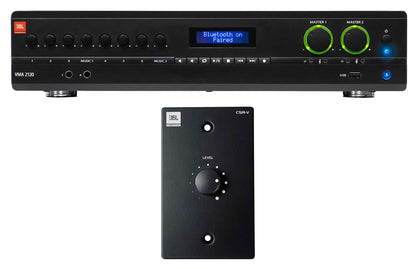

VMA2120 with CSR-V Wall Volume Control
VMA2120 with CSR-V Wall Volume Control
120W 70V Bluetooth Mixer Amplifier, 8 Inputs, Rack Mount Kit, Wall Volume Controller
Free Shipping
Features
- 120W mixer amplifier powers 70V/100V lines or 4 and 8 ohm speakers
- Eight inputs cover mics, line-level sources, and an RCA stereo input
- Built-in Bluetooth streams background music from a phone or tablet
- Paging chime and priority muting lower music for announcements
- Included CSR-V wall controller adjusts volume over Cat 5 up to 1000 ft
Couldn't load pickup availability

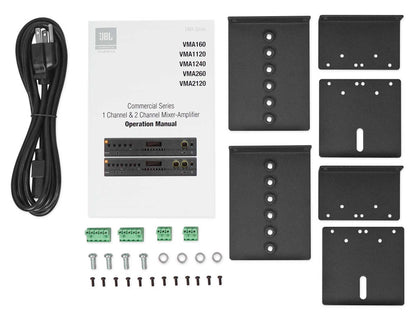

What's Included in the box

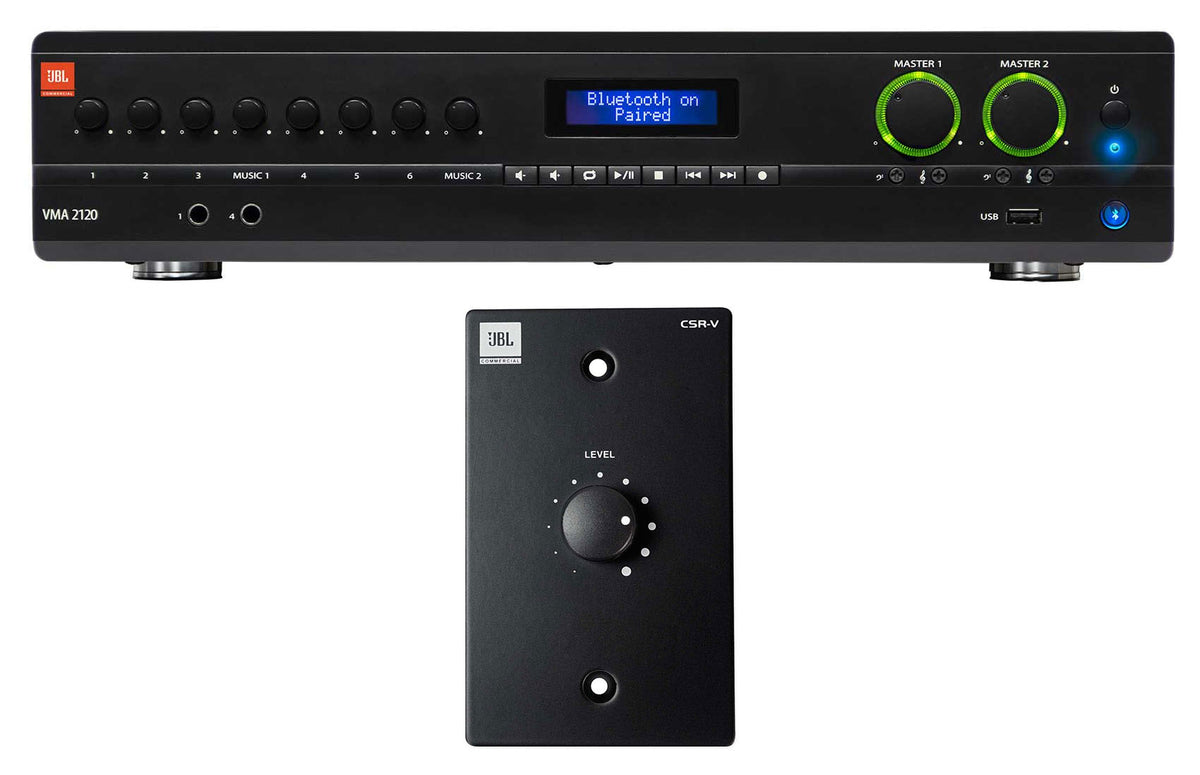

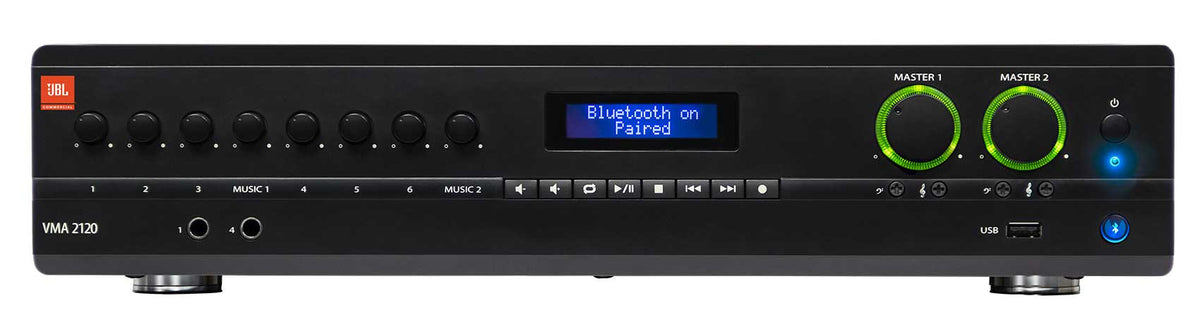

- (1) JBL VMA2120 120W 70V Bluetooth Mixer Amplifier

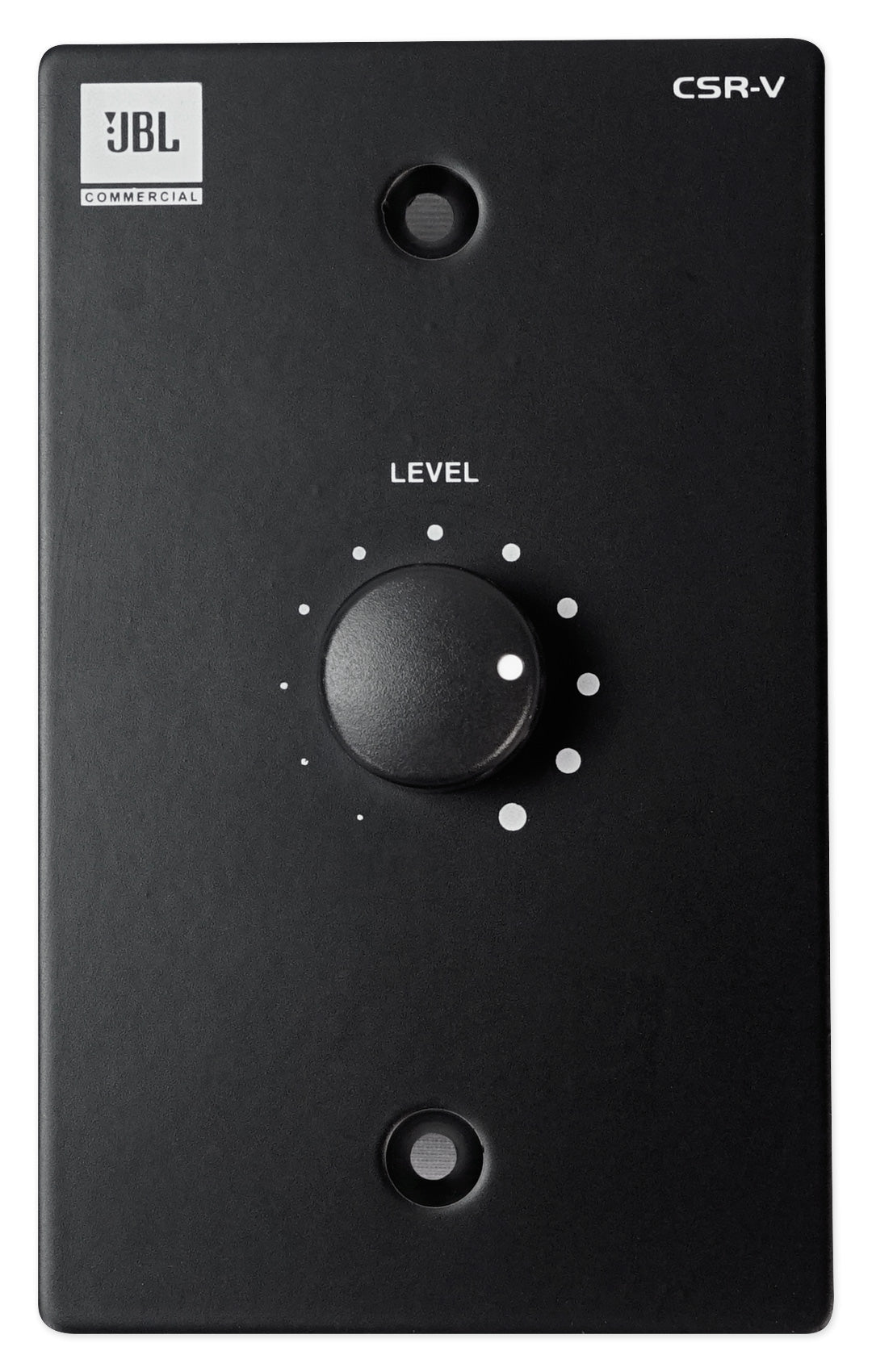

- (1) JBL CSR-V Black Wall Volume Controller

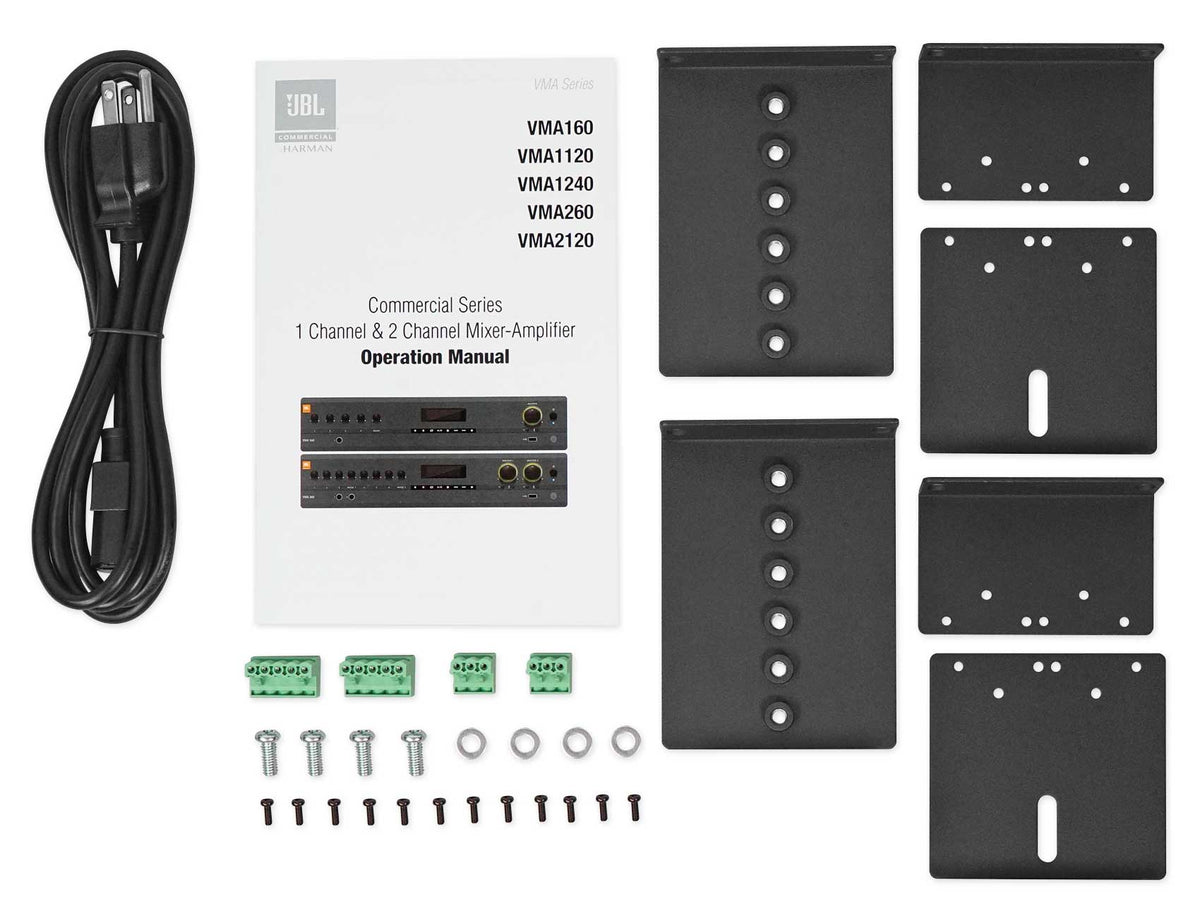

- Rack Mounting Hardware
SKU: SKU: VMA2120+CSR-V-BLK
View full details








Product Description

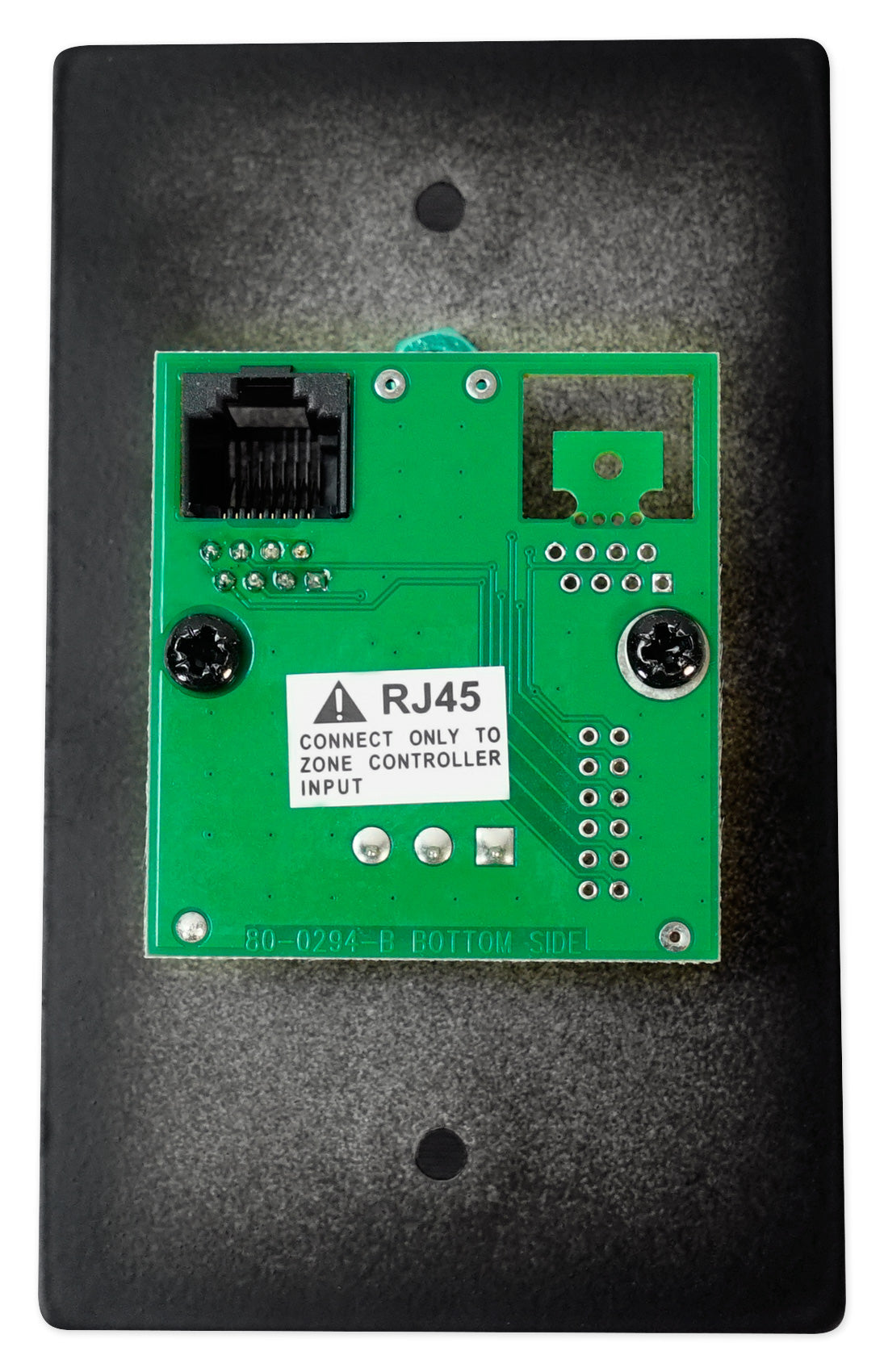

This bundle also includes a CSR-V black wall volume controller, so staff can adjust levels from the wall instead of walking back to the equipment rack. It connects over standard Cat 5 cable with RJ-45 connectors at runs up to 1000 ft (305 m), giving you freedom to mount it wherever your team actually works. Rack mounting hardware comes in the box for a clean install in a standard equipment rack.
Features
Built for Commercial Spaces
Low impedance 4 and 8 ohm outputs plus 70V and 100V distributed outputs let one amplifier power a small café setup or a long run of ceiling speakers.
Room for Every Source
Eight inputs, including mic, balanced line, and RCA stereo, plus 27VDC phantom power handle condenser microphones, music players, and paging mics from a single chassis.
Stream Music Without Cables
Built-in Bluetooth lets staff play background music straight from a phone or tablet, so there is no need for a separate receiver in the rack.
Clear Announcements on Demand
A paging chime and priority muting automatically lower the music when someone speaks, so customers hear announcements clearly in dining rooms, stores, and waiting areas.
Volume Control at the Wall
The included CSR-V controller connects over Cat 5 cable with RJ-45 connectors up to 1000 ft away, letting staff change levels without visiting the equipment rack.
Technical Specifications
- Product Type Commercial Mixer Amplifier and Wall Volume Controller Bundle
- Max Output Power 120W
- Number of Inputs 8
- Number of Outputs 2

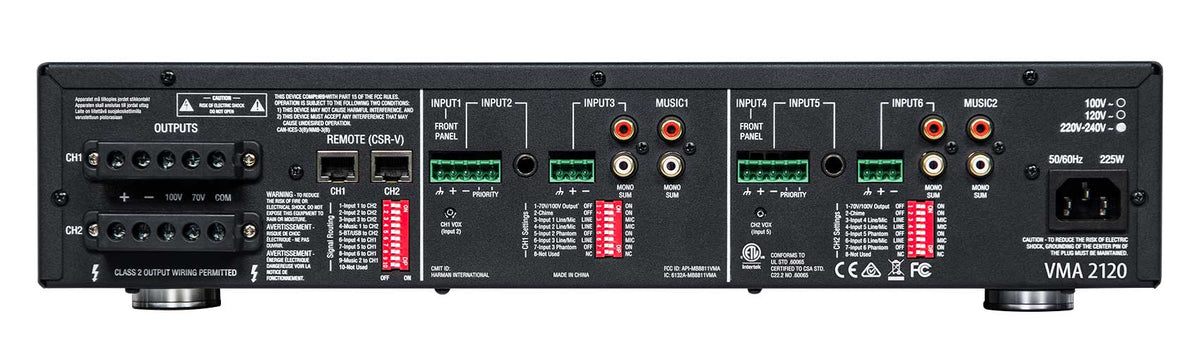

- Output Options 4 ohm, 8 ohm, 70V, 100V
- Bluetooth Yes
- Frequency Response 20 Hz - 20 kHz
- THD Less than 0.5%
- Signal-to-Noise Ratio Greater than 76 dB
- Input Impedance Mic: 400 ohm, Line: 20k ohm (balanced), RCA: 50k ohm
- Input Sensitivity Mic: 5.5 mV RMS, Line: 1.3V RMS, RCA: 130 mV RMS
- Phantom Power 27VDC
- Crosstalk -70 dB
- Tone Controls Bass +/-14 dB at 50 Hz, Treble +/-14 dB at 10 kHz, per output channel
- Paging Paging Chime, Priority Muting
- Insertion Loss 1 dB Maximum
- AC Line Voltage 100V, 120V, 220V, 220-240V, 50/60 Hz
- Rack Mountable Yes, hardware included
- Remote Controller CSR-V Wall Volume Controller, Black
- Remote Connection Cat 5 cable, dual RJ-45 connectors
- Max Remote Cable Run 1000 ft (305 m)
- Amplifier Weight 29.3 lb
- Amplifier Dimensions (W x D x H) 17 x 16.3 x 3.5 in
