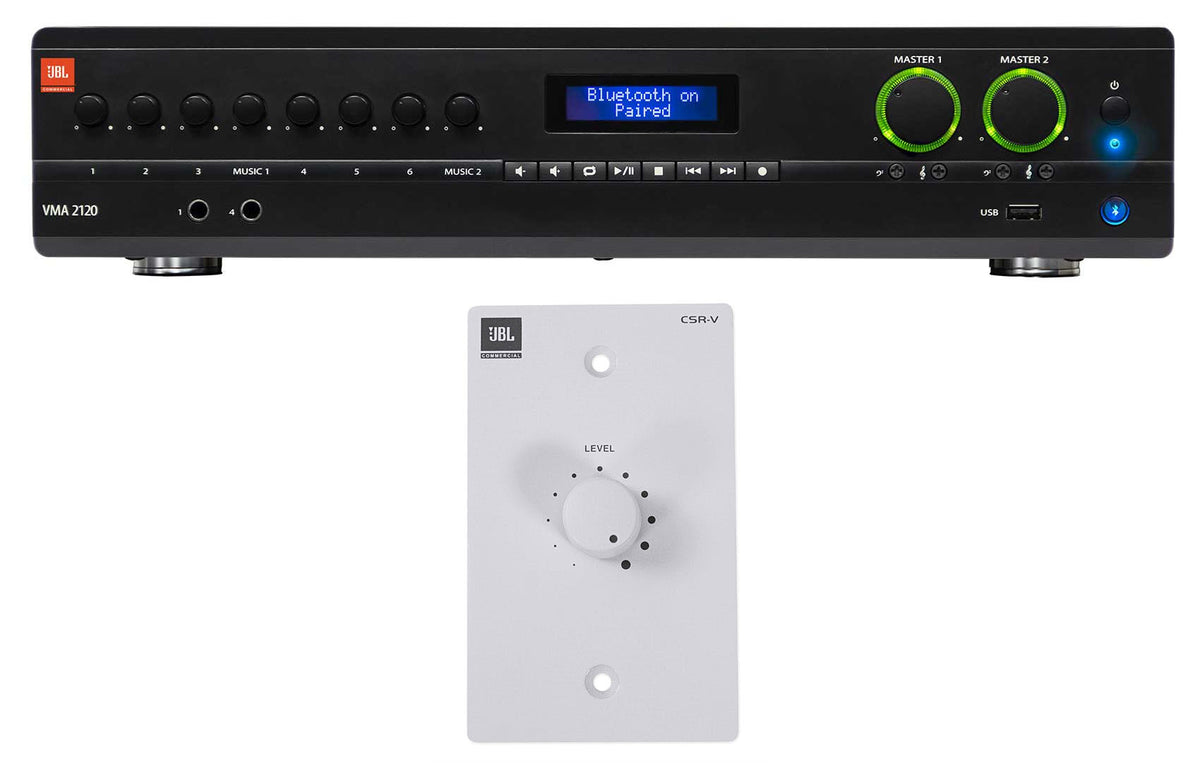

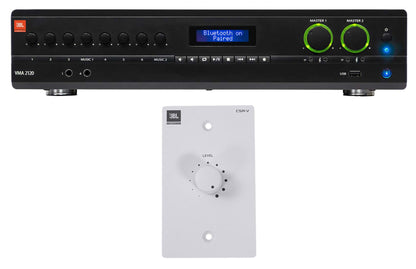

VMA2120 Amplifier + CSR-V Wall Volume Control, White
JBL
VMA2120 Amplifier + CSR-V Wall Volume Control, White
VMA2120 Amplifier + CSR-V Wall Volume Control, White
120W 70V Bluetooth Mixer Amplifier, 8 Inputs, Wall Volume Control, Restaurants, Retail
Free Shipping
Features

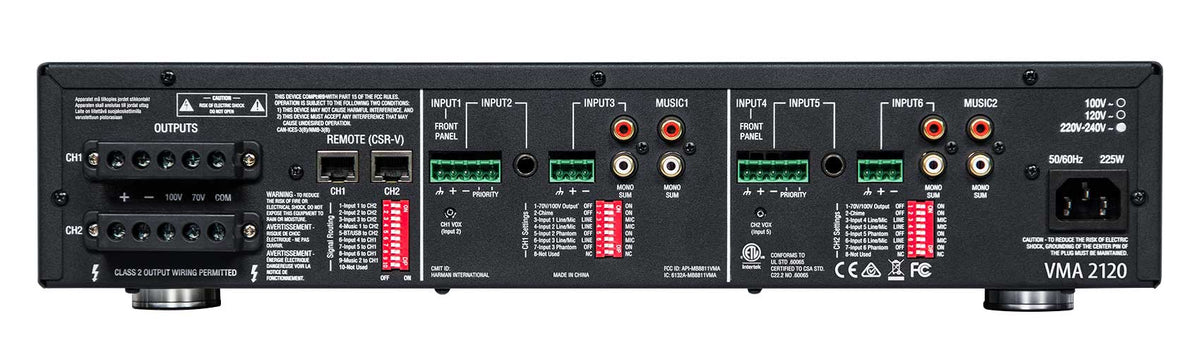

- 120W two-channel mixer amplifier runs 4/8 ohm, 70V, and 100V speaker systems
- Eight inputs handle mics, balanced line sources, and RCA stereo gear

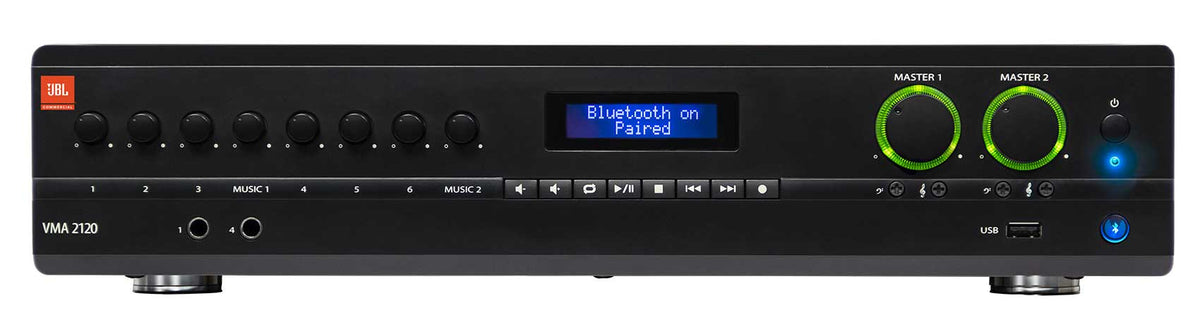

- Built-in Bluetooth streams background music straight from a phone or tablet
- Paging chime and priority muting lower music automatically for announcements

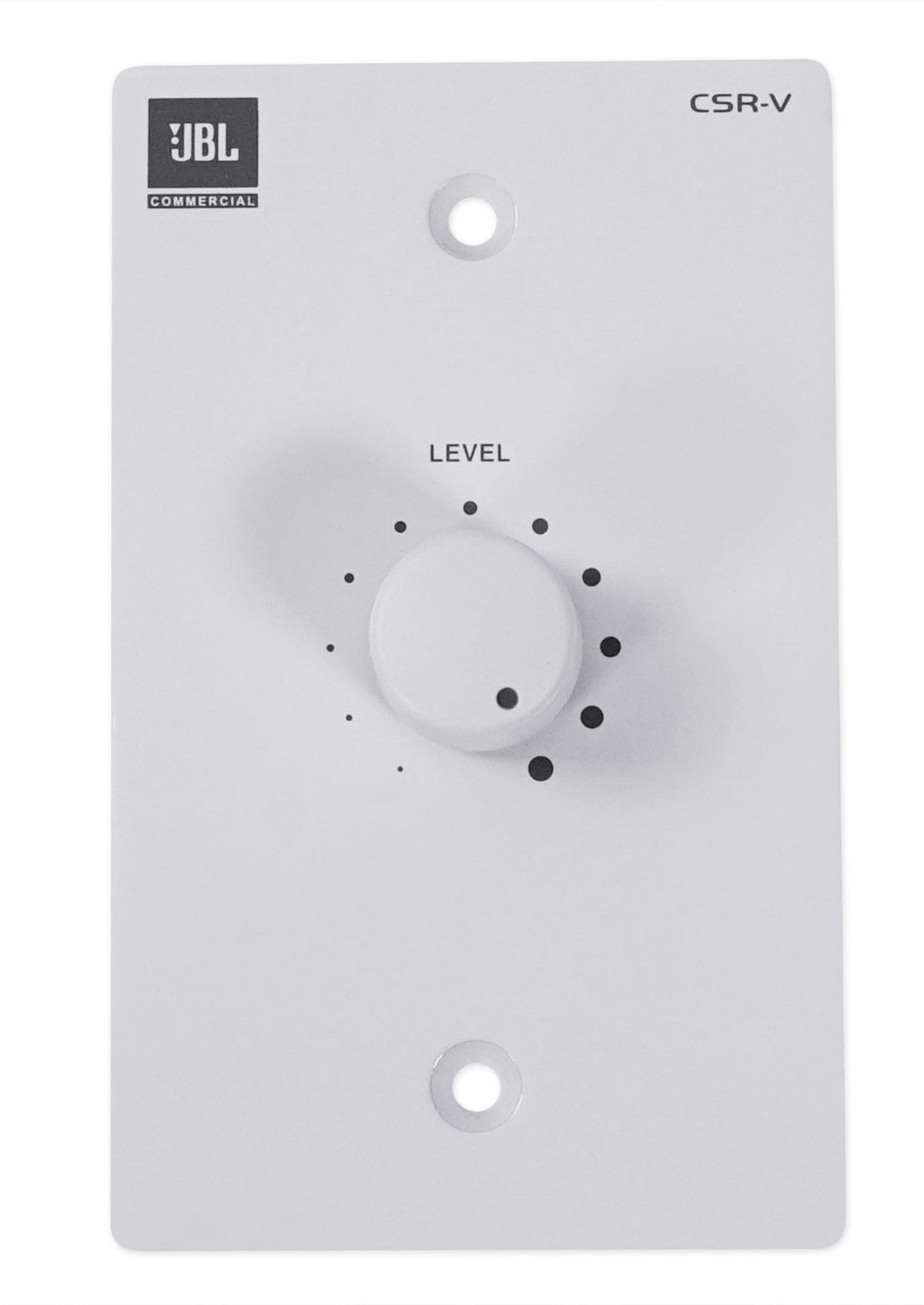

- White CSR-V wall controller adjusts volume over Cat 5 runs up to 1,000 ft
Couldn't load pickup availability

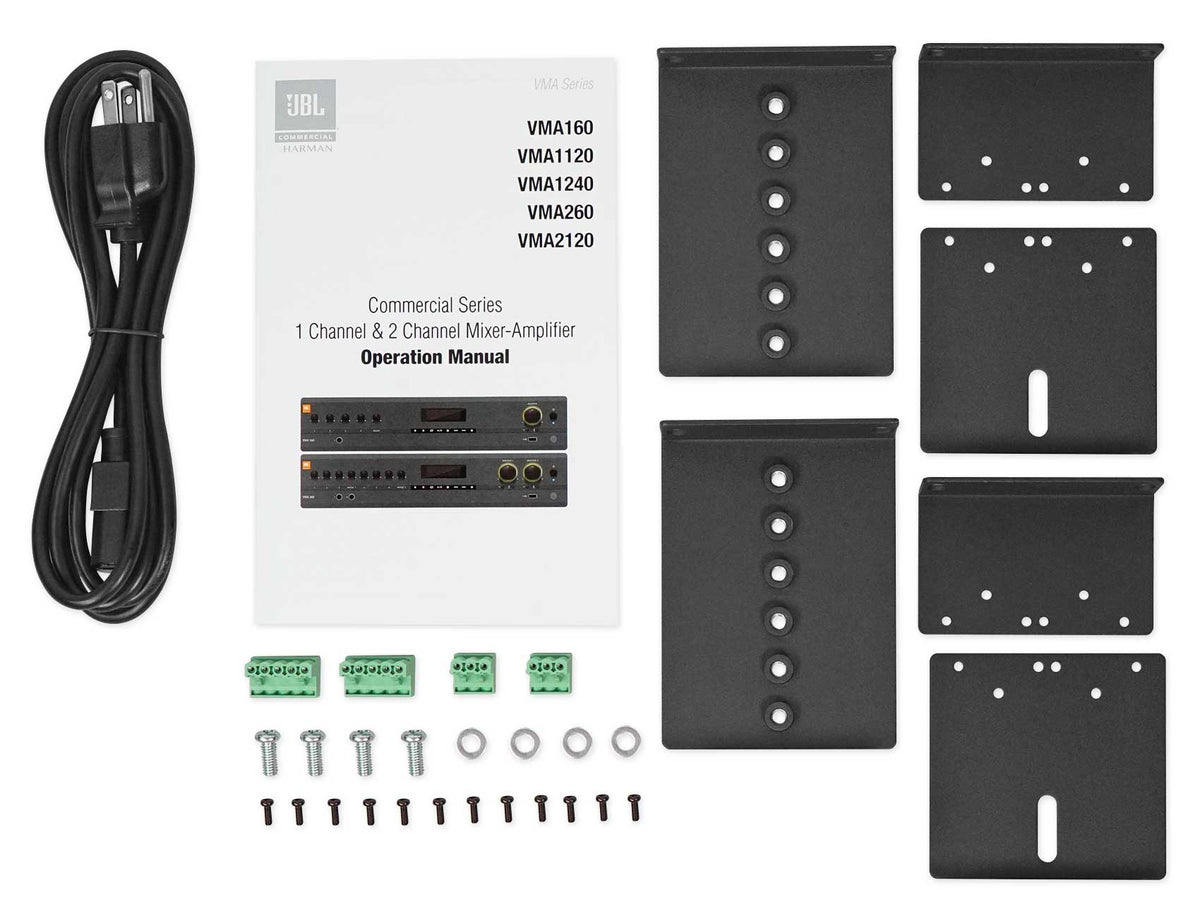

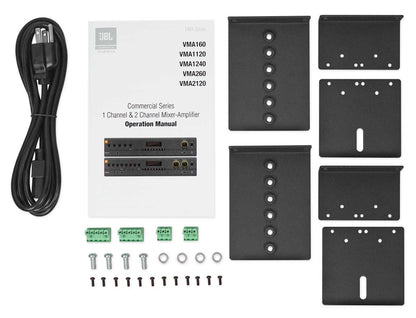

What's Included in the box
- (1) JBL VMA2120 2-Channel 120W 70V/100V Bluetooth Mixer Amplifier
- (1) JBL CSR-V Wall Volume Controller, White
- Rack Mounting Hardware
SKU: SKU: VMA2120+CSR-V-WHT
View full details









Product Description
Each output channel has its own bass and treble controls (+/-14 dB), so you can tune a bar area and a patio separately. The included white CSR-V wall controller puts volume adjustment where your team actually works, and nobody has to walk to the equipment rack to turn the music down during a busy shift. It connects over standard Cat 5 cable with RJ-45 connectors at runs up to 1,000 ft, which makes it easy to mount at a host stand, front counter, or back office far from the amp. Rack mounting hardware comes with the amplifier for a clean install in a standard equipment rack.
Features
Power for Any Commercial Room
120W across two channels with low impedance and 70V/100V outputs lets you power a few speakers in a cafe or long ceiling speaker runs across a store.
Connect Every Source
Eight inputs accept microphones, balanced line gear, and RCA stereo sources, and 27V phantom power runs condenser mics for clear announcements from the host stand.
Wireless Music Streaming
Built-in Bluetooth lets staff play music from a phone or tablet, so background playlists start without extra players or cables running to the rack.
Pages That Cut Through
A paging chime and priority muting lower the music the moment someone speaks, while independent bass and treble on each channel let you tune every zone.

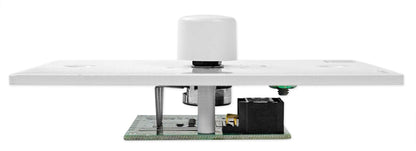

Volume Control on the Wall
The white CSR-V controller connects over Cat 5 cable with RJ-45 jacks up to 1,000 ft away, putting music volume within reach at the counter or bar.
Technical Specifications
- Product Type Commercial Mixer Amplifier and Wall Volume Controller Bundle
- Amplifier JBL VMA2120
- Max Output Power 120W
- Channels 2
- Output Modes 4 Ohm, 8 Ohm, 70V, 100V
- Frequency Response 20 Hz - 20 kHz
- THD Less than 0.5%
- Signal-to-Noise Ratio Greater than 76 dB
- Crosstalk -70 dB
- Inputs 8
- Outputs 2
- Input Impedance Mic: 400 Ohms, Line: 20 kOhms (Balanced), RCA: 50 kOhms
- Input Sensitivity Mic: 5.5 mV RMS, Line: 1.3 V RMS, RCA: 130 mV RMS
- Phantom Power 27V DC
- Tone Controls Bass +/-14 dB @ 50 Hz, Treble +/-14 dB @ 10 kHz, Per Channel
- Insertion Loss 1 dB Maximum
- Bluetooth Yes
- Paging Features Paging Chime, Priority Muting
- AC Line Voltage 100V, 120V, 220V, 220-240V, 50/60 Hz
- Rack Mountable Yes, Hardware Included
- Remote Controller JBL CSR-V Wall Volume Control
- Controller Color White

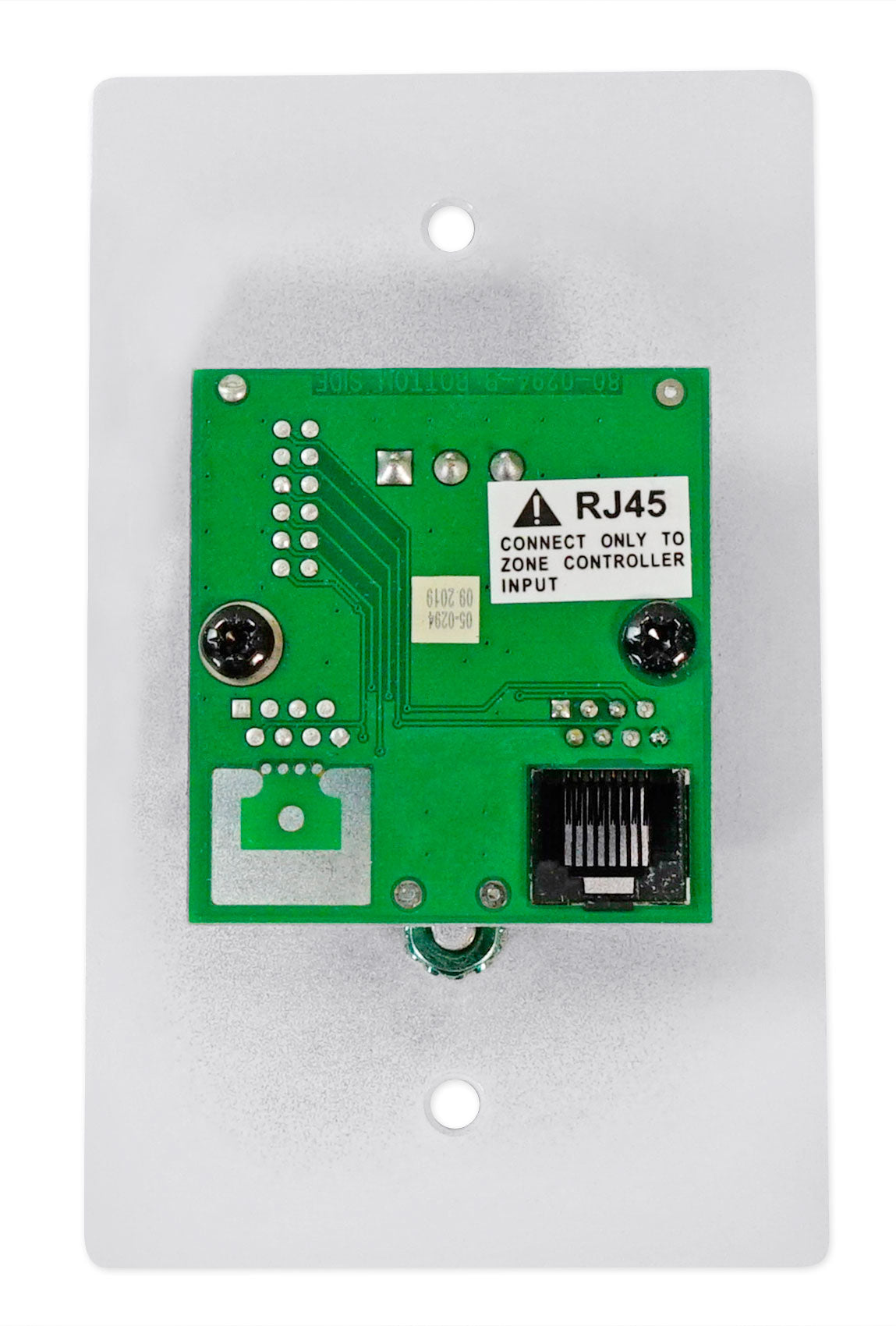

- Controller Connection Dual RJ-45, Cat 5 Cable
- Controller Max Cable Run 1,000 ft (305 m)
- Amplifier Weight 29.3 lb
- Amplifier Dimensions (W x D x H) 17" x 16.3" x 3.5"
