VRX918SP + ATW-3212/C710EE1
JBL
VRX918SP + ATW-3212/C710EE1
VRX918SP + ATW-3212/C710EE1

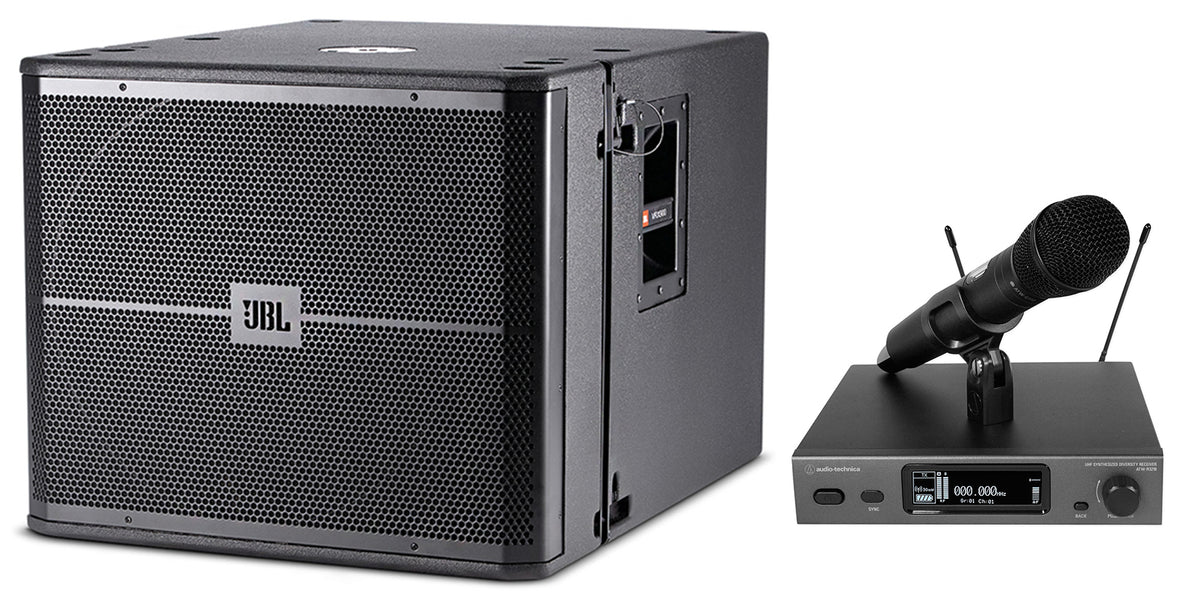

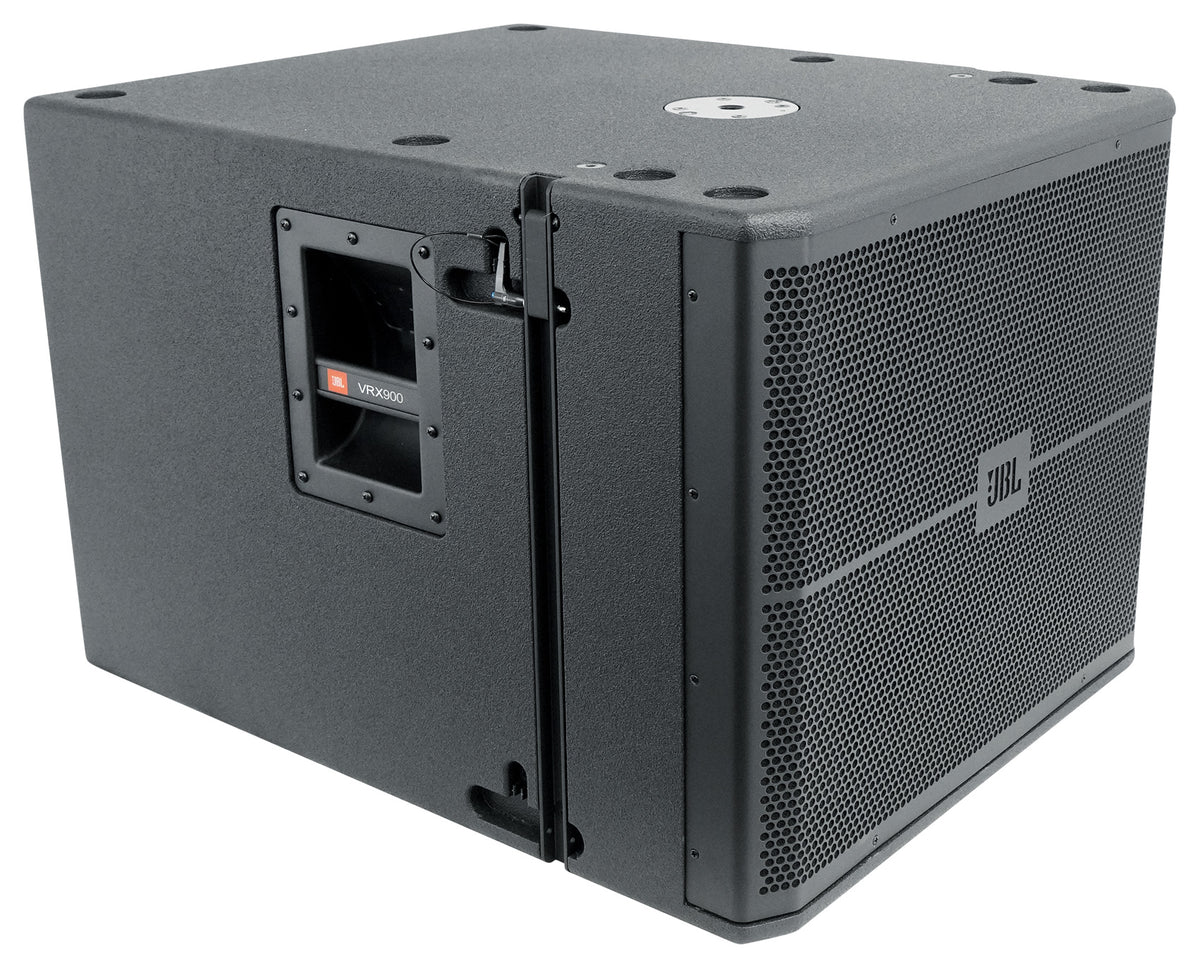

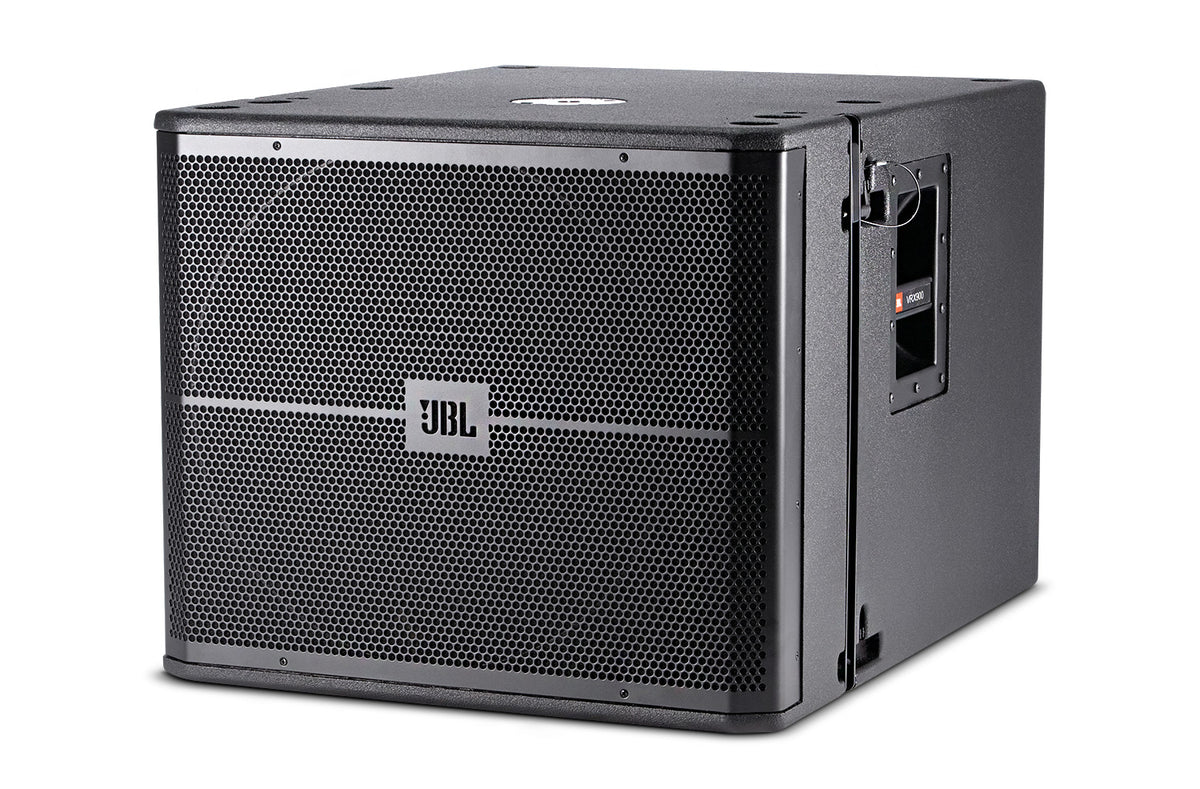

18-Inch Powered 1500 W Subwoofer, 60 MHz Handheld Wireless System, ATW-R3210 Receiver And C710 Capsule
Features
- 1500 W peak powered 18-inch subwoofer with DSP system processing
- 31 Hz to 220 Hz frequency range supports full low-frequency coverage
- 60 MHz UHF wireless system with EE1 band coverage
- True diversity reception and backup frequency switching reduce interruptions
- Flyable rigging hardware and 20 mm pole socket support flexible setup
Couldn't load pickup availability
What's Included in the box

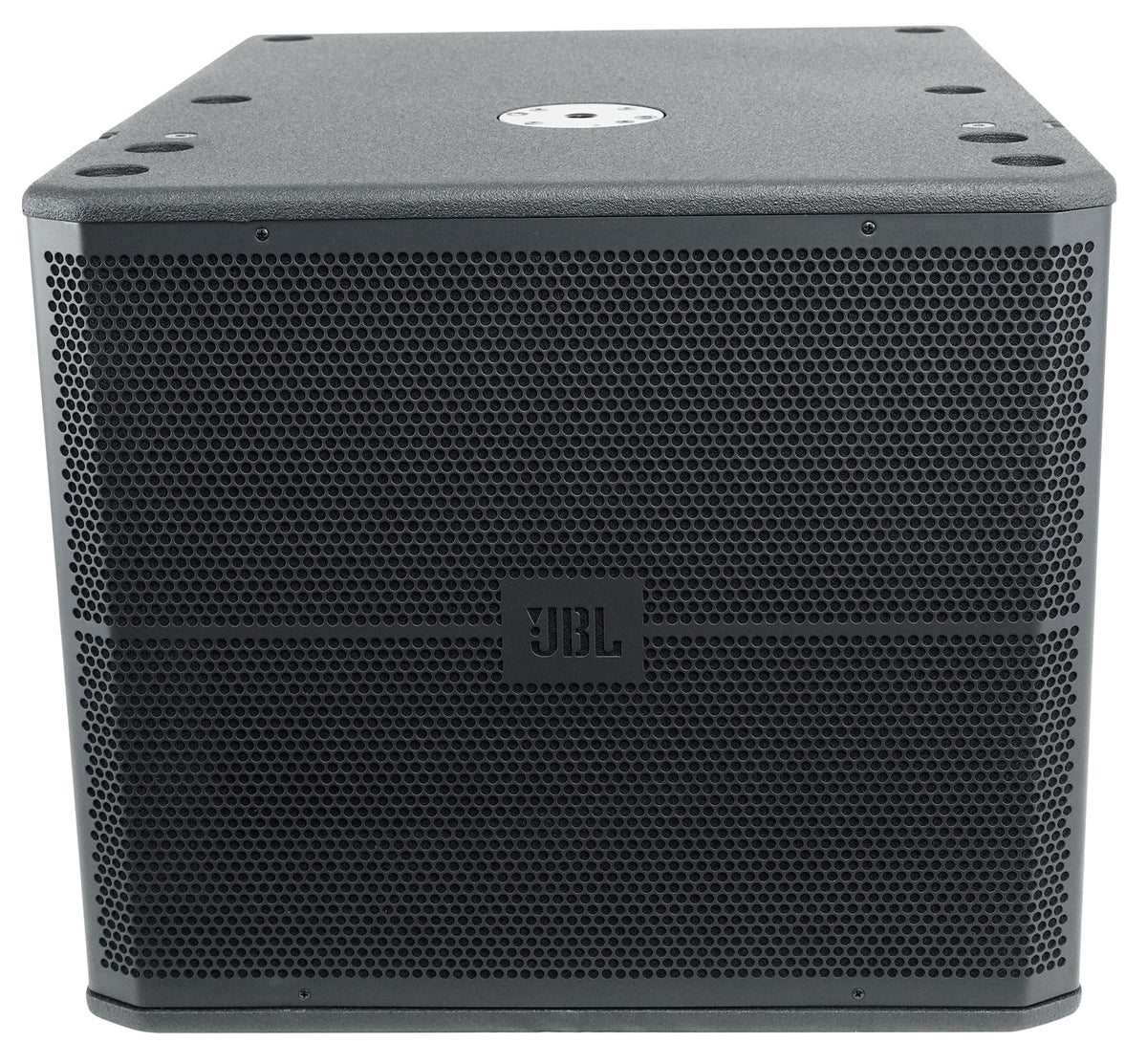

- VRX918SP powered 18-inch subwoofer

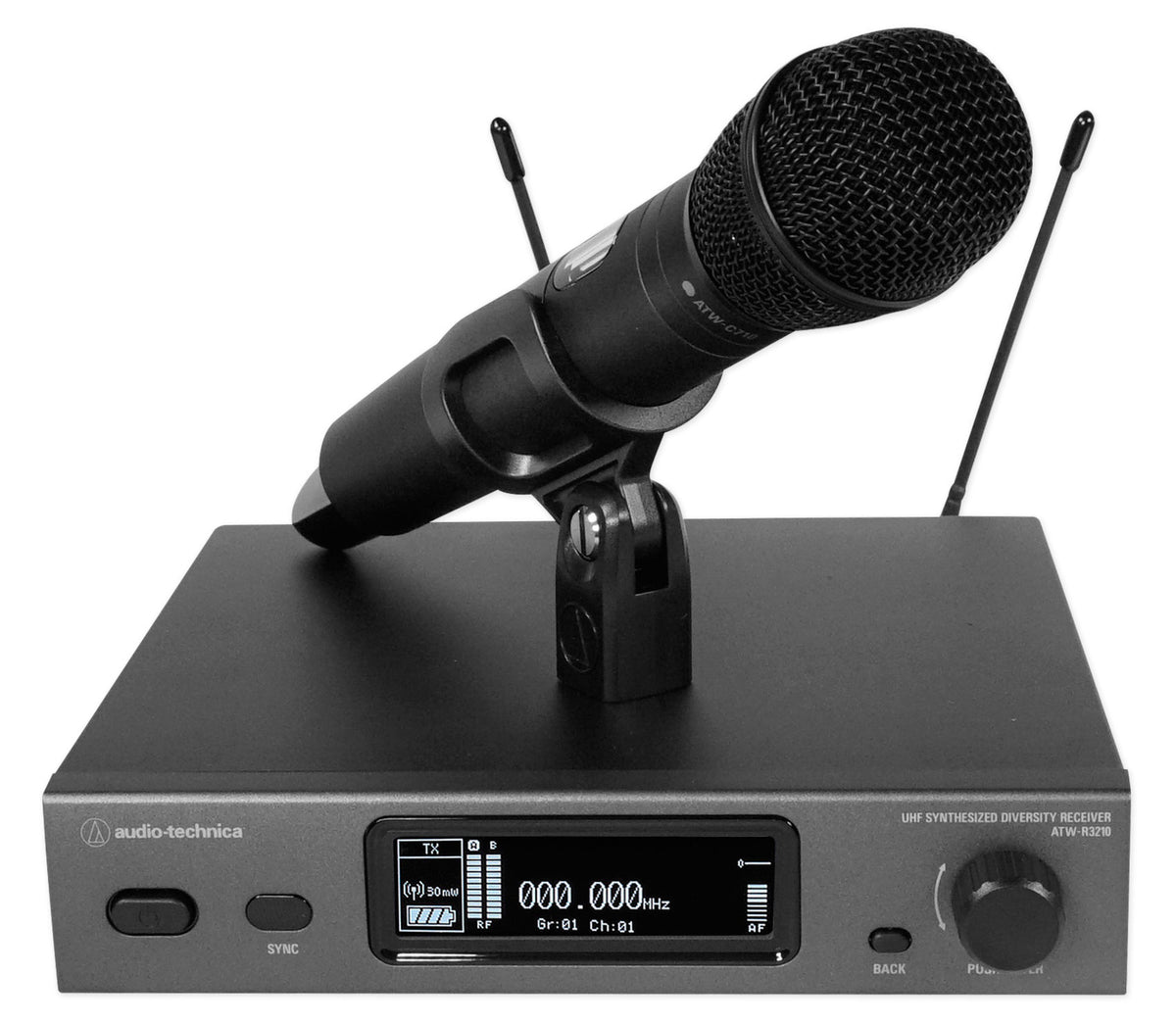

- ATW-R3210 receiver
- ATW-T3202 handheld transmitter
- ATW-C710 cardioid condenser microphone capsule
SKU: SKU: VRX918SP+ATW-3212/C710EE1
View full details











Product Description
Features
Focused Low-End Output
The 18-inch front-loaded, vented enclosure pairs 1500 W peak power with DSP processing and a 31 Hz to 220 Hz range for full bass response.
Array-Ready Construction

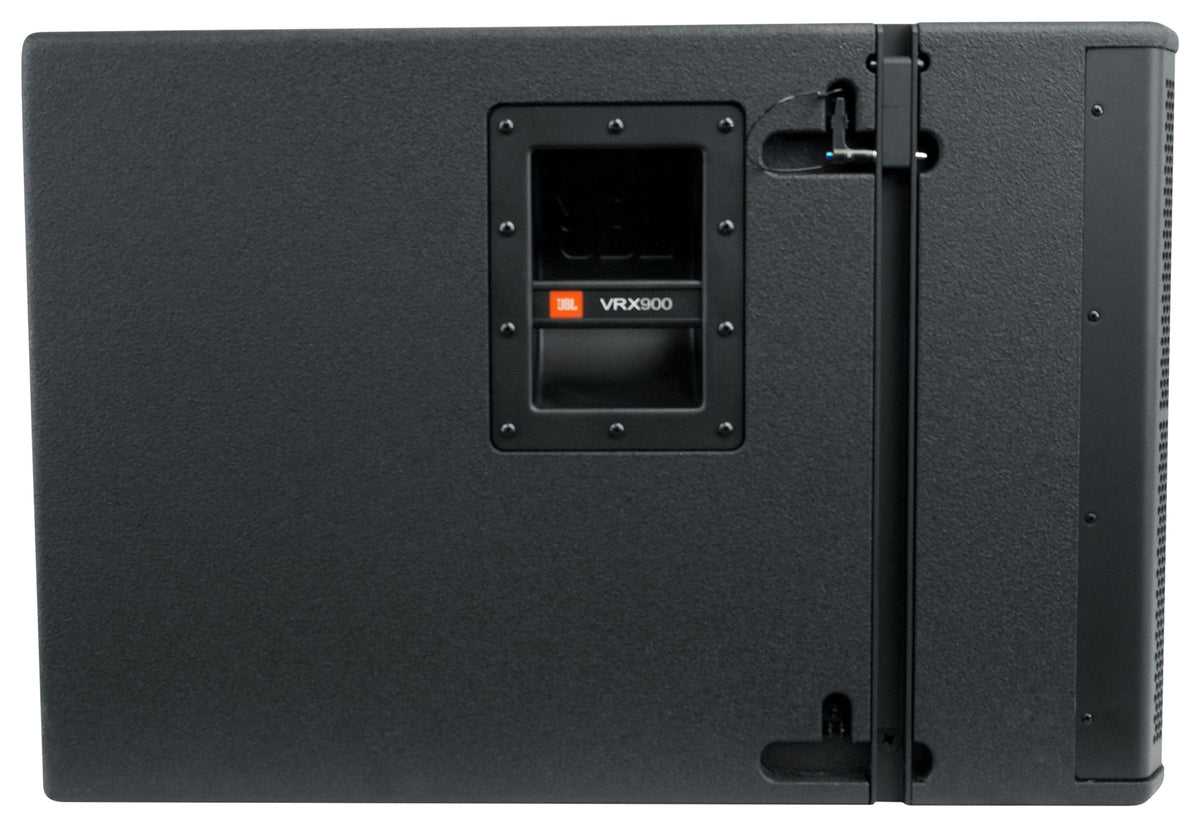

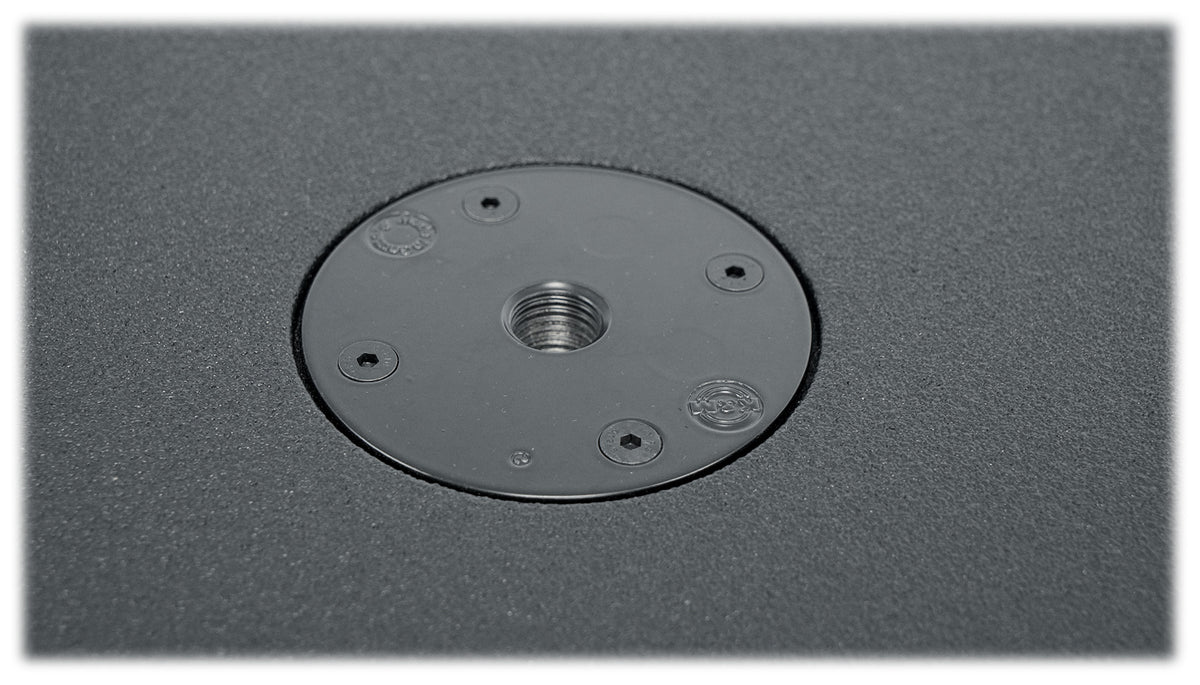

Integral rigging hardware, a 20 mm threaded pole socket, and a birch plywood enclosure give installers practical options for suspended or pole-mounted systems.
Cleaner Signal Management
Input attenuation, selectable 80 Hz or 120 Hz low pass, and DSP limiters help tailor crossover behavior while protecting the system from thermal and mechanical stress.
Stable Wireless Performance
A 60 MHz UHF tuning range, true diversity operation, auto squelch, and frequency scanning help maintain a dependable microphone link in crowded RF spaces.
Flexible Connection Options
Balanced and unbalanced receiver outputs, antenna power, OLED screens, and IR sync fit mixer workflows from quick announcements to installed sound systems.
Technical Specifications
- Product Type Powered Subwoofer And UHF Wireless Handheld Microphone System
- Power Rating 1500 W peak
- Frequency Range 31 Hz to 220 Hz
- Frequency Response (-10 dB) 31 Hz to 220 Hz
- Maximum Peak Output 126 dB SPL at 1 m
- LF Driver 1 x 457 mm (18 in) dual voice coil woofer with neodymium magnet
- Nominal Impedance LF: 2 x 2 ohms

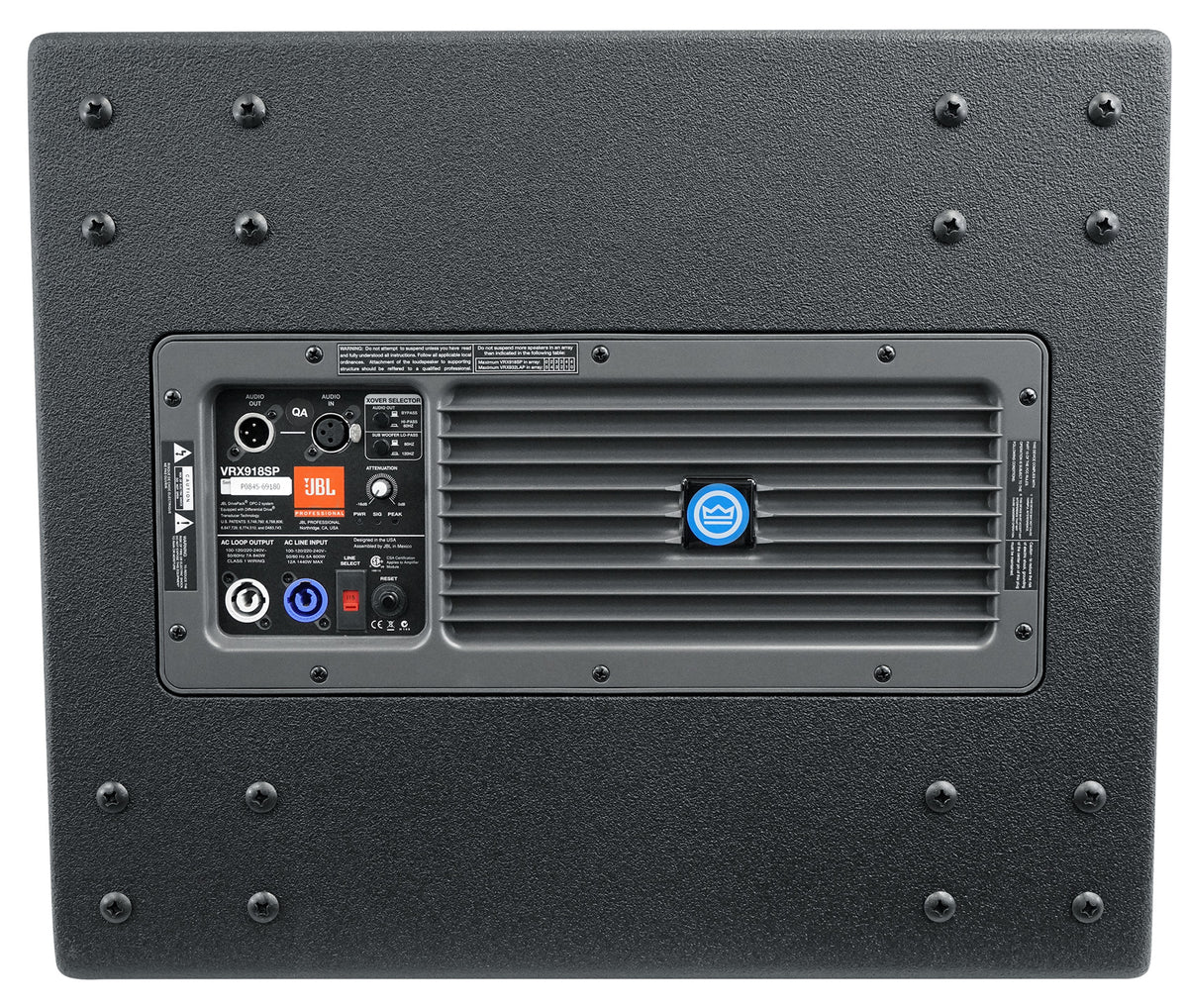

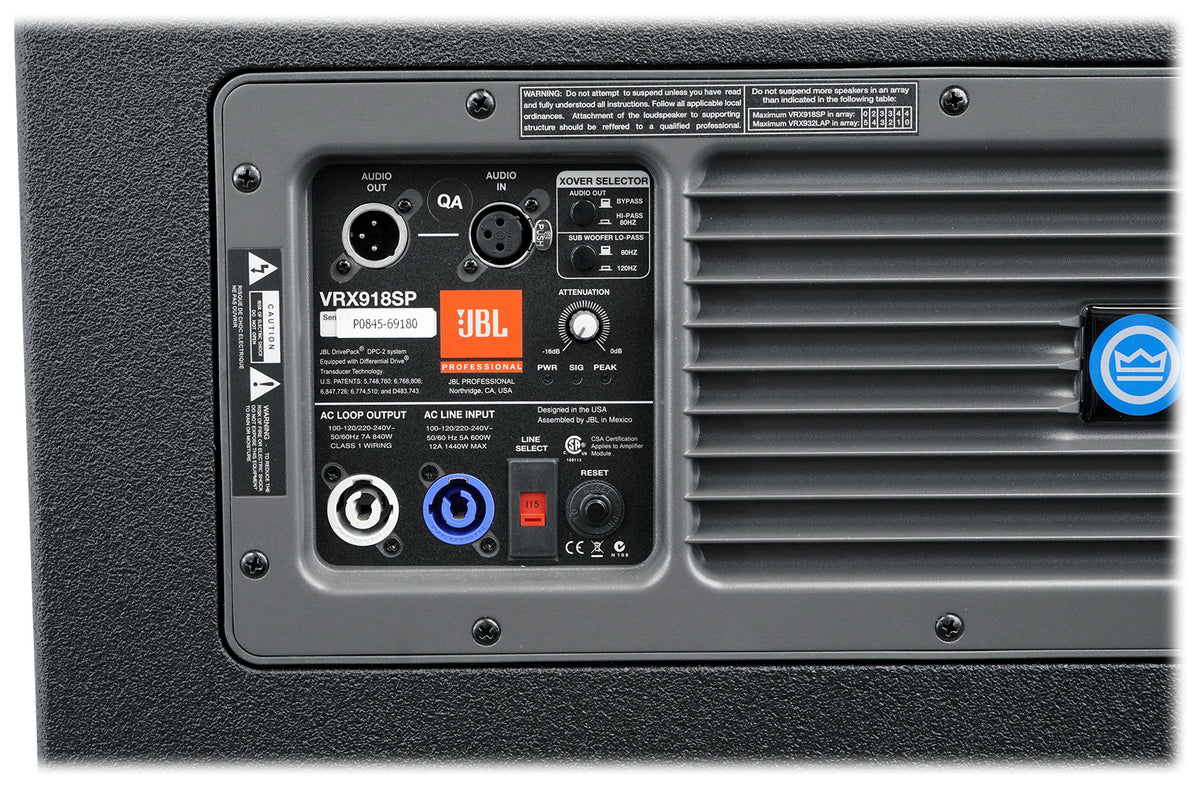

- Inputs XLR with loop through
- Outputs 1 x XLR
- User Controls Input attenuator (0 to 16 dB), selectable 80 Hz or 120 Hz low pass, 80 Hz high-pass on/off for XLR loop through
- System Processing DSP-based, resident in input module
- System Management DSP-based limiters for mechanical and thermal protection
- AC Power Operating Range 90 to 132 VAC or 216 to 264 VAC, 50/60 Hz
- AC Line Voltage User selectable 120 V or 240 V, -15 percent/+10 percent
- AC Current Requirements 6 A per system at 120 V, 3 A per system at 240 V
- Enclosure 18 mm birch plywood
- Suspension / Mounting Optional line-array frame kit or 10 mm forged eyebolts
- Finish Black finish
- Grille Powder-coated black 16-gauge perforated steel with acoustically transparent foam
- Wireless System 60 MHz UHF tuning range, EE1 band (530 to 590 MHz)
- Receiver ATW-R3210
- Handheld Transmitter ATW-T3202
- Microphone Capsule ATW-C710 cardioid condenser, interchangeable
- Polar Pattern Cardioid
- Microphone Frequency Response 80 Hz to 20,000 Hz
- Microphone Impedance 60 ohms
- Microphone Power Requirements 5 V DC
- Battery Type Two 1.5 V AA batteries, not included
- Minimum Frequency Step 25 kHz
- Modulation Mode FM
- Output Connector Interchangeable industry-standard thread
- Weight 85 lb subwoofer; 114 g microphone capsule
- Dimensions 508 mm x 597 mm x 749 mm (20.0 in x 23.5 in x 29.5 in) subwoofer; capsule 84.4 mm long x 50.0 mm maximum diameter
